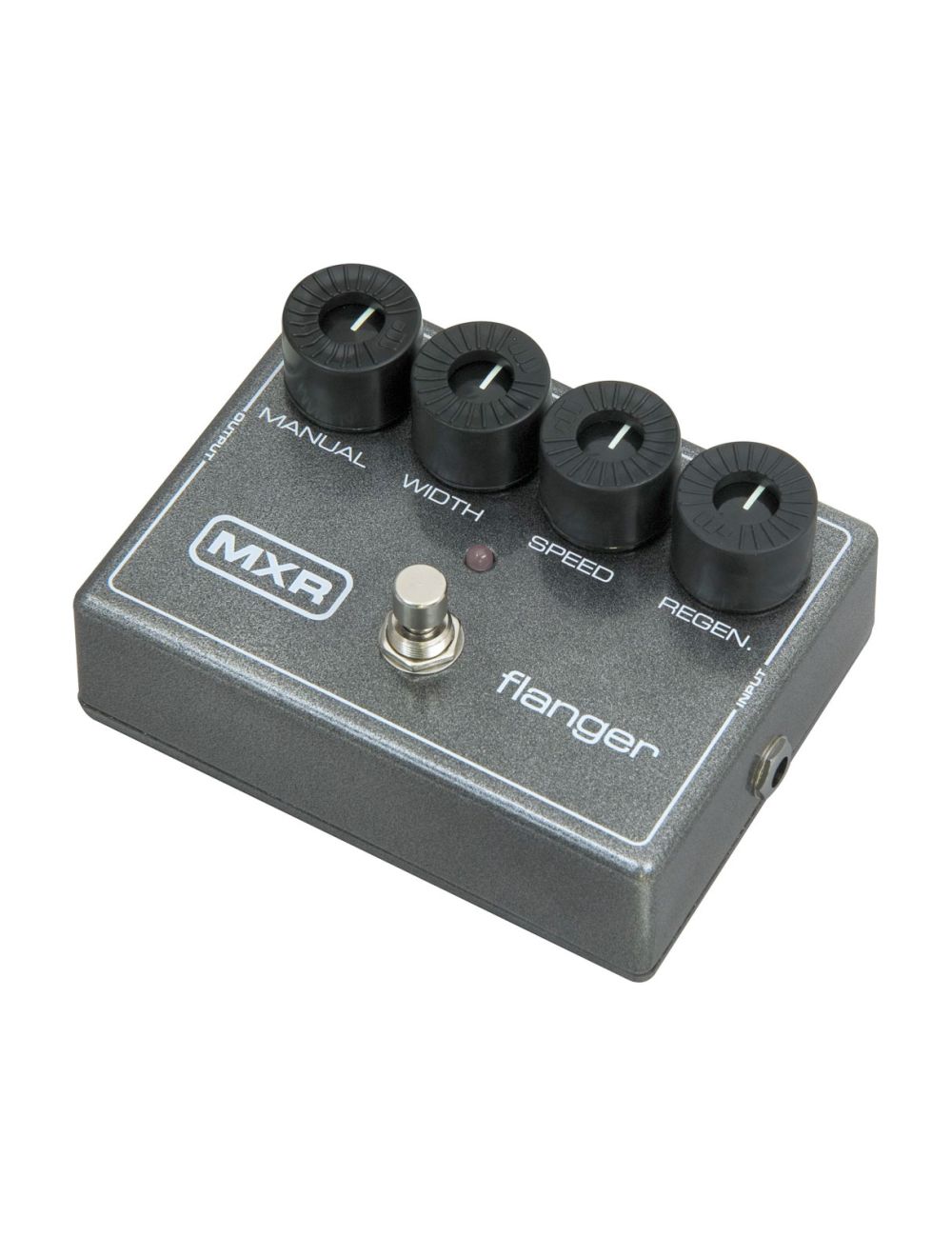

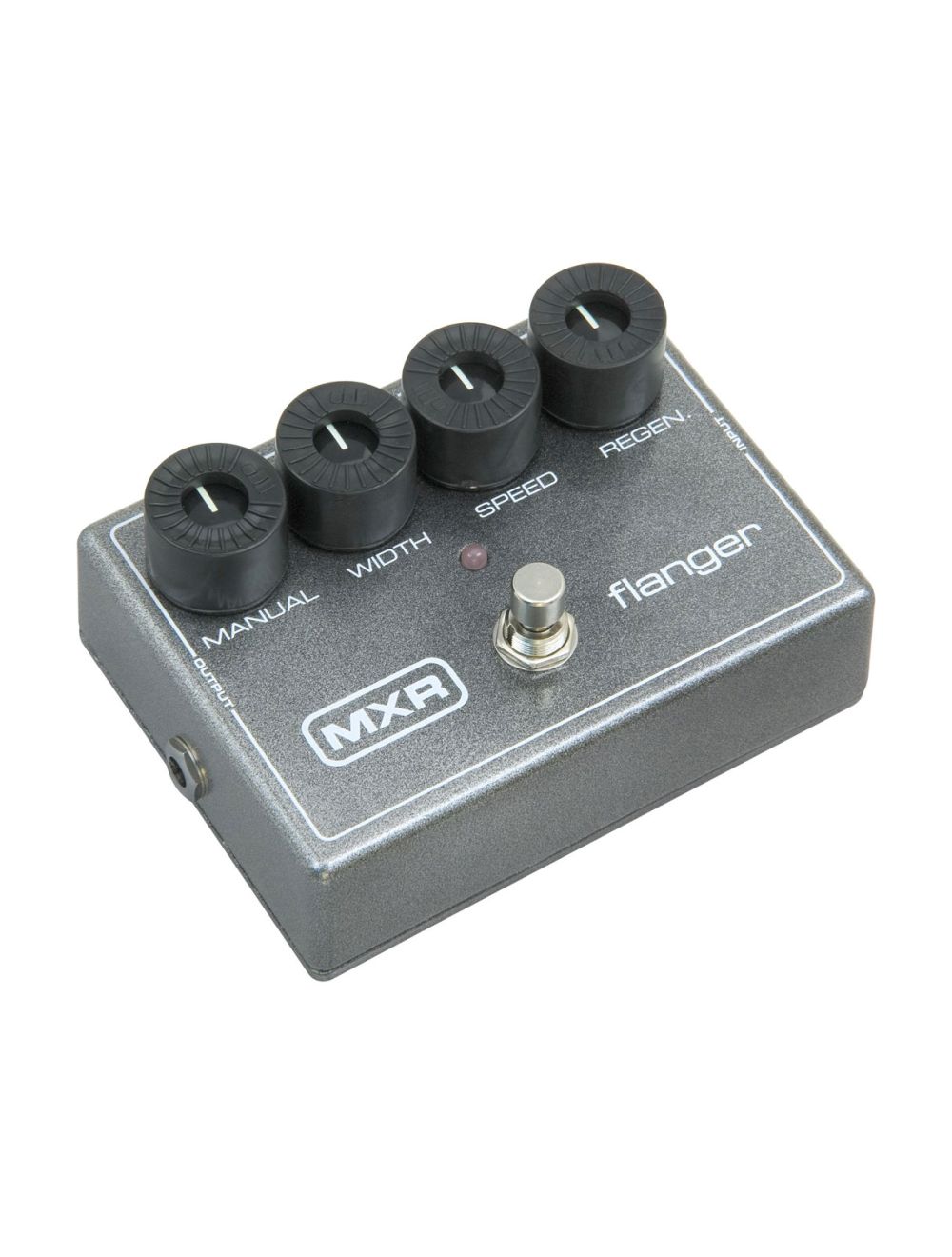

The MXR Flanger creates a variety of wild sounds from dynamic jet plane or cool space effects to short delay, chorus and vibrato.
The MXR Flanger creates a variety of wild sounds from dynamic jet plane or cool space effects to short delay, chorus and vibrato. Back off Width to zero to disengage auto-sweep, then use the Manual knob to physically place the effect anywhere along the frequency spectrum; use with guitar, bass, keyboards or vocals.
A staple of funky ’70s sounds, from jet plane to space effects
Numerous tweakable parameters
Does the work of a flanger, chorus, delay and more
Power

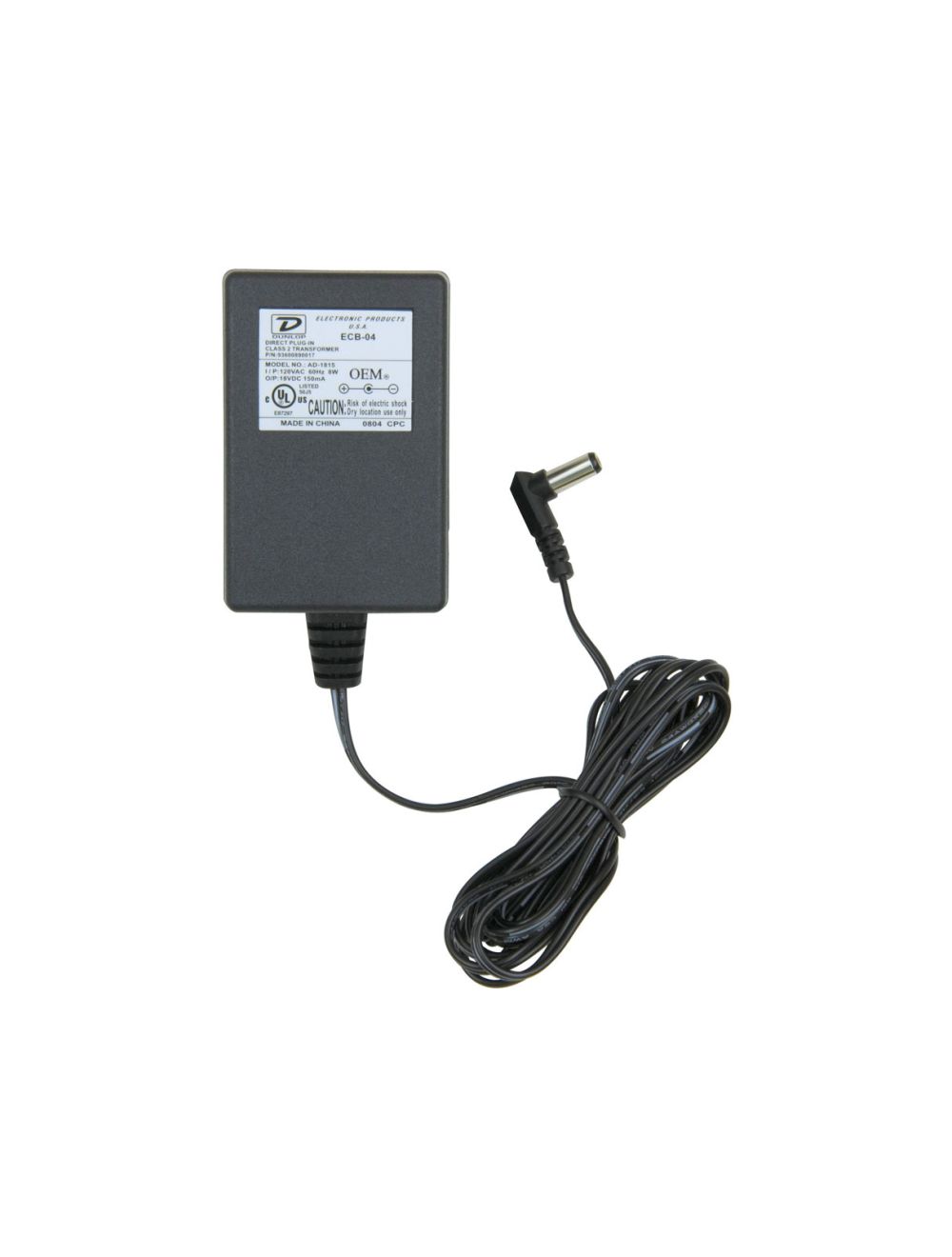

The MXR Flanger is powered by two 9-volt batteries (remove bottom plate to install), an 18-volt AC adapter such as the Dunlop ECB004/ECB004E, or a DC Brick power supply.
Directions
Run a cable from your guitar to the Flanger’s INPUT jack and run another cable from the Flanger’s OUTPUT jack to your amplifier.
Start with all controls at 12 o’clock.
Turn the effect on by depressing the footswitch.
Rotate the MANUAL control clockwise to emphasize higher frequencies or counterclockwise to emphasize lower frequencies.
Rotate the WIDTH control clockwise to increase the intensity of the time delay as set by the SPEED control or counterclockwise to decrease it.
Rotate the SPEED knob clockwise for a faster phase effect or counterclockwise for a slower phase effect.
Rotate the REGEN. control clockwise to increase the overall intensity of the effect or counterclockwise to decrease it.
Specifications
Input Impedance : 470 kΩ
Output Impedance : 1 kΩ
Max Input Level : 5 dBV
Max Output Level : 5 dBV
Noise Floor* : -98 dBV
Noise Reduction : 2:1 ratio
Max Delay : 12.8 ms
Rate Range : 0.1 Hz to 10 Hz
Current Draw : 39 mA
Power Supply : 18 volts DC
·

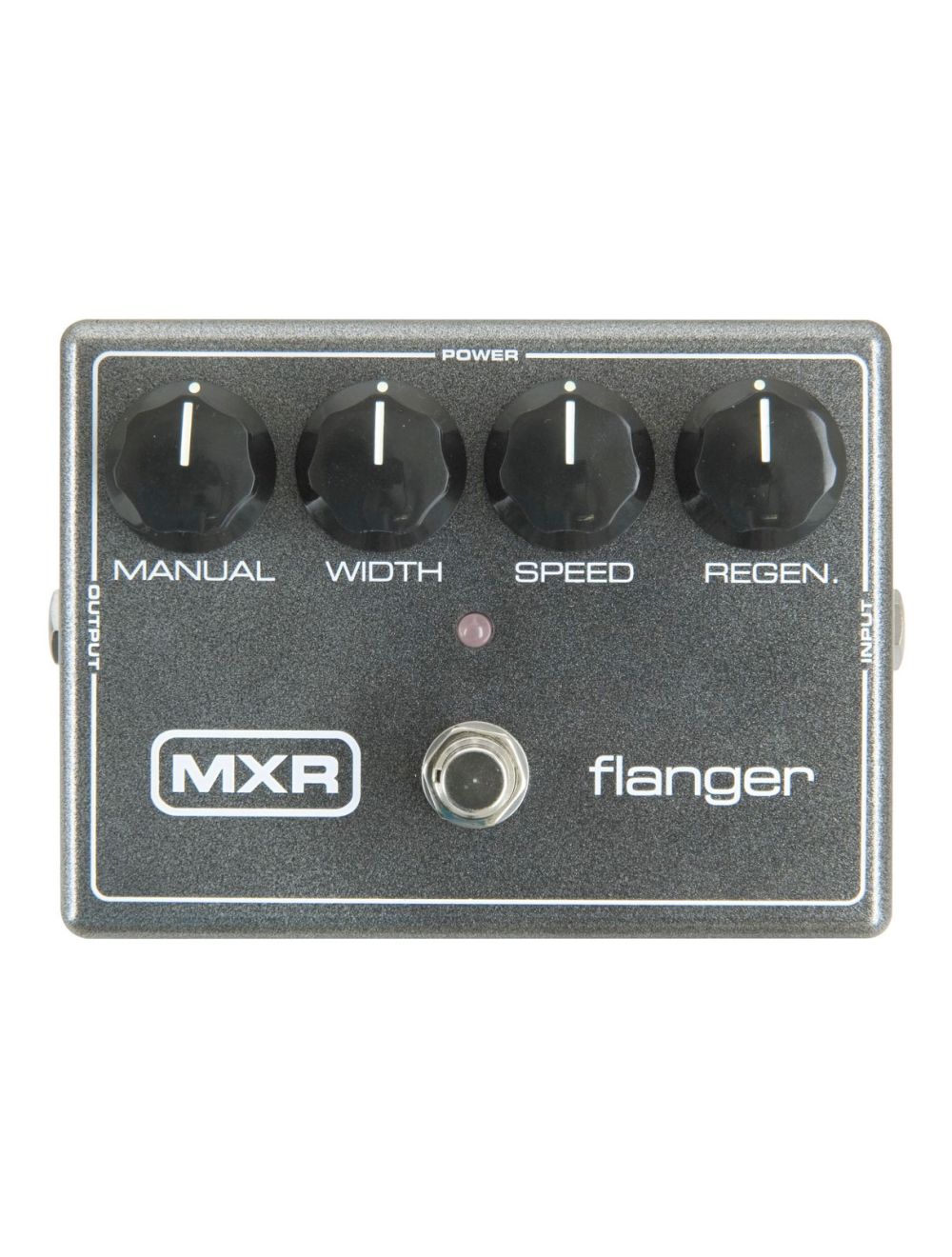

Controls
MANUAL knob controls the degree of phase shifting
WIDTH knob controls the intensity of the time delay set by SPEED knob
SPEED knob controls the speed of time delay
REGEN. knob controls the intensity of the overall effect
