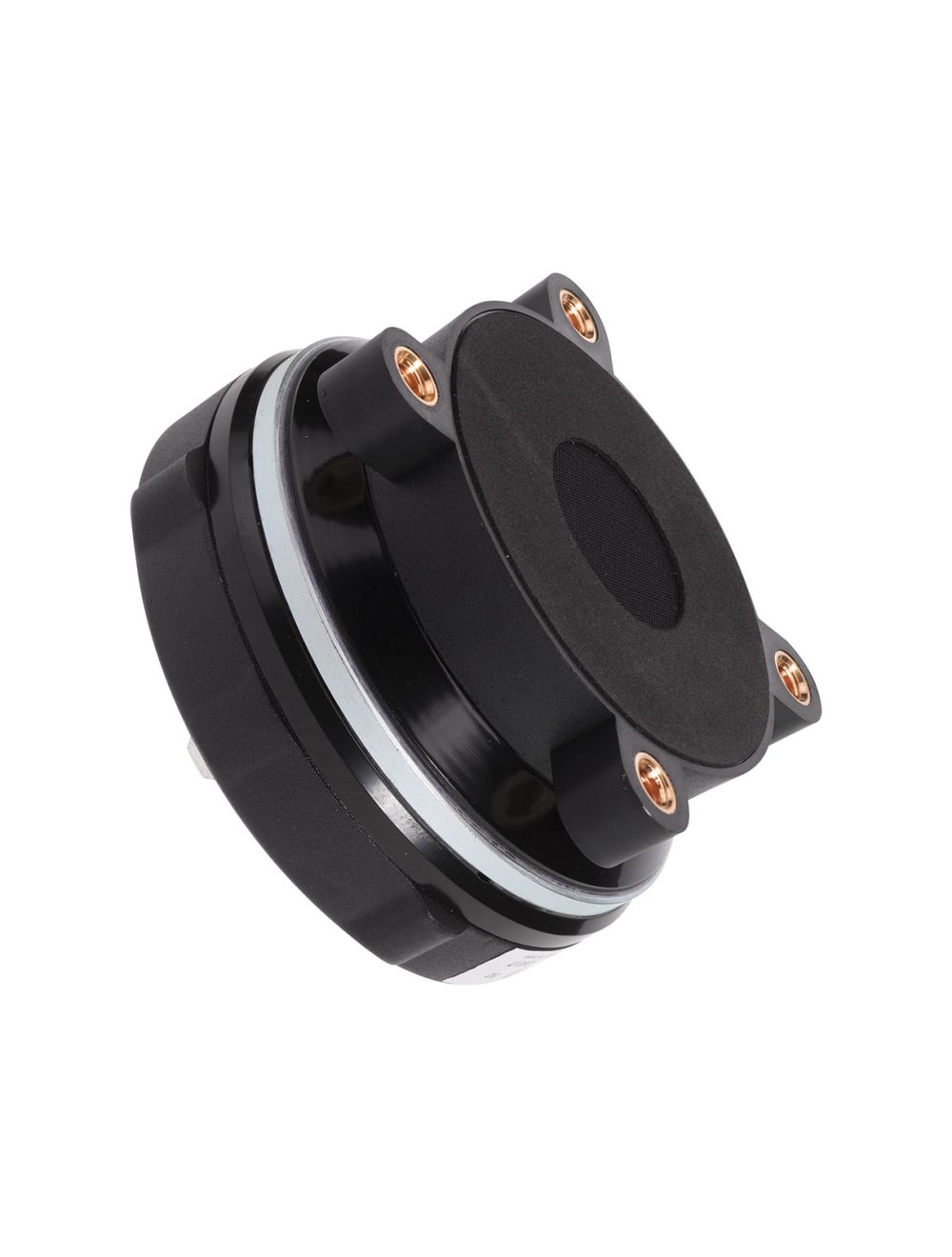

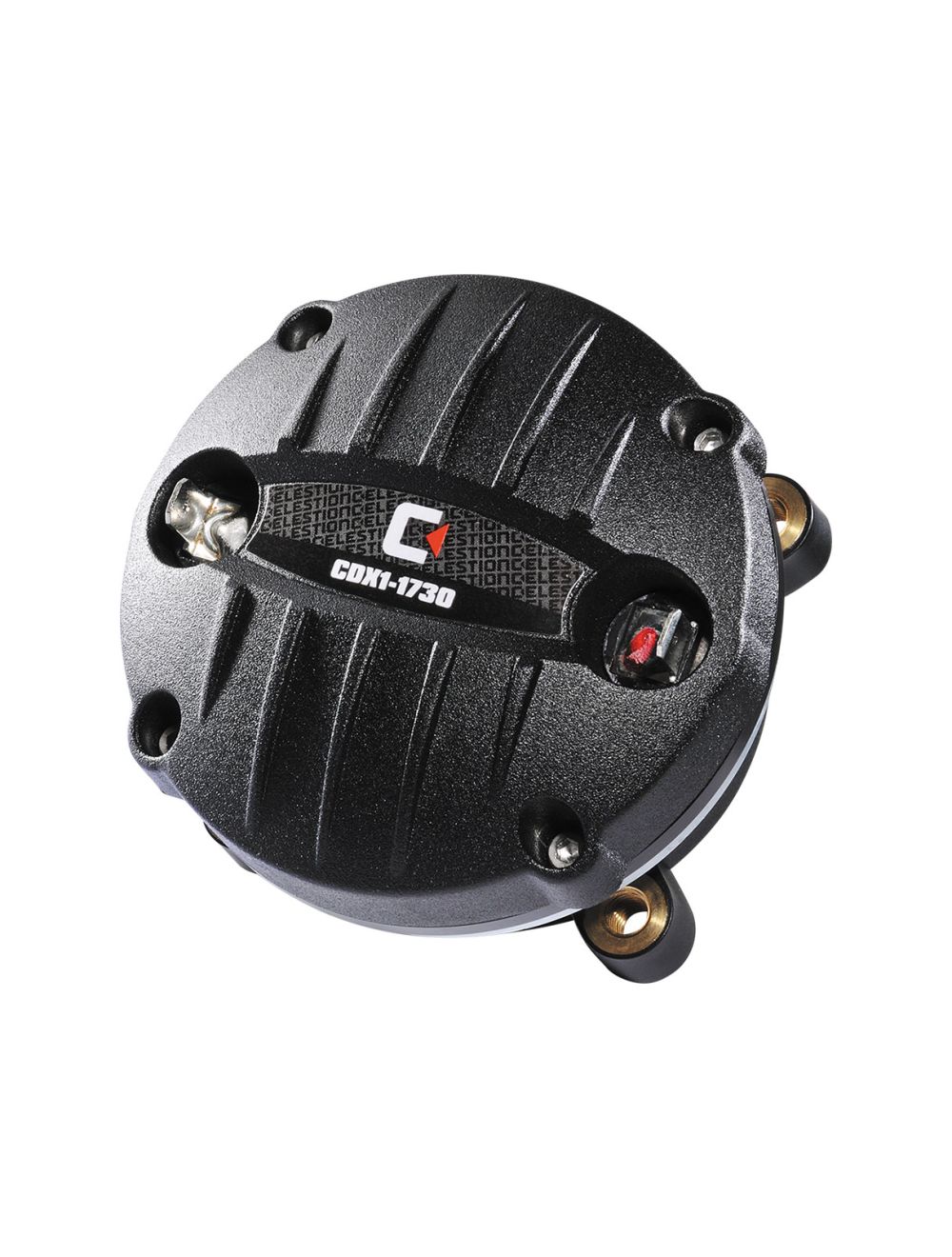

Celestion CDX1-1730 1" Exit HF Driver - 8 ohm

• Single piece PETP film diaphragm and surround
• Sound Castle diaphragm assembly
• 2,200Hz recommended min. crossover freq (12dB/oct)
• Bolt fitting
• Power rating : 40W
• Continuous power rating : 80W
• Rated impedance : 8Ω
• Sensitivity : 110dB
• Frequency range : 1200-20,000Hz
• Recommended min. crossover (12dB/oct) : 2200Hz
• Magnet type : Neodymium
• Voice coil diameter : 44mm / 1.75in
• Voice coil material : Edgewound copper clad aluminium
• Diaphragm material : PETP film
• Surround material : PETP film
• Additional impedances : 16Ω

Mounting Information

• Width : 88.5mm / 3.48in
• Depth : 55mm / 2.2in
• Fitting : Bolt (4 x M6 holes on 76mm/3in PCD)
• Screw version : CDX1-1731
• Throat exit : 25mm / 1in

Horns and Repair Kits

• T5510 : Diaphragm repair kit (8Ω)
• T5523 : Diaphragm repair kit (16Ω)
• T5359 : H1-9040P Horn
• T5134 : H1-7050 ‘No Bell’ Horn
• Power rating : Tested for two hours on a plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power is calculated on minimum impedance.
• Continuous power rating : Defined as 3dB greater than the AES rating.
• Sensitivity : Measured on axis at 1W, 1m, using a typical horn, in 2π anechoic environment.
