Celestion G12H 70th Anniversary 12

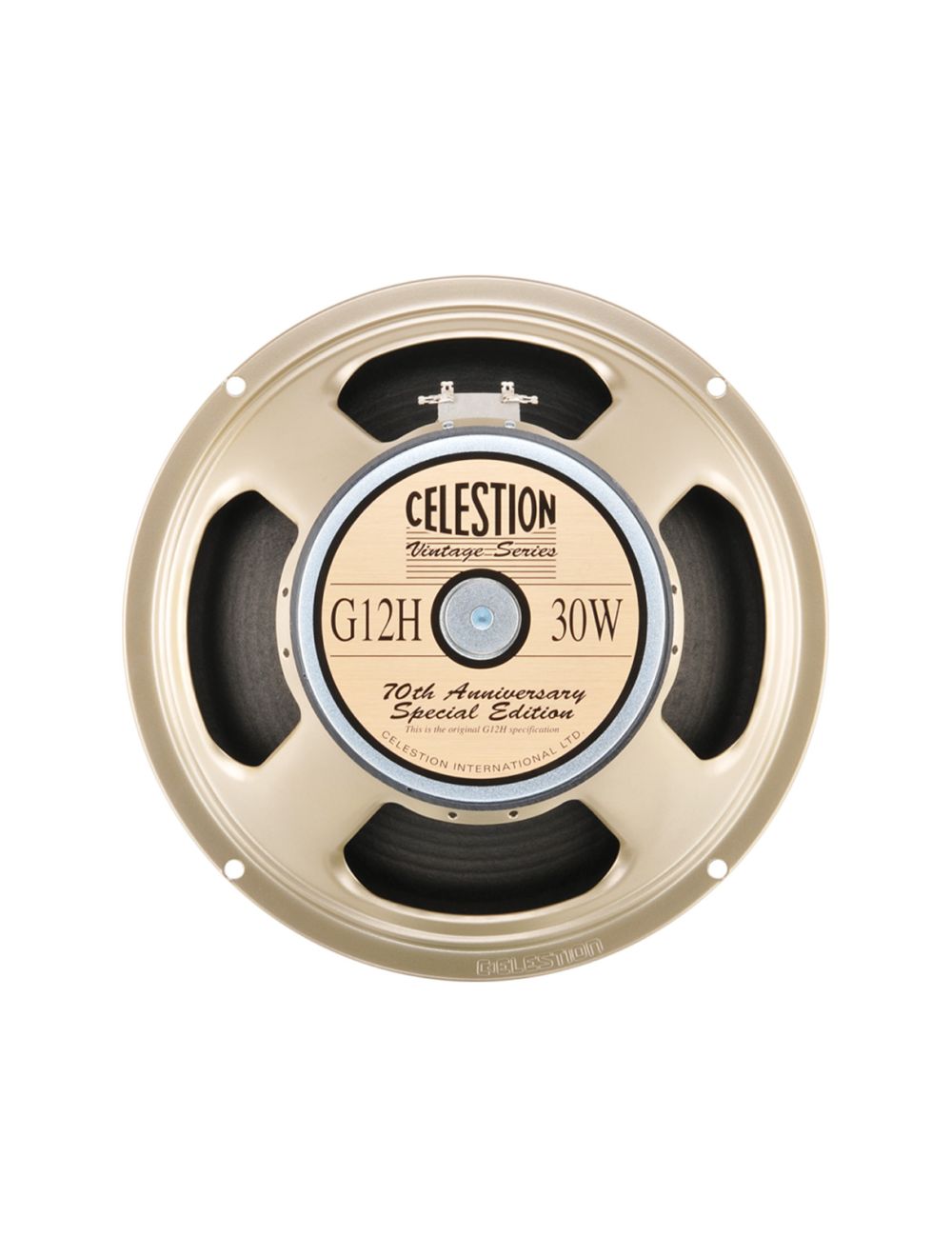

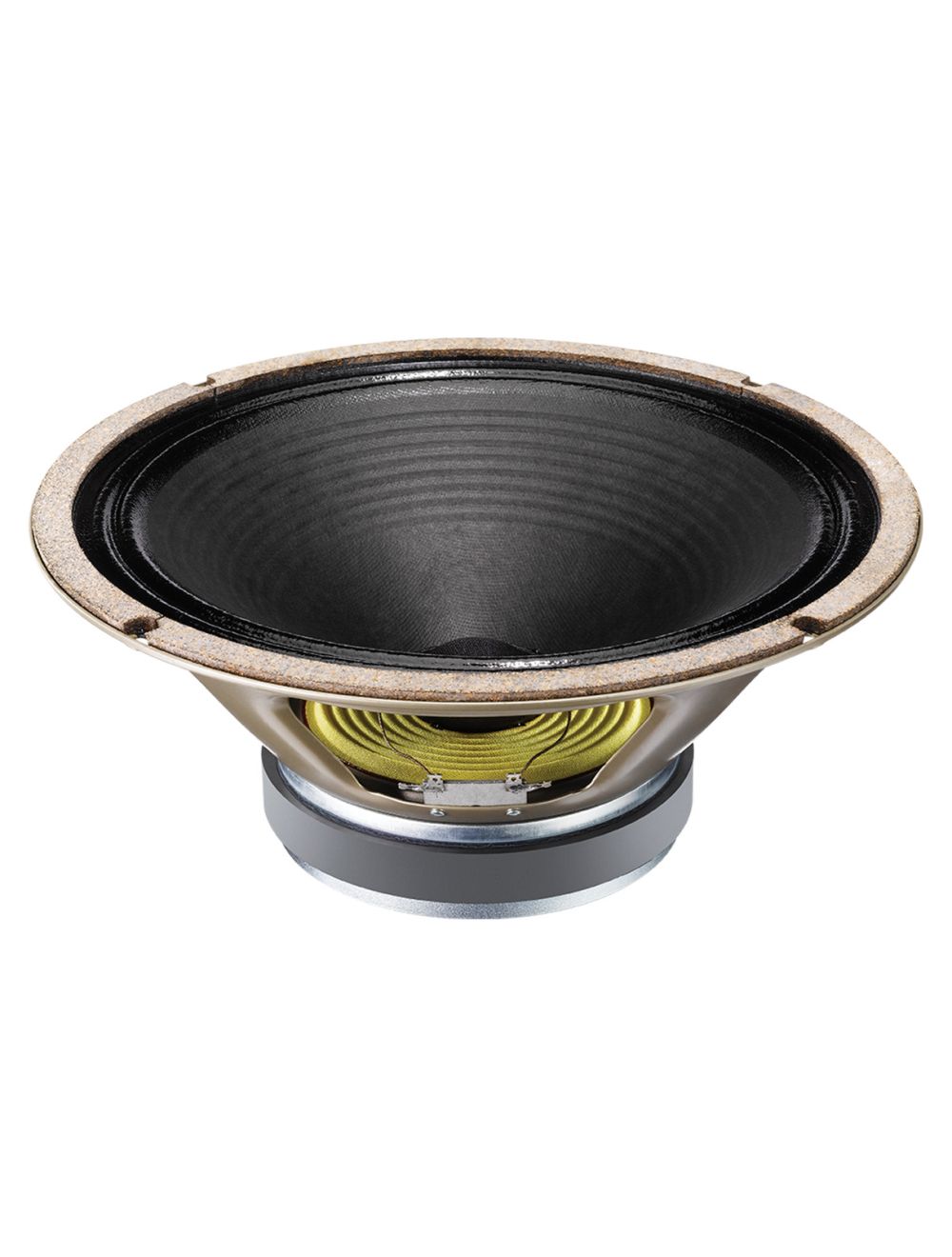

Celestion G12H 70th Anniversary 12" Speaker (16-Ohm)

Celestion G12H 70th Anniversary 12" Speaker (16-Ohm)

12" Guitar Speaker (16-Ohm)
$169.00
In stock
SKU
CLS-T4534BWD

Originally re-released to celebrate our 70th Anniversary, the G12H guitar speaker remains hugely popular with players looking to recreate the classic sounds of 60s and 70s rock.

With a strong aggressive low-end and powerful low-mids the G12H penetrates any mix with an attacking upper mid-range and an ice-cool top- end. Used singly or in quartets it provides serious attitude to soft amp tones easily cutting through loud stage levels for chord work and imparting a hard edge to single notes. A favourite in the ’boutique’ amplifier market the G12H guitar speaker is often used on its own or paired with a Celestion Blue or Gold for a full-bodied sound that adds ceramic attitude to the chime of an Alnico speaker.

  • Nominal diameter : 305mm / 12in
  • Power rating : 30W
  • Rated impedance : 16Ω
  • Sensitivity : 100dB
  • Chassis type : Pressed steel
  • Magnet type : Ceramic
  • Voice coil diameter : 1.75in / 44mm
  • Voice coil material : Round copper
  • Frequency range : 75-5000Hz
  • Resonance frequency, Fs : 85Hz
  • DC resistance, Re : 6.7Ω and 13.1Ω

Mounting Information

  • Cut-out diameter : 283mm / 11.1in
  • Diameter : 309mm / 12.2in
  • Magnet structure diameter : 156mm / 6.1in
  • Mounting hole dimensions : 7.9mm / 0.31in Ø
  • Mounting hole PCD : 297mm / 11.7in
  • Number of mounting holes : 4
  • Chassis depth (inc gasket) : 97mm / 3.79in
  • Magnet depth : 38mm / 1.51in
  • Overall depth : 135mm / 5.3in
SKU CLS-T4534BWD
Brand Celestion
Weight 10.100000
More Information
Refund period 35 days
