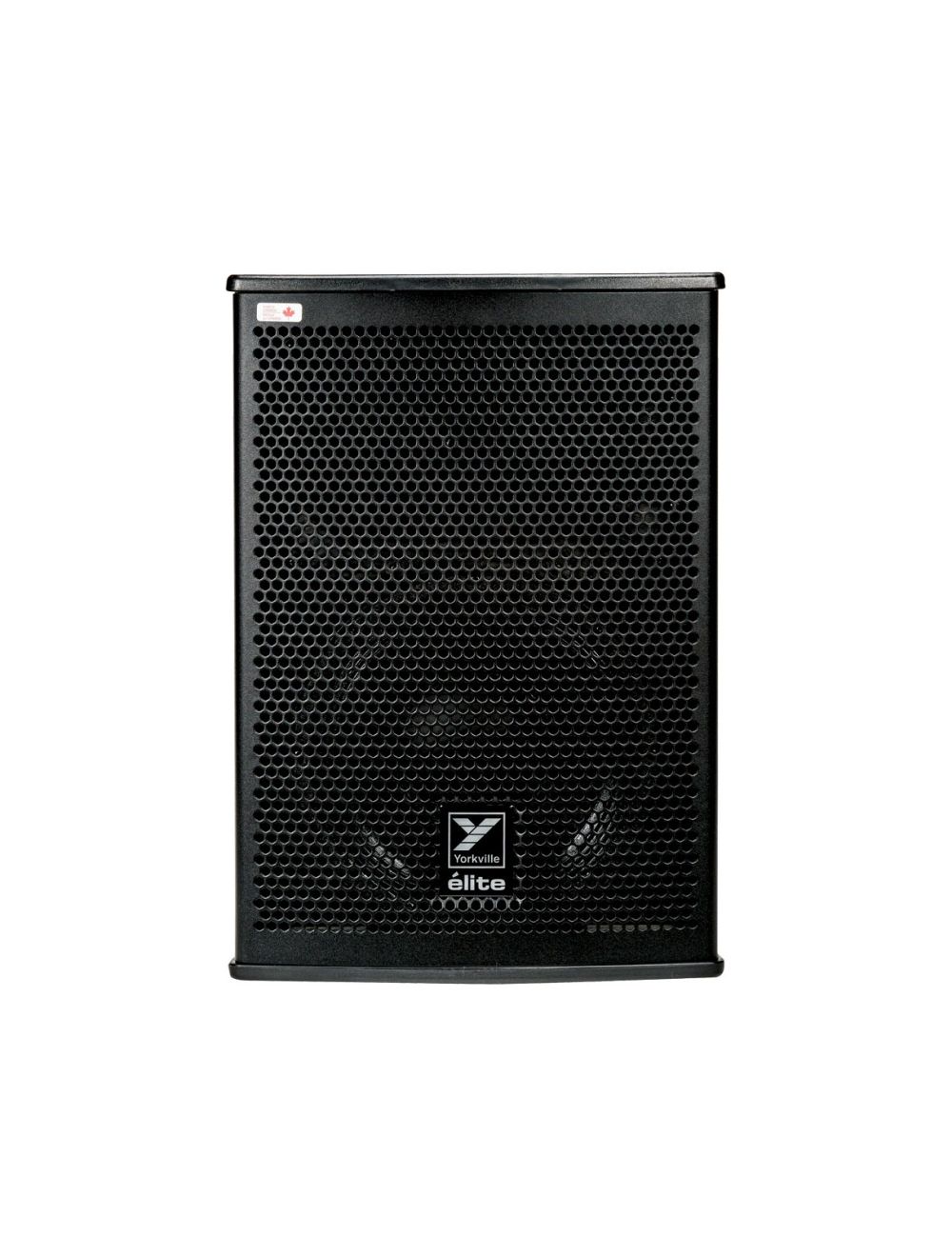

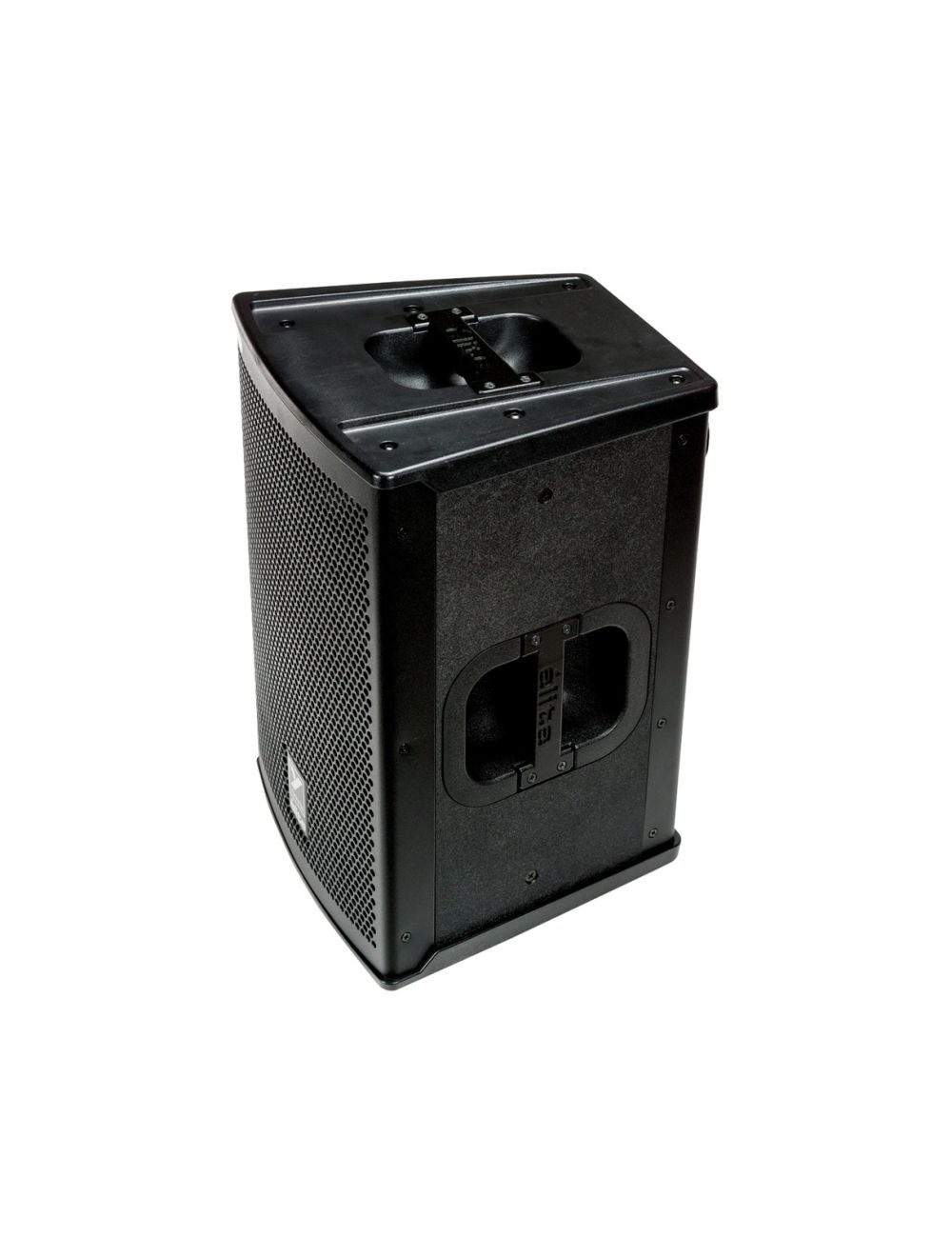

The EF10P is a compact 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, personal monitor wedge, or self-contained compact PA for paging and playback with no mixer required.

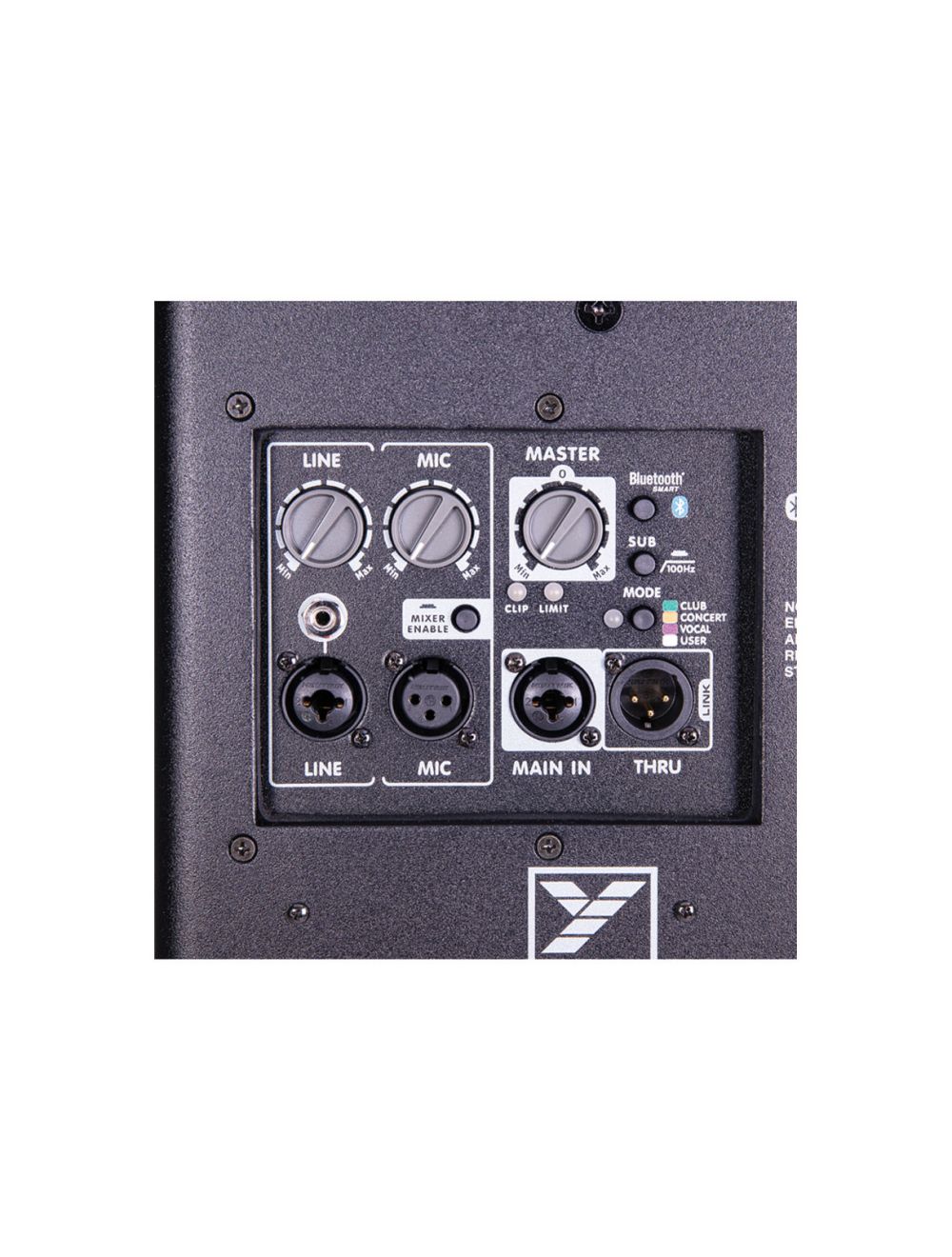

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line-level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

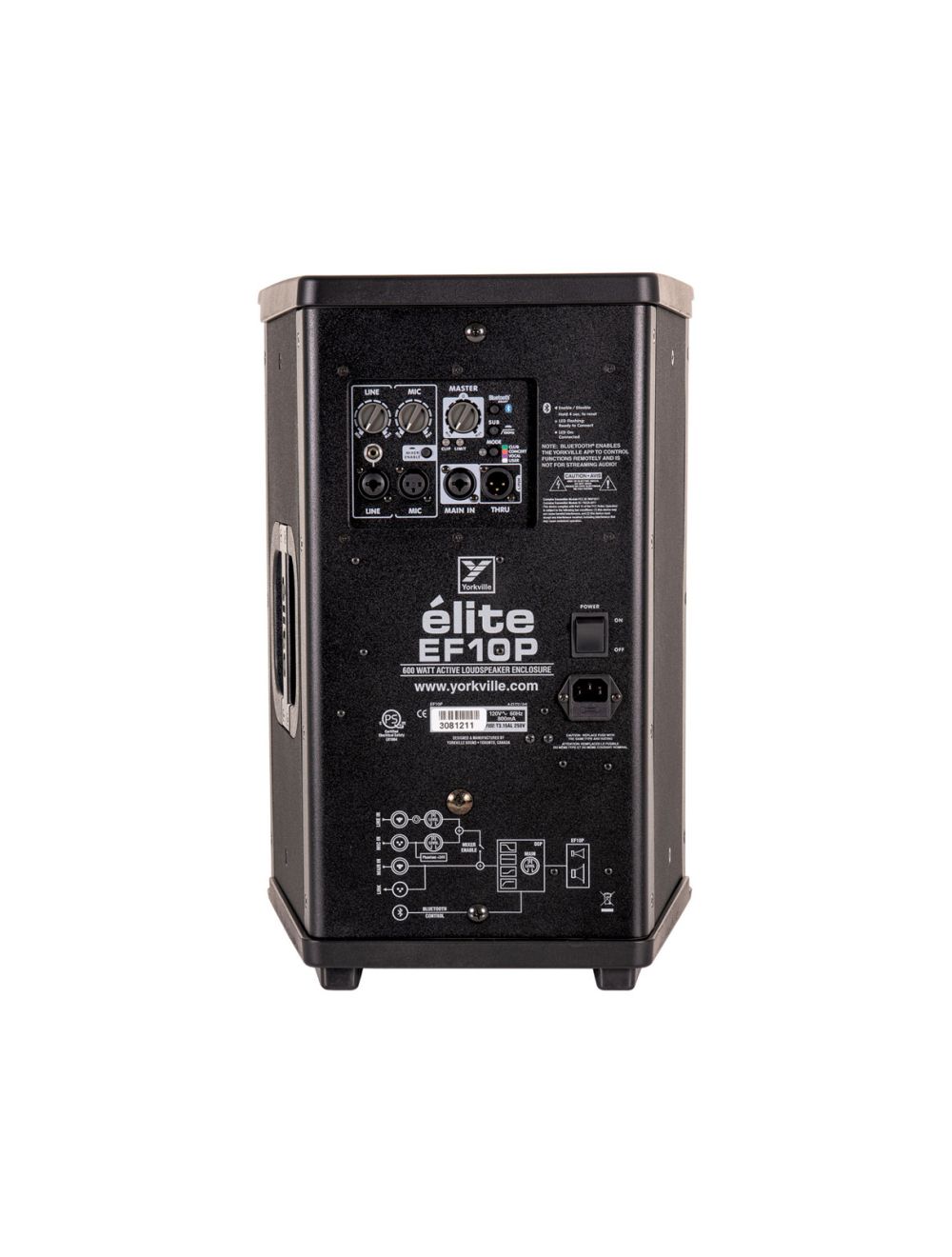

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app. A 500-watt amplifier powers the 10-inch woofer, and a 2-tier 100-watt amplifier drives the 1.5-inch horn.
An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs. The Class D amplifier, neodymium speaker magnets, and Baltic birch construction keep the total weight below 45 pounds while maintaining classic Elite ruggedness and durability.
