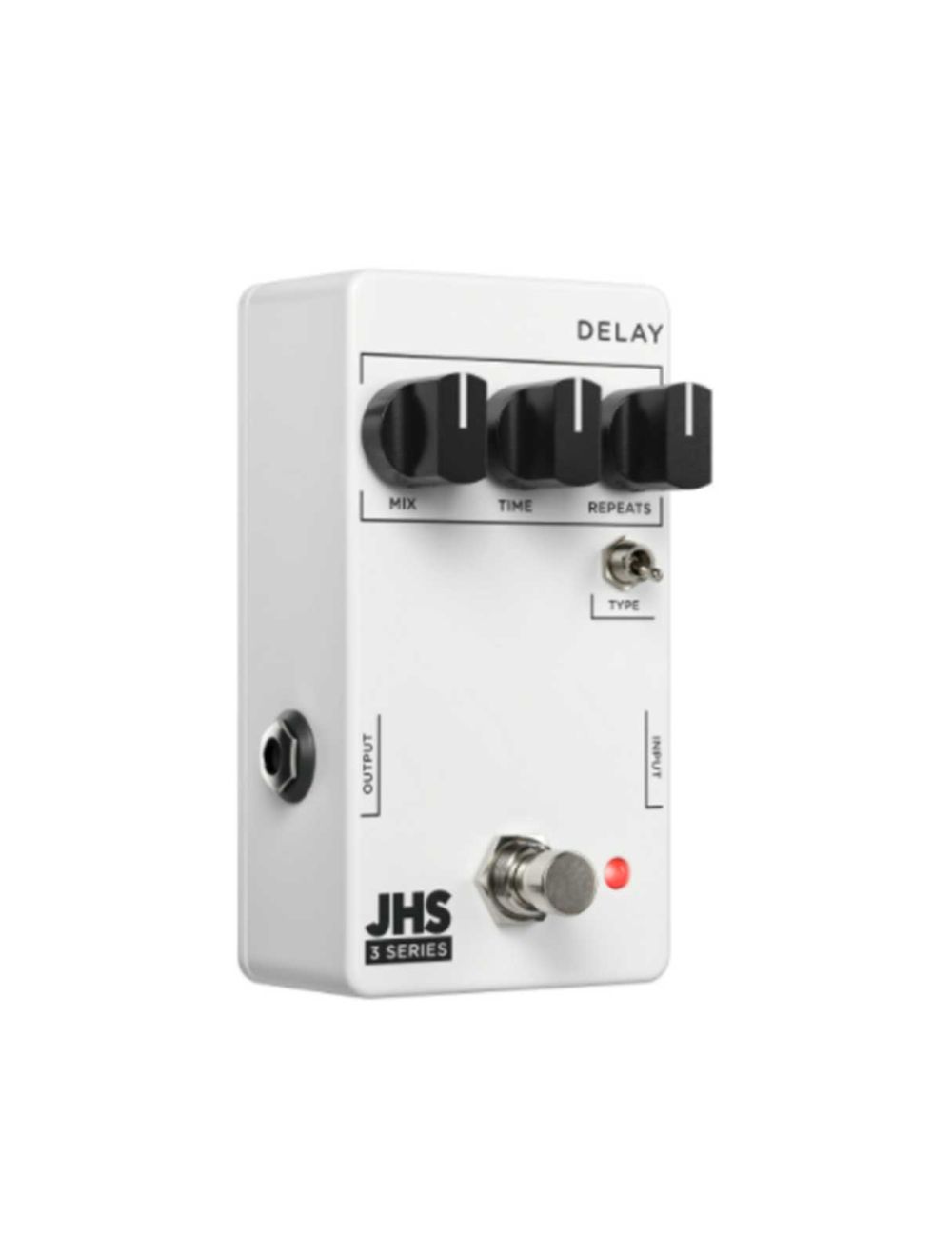

JHS 3 Series Delay Pedal - Open Box

Controls

• MIX : Controls the volume of the repeats. Left is less, right is more.
• TIME : Controls the length of the delay from 80ms to 800ms. Left is shorter,
• right is longer.
• REPEATS : Controls the amount of feedback or repeats of the delay signal.
• Left is less, right is more.
• TYPE TOGGLE : Gives you two different types of delay. Down is an analog
• voiced delay that also has true analog runaway sounds when the Repeats are
• turned up. Up is a digital voiced delay for crisp and clean repeats.

Jacks

• INPUT : 1/4” jack on the right side of the pedal.
• OUTPUT : 1/4” jack on the left side of the pedal.
• POWER : Requires 9V DC negative center power and consumes 71mA. Do not
• use more than 9V DC.
