Transform the voice of your Stratocaster with a genuine Fender Pre-Wired Pickguard Assembly. Crafted with premium components in the same factory as our iconic guitars, this complete drop-in solution delivers authentic Fender tone with hassle-free installation. No complicated wiring required - just remove your existing pickguard, connect two wires, mount the new assembly, and unlock a whole new voice for your guitar in minutes. It's the fastest way to upgrade your Strat with our time-tested electronics and craftsmanship.
Equipped with the Quadra Tap 1 and 2 Humbuckers, this loaded pickguard puts ten distinct voices at your fingertips - both hot and vintage voicings in either humbucking or split-coil modes. The volume knob’s S-1 switch selects between each voicing while the 5-way selector allows each pickup to be split between humbucker and single coil modes. In addition, a treble bleed circuit maintains your highs at any volume.
Powered by an alnico 2 bar magnet, the passive Quadra Tap Humbucker is a tone-shaping powerhouse. Experience four distinct voices that span from vintage-inspired warmth to scorching hot output in both single coil and humbucker settings.
S-1 switch on volume knob selects between the vintage and modern voicings of both pickups
5-way selector allows each pickup to be split between humbucker and single coil mode
All passive design that is noise free
The fastest way to upgrade your Strat with our time-tested electronics and craftsmanship
Series : Quadra Tap
Orientation : Right-Hand
Color : Parchment
Hardware
Pickguard : 3-Ply Parchment
Pickguard Ply : 3-Ply
Pickup Covers : Chrome
Control Knobs : Aged White Soft Touch Knobs
Switch Tip : Aged White
Hardware Finish : Chrome
Mounting Type : 11-Hole Modern
Electronics
Bridge Pickup : Quadra Tap 2 Humbucker
Neck Pickup : Quadra Tap 1 Humbucker
Pickup Configuration : HH
Lead Wire : Vinyl-covered
Magnet Type : Alnico 2
Magnet Wire : Enamel-coated
Shielded : Yes
Bobbin Material : Plastic
Controls : Master Volume with S-1 Switch, Master Tone
Switching : 5-Position Blade: 1. Bridge Full Humbucker, Position 2. Bridge Inner Coil, Position 3. Bridge Inner and Neck Outer Coils in Parallel, Position 4. Neck Outer Coil, Position 5. Neck Full Humbucker

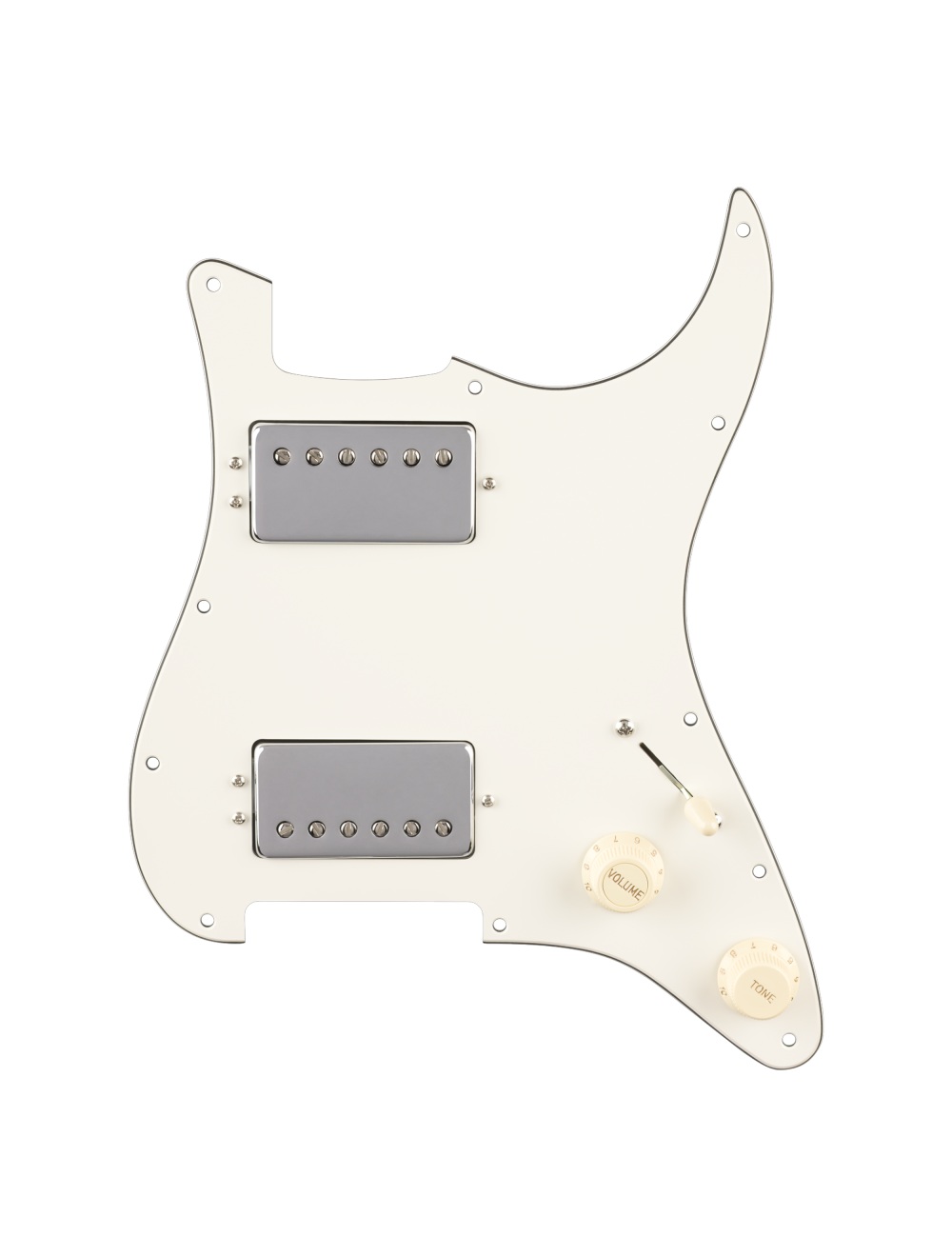

Used Fender Pre-Wired Strat Pickguard, Quadra Tap HH - Parchment
