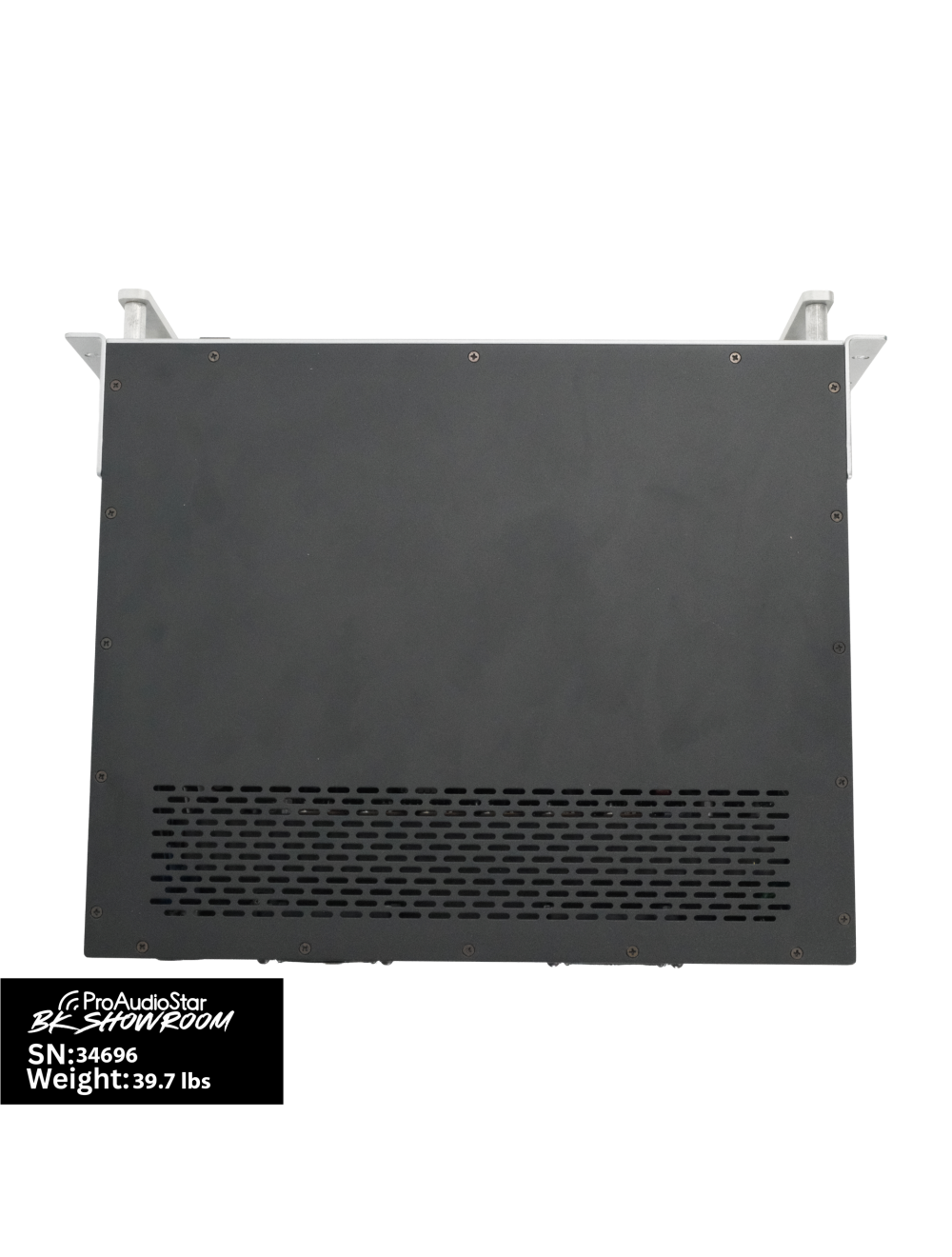

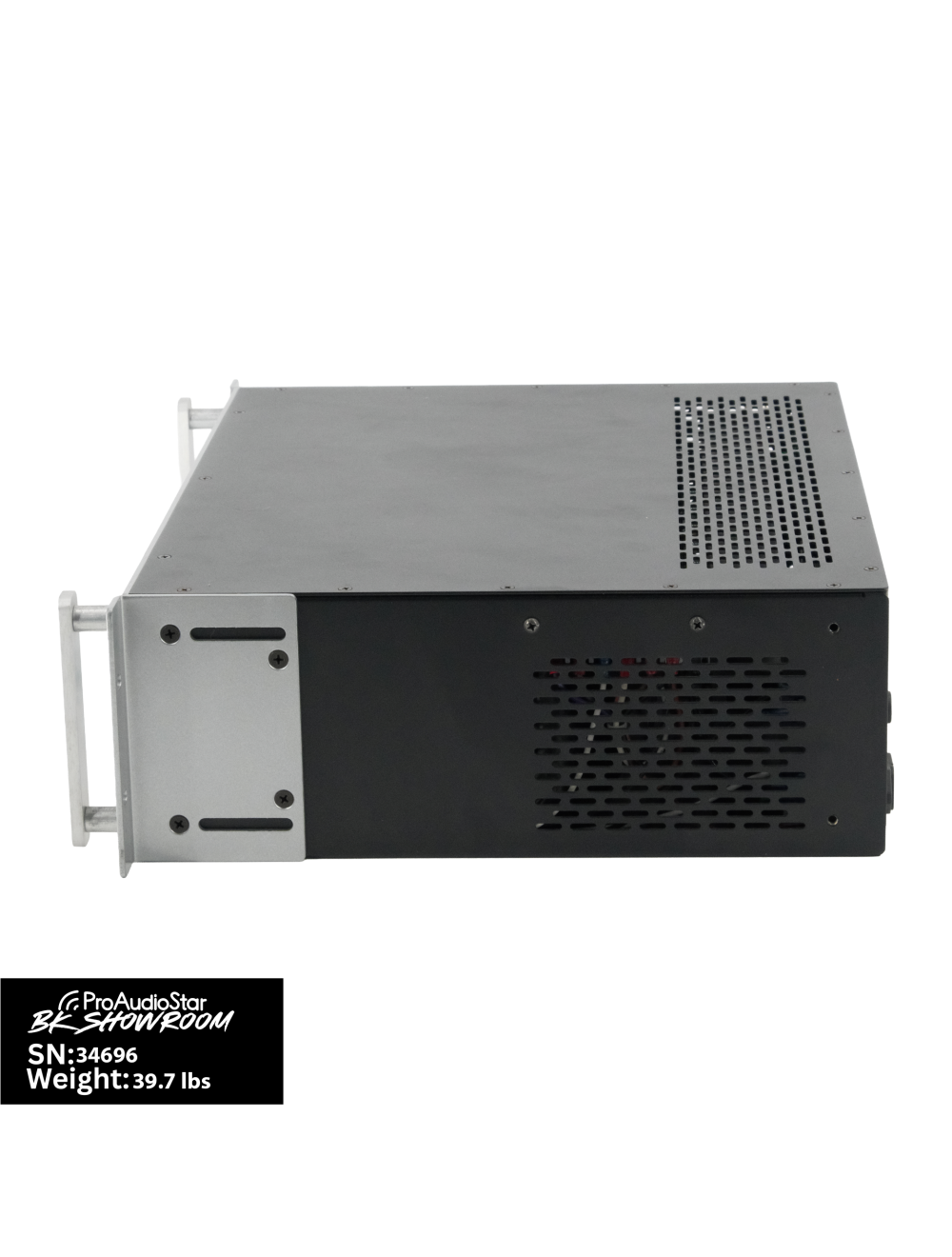

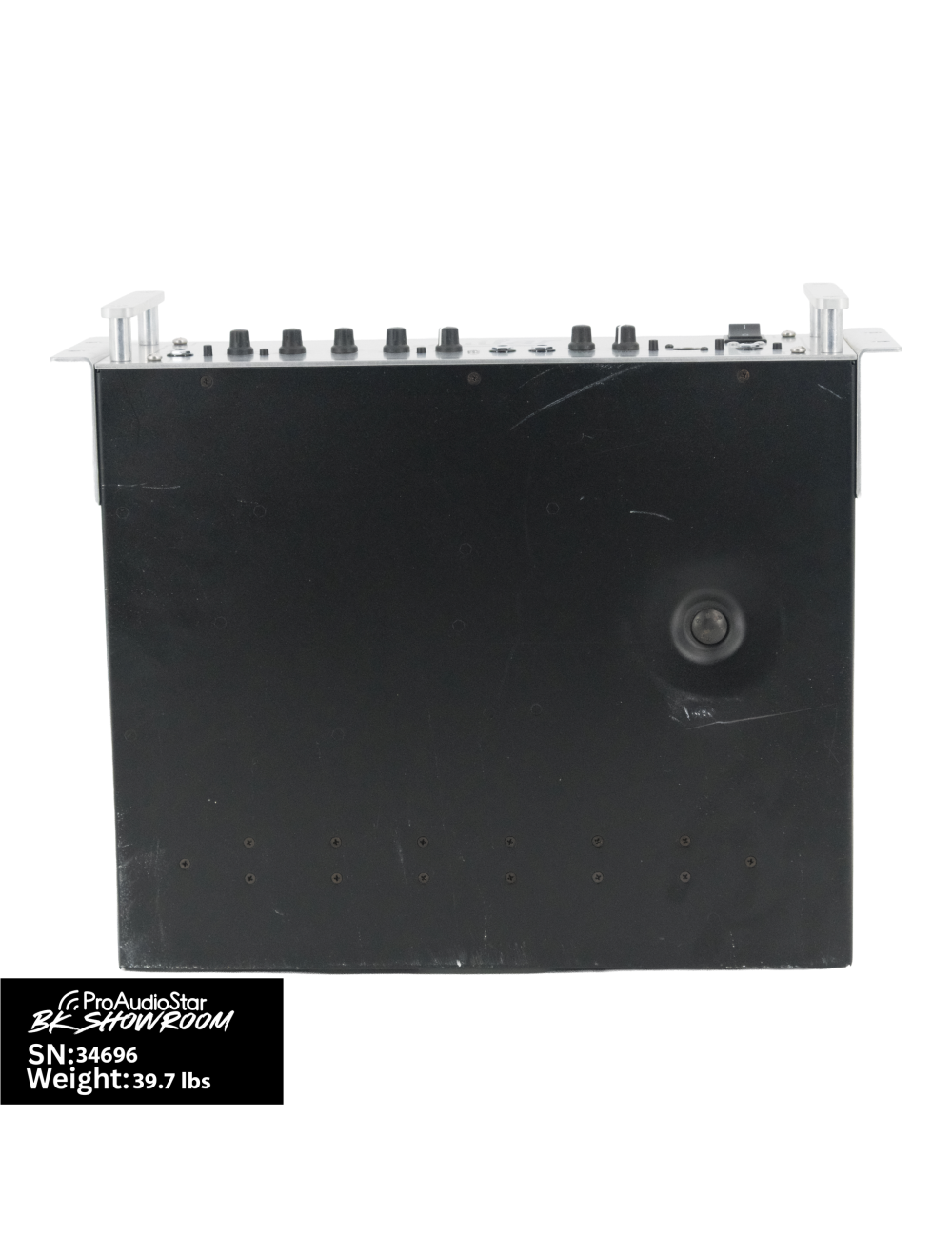

Used Aguilar DB 751 Bass Head
Aguilar’s DB 751 combines the legendary tube-driven tone of the DB 750 with greater EQ control. The amp is an absolute powerhouse delivering 975 watts. This amp is in fantastic condition!
Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)
Power Output : 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms
Preamp Section : Three 12AX7’s
Power Section : 12 complimentary lateral MOSFETs
Transformer : Custom Aguilar toroidal power transformer
EQ Section : passive tone stack with active midrange element
Bass : +12 / -12 @ 40Hz
Midrange : +12 / -12 @ 750Hz
Treble : +12 / -7 @ 4kHz
Deep Switch : Adds 5 dB of broadband boost at 30 Hz
Bright Switch : Adds 5 dB of broadband boost at 5-7 kHz
Effects Loop : Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation
Inputs : One 1/4″ input jack with an active/passive switch

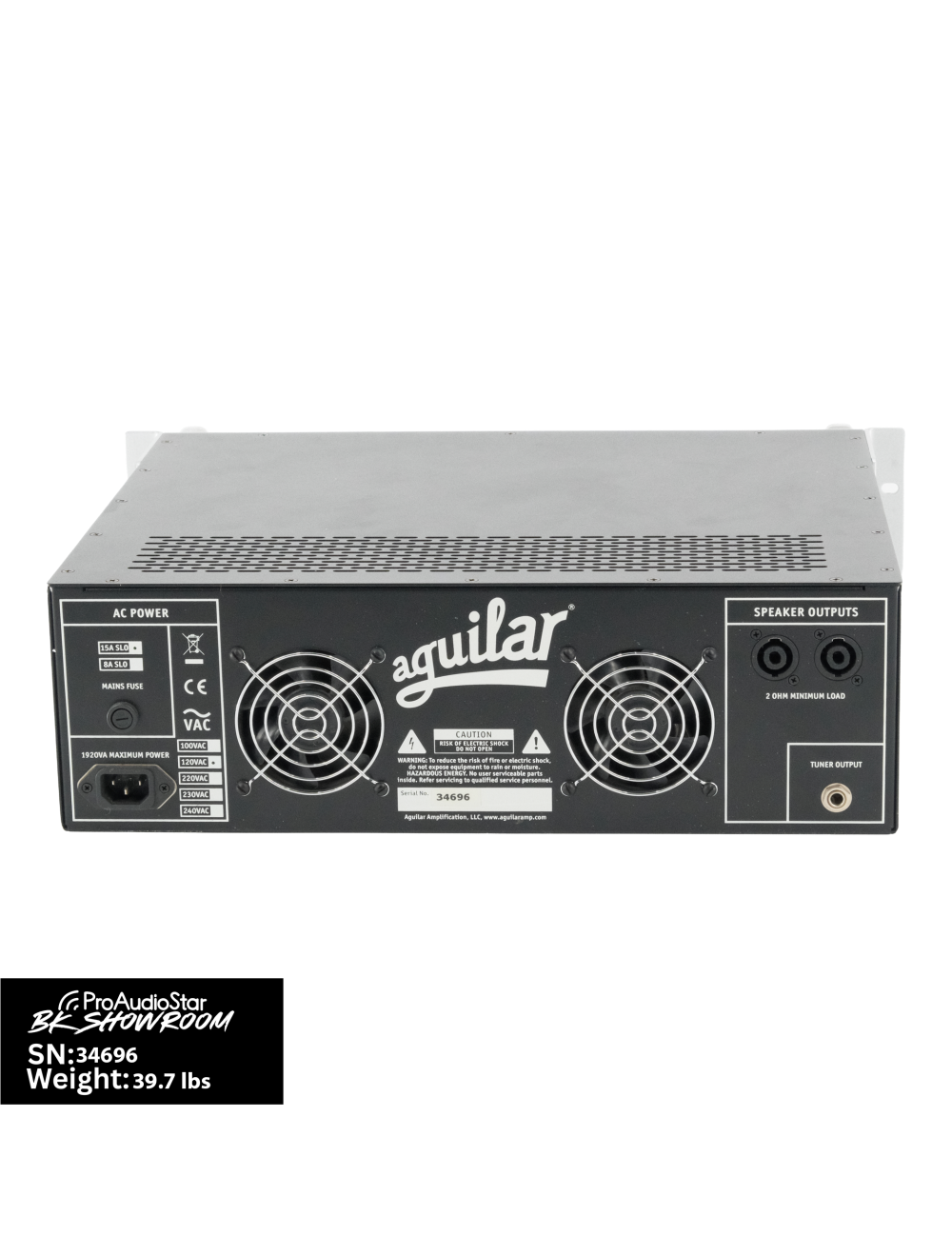

Outputs : Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.
Cooling : Two high-quality whisper fans with thermal speed control
Dimensions : 17″ W x 14″ D x 5.25″ H
SKU
USE-AGL34696
Brand
Aguilar
Weight
40.000000
