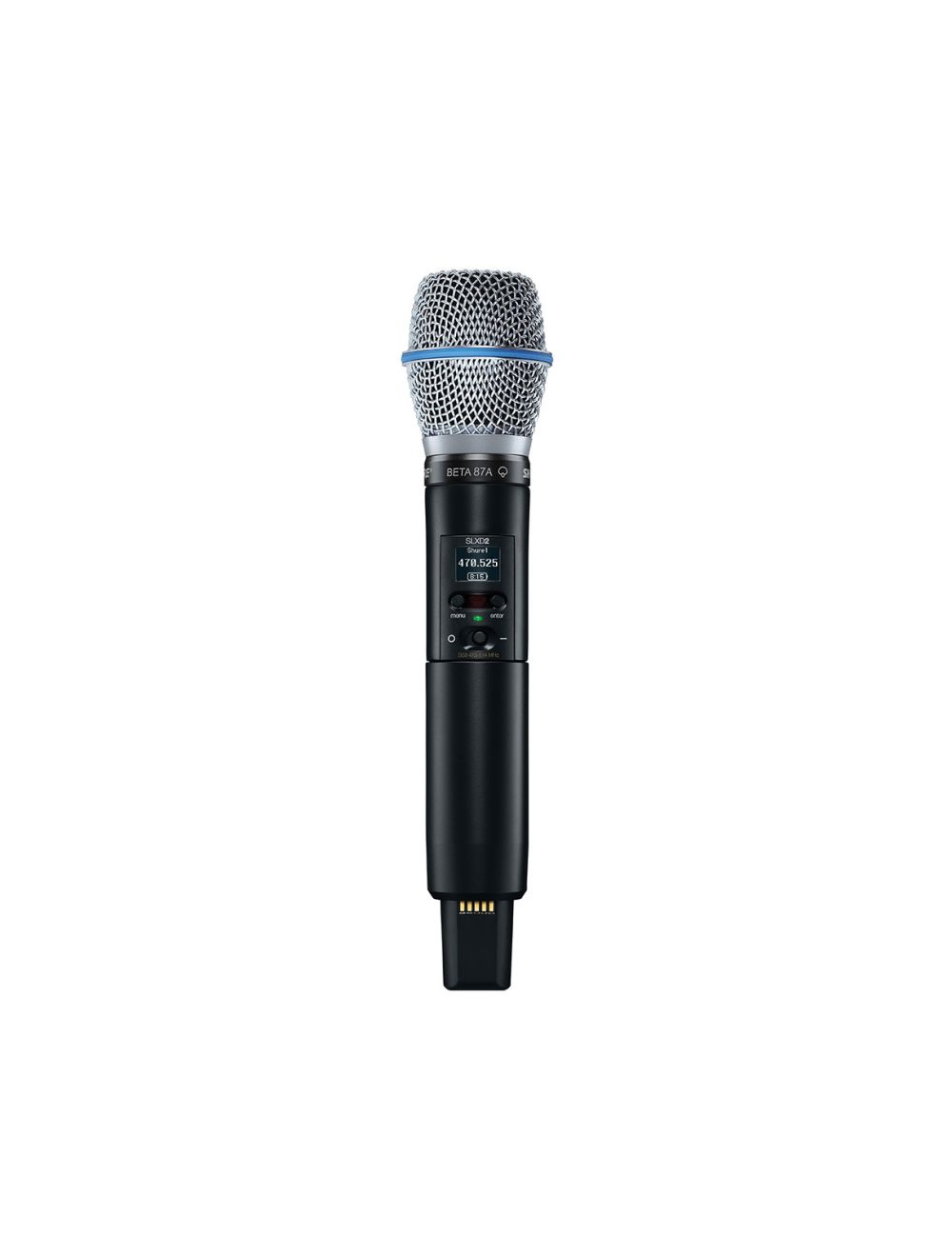

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock-solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
120 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over scan and IR sync
Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery (sold separately)
Interchangeable microphone capsules
Rugged metal construction
RF:
RF Carrier Frequency Range : 514 to 558 MHz (H55 Band)
Working Range : 100 m (328 ft)
RF Tuning Step Size : 25 kHz
Image Rejection : >70 dB (typical)
RF Sensitivity : −97 dBm at 10-5 BER
Audio:
Latency : 3.2 ms
Audio Frequency Response : 20 Hz–20 kHz (+1, −2 dB)
Audio Dynamic Range (A-weighted, typical) : 120 dB @1% THD
Total Harmonic Distortion : <0.02%
System Audio Polarity : XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output.
Mic Offset Range : 0 to 21 dB (in 3 dB steps)
Temperature Range (Note- Battery characteristics may limit this range):
Operating Temperature Range : 0 °F to 122 °F (−18 °C to 50 °C)
Storage Temperature Range : −20°F to 165°F (−29°C to 74°C)
