Seymour Duncan 805 Overdrive Pedal + Gator 9V Power Supply Combo

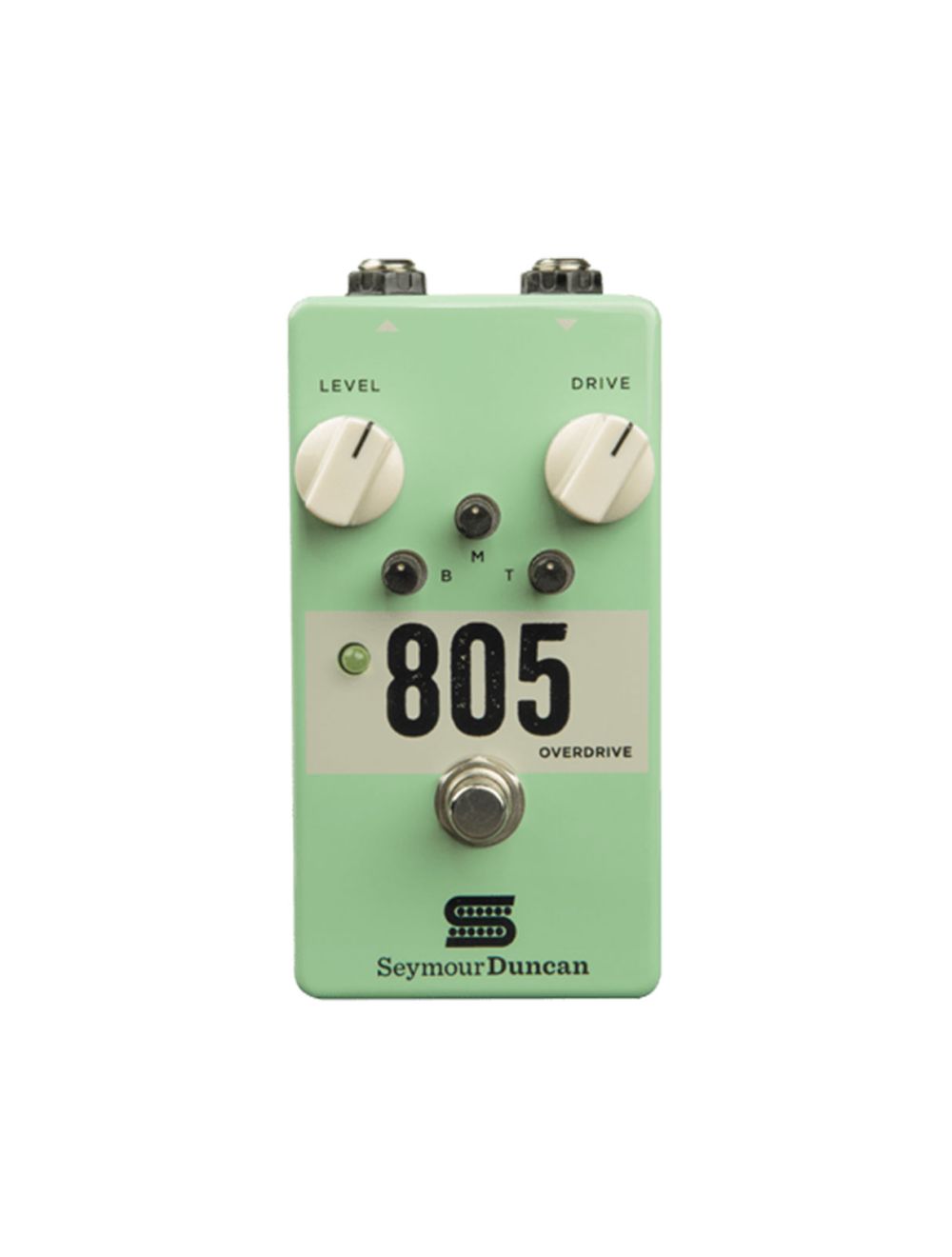

Seymour Duncan 805 Overdrive Pedal

• Distortion Circuitry : Glass diode, back-to-back stack.
• Bypass : True bypass
• Gain Control Range : 8dB to 36dB.
• THD @10mVrms input @ 1 kHz with 12 dB of gain : 0.15%
• Max Output before Saturation : 0.6Vrms
• Input Impedance : 470k Ohms
• Output Impedance : 1k Ohms
• Power : 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
• Current consumption : 4.5mA
• Dimensions : 2.61" X 4.90" X 1.45"

EQ Center Frequencies

• Bass – 90 Hz +/- 11dB
• Mid – 750 Hz +/- 11dB
• Treble – 2.1 kHz +/- 12dB

Signal To Noise Ratio

• Minimum gain, 20 to 20kHz – 112dBV
• Minimum gain, 400 to 20kHz – 114dBV
• Maximum gain, 20 to 20kHz – 97.5dBV
• Maximum gain, 400 to 20kHz – 98 dBV

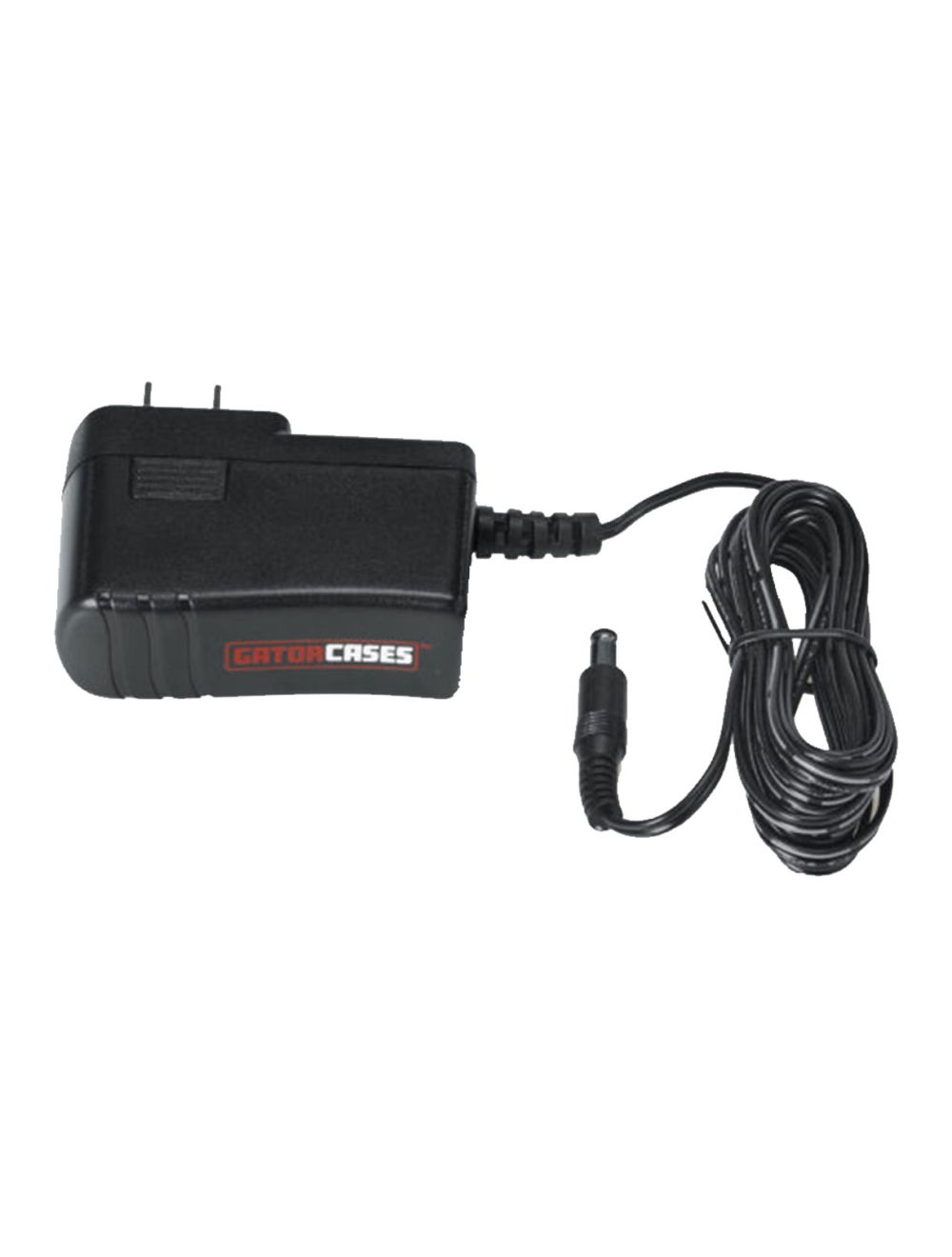

Gator Cases GTR-PWR-1MAX 9V Power Supply Combo Pack

• 9V DC Power Adapter and 8-Output Daisy Chain Cable Combo Pack
• Slim Design Frees up Space on Power Strip by Occupying One Outlet
• Works with Optional Female-to-Male Daisy Chain Adapter Cable for Connecting Multiple Pedals
• Single Output Supplies Maximum of 1700mA to Power Fully Loaded Pedalboard
• AC Power Input with Variable Voltage Between 115V/230V (50-60Hz) for International Use
• 8-Foot Cable to Reach Far Away Outlets
