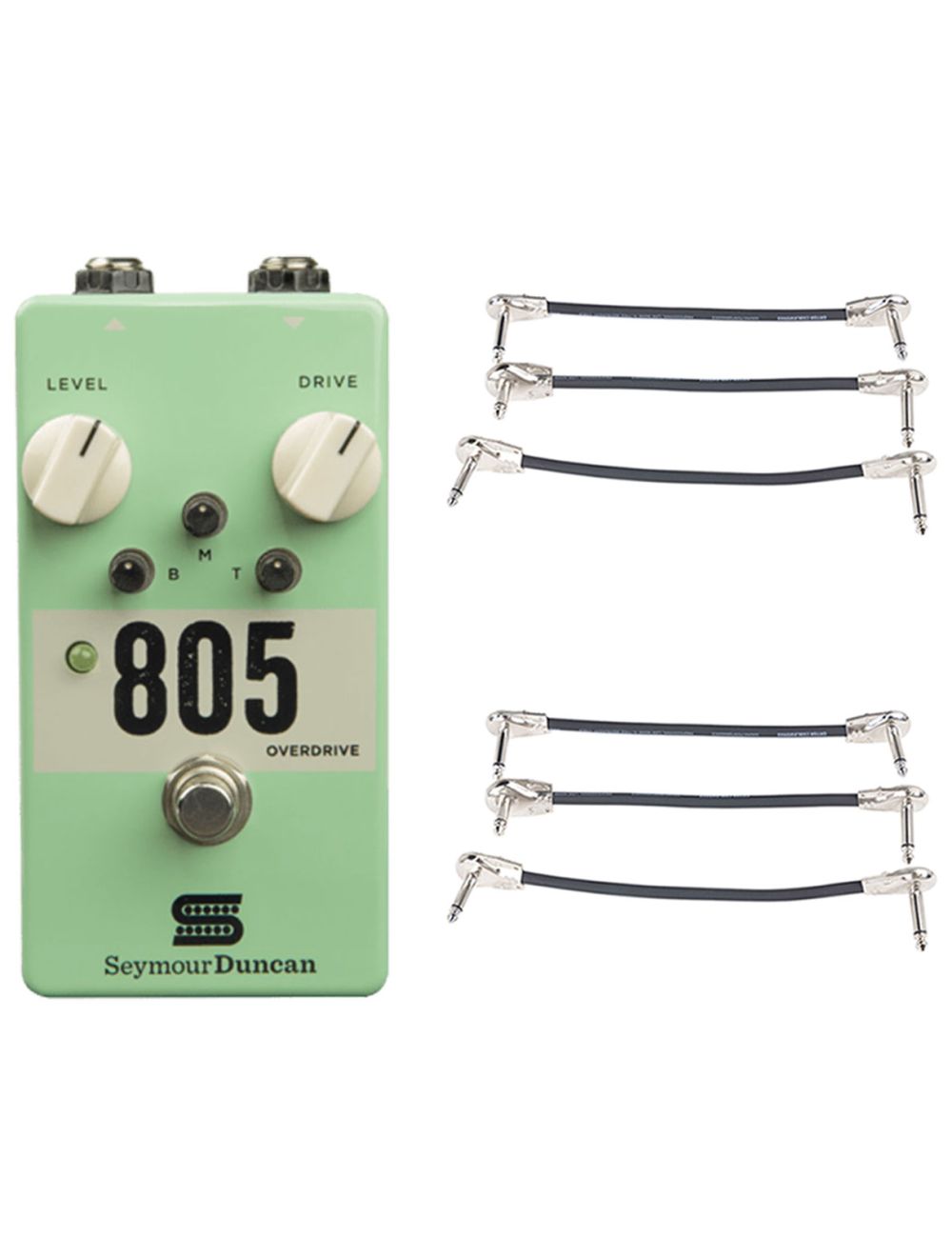

Seymour Duncan 805 Overdrive Pedal + 2x Gator Patch Cable 3 Pack

Seymour Duncan 805 Overdrive Pedal

• Distortion Circuitry : Glass diode, back-to-back stack.
• Bypass : True bypass
• Gain Control Range : 8dB to 36dB.
• THD @10mVrms input @ 1 kHz with 12 dB of gain : 0.15%
• Max Output before Saturation : 0.6Vrms
• Input Impedance : 470k Ohms
• Output Impedance : 1k Ohms
• Power : 9V battery or external 9 to 18V Regulated DC Adapter (center negative)
• Current consumption : 4.5mA
• Dimensions : 2.61" X 4.90" X 1.45"

EQ Center Frequencies

• Bass – 90 Hz +/- 11dB
• Mid – 750 Hz +/- 11dB
• Treble – 2.1 kHz +/- 12dB

Signal To Noise Ratio

• Minimum gain, 20 to 20kHz – 112dBV
• Minimum gain, 400 to 20kHz – 114dBV
• Maximum gain, 20 to 20kHz – 97.5dBV
• Maximum gain, 400 to 20kHz – 98 dBV

Gator Cableworks Backline Series 6" Instrument/Patch Cable, 3-Pack

• 6-inch Instrument/Patch Cable, 3-Pack
• 1/4-inch Right Angle to 1/4-inch Right Angle
• Professional Low-Noise Cable
• Fine Stranded Oxygen Free Copper Conductor for High-Quality Signal Transmission
• Thick and Durable 6.5 mm Soft PVC Jacket
• Shrink Sealed Wire Connection for Protection and Strain Relief
• Reliable and Sturdy Connectors
