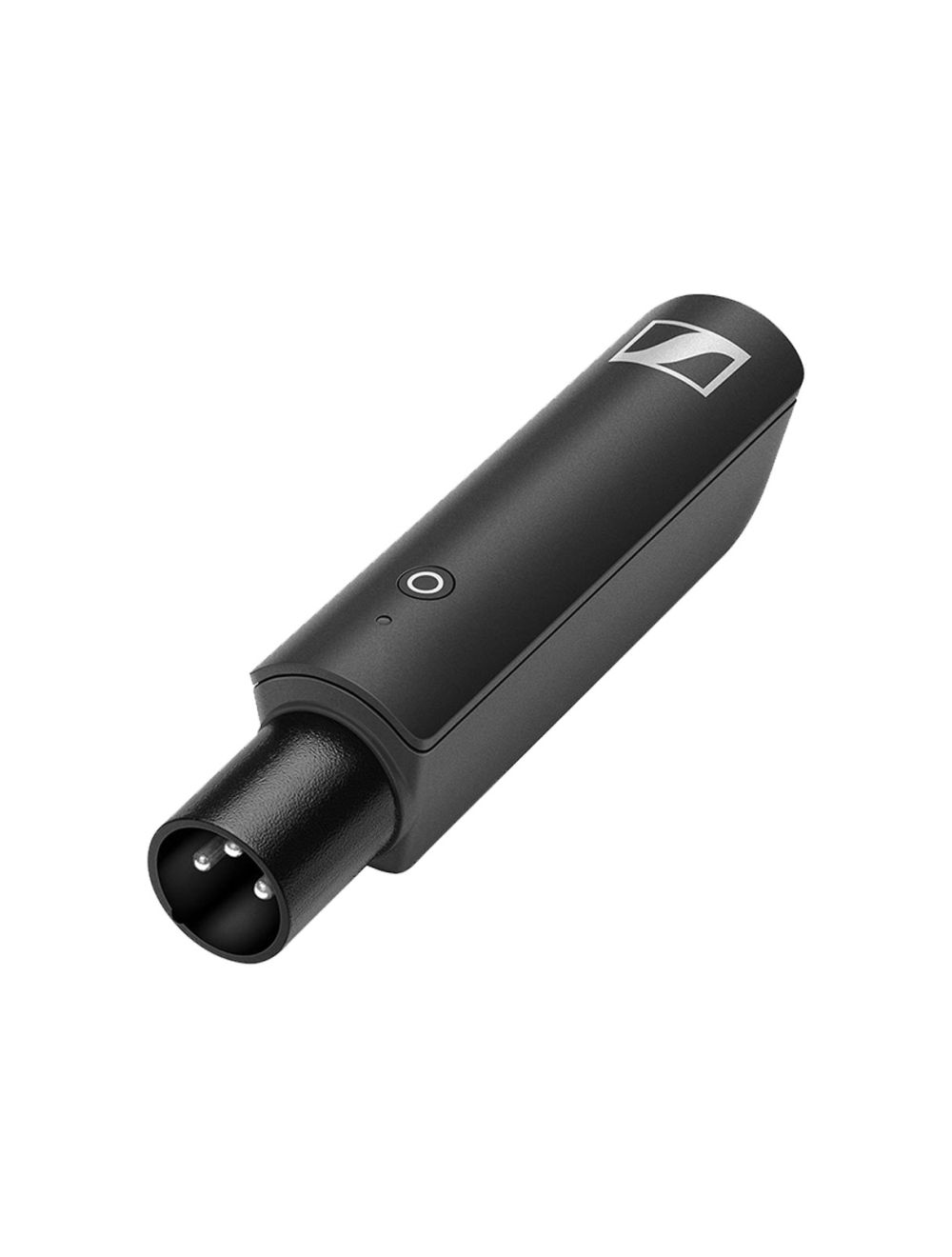

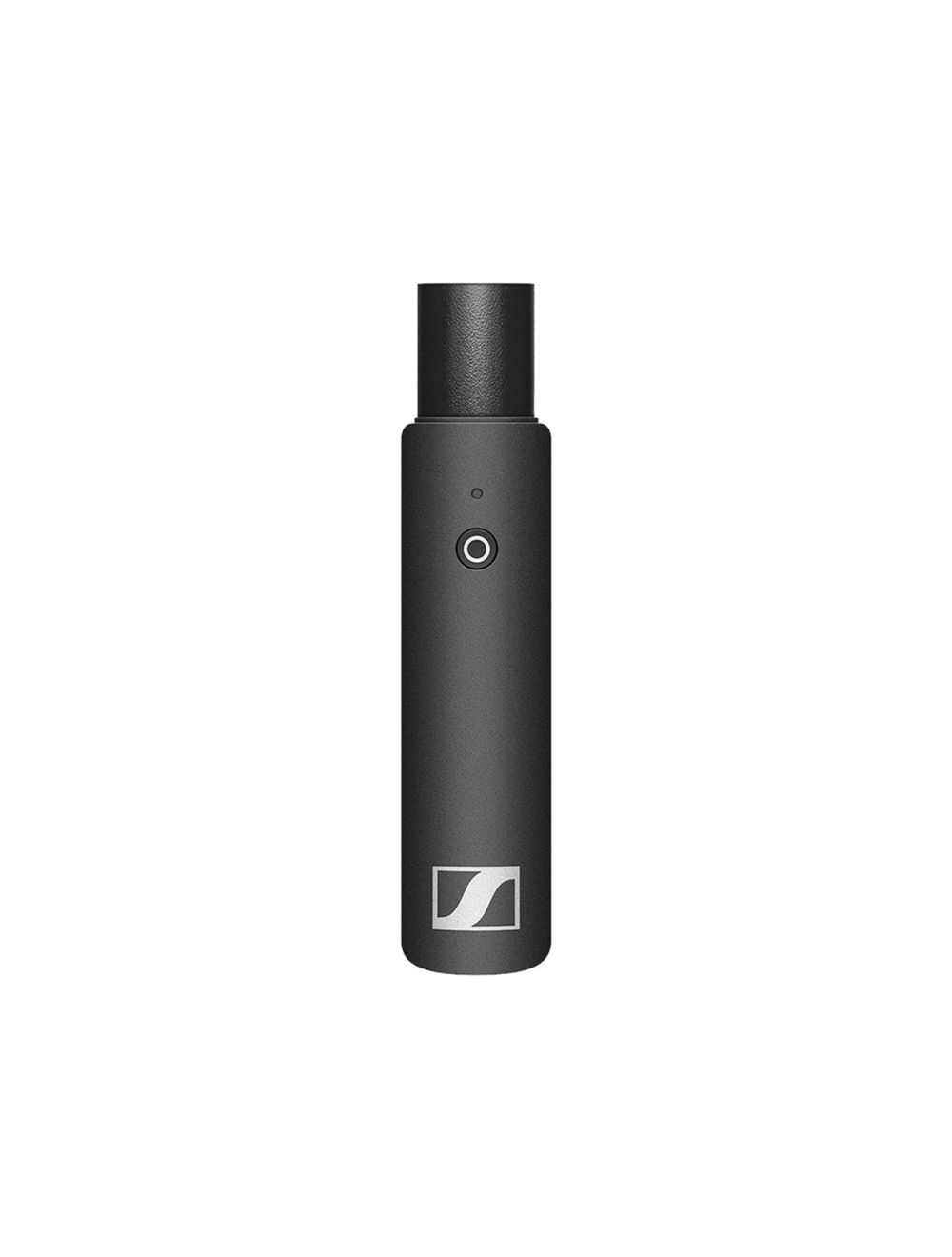

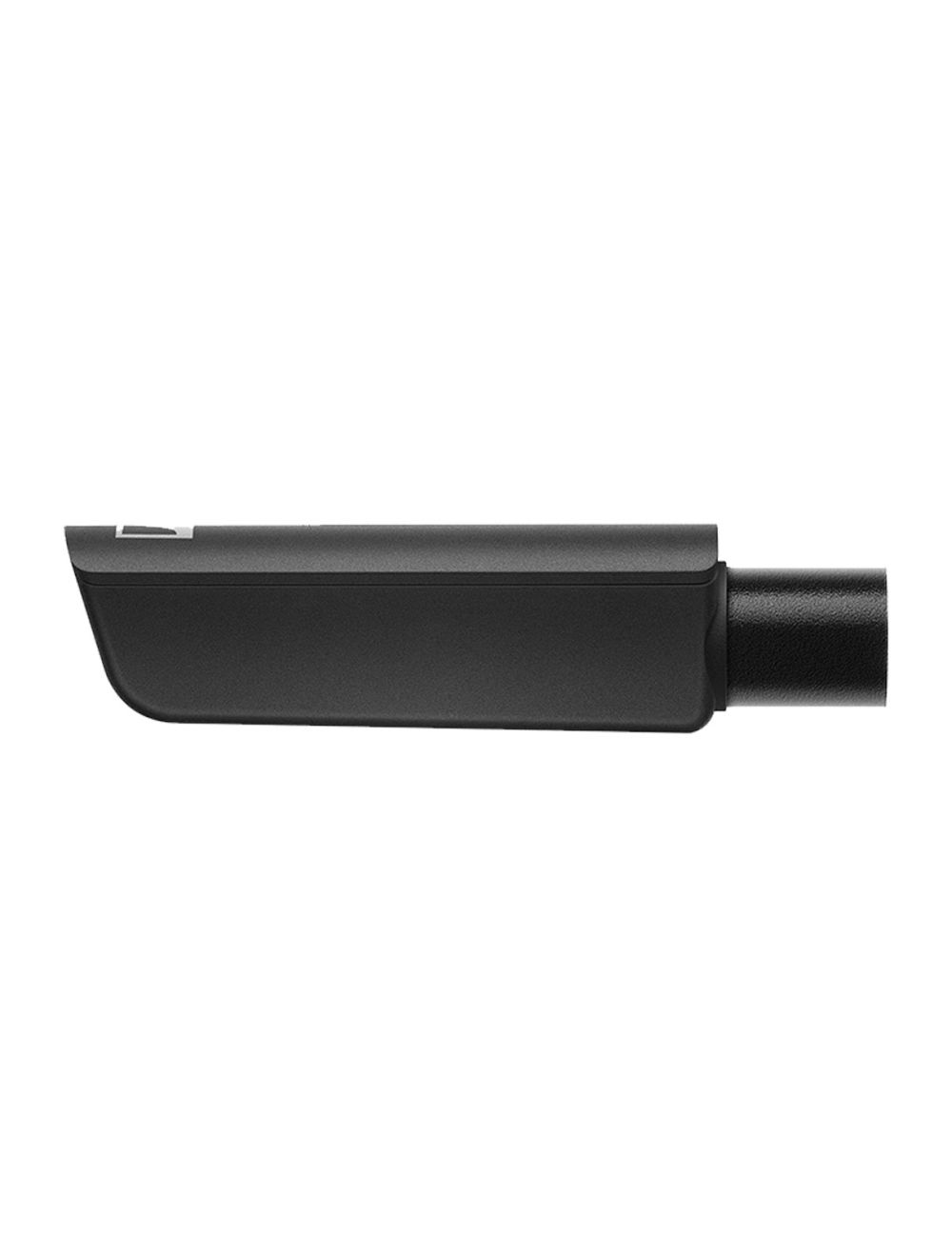

The XSW-D XLR MALE RX plug-in receiver is available as an individual component to be used as a backup receiver or as a replacement unit. It features an XLR-male connector, ready to plug directly into the input on a wide variety of professional audio gear, including mixing boards and portable PA systems. Note that this receiver cannot be phantom powered by a mixer. It needs to be charged ahead of time or used while being charged via USB.
The 1-button, 1-LED concept with single-button interface and status indicator effortlessly handles power and linking tasks for you—without the need for any additional button pressing. Sennheiser wireless mic systems are an industry standard, prized by professionals for their clarity and reliability. The XSW-D system allows first-time and budget-conscious users to get their hands on genuine Sennheiser sound quality without breaking the bank.
Eco-friendly USB-rechargeable lithium-ion battery—1-hour charging to reach 50% of battery time
5-hour total battery life gives you plenty of playing time
Up to five systems can be operated simultaneously in the same environment
Mute from either transmitter or receiver
Multi-pairing lets you quickly switch between multiple transmitters linked to one receiver (note that only one transmitter can broadcast to one receiver at a time)
For Use with XSW-D Wireless Mic System
XLR-Male Output Connector
For Live Vocals, Presentations
Easy to Use, Plug & Play Operation
Lightweight Miniature Housing
USB-Rechargeable 5-Hour Battery
Includes USB Charging Cable
5 Systems at Once Max, Up to 250' Range
Wireless Transmission : Digital 2.4 GHz
Diversity : TDMA
RF Frequency Band : 2400 to 2483.5 MHz
Max Systems per Setup : 5
Latency : <4 ms
Modulation : GFSK
Form Factor : Plug-In
Antenna : 1 x Internal
Number of Audio Channels : 1
Audio I/O : 1 x XLR 3-Pin Male Unbalanced Line Output
Frequency Response : 80 Hz to 18 kHz
USB Port : 1 x USB Type-C (Bus Power, Charging)
Power Requirements : Battery, USB Bus Power
Battery
Battery Type : 1 x Built-In Rechargeable(Not Replaceable)
Internal Battery Capacity : 850 mAh
Battery Charging Time : 3 Hours
Approx. Battery Life : 5 Hours (Lithium Rechargeable)
Battery Cycle Count : Up to 1000 Cycles
Housing : Plastic
Operating Temperature : 14 to 131°F / -10 to 55°C
Dimensions : 1.1 x 4.3 x 0.9" / 28.0 x 109.0 x 24.0 mm
