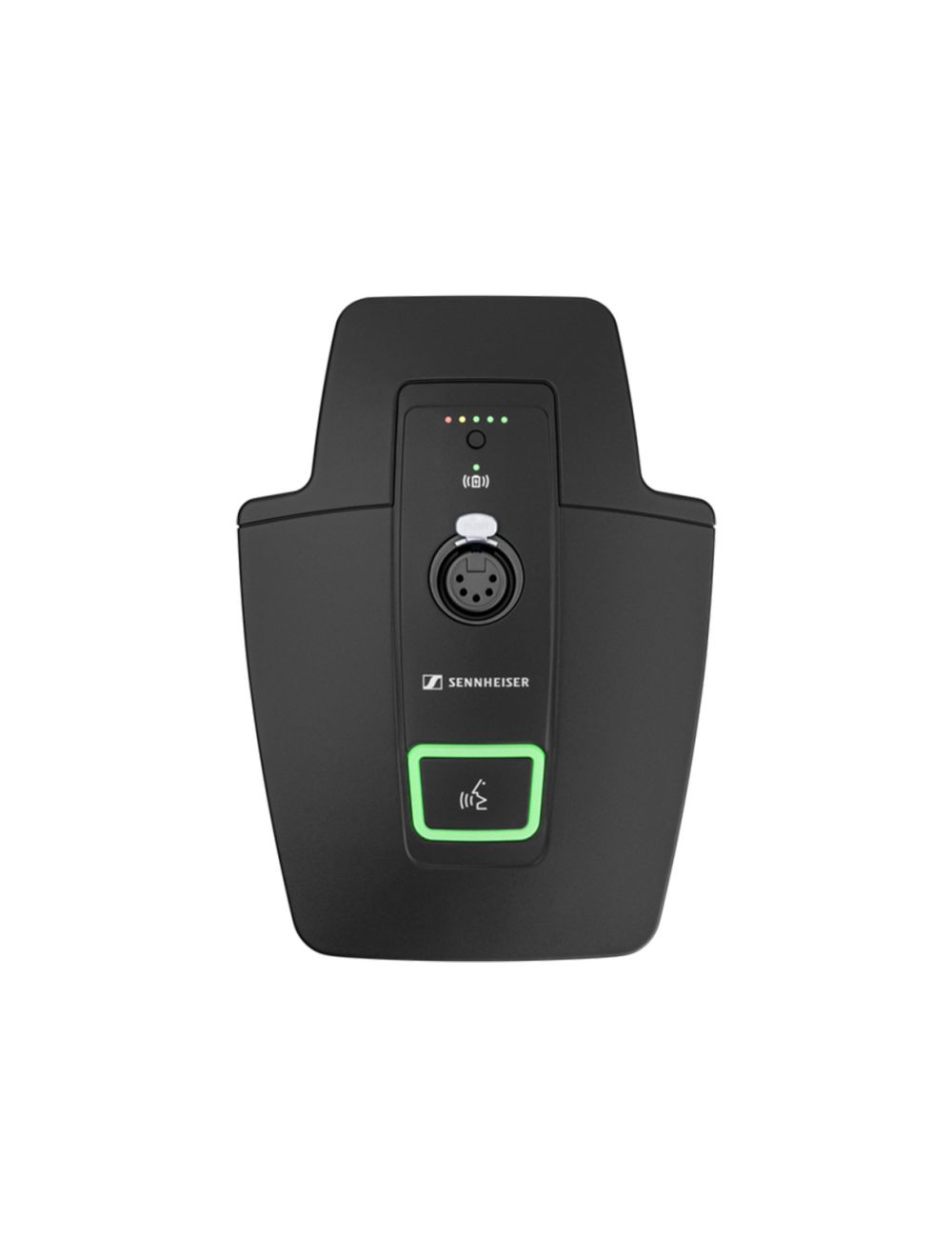

Sennheiser EW-DX TS 5-PIN (V5-7)

• Tablestand transmitter with 5-pin XLR connector
• Programmable mute switch
• Inductive charging with CHG 2W
• Charging via USB
• 10 h runtime with BA 40 lithium-ion battery
• Compatible with MEG 14-40 L-II B gooseneck microphone
• Metal housing
• Audio input : XLR 5F
• Frequency range : 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
• Input impedance : 30 kΩ
• Signal-to-noise ratio : > 90 dB(A)

Tech Specs

• Latency (ms) : 1.9 ms
• RF sensitivity : < -90 dBm
• Total harmonic distortion (THD) : <-60 dB for 1 kHz @ -3 dBfs input level
• Frequency Specifications
• Frequency range : 941.700-951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
• Frequency response : 75 to 20,000 Hz
• Audio frequency response : 20 Hz - 20 kHz (-3 dB)

Acoustic Properties

• Signal-to-noise ratio : > 90 dB(A)
• Dynamic range (>) : 134 dB
• Sampling rates : 24 bit/48 kHz

Inputs/Outputs

• Audio input : XLR 5F

Ambient Conditions

• Operating relative humidity (< %) : 5-95% (non-condensing)
• Operating temperature (C) : -10 °C - +50 °C (14 °F - 122 °F)

Battery & Power

• Charging current (mA) : < 300 mA
• Battery operating time (h) : BA 40 rechargeable battery pack

Electrical Properties

• Input voltage : 2.0-4.35 V
• Input impedance : 30 kQ
• Output power : Audio Link: 10 mW; Bluetooth Low Energy: max. 10 mW EIRP
• Transmission power (mA) : Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP

Technology

• Transmission method : 200 kHz

Dimensions

• Product height : 120.2 mm (4.73")
• Product width : 48.1 mm (1.89")

Bluetooth

• Bluetooth transmission frequency : 2402 - 2480 MHz

What's in the Box

• EW-DX Tablestand Transmitter
• BA 40
• Quick guide
• Safety guide
• Manufacturer declaration sheet
