Radial Exo-Pod Passive Line-Level Splitter w/ XLR & 3.5mm Outputs

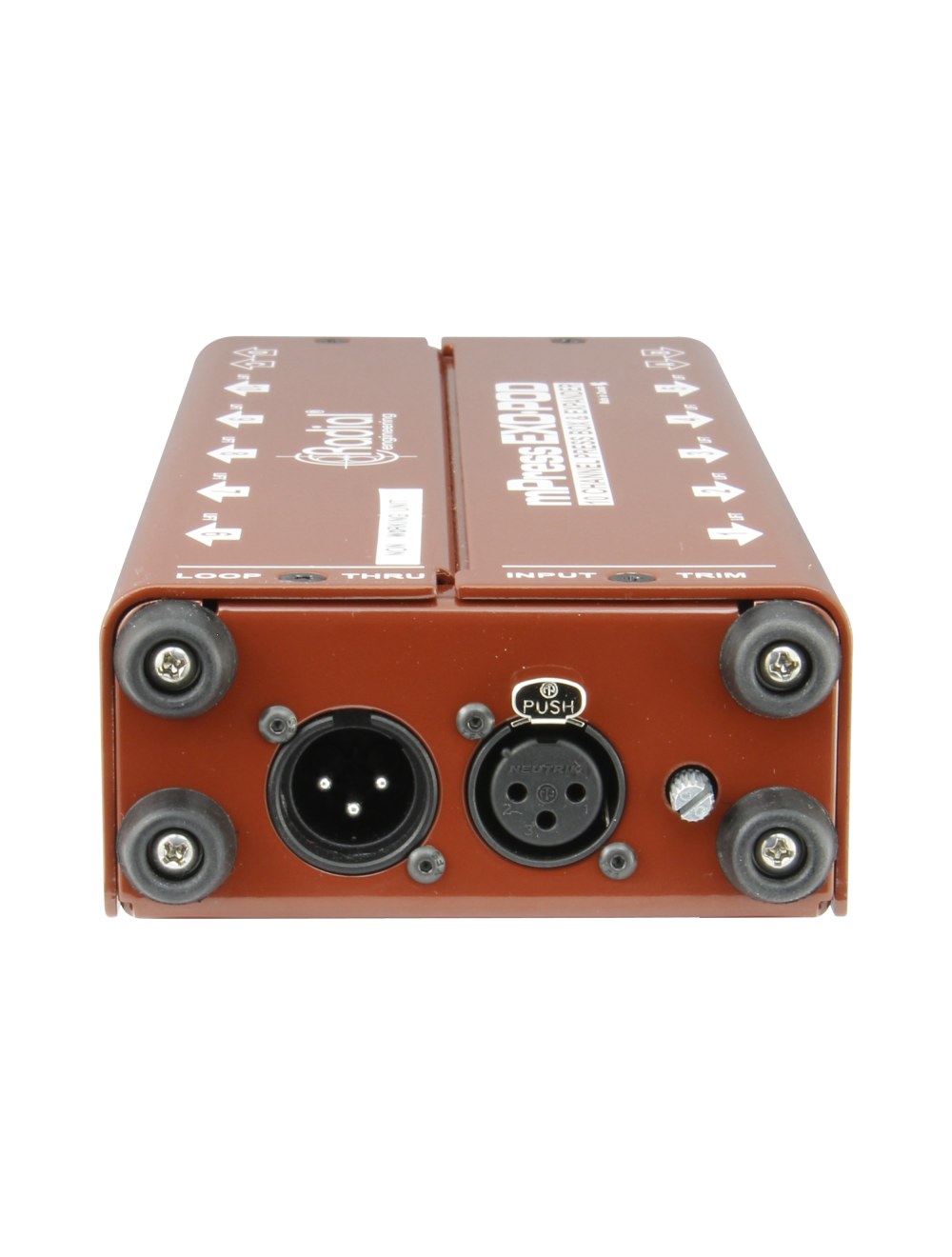

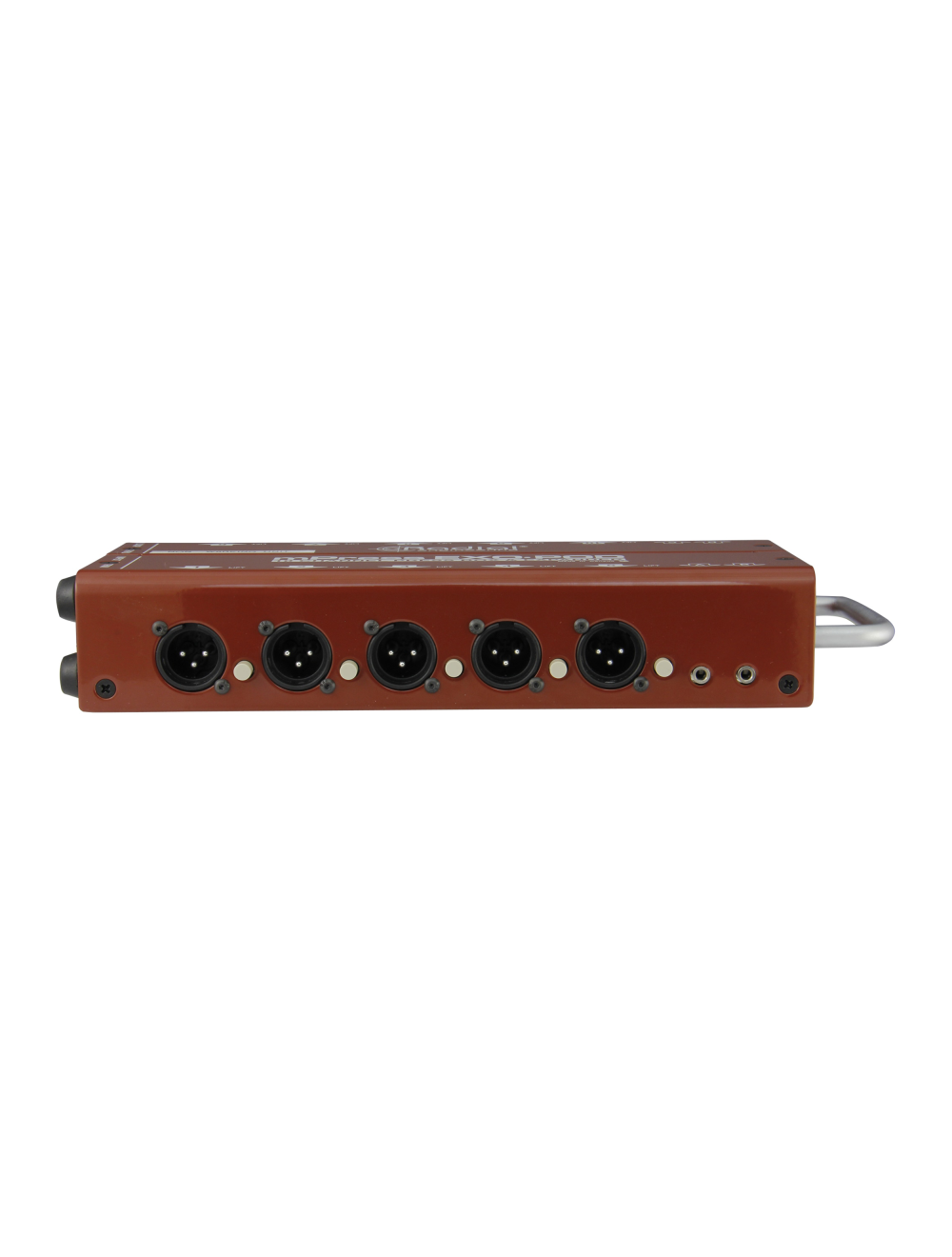

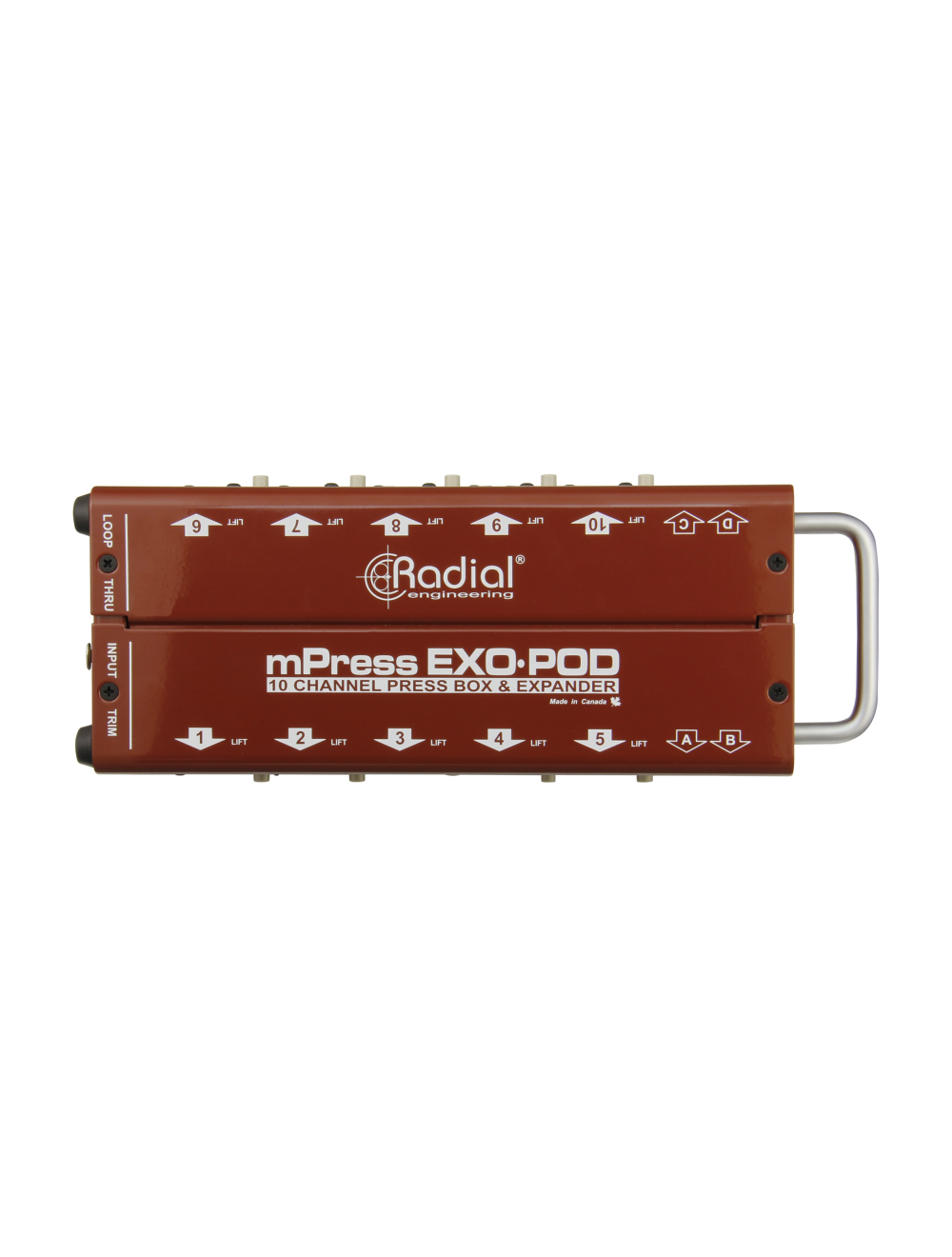

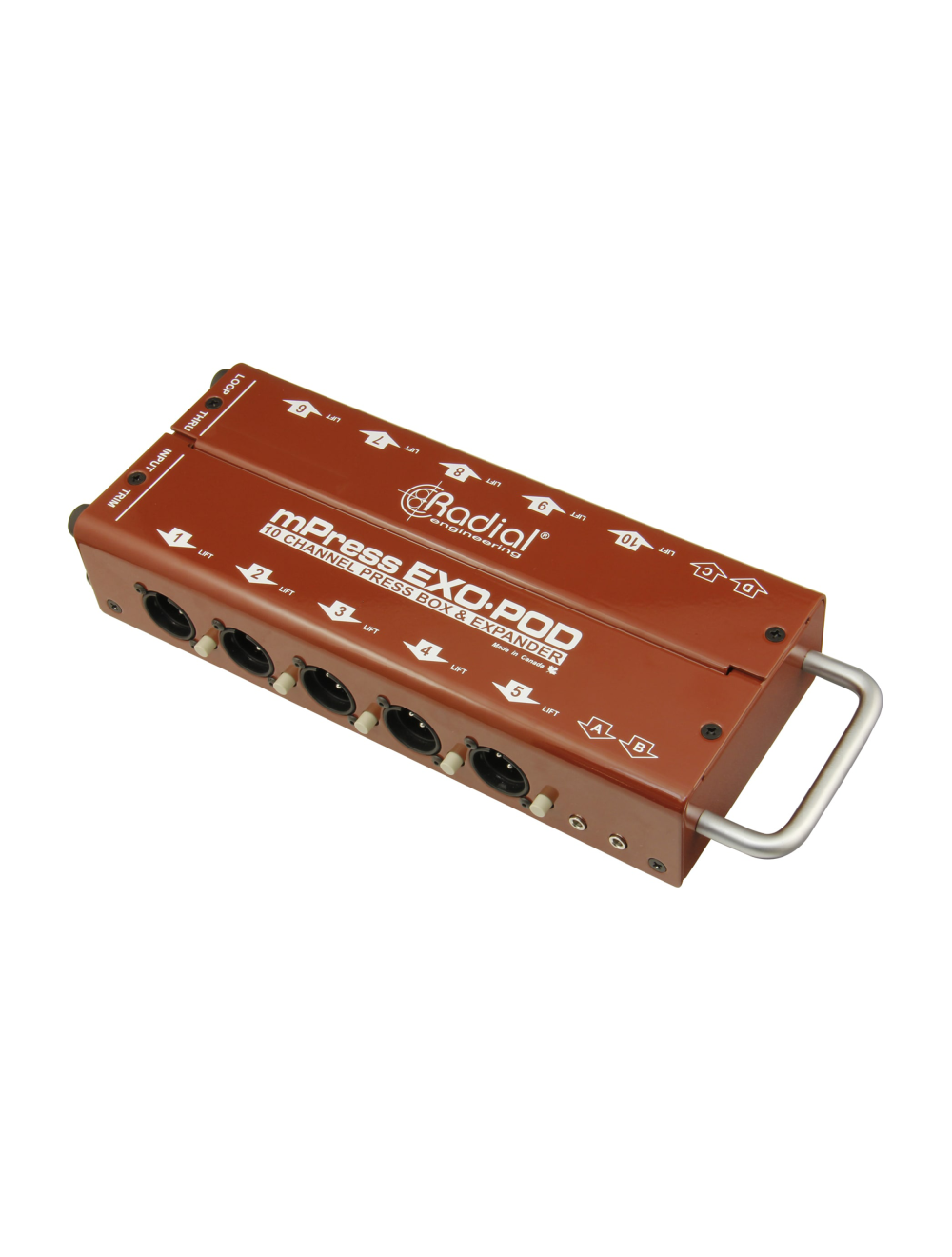

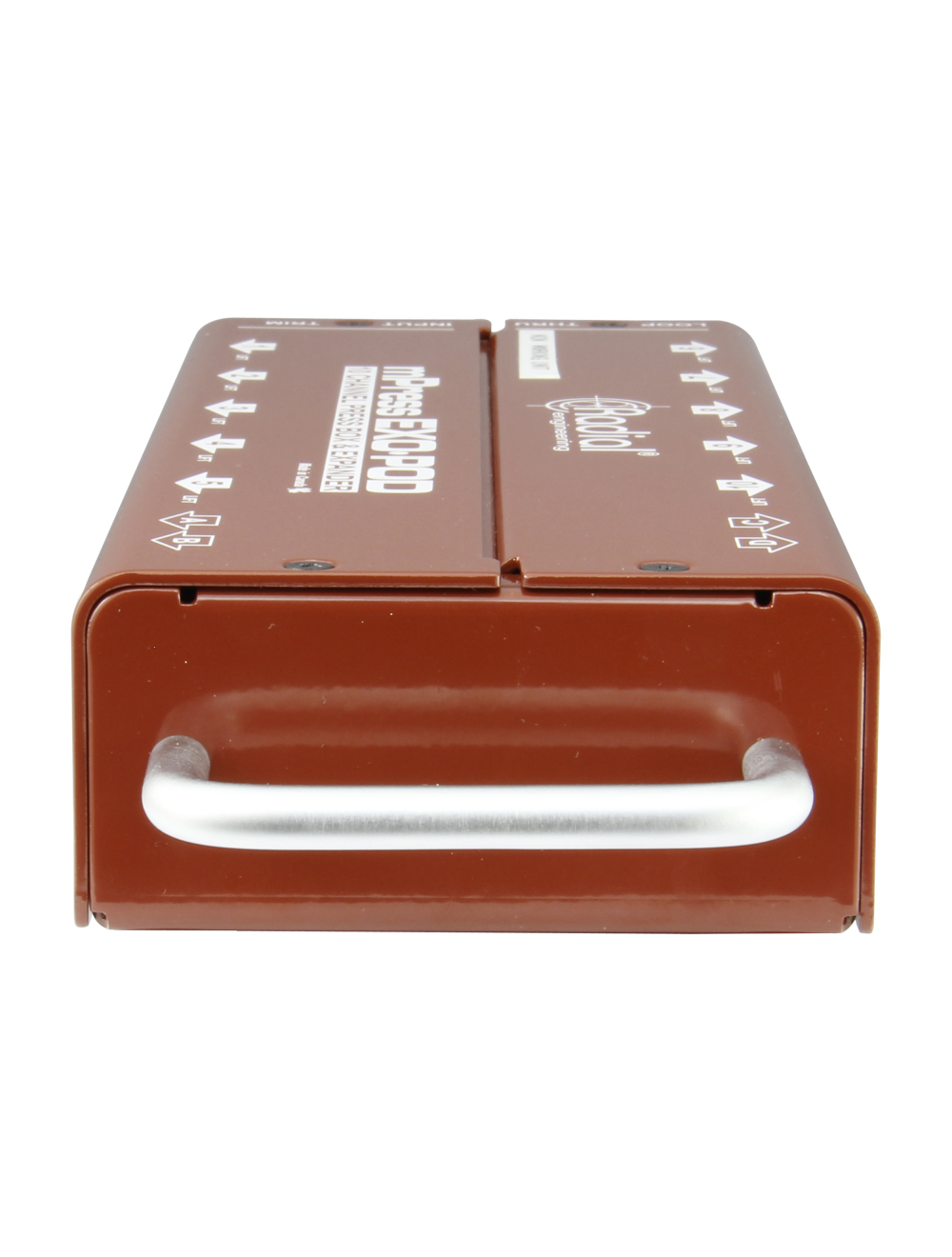

The Exo-Pod is a passive modular splitter for professional audio distribution to a large number of mic or line level recorders. Exo-Pods can be used as standalone devices, but multiple units can also be daisy-chained together for even more outputs. Each Exo-Pod features ten XLR outputs with ground lift switches, and four 3.5mm stereo TRS jacks; all of these outputs are transformer isolated. A trim control at the input allows you to adjust the level. The Exo-Pod is built to last, with a 14-gauge steel enclosure and a steel handle that protects the XLR input, loop-thru output, and trim control. With its flat frequency response and noise-eliminating isolation transformers and ground lifts, the Exo-Pod will ensure that your audio is distributed cleanly.

Passive Line-Level Splitter

The Exo-Pod is a passive broadcast splitter than can take a balanced line output from a mixing console and distribute the signal to up to 14 recording devices. Multiple units can also be linked together to create a larger modular system that can accommodate hundreds of outputs at once.

Expandable noise-free splitting

The Exo-Pod take a line-level XLR input and splits it cleanly to ten XLR outputs and four 3.5mm TRS jacks for connection to video cameras, hand-held recorders, tablets or other media systems. A variable input trim allows the broadcast technician to reduce the global output level locally for convenience, and all of the outputs are transformer isolated to eliminate hum and buzz that is often encountered due to ground loops. The XLR outputs are supplemented with individual ground lift switches to further abate noise, and an XLR thru connector allows multiple Exo-Pods to be linked together to provide an expandable solution to handle events of any size.

Exo-Pod Applications

Using the Exo-Pod as a Simple Broadcast Splitter

The passive Exo-Pod is easily integrated with any mixer using a +4dB line level feed. All Exo-Pod outputs are transformer isolated to eliminate hum and buzz.

Use the Exo-Pod for your town hall meeting

In addition to feeding the press gallery, send the signal to the mic-level inputs on your PA speakers to fill up your meeting room or convention space.

Combine multiple Exo-Pods for large events

Multiple Exo-Pods can be linked together to create dozens of outputs for larger events. Use the thru-puts on the Ecxo-Pod to daisy chain the units to one another.
