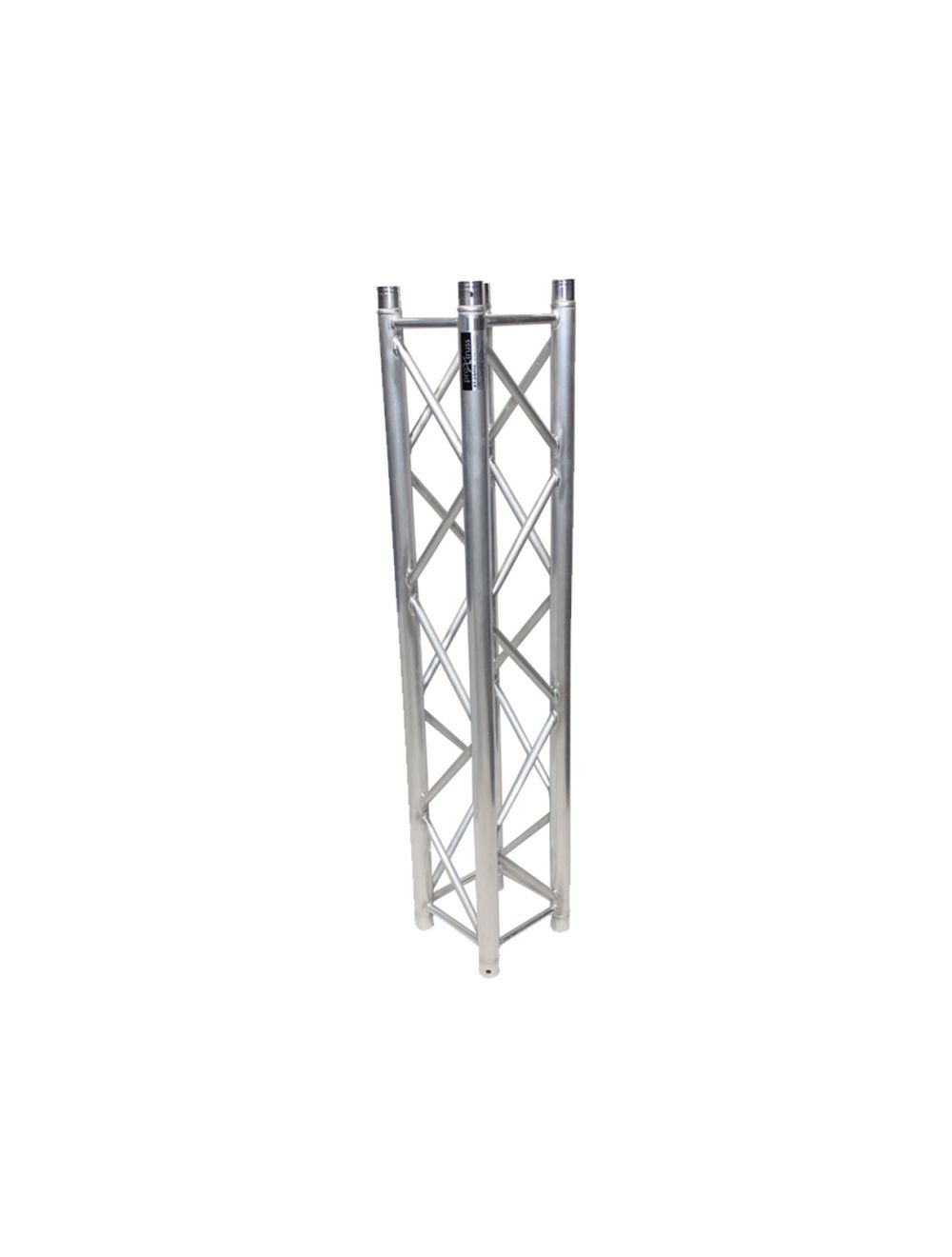

ProX XT-SQ492

ProX XT-SQ492

ProX XT-SQ492

4.92ft (1.50m) Square Truss Segment
$279.99
Out of stock
SKU
TOV-XTSQ492

The ProX XT-SQ492 Truss is one the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs -- while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.

XT-SQ Series Dimensions

  • Height : 11.42in / 290mm
  • Width : 11.42in / 290mm
  • Weight : 21lb per 3.28 ft / 9,5kg per meter
  • Main Tube : 2in / 50mm
  • Wall Thickness :  .08in / 2mm
  • Braces : .75in / 20mm
  • Actual Length :  4.92 ft (1.5 Meters) Square Truss Segment​
  • Segment Weight : 29 lbs.
  • Connecting hardware set.

Features

  • Manufactured in our Own Factory!
  • Material : EN-AWT6 6082 Aluminum
  • TUV Certified Aluminium Welding
  • To Fit Standard F34 Square Truss Configurations.
  • Dimensions  : 12.00"L x 12.00"W x 59.04"H
SKU TOV-XTSQ492
Brand Pro-X
Weight 25.000000
More Information
Refund period 35 days
