ProX KT-F34SQ820

ProX KT-F34SQ820

ProX KT-F34SQ820

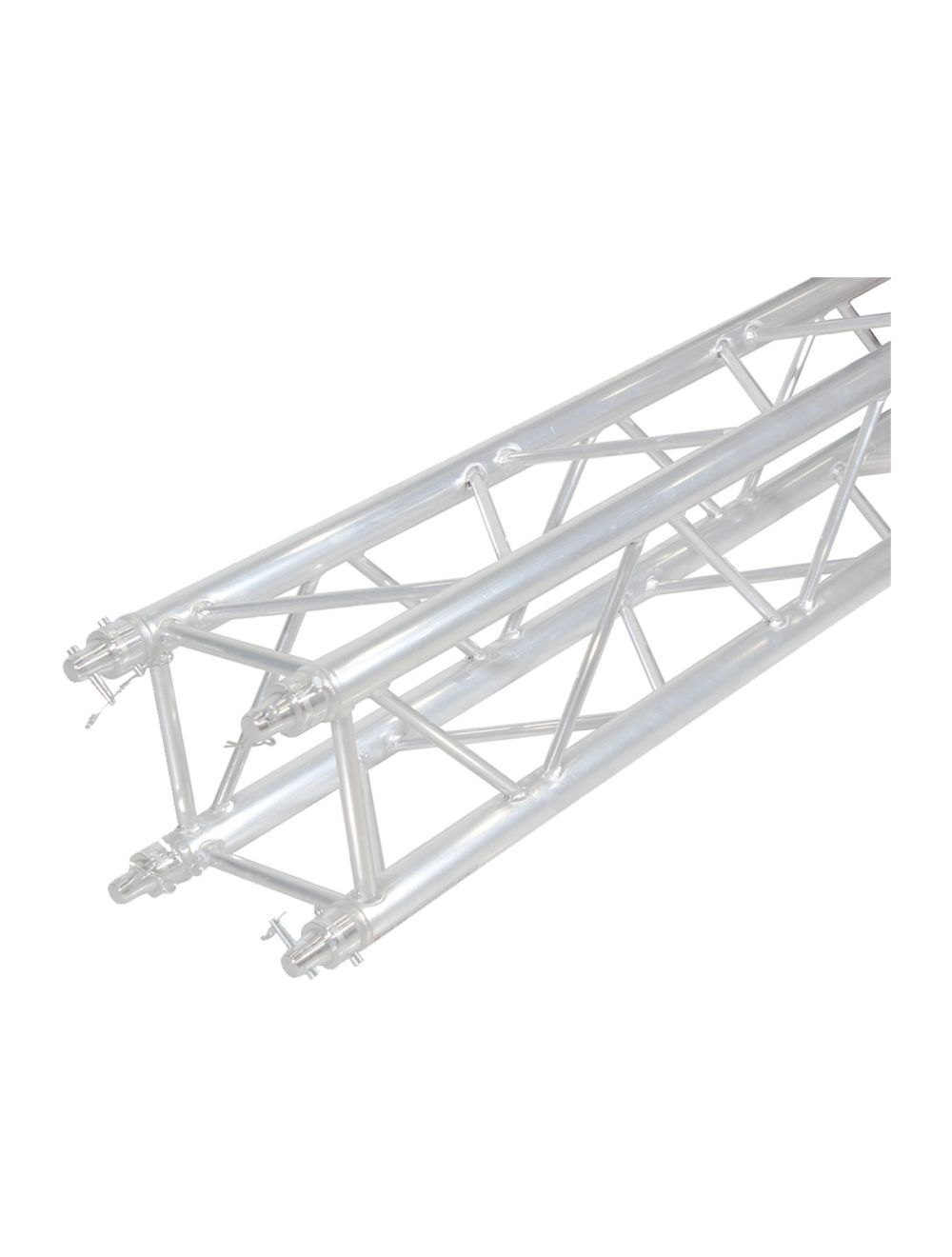

K-Truss 8.20Ft. 2.5M F34 Economy-Lightweight Display Truss
$309.99
Out of stock
SKU
TOV-KTF34SQ820

ProX KT-F34SQ820  ProX KT Series F34 Truss is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ Totems, architectural non-loadbearing designs, and much more.  The ProX KT-F34SQ820  is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.



  •     Compatible in SIZE ONLY w/most major brands F34 Box Square Truss
  •     Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments!
  •     Tolerance Free Standard Conical connector
  •     Material: EN-AW T6-6061 Aluminium Display Grade Quality
  •     Constructed to the highest quality by certified welders
  •     K Series Trussing is an Economy Light-Structural Product primarily designed for display structures.
  •     The K-Truss™ load capacity is 75% lower than the 2mm SQ series.
  •     Engineering Drawings and Design Copyright © 2019 by ProX Live Performance Gear®



KT-F34 Series Dimensions :

  • Width : 11.42in / 290mm
  • Height : 11.42in / 290mm
  • Main Tube : 2in / 50mm
  • Wall Thickness :  .06in / 1.5mm
  • Braces :  .63in / 16mm
  • Actual Height :  8.20 ft. (2.5 Meter) F34  4Tube Truss Segment
  • Dimensions : 98.40"L x 11.42"W x 11.42"H
SKU TOV-KTF34SQ820
Brand Pro-X
Weight 24.000000
