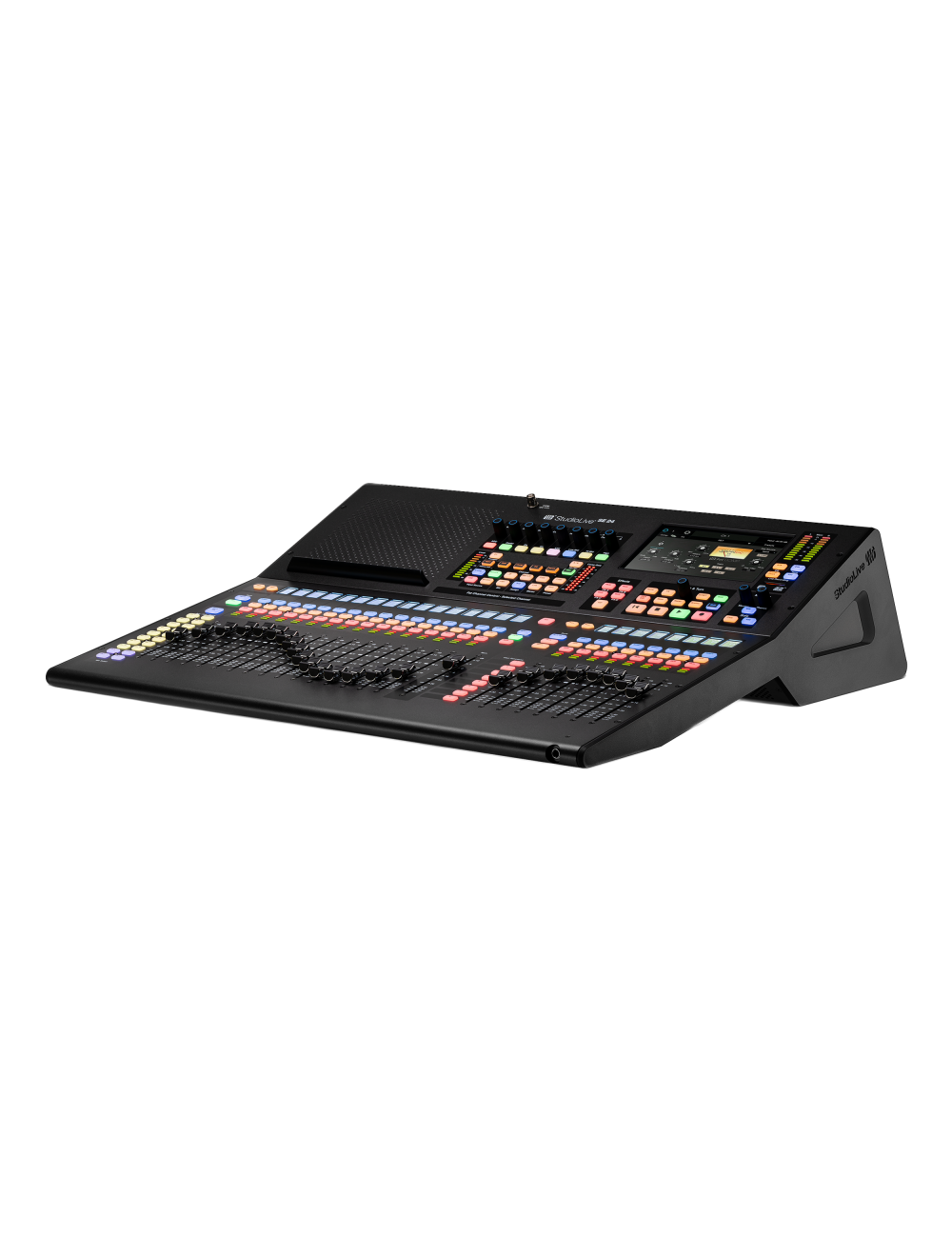

PreSonus StudioLive Series III SE 24 Digital Console Mixer (Open Box)

Integrated Multitrack Recording

• Record every channel and mix with the onboard SD recorder or 64x64 USB audio interface
• One-click Virtual Soundcheck with Capture
• Seamless compatibility with Studio One Pro and leading DAWs

Pristine Studio Sound on Stage

• 33 XMAX-Remote preamps for transparent analog tone and digital recall
• 32-bit floating-point DSP processing
• 115 dB A/D–D/A converters with ultra-low jitter clocking

Expanded Routing and I/O

• 16 FlexMixes configurable as auxes, subgroups, or matrix mixes
• AVB networking with StudioLive Stage Boxes and Milan-compatible gear
• Four dedicated effects buses, four subgroups, and 24 DCAs

Advanced Fat Channel Processing

• Dynamic Fat Channel design with 8 scribble strip displays for fast visual access and customization
• All 7 EQs and 8 Compressors from the Fat Channel Collection included
• Modeled after iconic hardware: Brit Comp, FC-670, Tube EQ, and more
• Extended reverb parameters: Diffusion, Predelay, Room Size, and advanced damping

Metro Remote Access and Universal Control

• Control every aspect of your mix remotely—from routing to effects
• Provide technical support and reconfiguration remotely
• Use QMix-UC for personal monitor mixing from mobile devices

Mixing Comfort and Control

• 25 touch-sensitive motorized faders deliver smooth automation and tactile mixing
• Ergonomic flat screen and redesigned fader caps for maximum visibility and comfort

Electronics

• Headphone Jack : 1/4" TRS Active Stereo
• Phantom Power : +48 VDC (±2 VDC)
• Power Consumption : 85W (Continuous)
• Voltage Requirements : 100-230 VAC, 50-60 Hz

General

• Color : Black
• Product Name : StudioLive Series III SE 24 Digital Console Mixer
• Series : StudioLive

Hardware

• Digital Audio AES EBU Output : XLR Male
• Digital Audio AVB Audio Network Ports : Neutrik etherCONN
• Digital Audio Network Control Port ; RJ-45
• Digital Audio USB Recording Port : USB 2.0, Type-B
• Tape Connection Type : RCA Female, Unbalanced (Stereo Pair)

Inputs

• Line Input Connection Type : 1/4" TRS Female, Balanced
• Line Inputs Frequency Response : 20-20 kHz (±0.5 dBu at Unity Gain)
• Line Inputs Impedance : 10 kΩ
• Line Inputs Maximum Level : =+18 dBu
• Line Inputs Signal To Noise Ratio : 94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Line Inputs Total Harmonic Distortion : <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
• Microphone Input Connection Type : XLR Female, Balanced
• Microphone Preamp Common Mode Rejection Ratio : 65 dB (1 kHz at Unity Gain)
• Microphone Preamp Frequency Response : 20-20 kHz (±0.5 dBu at Unity Gain)
• Microphone Preamp Gain Control Range : 0 dB to 60 dB (±1 dB)
• Microphone Preamp Input Impedance : 1 kΩ
• Microphone Preamp Maximum Input Level : =+12 dBu (Unity Gain)
• Microphone Preamp Signal To Noise Ratio : 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
• Microphone Preamp Total Harmonic Distortion : <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
• Tape Maximum Input Level : +12 dBu, ±0.5 dBu

Measurements

• Media Storage Capacity : SD Card: 2 GB; SDHC Card: 32 GB
• Product Depth : 22.97” (583.84 mm)
• Product Height : 6.51” (165.36 mm)
• Product Height/Length : 6.51” (165.36 mm)
• Product Width : 25.98” (659.81 mm)
• Refinement Weight : 26-50

Miscellaneous

• Digital Audio Internal Processing : 32-Bit, Floating Point
• Power Cable : IEC
• Recommended Ambient Operating Temperature : 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
• Recording File Format : WAV
• Supported Media Format : FAT16 Formatted SD Card, FAT32 Formatted SDHC Card
• Supported Sample Rates : 48 kHz, 44.1 kHz

Output

• Headphone Outputs Frequency Response : 20 Hz to 20 kHz, +/-0.5 dB
• Headphone Outputs Maximum Output : 100 mW/ch. @ 60Ω load
• Headphone Outputs Signal To Noise Ratio : 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
• Headphone Outputs Total Harmonic Distortion : 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
• Line Outputs Connection Type : 1/4" TRS Female, Balanced
• Line Outputs Maximum Output Level : =+18 dBu, ±0.5 dBu
• Line Outputs Output Impedance : 100 Ohms
• Tape Maximum Output Level : +18 dBu, ±0.5 dBu
• Tape Output Impedance : 100 Ohms
• XLR Outputs Maximum Output Level : +24 dBu, ±0.5 dBu
• XLR Outputs Output Impedance : 100 Ohms

Performance

• Crosstalk (Adjacent Channels) : -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
• Digital Audio Bit Depth : 24
• Digital Audio Dynamic Range : ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
• Digital Audio Reference Level For Zero dBFS : +18 dBu
• Digital Audio Total System Latency : 1.9 ms (local routing, analog in-analog out, all processing active)
• SD Recorder Bit Depth : Recording: 24 Bit, Playback: 16 or 24 Bit
• SD Recorder Sampling Rate : 44.1 or 48 kHz
