Neumann KH 805 II Subwoofer

Deep Impact with Power and Precision

The KH 805 II is the perfect subwoofer for medium sized rooms, providing bass extension with Neumann precision. It includes a unique and flexible Bass Manager for stereo systems and can also be used in surround and immersive setups for LFE reproduction or with external bass management. Analog and digital inputs and outputs allow for flexible connectivity.

Next Generation Subwoofer

The KH 805 II improves on its predecessor in acoustic performance and adds new features. Thanks to a novel long-throw 10” woofer with Extremely Linear Force Factor (ELFF) technology and intelligent protection limiters, the KH 805 II ensures exceptionally low distortion even at maximum SPLs.

The KH 805 II extends low frequency reproduction down to 16 Hz and delivers about twice the output of the KH 750 DSP. This makes the KH 805 II the perfect complement to mid-sized speakers such as the KH 150 and KH 310.

The KH 805 II is DSP-controlled for superior sonic performance and seamless integration via MA 1 Automatic Monitor Alignment (sold separately). When combined with analog Neumann studio monitors such as the KH 120 A (discontinued), KH 310, or KH 420, it offers sufficient DSP-power for aligning the entire stereo system using MA 1, optimizing not only the frequency response but also the phase. The KH 805 II is therefore a massive upgrade for existing systems. Of course, the KH 805 II is also a perfect complement to Neumann’s DSP-equipped studio monitors.

Precision in Every Detail

As subwoofers are typically placed on the floor, a robust grille protects the driver from accidental damage. The rigid cabinet features a highly efficient bass reflex system, which is carefully engineered and tuned for the tightest bass reproduction – with inaudible port noise.

The two analog XLR inputs are electronically balanced, as are the two analog XLR outputs. The up to 192 kHz / 24-bit digital input (BNC) accepts both AES3 and S/P-DIF signals. The subwoofer has an Auto Standby function, which can be deactivated via a backplate switch.

The KH 805 II excels in music, broadcast, and post-production studios for tracking, mixing, and mastering.

Features

Deep and powerful bass down to 16 Hz
The perfect complement to mid-size Neumann KH line studio monitors
DSP-controlled for superior sonics and unparalleled precision
Room correction via MA 1 Automatic Monitor Alignment (sold separately)
Supports automatic alignment also for analog KH-line studio monitors (patented)
Bass extension of the monitoring system down to 16 Hz
Increasing the maximum SPL of the entire system
Decreasing harmonic and intermodulation distortion of loudspeakers
MA 1 Ready for perfect alignment of the entire system and seamless subwoofer integration. For multichannel setups, we offer MA 1 Multichannel Extension option.
MA 1 integration of analog KH Line speakers, enough DSP power for an entire stereo system.

(1) Compact ultra stiff wooden cabinet

Tough painted finish and build-in rubber feet for acoustic isolation
Excellent self-damping properties leading to minimal cabinet resonances
No standing wave resonances inside cabinet
Ultra tight bass reproduction due to very low group delay

(2) In-house modelled long-throw bass driver with Extremely Linear Force Factor (ELFF) and robust resonance optimized basket

Damping of breakup modes brings low distortion at high sound levels
Extremely linear force factor provides low harmonic distortion even at high excursions
Reduced air noise and minimized rocking modes
Grille protects against mechanical damage

(3) 2.0/ 0.1 Bass Management

Stereo and external bass managed applications
Bypassable 4th order crossover for maximum compatibility with consumer reproduction systems
Allows main loudspeakers to play louder and with lower distortion

(4) Four routing modes

Stereo 80 Hz bass management
External bass management
LFE up to 120 Hz
LFE full range

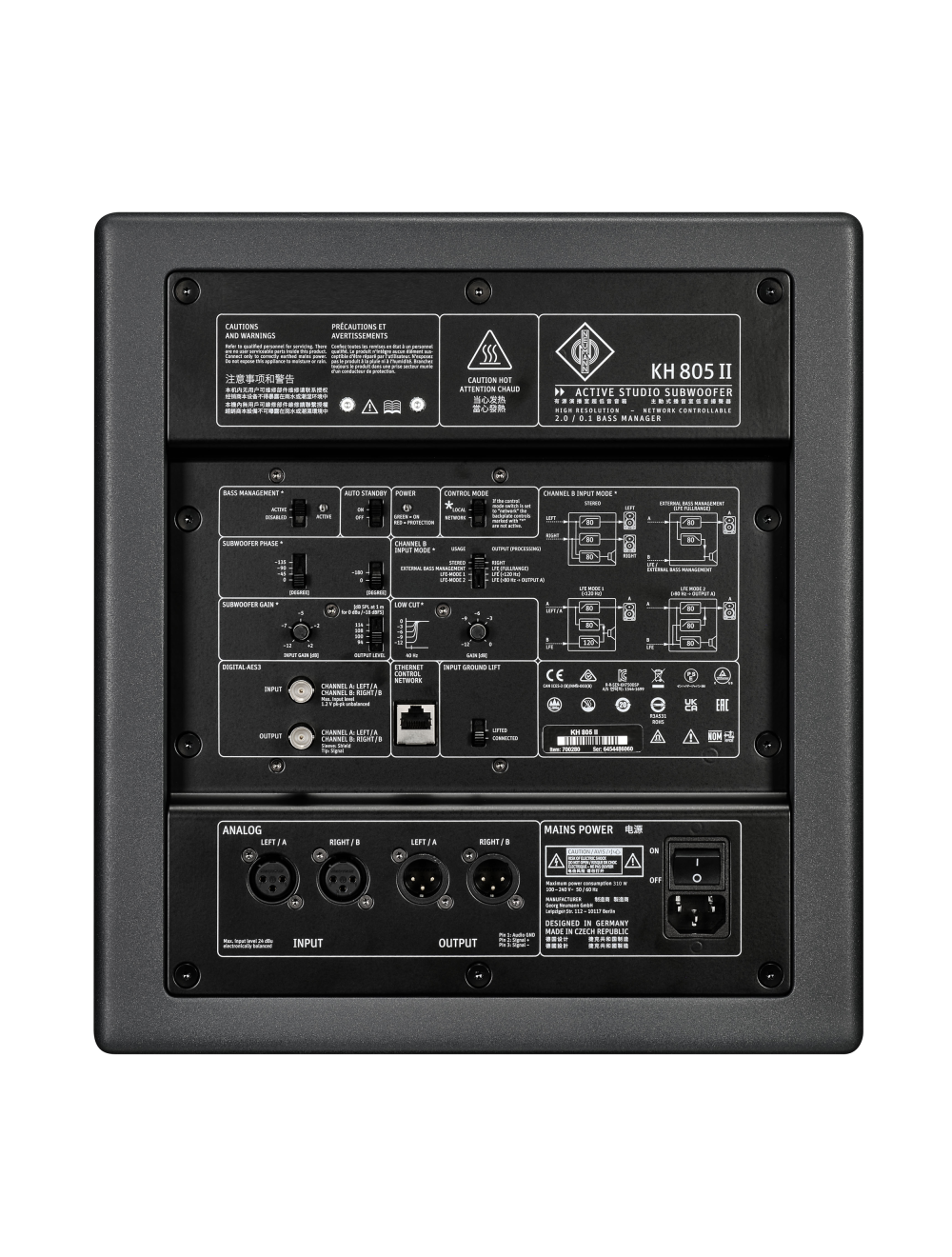

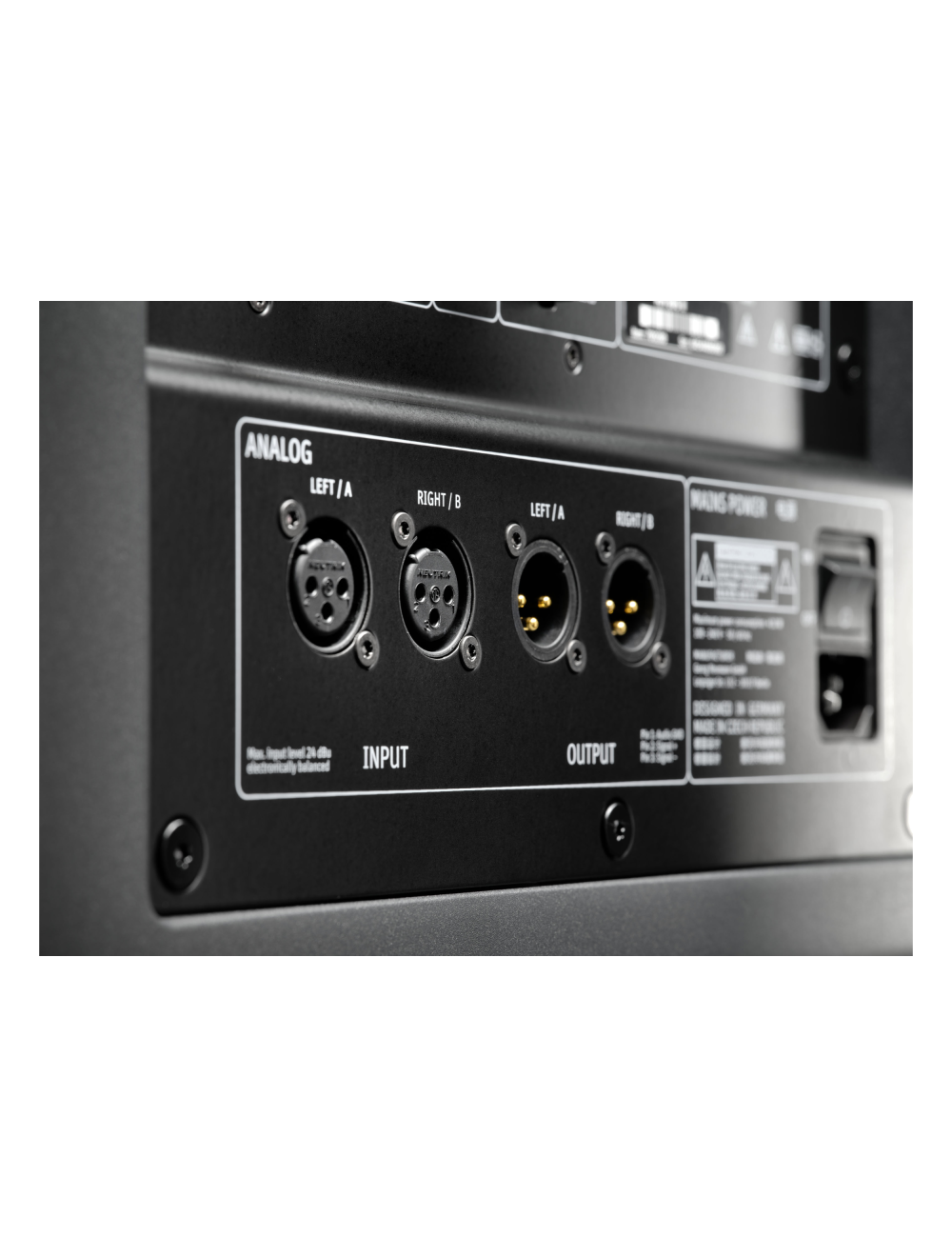

(5) XLR electronically balanced analog inputs and outputs

Standard interfacing to professional equipment
Daisy chain output for subwoofer arrays

(6) Wide range input gain and output level controls

Easier interfacing with signal sources
8-position phase control, continuous low cut control
More control in various acoustical environments
Easy to correct room modes

(7) Universal switched-mode power supply (100 … 240 V)

One version works in any country and is robust to poor quality mains supply

(8) Ground lift to overcome ground loops

Inputs with very high CMRR to reduce noise induced by long cables in electrically noisy environments
Completely symmetrical internal signal flow to avoid electrical interferences

(9) Low heat dissipation amplifiers with large headroom and sophisticated protection circuitry

Improved transient response
Assured reliability and safety
Separate thermo limiter to protect the voice coil and power amplifier
Soft clip and excursion limiters
Increases system reliability
Allows extraction of the maximum performance from the system

(10) Digital input and output

192 kHz, 24-bit conversion
BNC connector: AES3 and S/P-DIF signals

(11) Network connector using standard IP protocol and your existing network infrastructure

Loudspeaker system including analog KH-line monitors can be controlled via MA 1 - Automatic Monitor Alignment Software.

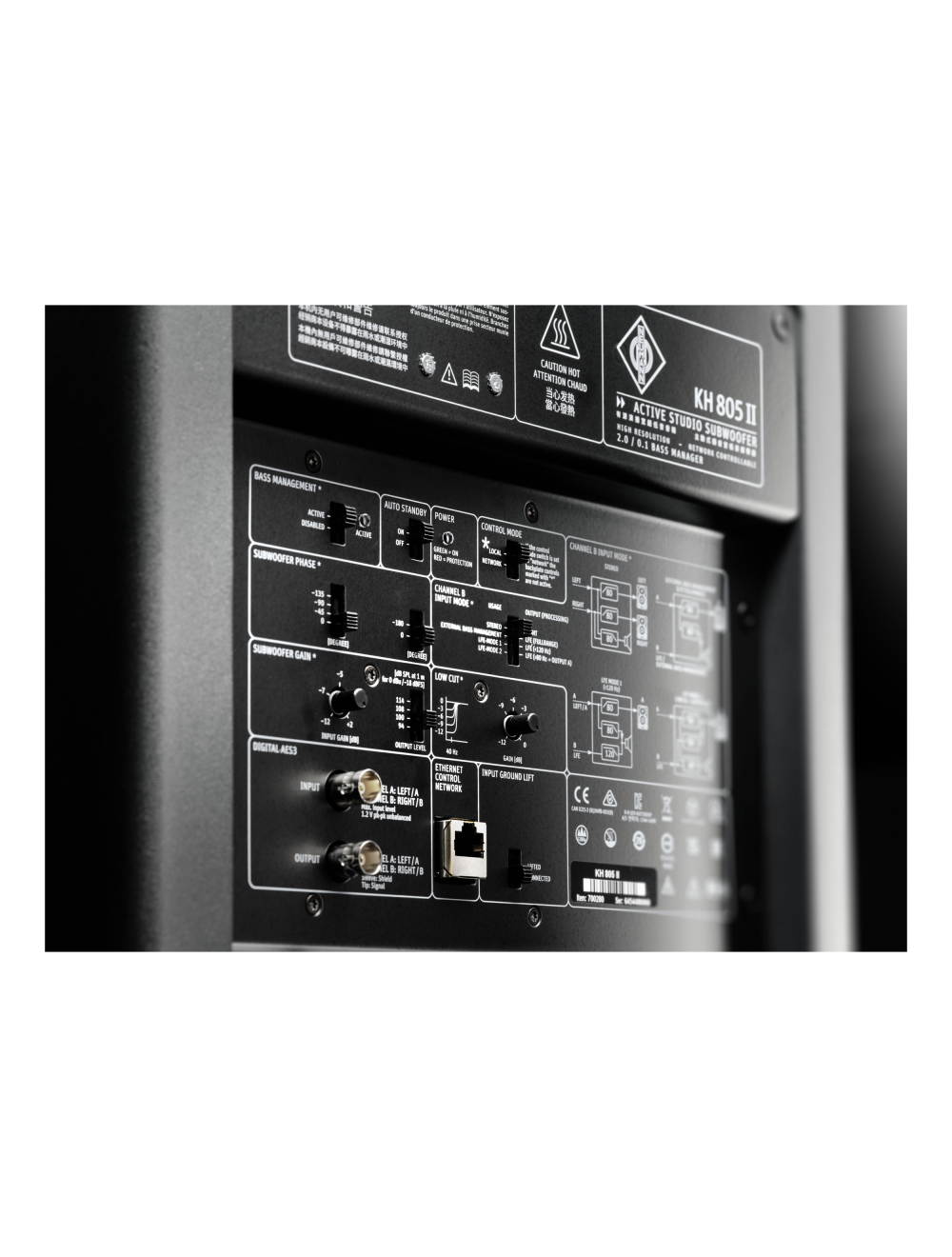

(12) Control function

Toggle switch for selection of two completely independent modes of operation and calibration: on the device or via the network using the MA 1 - Automatic Monitor Alignment software.

(13) Standby function

Reduces power consumption when product is not in use.
