MXR M290 Phase 95 Mini Phaser Pedal - Open Box

MXR M290 Phase 95 Mini Phaser Pedal - Open Box

MXR M290 Phase 95 Mini Phaser Pedal - Open Box

Guitar Phase 95 Effect Pedal
was $109.99 Special Price $94.99
In stock
SKU
MXR-PHASE95-B

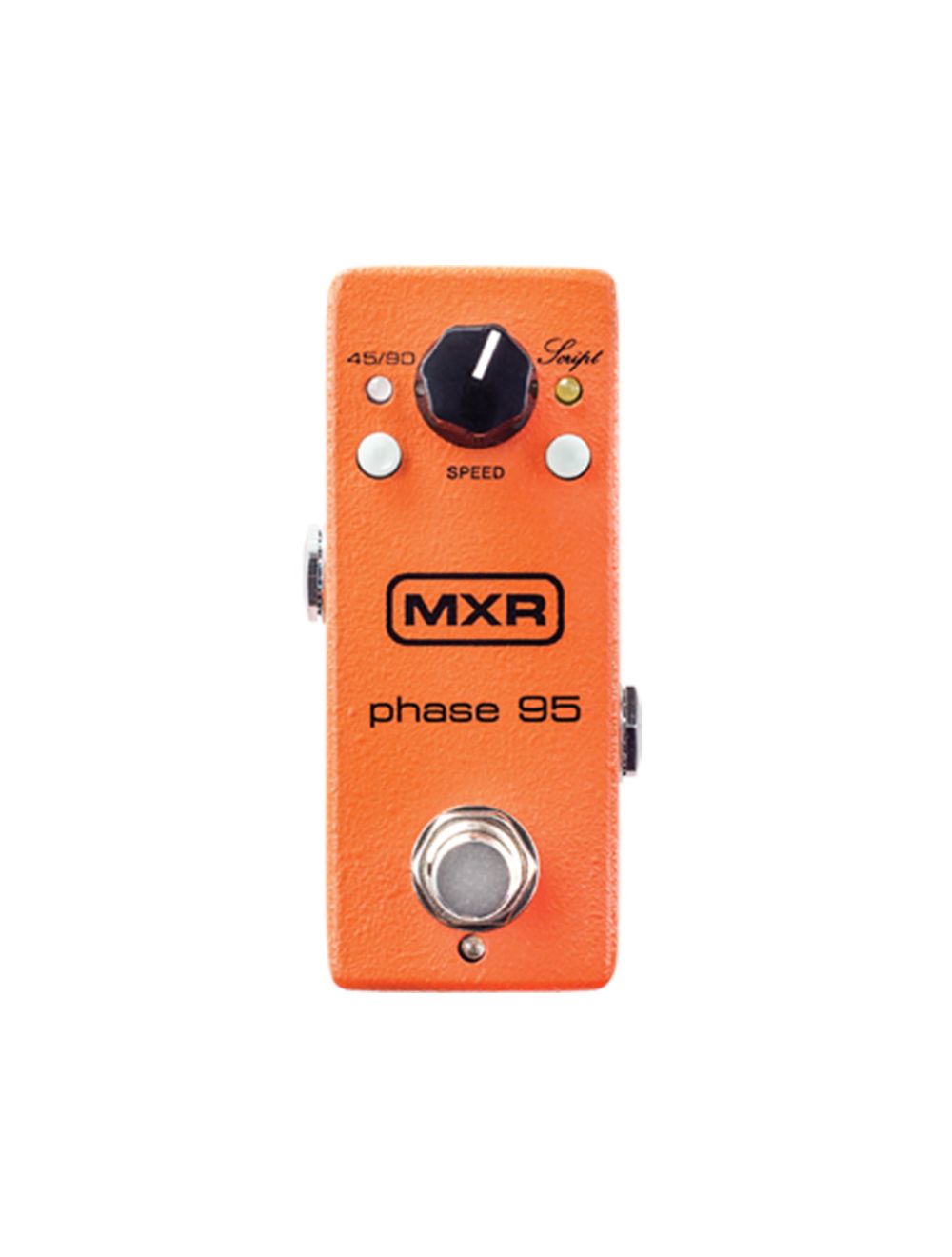

The Phase 95 combines the Phase 45 and Phase 90 circuits-toggled by the 45/90 switch-in a mini housing, featuring a Script switch to toggle between modern and vintage style phasing.

MXR knows phasers. The Phase 90's compact size, superior construction, and refined sound put MXR on the map, and it set the standard by which all other phasers are judged. Two years later, MXR released the Phase 45-a mellower version of the effect favored for its ability to easily blend into a band's mix. Now, you can get both iconic circuits in a single pedal while tightening up your pedalboard at the same time. The Phase 95 combines the Phase 45 and Phase 90 circuits in a mini housing with about half the footprint of a standard MXR pedal. The 45/90 switch toggles between the Phase 45 mode's subtle two-stage phasing and the Phase 90 mode's more pronounced four-stage phasing, while the Script switch toggles between two phasing styles. The Phase 95 is set to modern style phasing by default, which relies on feedback to create light harmonic distortion and gives the effect a more accentuated swoosh. Engaging the Script switch removes feedback for a lusher, more subdued sound with higher headroom and greater clarity. The familiar Speed control sets the rate of the effect. The Phase 95 may be small, but it's full of rich phase tones, and it'll take a beating on the road.

The MXR Phase 95 combines two iconic phase circuits into a single mini housing the two-stage Phase 45 and the four-stage Phase 90. The 45/90 switch toggles between the two, while the Script switch removes feedback for a subtler vintage sound.

Directions

  • Run a cable from your guitar to the M290’s INPUT jack and run another cable from the M290’s OUTPUT jack to your amplifier.
  • Set SPEED knob to its 12 o’clock position.
  • Turn the effect on by depressing the footswitch.
  • Push the 45/95 switch to select desired phaser mode Phase 45 (red LED) or Phase 90 (blue LED).
  • Rotate the SPEED knob clockwise to increase rate of effect or counterclockwise to decrease it.
  • Engage the SCRIPT switch for a subtler vintage sound, indicated by amber LED.

Specifications

  • Input Impedance : 800 kΩ
  • Output Impedance : < 6 kΩ
  • Max Input Level : -8 dBV
  • Max Output Level : 8 dBV
  • Noise Floor* : -95 dBV
  • Speed Range : 0.125 Hz to 10 Hz
  • Power Requirements : 8 mA @ 9VDC

Controls

  • SCRIPT switch removes feedback from circuit (indicated by amber LED)
  • 45/90 switch toggles between Phase 45 (red LED) and Phase 90 (blue LED) modes
  • SPEED knob controls rate of effect
  • FOOTSWITCH toggles effect on/bypass (blue LED indicates on)
SKU MXR-PHASE95-B
Brand MXR
Weight 1.000000
