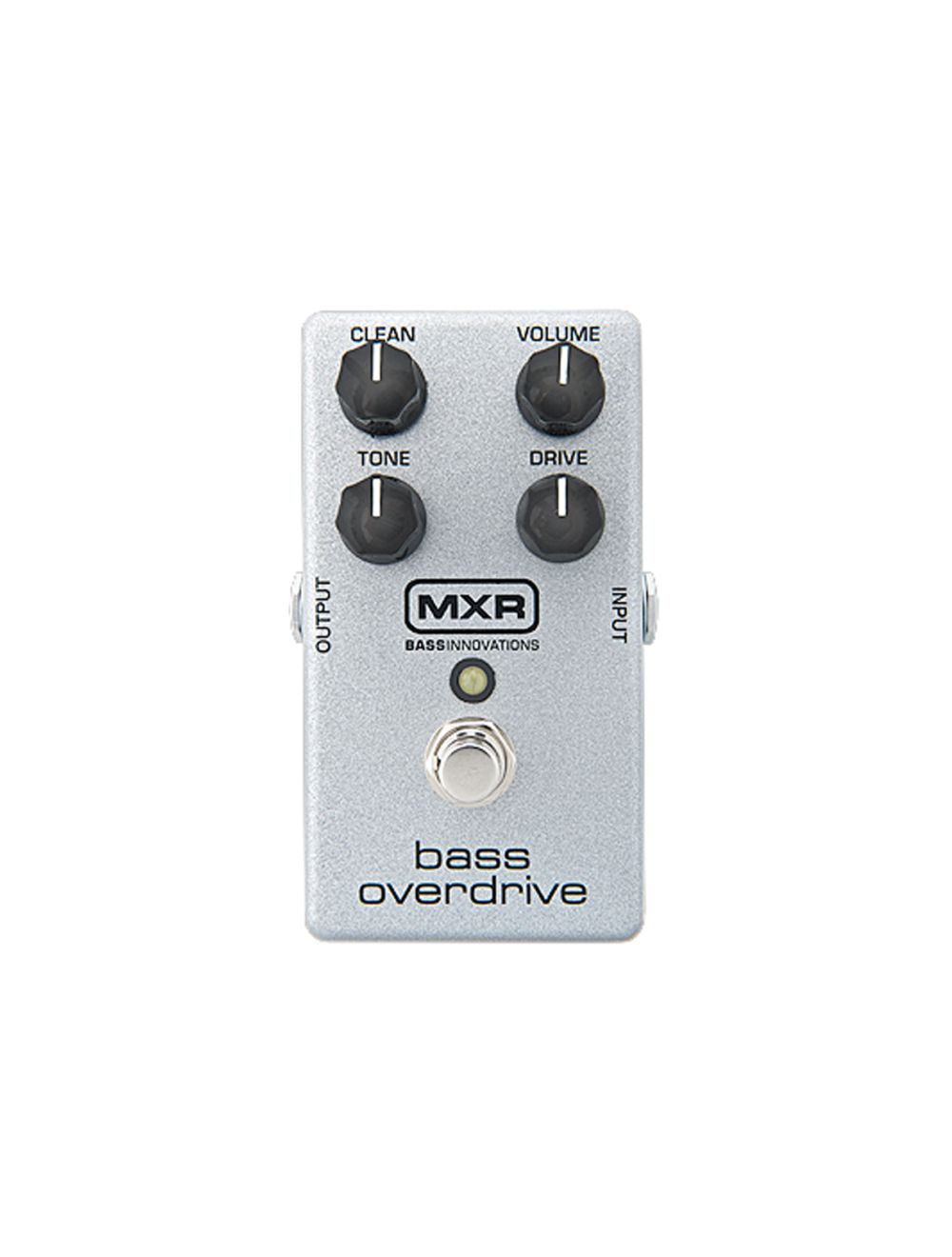

The MXR Bass Overdrive is an original design that delivers warm, tube-like overdrive. Along with standard Volume, Tone and Drive controls, this pedal features a Clean control so you can blend a pre-set EQ clean signal with the overdrive signal, resulting in sweet burly bass overdrive.
A unique overdrive circuitdesigned specifically for bass
Separate clean and drivecontrols for tonal versatility
100% analog circuitry for richwarm tone
Power
The MXR Bass Overdrive is powered by one 9 volt battery (remove bottom plate to install), a 9 volt AC Adapter such as the Dunlop ECB003/ECB003EU or a power supply such as the DC Brick.
Directions
Run a cable from your bass to the Bass Overdrive’s Input jack and run another cable from the Bass Overdrive’s Output to your amplifier.
Set all controls to the 12 o’clock position.
Turn the effect on by depressing the FOOTSWITCH.
Rotate the CLEAN control clockwise to increase the blend of preset EQ clean signal or counterclockwise to decrease it.
Rotate the VOLUME control clockwise to increase the overall volume of the effect or counterclockwise to decrease it.
Rotate the TONE control clockwise for a brighter tone or counterclockwise for a darker sound.
Rotate the DRIVE control clockwise to increase the amount of overdrive or counterclockwise to decrease it.
Specifications
Input Impedance : 1 MΩ
Output Impedance : <10 kΩ
Signal to Noise* : >95 dB
Current Draw : 19 mA
Power Supply : 9 volts DC
Controls
CLEAN knob blends in a tuned clean signal with the overdrive signal
VOLUME knob controls the overall volume of the pedal
TONE knob controls the color of the overdrive signal
DRIVE knob controls the amount of overdrive
FOOTSWITCH toggles effect on/by bass (white LED indicates on)
