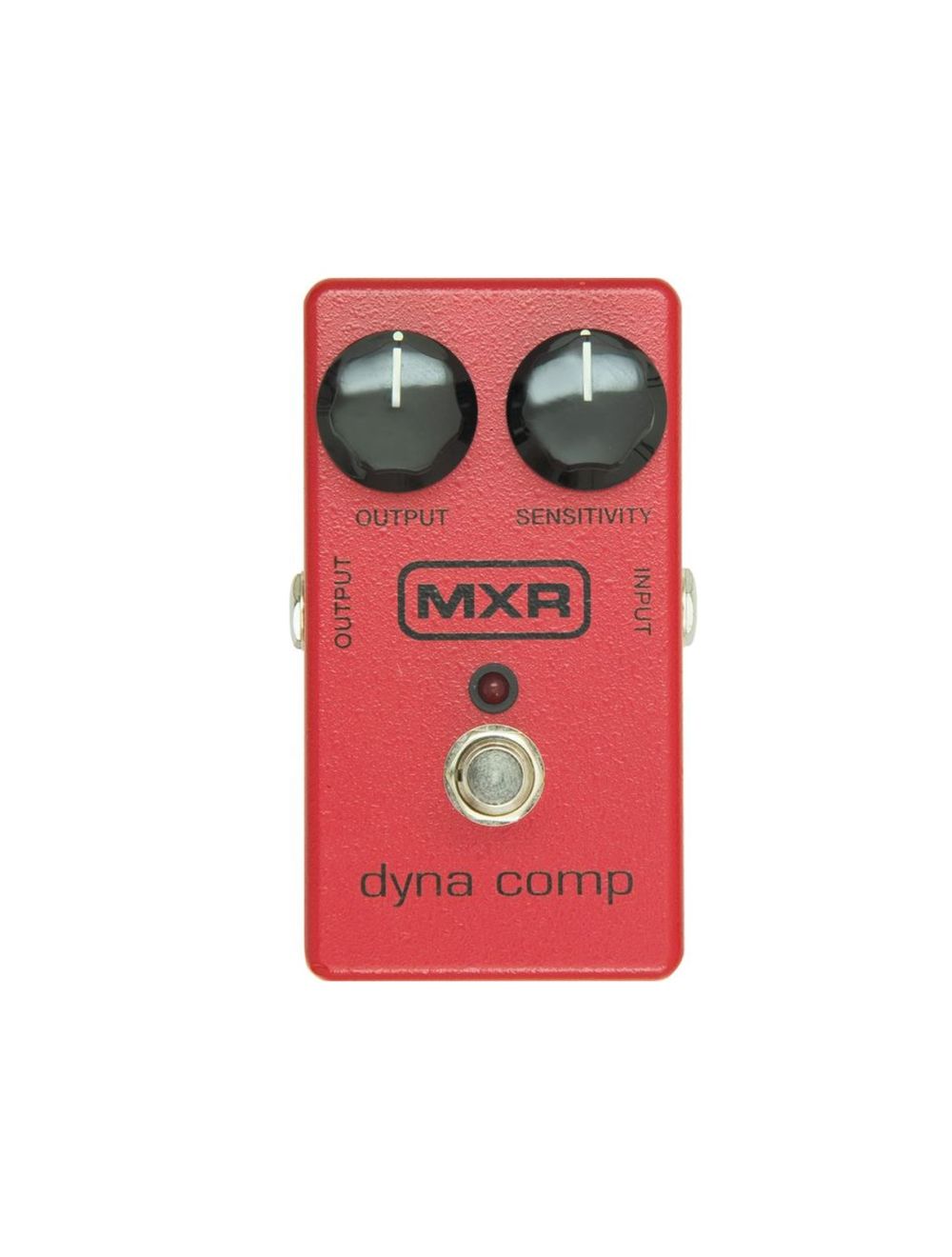

MXR M102 DynaComp Compressor

The Dyna Comp Compressor is one of the most popular compressors of all time. Whether you want to tighten up your signal, add rich sustain, or create the percussive and clicky sound heard on numerous hit records, this pedal is straightforward and easy to use. For these reasons, the Dyna Comp Compressor has been the secret weapon on countless pedalboards for years.

Description

In-line compressor “evens out” your signal
Especially useful for increased sustain with stable dynamics
Nashville studio standard
·

Power

The Dyna Comp is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such

as the Dunlop ECB003/ECB003E, or a DC Brick power supply.

Directions

Run a cable from your guitar to the Dyna Comp’s INPUT jackand run another cable from the Dyna Comp’s OUTPUT jack to your amplifier.
Start with all controls at 12 o’clock.
Turn the effect on by depressing the footswitch.
Rotate OUTPUT knob clockwise to increase overall volume of effect or counterclockwise todecrease it.
Rotate SENSITIVITY knob clockwise to increase sensitivity (more compression) or counterclockwise to decrease it (less compression).

Specifications
