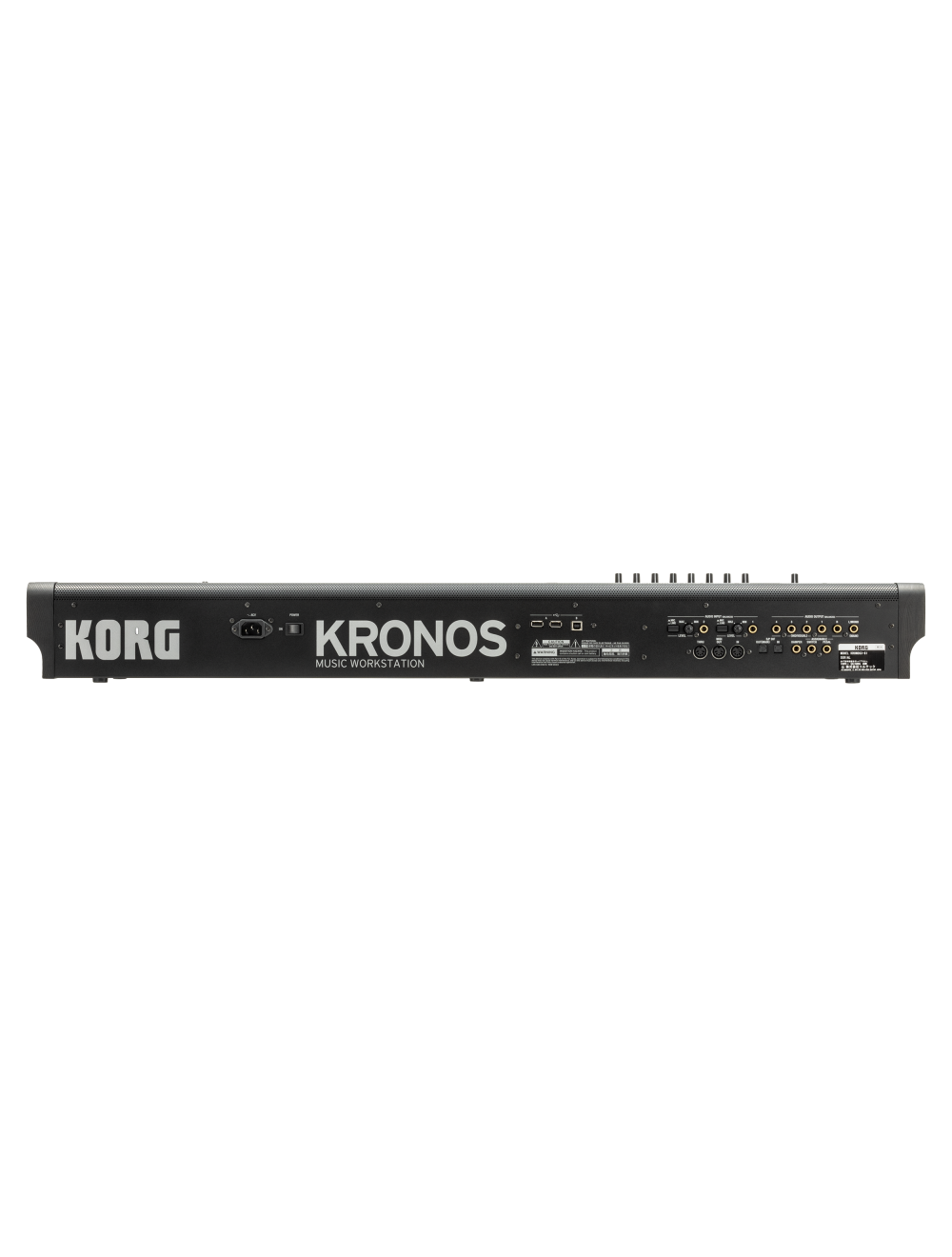

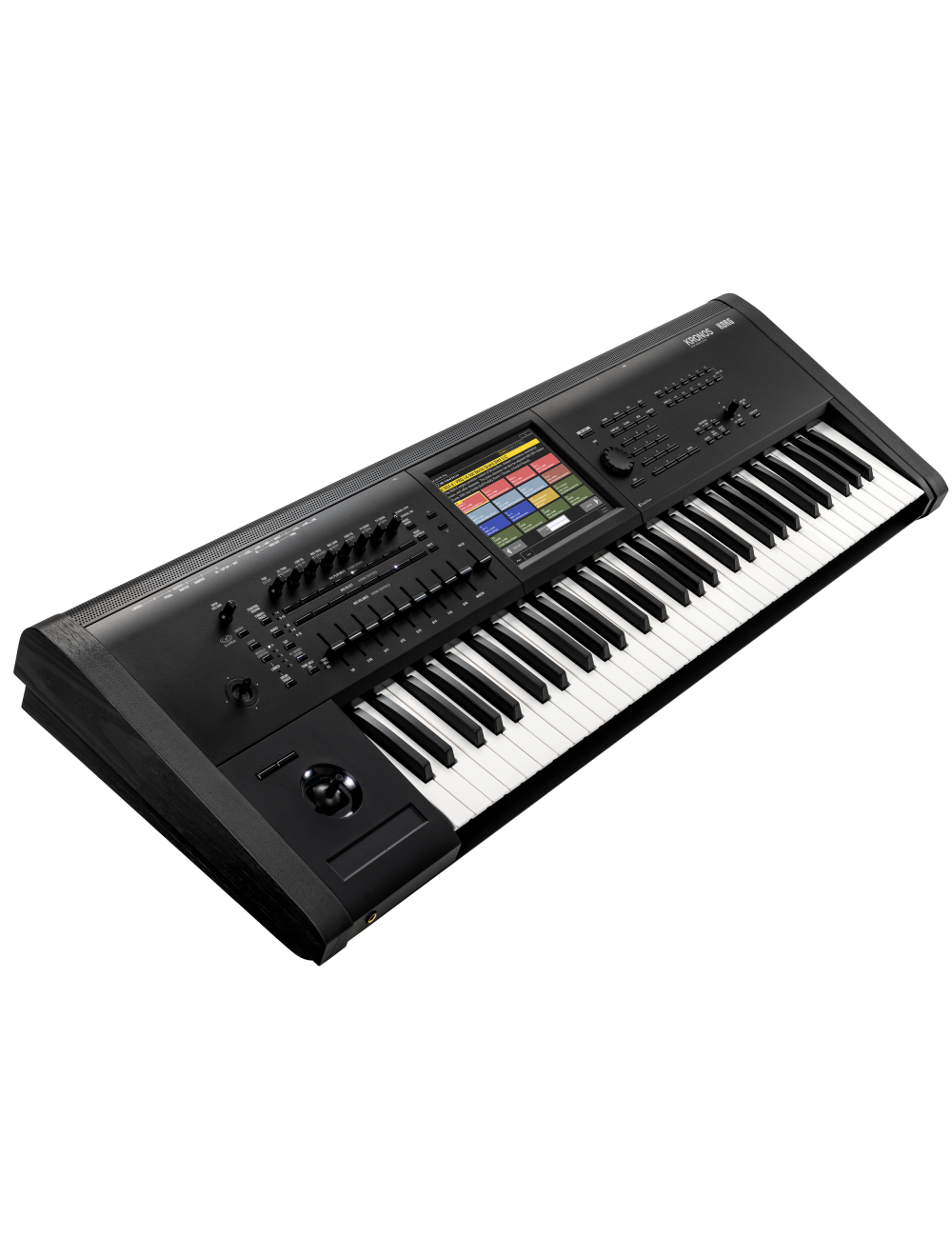

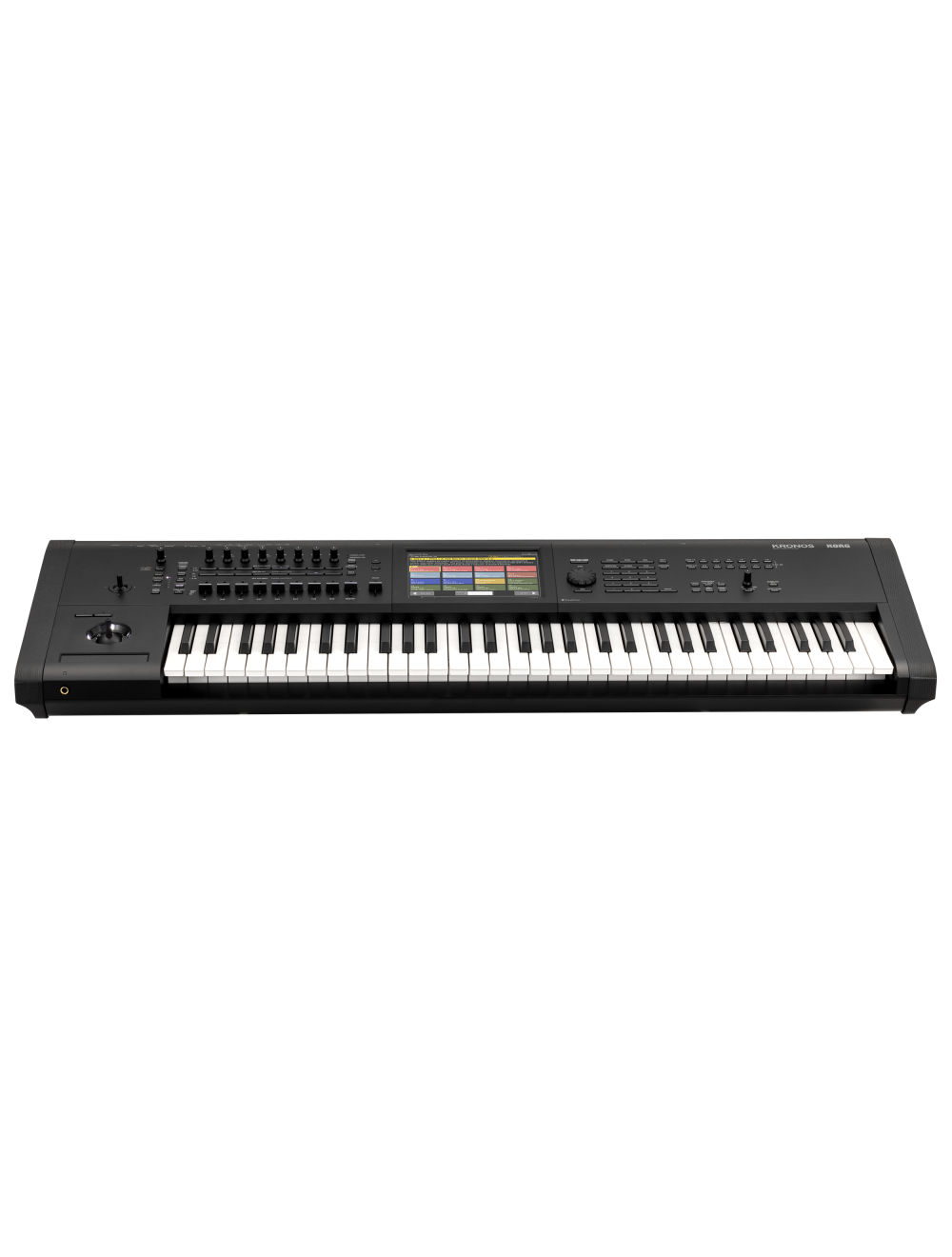

Korg Kronos 3 61-Key Music Workstation

Korg Kronos 3 61-Key Music Workstation

Korg Kronos 3 61-Key Music Workstation

61-Key Music Workstation Keyboard
$3,399.99
Out of stock
SKU
KOR-KRONOS361

The Ultimate Stage Icon Returns

Since its debut in 2011, the groundbreaking KRONOS has earned complete admiration from musicians worldwide, evolving through model updates and innovations shaped by the feedback from so many professional musicians using KRONOS on the biggest stages and studios around the world. Revered as the definitive keyboard for professionals and discerning amateurs, the KRONOS has consistently set the gold standard in performance, power and versatility.

Now, by popular demand, the KRONOS is back—refreshed, refined, and ready to reclaim its place in the spotlight. With intuitive controls, access to over 300 premium Sound Libraries, and a suite of exclusive features, the newest KRONOS is designed to redefine what’s possible on any stage and in any studio.

New Sounds, Unmatched Expression

In addition to the thousands of included sound programs and combinations, the new KRONOS introduces 256 additional programs, carefully crafted to elevate your musical creativity. Central to this update are 128 brand-new sound programs, including a stunning Italian piano with gorgeous, transparent resonance, and the Tine EP I Early, an electric piano tone that authentically replicates the earthy, vintage sound of metal rod (tine) mechanisms. These additions, alongside FM electric pianos, versatile synth pads, lush leads, and more, give you a broad palette of truly useful sounds spanning every genre—from timeless classics to modern chart-toppers.

Complementing these are 128 expertly curated sounds from the KRONOS Sound Libraries. Developed in collaboration with 12 world-class sound designers, these sound programs include the best of their creations, handpicked to inspire and expand your sonic palette. This selection also features new piano voices ensuring KRONOS remains your ultimate go-to keyboard.

Exclusive Programs and Combinations

  • KRONOS comes preloaded with a treasure trove of iconic sounds from the KRONOS Sound Libraries.
  • KRS-08 Best of TRITON: A brilliant and inspiring collection of 128 programs from one of the biggest selling synthesizers of all time and included here as a preloaded gift.
  • KRS-04 Pro Splits and Layers: Essential keyboard splits and layers optimized for real-time performance.
  • KRS-05 Ensemble Combinations: Band-friendly ensembles featuring brass, strings, and synths

Additionally, KRS-06 and KRS-06B CX-3 Signature Sounds—a joint collaboration between KORG and some specially chosen top-tier organists—bring 256 CX-3 organ programs to your fingertips, preloaded and ready to play.

This collection of timeless sounds ensures every performer, from soloists to ensemble players, has access to the best KRONOS has to offer.

Streamlined Control, Unparalleled Intuitiveness

The KRONOS control system has been meticulously refined over generations to deliver a performance interface as intuitive as it is powerful. Its layout—featuring eight real-time knobs, nine sliders, and a suite of performance controls—remains comfortably familiar, empowering musicians to focus on their craft and perform intuitively.

At the heart of the interface lies the large, responsive TouchView display, now faster and more responsive than ever and offering at-a-glance access to vital information and settings. This seamless design ensures anyone familiar with previous KRONOS models can effortlessly dive in.

Enhanced Design for Modern Performance

While the hallmark features of KRONOS remain unchanged, its fourth-generation design introduces subtle yet striking updates. The powder-coated metal body offers exceptional durability and a premium tactile feel, while the refined black wood side panels add a sophisticated edge. These enhancements ensure KRONOS not only performs impeccably but also commands attention from any audience.

Optimized for Speed and Precision

KRONOS takes performance efficiency to new heights with its significantly improved startup process. Thanks to a reengineered system architecture, startup time is now 60% faster than previous models, drastically reducing downtime. Coupled with an enhanced TouchView interface, KRONOS provides unmatched responsiveness, ensuring every interaction feels instantaneous and intuitive.

Legacy Support, Built to Last

KRONOS is more than an instrument—it’s a commitment. Since its inception in 2011, every mode of KRONOS has received substantial updates while ensuring compatibility and continuity across generations. KORG’s dedication to long-term support ensures all KRONOS systems can utilize the many and varied KRONOS Sound Libraries, preserving your investment and enabling seamless upgrades when hardware is refreshed.

For previous KRONOS and NAUTILUS owners, KORG will release a Soundpack in the second half of 2025 that brings the latest KRONOS sounds to earlier models, ensuring every musician can benefit from KORG’s ongoing innovations.

  • Two types of preloaded data are available for the new model to support both KRONOS 1/X and KRONOS 2, in either program order.
  • Austrian Piano, Italian Piano, etc., which are not included in early models, can be used by purchasing Sound Libraries.

KRONOS Sound Libraries, a vast library of extended sounds

The KRONOS Sound Libraries, a library of extended sound samples and programs has been released steadily since the first KRONOS was introduced, and boasts a lineup of more than 300 titles, each with a unique selection that is different from the preloaded programs in the main unit. These titles can be purchased separately and used with all KRONOS products.

The KRONOS Sound engine is designed to accommodate any genre of music, and to be used in a variety of situations by any user. The KRONOS Sound Libraries allow you to find and purchase your preferred sounds and genres that are not included in the main unit, and change your KRONOS to your liking.

The KORG Shop, which sells these libraries, allows you to search for your favorite titles by instrument category (Piano, Strings, Bass, etc.), year of release, price range, and developer name. There are two types of libraries: the EXs library, which includes PCM, and the KRS library, which includes only program data. Each of these libraries also include demo sounds and demo videos, so you can find the sound you are looking for.

For users who own multiple KRONOS units, this library is also attractive because each unit can be registered with a KORG ID so that a license for one title can be shared by up to three KRONOS units.

  • The demo version has a limitation where the volume fluctuates when playing.
  • The total of up to 3 units can include NAUTILUS.

Enhanced SGX-2 Grand Piano Sound Engine with the addition of a premium Italian grand.

The KRONOS piano engine has always offered the highest quality non-looped/natural decay stereo samples, recorded for every key, with additional unique tools to customize the piano to your needs. Inheriting all of this SGX-1 functionality, the new enhanced SGX-2 Grand Piano engine introduces the new Berlin Grand piano to the existing deep German Grand and lively Japanese Grand. The Berlin Grand offers resonant piano sound with a striking sense of depth. In addition to these three pianos, it is equipped with a gorgeous and transparent Italian Grand - four very different Grand Pianos to choose from.

Other enhancements to the SGX-2 engine included Sympathetic String Resonance and newly-recorded Una Corda (soft pedal – literally “one-string”) samples.

The newly added Italian Grand does not include the effects of Una Corda.

Massive Sound Selection

KRONOS comes equipped with thousands of sounds, created using various synthesis modes and calling upon over approximately 21 GB of preset waveform data covering a variety of genres. Each one has been carefully crafted by the KORG Sound Design team. The internal SSD offers a generous 120*GB capacity, providing enormous space for user sampling or downloading additional KRONOS Sound Libraries. These optional KRONOS Sound Libraries add new professionally programmed sounds—without the need to add any new hardware.

Artist Signature Programs provide the priceless sounds actually used by top-ranking musicians. Additional Song Programs are named for the classic rock and pop songs whose signature keyboard sounds these programs recreate. Use these universally well-known sounds to pay homage to the originals, or as the basis for personal sonic explorations.

SSD capacity is subject to change without notice.

Nine Distinct Sound Engines

Each of the individual KRONOS sound engines is eminently qualified to operate as a stand-alone synthesizer. And each one represents the cutting-edge technology available for that type of sound creation. Exacting programming parameters, real-time controllers, integrated effects, and assignable modulation routings provide incredible control to create custom edits or to empower the ambitious sound designer.

Set List Mode

KRONOS can organize all of the resources you need to get through a song—or a set—using the Set List mode. Using the Set List mode, the TouchView display can host 16 color-coded touch-screen buttons; each one can instantly call up the appropriate Preset, Combination, or Sequence—regardless of mode!

You can even add handy performance notes (“Sing on Chorus;” “Transpose Down;” “Wait for Sax Solo;” etc.) to each one.

The Set List mode adds a dedicated nine-band graphic EQ, allowing the overall tone to be tweaked to match the venue. Set List mode now allows for deeper customization with many slot color options, text size variations, and a full-screen text editor. Connecting a USB computer keyboard makes it simple to enter text and numeric values.

Color TouchView Display

The nerve center of the KRONOS is KORG’s enormous eight-inch (800 x 600 pixel) SVGA color TouchView display.

In addition to simply selecting a sound or choosing a parameter with the touch of a finger, the enhanced Touch-Drag ability allows more detailed control of parameter values. Interactive instruments and panel graphics provide the ability to do everything from adjusting the opening height of a grand piano lid to connecting patch cables on a semi-modular synthesizer model.

The TouchView display also hosts a convenient new Search Function, allowing you to search for (and preview) sounds based on their titles.

Sequencer Composition Tools

In addition to MIDI and Audio tracks, the onboard sequencer is loaded with valuable tools to transform your musical ideas into a complete composition, using realtime and interactive techniques that are unavailable or cumbersome to use on a computer-based system.

Karma

First appearing on KORG’s Karma Music Workstation in 2001, this revolutionary algorithmic music technology instantly produces sophisticated phrases, drum grooves and full-blown backing tracks. Based on the notes and chords you play—and the intuitive operations you perform with the knobs, sliders, and switches—KARMA can create musical effects that exceed anything you imagined. Now in its greatly-enhanced second generation and offering features like KARMA Wave-Sequencing, Note Mapping and 8 scenes per layer, KARMA is standard equipment on your new KRONOS. It will expand your conception of a song, and will be an enormously inspiring creative asset for all composing.

Drum Tracks

First introduced in the highly acclaimed M3 music workstation/synthesizer that launched in 2007,Drum Tracks is now featured in the new KRONOS. Drum Tracks can create everything from a simple reference beat or outline rhythm track up to a full-blown drum track.

Expanded for use in the KRONOS, Drum Tracks now includes professional drum performances, and generates grooves that capture the distinctive feel of a pro drummer, challenging the capabilities of stand-alone drum machines.

Open Sampling System

Using KORG’s Open Sampling System, KRONOS can quickly sample an external audio source, regardless of whether KRONOS is in the Program, Combination, or Sequencer modes. The Open Sampling Mode can even resample the performance of the KRONOS itself. The user sample bank, which extends the convenience of the EXs sample library to user samples, allows custom samples to be loaded and played, taking advantage of the large SSD capacity.

AIFF, WAV, SoundFont 2.0, and AKAI S1000/3000 format samples can be loaded into memory via USB memory. Additionally, you can use a USB Ethernet adapter to exchange large amounts of sample data with your computer at high speed. Instruments or samples that you've previously created on your PC can be used to construct a music production setup based on just the KRONOS.

16-Track MIDI Sequencer / 16-Track Audio Recorder

KRONOS features a sequencer/recording section that offers both 16 MIDI tracks plus 16 audio tracks; a great resource for putting together a dazzling performance or a brilliant production. MIDI sequencing makes it easy to capture ideas, inspiration, and pro-quality phrases using the KARMA, Drum Track, or RPPR (Realtime Pattern Play/Recording) functions.

The 16-track audio recorder simultaneously captures up to four tracks of 16-bit/24-bit uncompressed data at a sampling rate of 48 kHz. Play along with recorded tracks, add effects, and then resample the KRONOS itself and place the resampled WAV files directly in a track. When polishing your tracks, feel free to use mixer automation and editing functions such as copy, paste, and normalize to get the results you want. Then, you can assemble your album right from the TouchView display!

16 Onboard Effect Processors

KRONOS provides 16 internal effects to add impact to your sonic creations. Each of the 12 Insert effects can be applied to individual or multiple timbres in a combination or to individual or multiple tracks of the sequencer. In addition, two Master effects can be applied to sends 1/2, and two Total effects can be applied to all tracks at the final stage of the sound.

A separate three-band EQ is provided for every timbre, for every sequencer track, and for every audio track for adjusting subtle tonal balances or for creatively modifying the overall sound.

USB/MIDI Host Ports Accommodate MIDI Control Surfaces

Any class-compliant USB-MIDI controller can be connected directly to the KRONOS. If you connect a KORG pad-equipped USB MIDI controller (nanoPAD, nanoPAD2, padKONTROL), pads 1 through 8 of the controller are automatically mapped to the virtual chord pad function of the KRONOS, allowing them to be used to play drums, trigger chords, or to switch chords in chord mode.

Smooth sound transitions that eliminate dropouts when changing sounds, regardless of the mode you're in

When you switch program sounds during a performance to get ready for the next section, or when you switch from Program mode to Combi mode, the sound that's currently being output is always given priority and its effects are maintained during the program change, ensuring a seamless transition with no dropouts, something that has also earned extremely high praise from pro musicians.

Advanced Control Surface

In addition to the parameters accessible directly from the TouchView display, KRONOS also offers a wealth of realtime controllers to enhance any performance and to aid navigation. A four-way joystick, ribbon controller, and two assignable switches are located to the left of the keyboard. An additional Vector joystick is Ideally positioned for easy access.

Above the keyboard, nine sliders, eight knobs and a number of switches provide real-time interaction with features at the heart of the KRONOS’ impressive sound. The damper pedal input jack supports half-damping, providing yet another level of piano realism. In addition to the damper pedal jack, there are also two assignable pedal inputs, one footpedal type and one footswitch style.

Natural Touch Semi-Weighted Action

For those who prefer the ultra-quick response of a synthesizer keyboard, need to focus on organ performances, or are seeking the ultimate in portability, the KRONOS 61-key model is equipped with a lightweight and expressive semi-weighted synthesizer action with aftertouch.

System

  • KRONOS System Version 3.2

Keyboard

  • 61 key : Natural Touch Semi Weighted
  • Supports Velocity sensitive and aftertouch.

Tone Generator

Synthesis Types 9

  • SGX-2: Premium Piano (Acoustic Piano)
  • EP-1: MDS Electric Piano (Electric Piano)
  • HD-1: High Definition Synthesizer (PCM)
  • AL-1: Analog Synthesizer (Analog Modeling)
  • CX-3: Tonewheel Organ (Tonewheel Organ Modeling)
  • STR-1: Plucked Strings (Physical Modeling)
  • MOD-7: Waveshaping VPM Synthesizer (VPM Synthesis)
  • MS-20EX: Component Modeling Technology (Analog Modeling)
  • PolysixEX: Component Modeling Technology (CMT Analog Modeling)

Maximum Polyphony*1*2

  • SGX-2: 100 voices*3
  • EP-1: 104 voices
  • HD-1: 140 voices
  • AL-1: 80 voices
  • CX-3: 200 voices
  • STR-1: 40 voices
  • MOD-7: 52 voices
  • MS-20EX: 40 voices
  • PolysixEX: 180 voices
  • 1: In rare cases, when a large number of processor-intensive effects are active simultaneously (for instance, more than 14 O-Verbs), polyphony may be slightly reduced.
  • 2: A portion of the multicore processor in KRONOS is devoted to generating voices, and a separate portion is devoted to generating effects. KRONOS dynamically allocates the voice processing power between the engines as necessary. The quoted maximum numbers of voices apply when 100% of the voice processing power is devoted to a single engine.
  • 3: 100 dual-stereo notes (equivalent to 400 mono voices)

Preset PCM

314 MB (ROM 1,505 Multisamples, 1,388 Drumsamples)

Build-in Expansion PCM Libraries

  • EXs1 - ROM Expansion
  • EXs2 - Concert Grand Piano
  • EXs3 - Brass & Woodwinds
  • EXs4 - Vintage Keyboards
  • EXs5 - ROM Expansion 2
  • EXs6 - German D Piano
  • EXs7 - Japanese C Piano
  • EXs8 - Rock Ambience Drums
  • EXs9 - Jazz Ambience Drums
  • EXs17 – SGX-2 Berlin D Piano
  • EXs18 – KORG EXs Collections
  • EXs22 - SGX-2 Italian F Piano LE
  • EXs23 - 2 Church Pianos
  • EXs206 - A2D 10 Selections
  • EXs207 - Bolder 10 Selections
  • EXs208 - K-Sounds 10 Selections
  • EXs209 - KApro 10 Selections
  • EXs210 - KARO 10 Selections
  • EXs211 - Kelfar 10 Selections
  • EXs212 - Kid Nepro 10 Selections
  • EXs213 - PCreek 10 Selections Vol.1
  • EXs214 - PCreek 10 Selections Vol.2
  • EXs215 - Q Up Arts 10 Selections
  • EXs216 - Soundiron 10 Selections
  • EXs217 - SOP 10 Selections
  • EXs218 - Irish Acts 10 Selections

PCM RAM Capacity

  • Approx. 3GB *4
  • 4: The memory available for Sampling Mode will change based on the use of Expansion PCM libraries and User Sample Banks. Approx. 760 MB is available when shipped from the factory (When loading the file named “PRELOAD.KSC”).

Wave Sequences

  • 598 User memory, 207 Preload
  • Support for stereo multisamples, synchronization of individual notes, and tempo-based settings

SGX-2 Program

Premium Piano

  • Virtual Memory Technology (VMT) plays large samples directly from the internal SSD
  • Full key stereo sampling, Chromatically sampled at up to 12 velocity levels, no looping.
  • Damper resonance and mechanical noise are reproduced.
  • Modeled String Resonance.
  • Una Corda sample support

PCM

  • EXs6: SGX-1 German D Piano
  • EXs7: SGX-1 Japanese C Piano
  • EXs12: SGX-1 Austrian D Piano (Option Sound libraries)
  • 8 velocity levels, no Una Corda samples
  • EXs17: Berlin D Piano
  • 12 velocity levels, includes Una Corda samples
  • EXs21: SGX-2 Italian F Piano (Option Sound libraries)
  • 12 velocity levels, includes Una Corda samples
  • EXs22: SGX-2 Italian F Piano LE
  • 12 velocity levels, no Una Corda samples

Piano Type

  • 80 (With the factory settings, the 16 varieties of EXs12 SGX-1 Austrian D Piano do not produce sound. The EXs12 option must be downloaded.) (The 16 types of EXs21 SGX-2 Italian F Piano are the same piano types as the 16 types of EXs22 SGX-2 Italian F Piano LE and refer to the last installation of either EXs21 or EXs22.)

Oscillator Control

  • Damper Resonance
  • Damper Noise
  • Mechanical Noise
  • Note Release
  • String Resonance
  • Una Corda

EP-1 Program

MDS Electric Piano

  • Tine and reed-type electric pianos powered by Multi-Dimensional Synthesis (MDS), and vintage effects.

Electric Piano Model Types

  • 7
  • Tine EP I Early, Tine EP I Late, Tine EP II, Tine EP V, Tine EP DMP, Reed EP 200, Reed EP 200A

Oscillator Control

  • Harmonic Sound Level
  • Attack Noise
  • Level
  • Release Noise Level
  • Attack Brightness
  • Hammer Width

Panel Control

Tine Type

  • Preamp Volume, Tone (Treble, Bass), Vibrate (On/Off, Intensity, Speed), Amp/Cabinet (On/Off, Drive)*5

Reed Type

  • Preamp Volume, Tone (Treble, Bass), Vibrate (Intensity, Speed), Amp/Cabinet (On/Off, Drive)*5

Effect Types

  • 9
  • Small Phase, Orange Phase, Black Phase, Vintage Chorus, Black Chorus, EP Chorus, Vintage Flanger, Red Comp, VOX Wah

HD-1 Program

Advanced Vector Synthesis

  • Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.

Structure

  • Single: only OSC1
  • Double: OSC1 and OSC2.
  • Double mode lets you layer two completely separate synth voices, each with their own velocity-switched oscillator, dual filter, EGs, LFOs, etc.
  • Drums: One drum kit, Double Drums: Two drum kits

Oscillators

  • Virtual Memory Technology (VMT) plays large samples directly from the internal SSD.
  • 8 velocity zones per oscillator, with switching, crossfades and layering
  • Each zone can play mono or stereo Multisamples or Wave Sequences

Filters

  • Two multi-mode filters per voices (low-pass, high-pass, band-pass and band-reject),
  • Four-mode filter routings (single, serial, parallel and 24dB mode)

Driver

  • Per voice non-linear driver and low boost circuit

EQ

  • Three bands, with sweep-able mid

Modulation

  • Three envelope generators, two LFOs per voice, common LFO, four key tracking generators, AMS (Alternate Modulation Source), two AMS mixers

EXi Program Common

Advanced Vector Synthesis

  • Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.

Modulation

  • Common Step Sequencer, AMS (Alternate Modulation Source), Common LFO, 2 Key Tracking Generators

EQ

  • Three bands, with sweep-able mid

AL-1 Program

Oscillators

  • Ultra-low-aliasing oscillators
  • OSC1, OSC2, Sub-oscillator and noise generator; ring modulation, FM and Sync

Audio Input

  • External audio can be processed through the ring modulator, filter, driver, amp, and EQ

Filters

  • Two multi-mode filters (low-pass, high-pass, band-pass and band-reject) with four types of filter routings (single, serial, parallel and 24dB mode), Multi Filter mode (only Filter-A; modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects)

Driver

  • Per-voice non-linear driver and low boost circuit

Modulation

  • Five Envelope generators, four per-voice LFOs, two AMS Mixers; Per-voice Step Sequencer.

CX-3 Program

Tonewheel Organ Modeling

  • Phase-synchronous tonewheels (clean and vintage modes), percussion, key click, wheel brake

EX Mode

  • Four additional, user-specified drawbars, and expanded percussion.

Internal Effects

  • Rotary speaker, vibrato/chorus, amp modeling with overdrive, 3-band EQ

Drawbar Control

  • Controlled via nine front-panel sliders (via Tone Adjust)

Split

  • Upper, Lower (even in EX mode)

Modulation

  • Two AMS mixers

STR-1 Program

Physically Modeled String

  • Includes physically modeled damping, decay, dispersion, nonlinearity, harmonics, dual pickups, and more.
  • Most string parameters can be controlled in realtime.

String Excitation

  • Three independent excitation sources can be used simultaneously: Pluck, Noise, and PCM.
  • 16 preset “pluck” types, with modulatable width and randomization. Noise generator with saturation and dedicated low pass filter

PCM Oscillator

  • KORG’s ultra-low-aliasing technology, as introduced in the HD-1; 4 velocity zones per oscillator;
  • Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode.
  • Supports Virtual Memory.

Excitation Filter

  • Dedicated 2-pole multimode filter for shaping the string excitation.
  • Filter can be enabled/disabled separately for each excitation source.
  • Low Pass, High Pass, Band Pass, and Band Reject modes

Audio Input and Feedback

  • Run real-time audio through the string, including feedback through effects. Modeled feedback includes modulate-able instrument-to-amp distance and orientation.

Filters

  • Dual multi-mode filters per voice; Single, Serial, Parallel (with split stereo output), and 24dB (4-pole) configurations. Low Pass, High Pass, Band Pass, and Band Reject modes
  • Multi Filter Mode (Filter A only).
  • Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects

Modulation

  • 5 Envelopes, 4 per-voice LFOs, 2 Key Track generators, String Tracking generators, 4 AMS Mixers.

MOD-7 Program

Waveshaping VPM Synthesizer

  • Combines Variable Phase Modulation (VPM), Waveshaping ring modulation, PCM sample playback, and subtractive synthesis; Able to convert-load SYX files.

Oscillators

  • 6 VPM/Waveshaper/Ring Modulation Oscillators:
  • Phase and modulatable pitch per oscillator.
  • 101 Waveshaper tables plus modulatable Drive and Offset.
  • Use as oscillators, or as Waveshapers or Ring Modulators for other signals.

PCM Oscillator

  • KORG’s ultra-low-aliasing technology, as introduced in the HD-1.
  • 4 velocity zones per oscillator.
  • Uses any mono Multisamples, including ROM, EXs, User Sample Bank, or Sampling Mode.
  • Supports Virtual Memory.

Audio input

  • Run real-time audio through the VPM Oscillators and filters.

Filters

  • Dual multi-mode filters per voice. (Low Pass, High Pass, Band Pass, and Band Reject modes)
  • Two types of filter looping (Parallel and 24 dB “4-Pole”)

Multi Filter mode (Filter A only)

  • Modulatable mix of Low Pass, High Pass, Band Pass, and dry input, for creating a wide variety of unique filter types and effects

Patch Panel

  • Supports both preset algorithm (78 types) selection and free patching.
  • Three 2-in, 1-out mixers for scaling and merging audio, fully modulatable, with phase inversion.
  • Main 6-input stereo mixer, with modulatable pan and volume, plus phase inversion

Modulation

  • 10 Envelopes, 4 per-voice LFOs, 9 Key Tracking generators, Per-voice Step Sequencer, 4 standard AMS Mixers plus 4 simple AMS Mixers.

MS-20EX Program

Oscillators

  • Ultra-low-aliasing oscillators; VCO1, VCO2, Ring Mod, Pink and White Noise Generator

Audio Input

  • Run real-time audio through the synthesis engine and ESP (External Signal Processor)

Filters

  • 12dB/octave High Pass and Low Pass self-resonant filters

ESP section

  • 24dB/octave Low Cut and High Cut filters, available per voice.Patch PanelPatchable audio and modulation, at audio rates

Patch Points

Keyboard

  • Keyboard CV Out, Keyboard Trigger Out, VCO1+VCO2 CV In, VCO2 CV In

VCO

  • VCO1+VCO2 External Frequency Control In, VCO1 Out, VCO2 Out

VCF

  • External Signal In, External HP Filter Cutoff Frequency Control In, External LP Filter Cutoff Frequency Control In, HPF Out, LPF In, LPF Out

VCO+VCF

  • Total External Modulation In

VCA

  • External Initial Gain Control In, VCA In

EG

  • EG1 Envelope Signal Normal Out, EG1 Envelope Signal Reverse Out, EG1+EG2 Trigger In, EG1 Trigger In, EG2 Envelope Signal Reverse Out

MG

  • Triangle Out, Rectangle Out

Noise Generator

  • Pink Noise Out, White Noise Out

Sample and Hold

  • Clock Trigger In, Sample Signal In, S/H Out

Modulation VCA

  • Control Voltage In, Signal In, Signal Out

Manual Controller

  • Control Wheel Out, Momentary Switch

ESP

  • Signal In, AMP Out, BPF In, BPF Out, F-V CV Out, Envelope Out, Trigger Out

Others

  • EXi Audio In, Mixer 1 In, Mixer 1 Out, Mixer 2 In, Mixer 2 Out

ESP (External Signal Processor)

  • Use incoming audio as a trigger and/or CV source.

Modulation

  • Original DAR (Delay, Attack, Release) and HADSR (Hold, Attack, Decay, Sustain, Release) EGs 1 &2,
  • Original MG (with MIDI sync), Sample-and- Hold, MVCA,
  • KRONOS: 4 additional multi-stage Envelopes, 4 additional per-voice LFOs, and 4 AMS Mixers.

PolysixEX Program

Oscillators

VCO

  • Saw, Pulse, PWM

Sub Oscillator

  • Off, 1 octave below, 2 octaves below

Filter

  • 24dB (4-Pole) Octave Low Pass self-resonant filter

Effects

  • Integrated Polysix Chorus, Phaser, and Ensemble

Arpeggiator

  • Integrated MIDI-synced arpeggiator, with adjustable Range, Mode, and Latch

Modulation

  • Polysix: Original ADSR EG and MG (with MIDI sync).
  • KRONOS: 2 additional multi-stage Envelopes, 2 additional per-voice LFOs, and 4 AMS Mixers.

Combination

Number of Timbres, Master Keyboard Functionality

  • 16 Maximum
  • Keyboard and velocity splits, layers, and crossfades of up to 16 Programs and/or external MIDI Devices
  • The tone adjust parameter function lets you modify program settings, and the master keyboard function lets you control external MIDI devices

Advanced Vector Synthesis

  • Control oscillator volumes and synthesis & effects parameters via the Vector Joystick and the tempo-synchronized Vector Envelope.

Drumkit

System

  • Assignable stereo/mono samples with 8 velocity zones per oscillator (with crossfade functions)

Number of Programs/Combinations/Drum kits

User Memory Programs

  • 2,560 (2,176 [1,152 HD-1+1,024 EXi] come preloaded)

User Memory Combinations

  • 1,792 (768 come preloaded)

User Memory Drum Kits

  • 264 (80 come preloaded)
  • 256 GM Level2 preset programs + 9 GM Level 2 drum preset programs

Set List

Number of Set Lists/Slots

  • 128 set lists, 128 slots per set list
  • Each set list provides a 9-band graphic EQ, and a Tone Adjust function that allows program settings to be adjusted.
  • Transpose setting.
  • Hold Time setting of Smooth Sound Transition (SST) supported for each slot.

Sampling

System

  • Open Sampling System (resampling, In-Track sampling)

Bit Depth/Sampling Frequency

  • RAM: 16-bit/48 kHz stereo/mono sampling
  • DISK: 16 or 24-bit/48 kHz

Sampling Time

  • RAM: Depends on the amount of available PCM RAM
  • DISK: Maximum 80 minutes stereo (879MB: 16bit)

Sample Locations

  • 16,000 samples/4,000 multisamples (128 indexes per multisample)

Ripping

  • Direct sampling (ripping) from audio CD (CD-DA)

Formats

  • KORG format, AKAI S1000/S3000 data (with advanced Program parameter conversion); SoundFont 2.0, AIFF, and WAVE formats

Editing

  • Time Stretch, Time Slice, Crossfade Loop, and other standard editing features.

Effects

Insert Effects

  • 12 Stereo in / stereo out

Master Effects

  • 2 Stereo in / stereo out

Total Effects

  • 2 Stereo in / stereo out

Timbre EQ

  • One 3-band EQ for each timbre/track

Effect Types

  • 197

Modulation

  • Dynamic Modulation and Common LFO

Effects Control Busses

  • Stereo side-chaining for compressors, gates, vocoders, etc.

Effect Presets

  • Total 783 preset, Maximum 32 per 1 effect (Preset User)

Karma

KARMA Modules

  • One module in Program mode, four modules in Combination and Sequencer modes

Generated Effects (GE)

  • 2,048 presets, 1,536 Users (96 come Preload)

Controllers

  • On/Off, Latch, Chord, Assign, Module, Control, KARMA Realtime Control Sliders [1] – [8], KARMA Scenes [1] – [8], KARMA Switches [1] – [8], KARMA Wave-Sequencing, GE Sub Category, Freeze Randomize, Time Signature Control, Tempo Synchronize, Auto RTC (Real Time Control) setup

Drum Track Patterns

  • 718 preset (common with the preset patterns of the MIDI sequencer)
  • 1,000 user patterns
  • Patterns created in Sequencer mode can be converted to drum track user patterns.
  • Trigger Mode/Sync/Zone settings can be specified.

Sequencer/HDR

Tracks

  • 16-track MIDI sequencer + 16-track hard disk recorder + 1 master track.

Number of Songs

  • 200 songs

Resolution

  • 1/480

Tempo

  • 40.00 – 300.00 (1/100 BPM resolution)

Maximum Memory

  • 400,000 MIDI events or 300,000 audio events

MIDI Tracks

  • 16 tracks plus the master track
  • 718 preset/100 user patterns (per song)
  • 18 preset/16 user template songs,

Audio Tracks

  • 16-track playback, 4-track simultaneous recording, WAV file format 16bit/24bit.

Other Functions

  • RPPR (Realtime Pattern Play and Record) (1 Pattern set per song), Auto Song Setup function

General

Disk Mode

  • Load, save, utility, audio CD burning, audio CD playback, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1.

Controllers

  • Vector joystick, joystick, ribbon controller, switches 1 & 2

Control Surface

Control Assign Switches

  • Assigns the Control Surface to Timber/Track, Audio, External, Realtime Knobs/KARMA,
  • Tone Adjust/EQ

Mixer Knobs Switch

  • Assigns the Mixer Knobs to either Channel Strip or Individual Pan, Reset Control Switch, Solo Switch, Knobs 1-8, Switches 1-8(Upper Row),
  • Switches 1-8 (Lower Row), Sliders 1-8, Master Slider

KARMA Control

  • On/Off, Latch, Module Control

Drum Track

  • On/Off

Display

  • TouchView graphical user interface, 8 inch color TFT, SVGA (800x600 dots), adjustable brightness

Outputs

Analog

(MAIN) L/MONO, R

  • 1/4” TRS Balanced Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
  • Nominal Level: +4.0 dBu,
  • Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)
  • Main Voluime knob controls only AUDIO OUTPUT (MAIN) L/MONO and R

Individual 1-4

  • 1/4” TRS Balanced
  • Output Impedance: 350 Ω Stereo; 175 Ω Mono,
  • Nominal Level: +4.0 dBu,
  • Maximum Level: +16.0 dBu (when load impedance is 600 Ω or greater)

Headphones

  • 1/4” stereo phone jack, Output impedance: 33 Ω, Maximum Level: 60+60 mW (when load impedance is 33 Ω),
  • Main Volume knob (link with Audio Output (Main))

Digital

S/P DIF

  • Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz, (the same signals as L/MONO, R)
  • Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R

USB-B

  • 24-bit, Sample Rate: 48 kHz, 2 channels
  • (Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R)

Inputs

Analog

Audio Inputs 1 and 2

  • 1/4” TRS Balanced
  • MIC/LINE input level switches, LEVEL knobs
  • Input Impedance: 10 kΩ
  • Source Impedance: 600 Ω
  • Signal to noise ratio: 95 dB (typical)
  • Dynamic range: 95 dB (typical)
  • Crosstalk: 95 dB, at 1 kHz (typical)

Nominal Level: LINE

  • +4 dBu (LEVEL knob = min), –36 dBu (LEVEL knob = max)

Nominal Level: MIC

  • –22 dBu (LEVEL knob = min), –62 dBu (LEVEL knob = max)

Maximum Level: LINE

  • +16 dBu (LEVEL knob = min), –24 dBu (LEVEL knob = max)

Maximum Level: MIC

  • -10 dBu (LEVEL knob = min), –50 dBu (LEVEL knob = max)

Digital

S/P DIF

  • Optical, 24-bit, IEC60958, EIAJCP-1201, Sample Rate: 48 kHz

USB-B

  • 24-bit, Sample Rate: 48 kHz, 2 channels

Control Inputs

  • Damper pedal (half damper supported), assignable switch, assignable pedal

MIDI

  • In, Out, Thru

USB*5

  • USB A (TYPE A) x 2, For connection to external USB devices (QWERTY keyboards, MIDI controllers, ethernet adaptors, and storage)
  • USB B (TYPE B) x 1, MIDI/audio interface
  • MIDI: 1 (16 channel) input / 1 (16 channel) output
  • Audio: 2 channel input / 2 channel output
  • 5 USB high-speed ports (supports 480Mbps)

Disk Drives

  • 120 GB SSD (2.5”)

Power Consumption

  • 40W

Dimensions(W x D x H)

  • 61 key: 1,064 x 363 x 134 mm / 41.89” x 14.29” x 5.28”

Accessories

  • AC cord

Principal Specifications

Frequency Response

  • 20Hz-22kHz, +/-1.0dB, 10k Ω load

THD+N

  • 20Hz-22kHz, 0.01%, 10k Ω load (typical)

S/N

  • 95dB (typical)

Dynamic Range

  • 95dB (typical)

Crosstalk

  • 95dB, at 1kHz (typical)
SKU KOR-KRONOS361
Brand Korg
Weight 40.700000
More Information
Refund period 35 days
