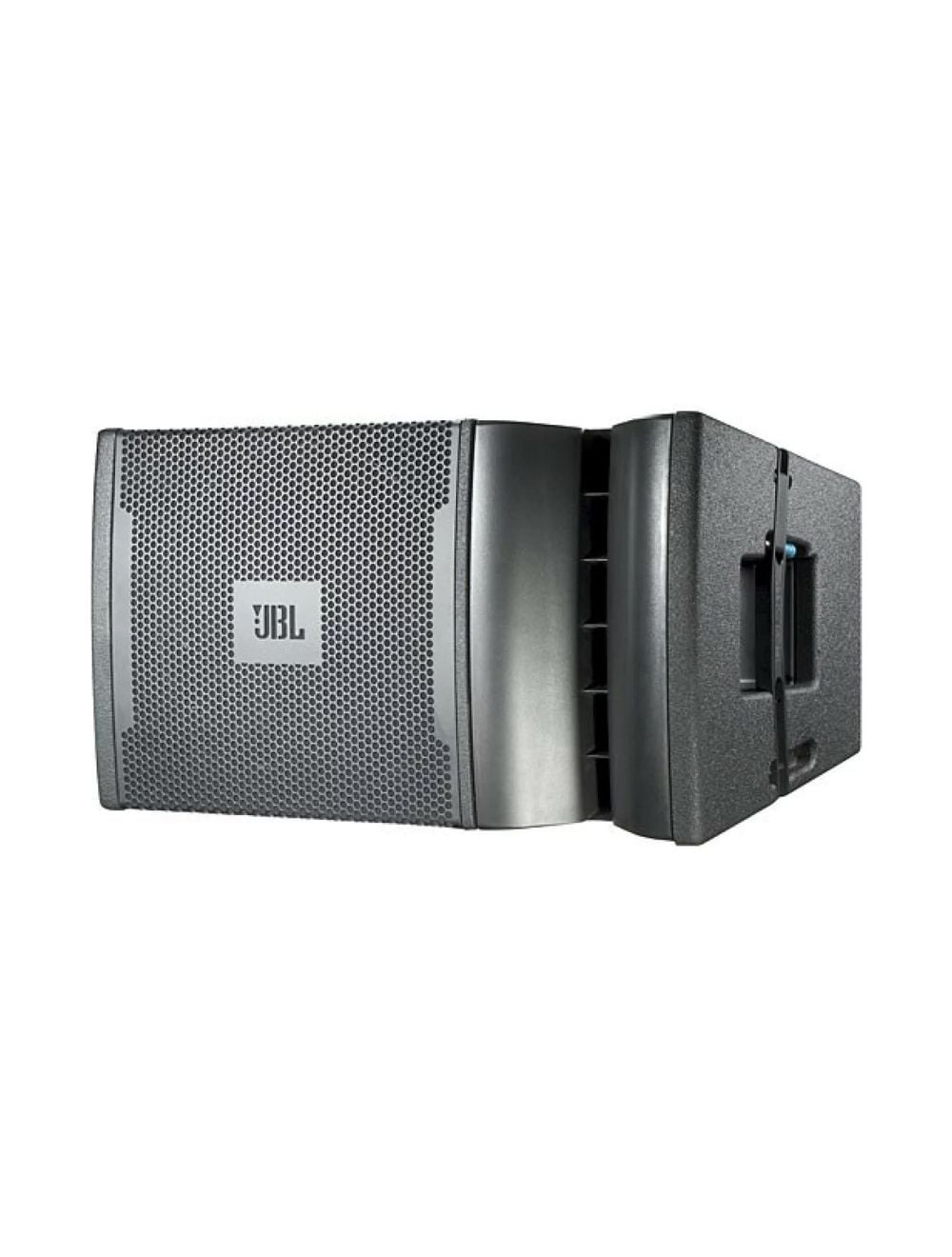

The VRX932LAP is a powered, two-way, full-range line array speaker system. It is intended for small to mid size venues. The JBL DrivePack® DPC-2 amplifier module provides the power and the integrated DSP based input module system optimization and EQ. Since each VRX932LAP has a vertical coverage of 15°, line arrays up to 5 x 15° = 75° vertical included angle can be attained. Each cabinet houses 3 HF drivers mounted at equal distance on a waveguide. When combining multiple cabinets, (creating a continuous arc) the distance between the drivers to the adjacent cabinets remains the same creating a constant curvature line source. Furthermore the coverage can be optimized by means of the Array Configuration Selector (ACS), an amplitude shading feature (see page 19 and 20). Built-in rigging hardware, a dual angle pole mount socket and an array frame provide a variety of suspension options.
Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
Power Rating: 1750 Watts Peak, 875 Watts Continuous
Frequency Range : 57 Hz - 20 kHz (-10 dB)
Frequency Response : 75 Hz - 20 Hz (+/-3db)
Maximum Peak Output : 136 dB SPL at 1m
Coverage Pattern : 100 x 15 nominal
DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts
DPC-2 Output Sectoin : LF: Dual-Bridged Technology™, Class D
Autio Input Connector : XLR with loop through
LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)
User Controls : Input Attenuator (0-16 dB)
Signal Processings : DSP based, resident in Input Module
AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz
AC Input Connector : Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)
AC Current Requirements : 6A per system at 120V, 3A per system at 240V
Enclosure : 25/15 mm, 11-ply birch plywood
Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
Finish : Black DuraFlex™ finish
Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
