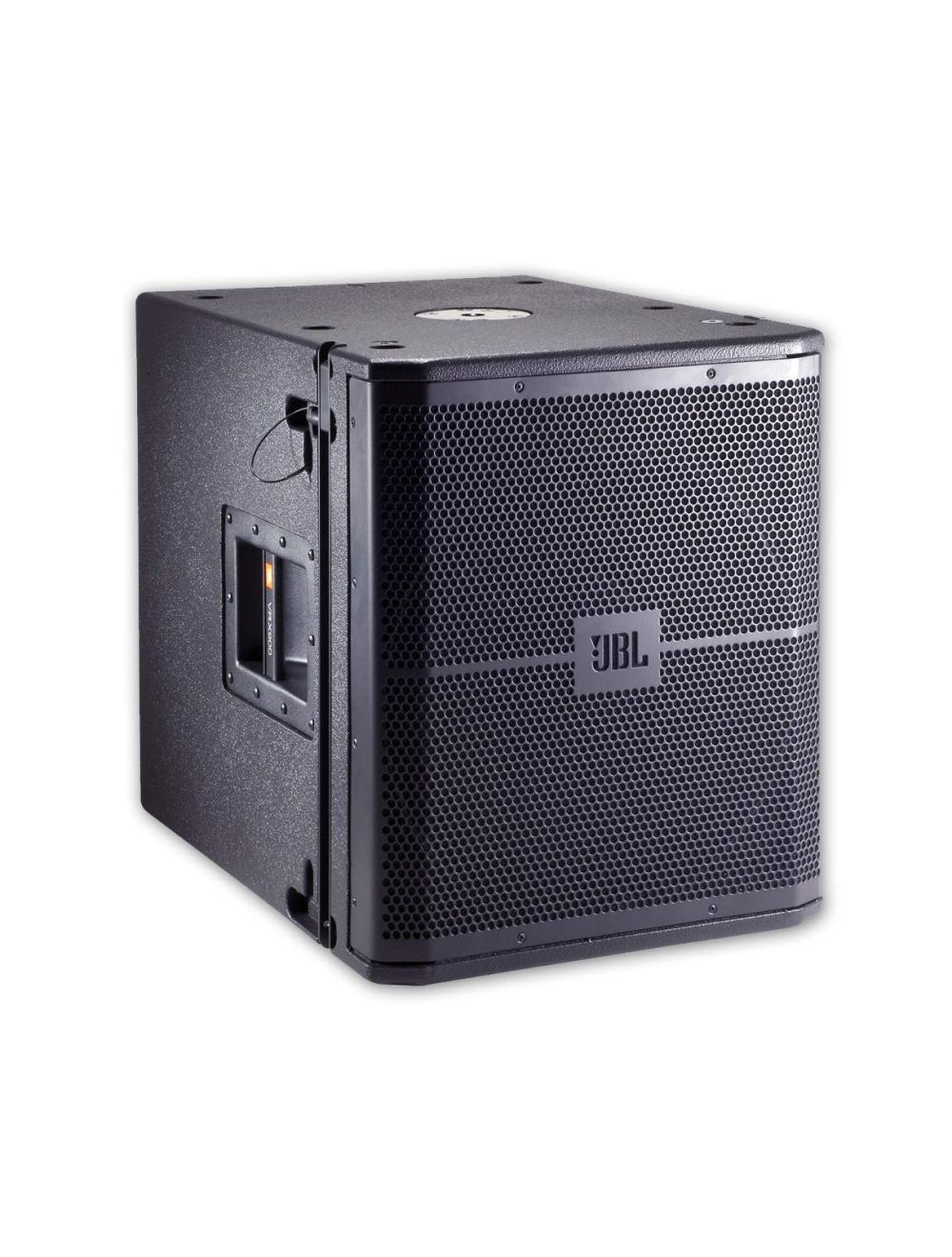

The VRX915S a very compacthigh power, suspendable single 15" direct radiating subwoofer is intended as companion subwooferfor the VRX928LA. The suspension system is designed for full compatibility with the VRX928LA Line ArraySystem and with the VRX-SMAF array frame. The M20 mounting plate allows for utilization of the adjustablepole mount SS4-BK.
Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
15 inch, 2265G-1 Differential Drive woofer for extended low-frequency output.
Light and compact for versatility and easy handleability.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
Specs
Power Rating : 800 W / 1600 W / 3200 W
Frequency Range : 35 Hz - 250 Hz (-10 dB)
Frequency Response : 40 Hz - 250 Hz (+/-3db)
System Maximum SPL : 126 dB SPL
System Sensitivity (1w @ 1m : 91 dB SPL
LF Driver : 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive woofer
Nominal Impedance : 4 Ohms
Active Tunings : Tunings available at www.jblpro.com
Enclosure : 15 mm - 18 mm, multi ply birch plywood
Suspension / Mounting : Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
Finish : Black DuraFlex finish
Grille : Power coated, black, 16-gauge perforated steel with acoustically transparent black foam backing.
