JBL SRX915M UBV Universal Vertical Bracket

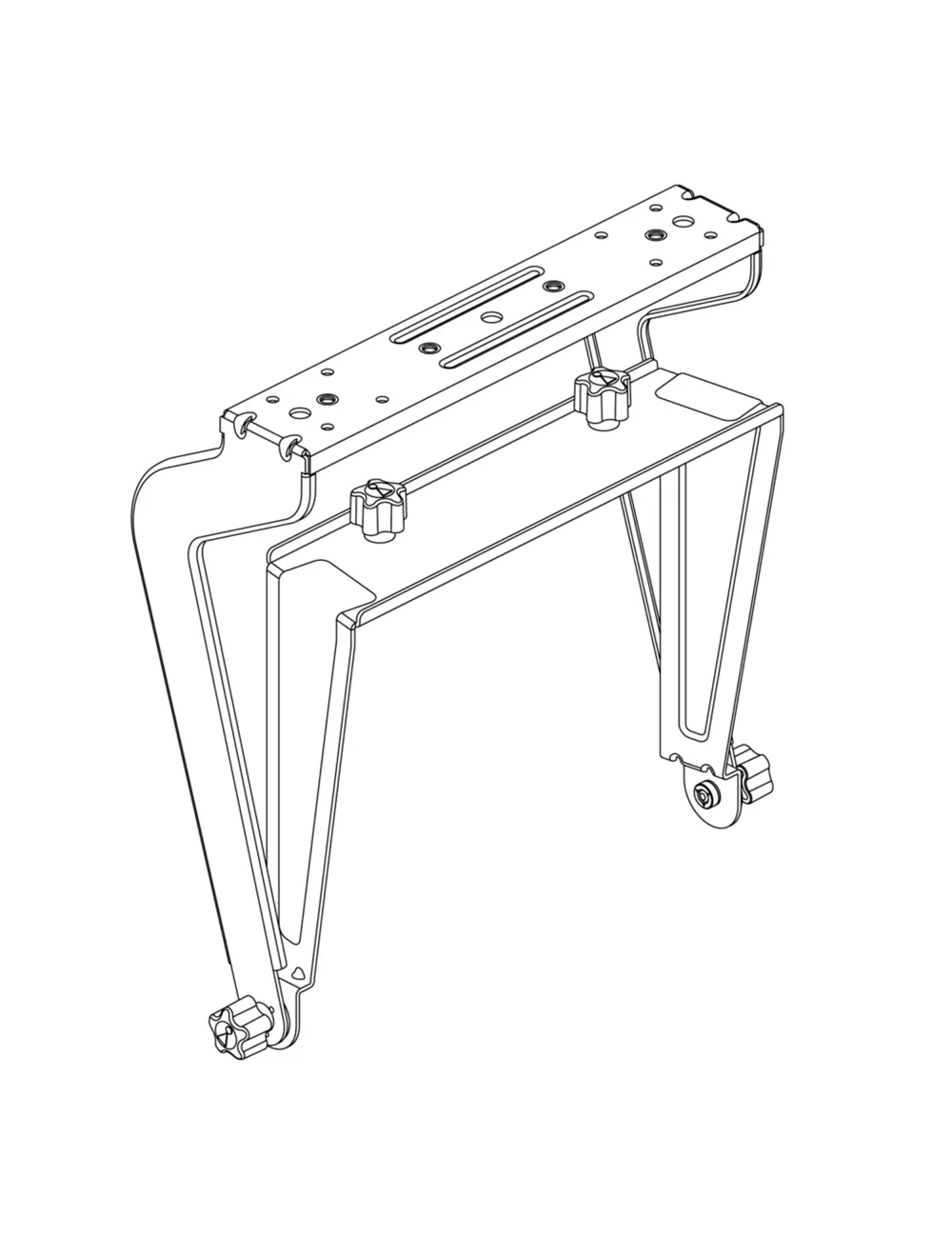

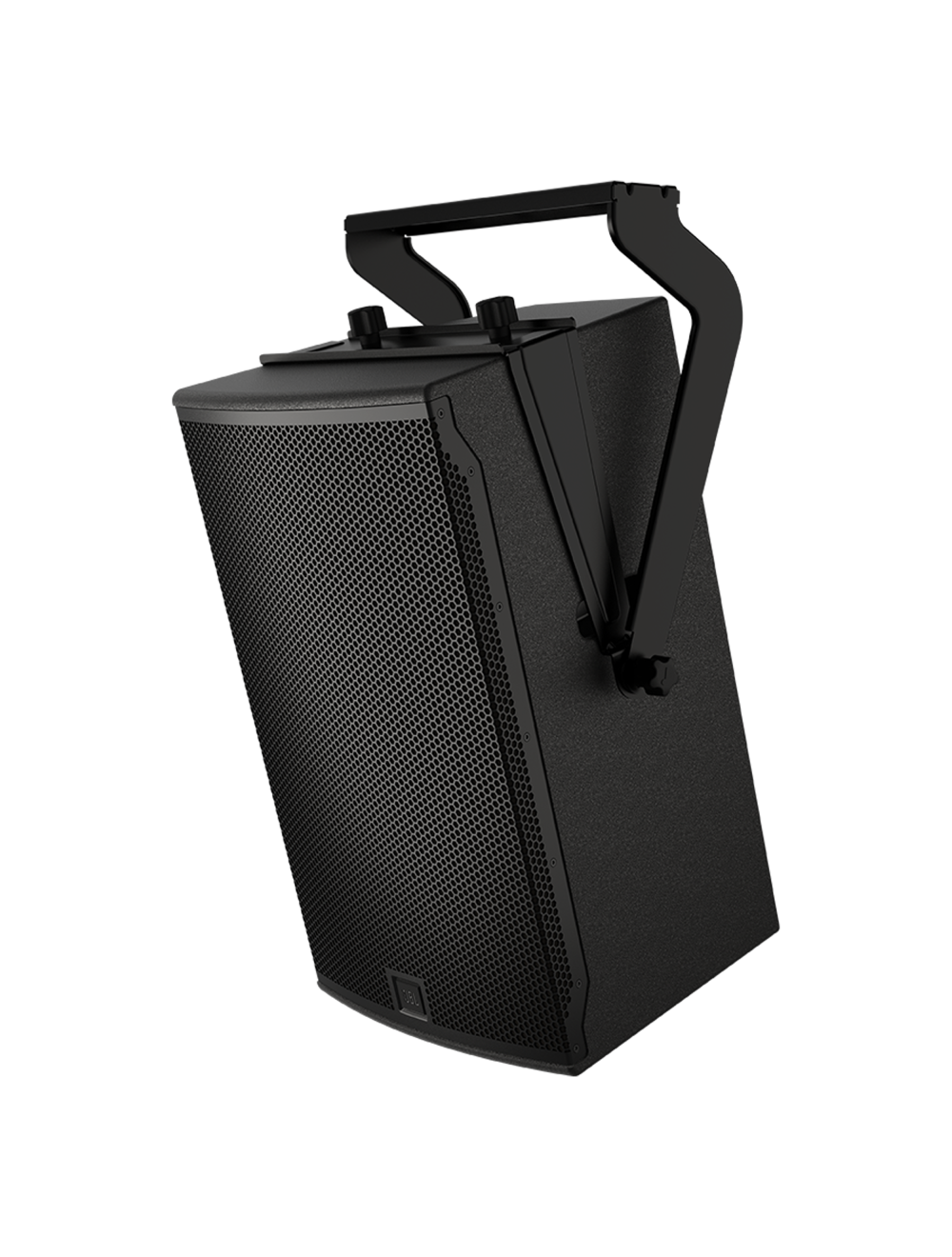

The SRX915M UBV is a versatile U-bracket accessory designed for vertically mounting SRX915M loudspeakers. The two-piece design attaches to the enclosure using the included M10 knobs and the two top or bottom M10 QuickLink attachment points on the speaker, depending on the desired orientation. Two additional M10 knobs are used to lock the bracket at the desired tilt angle. Several M12 through-holes are provided for use with standard pipe or truss clamp adapters. The bracket is also compatible with the JBL RC100 rotating clamp which allows for a full 360 degree horizontal rotation when combined with the TV SPIGOT T accessory. Two M10 attachment points are available for installing eye bolts when suspending SRX915M loudspeakers with wire. The SRX915M UBV can also be used for pole mounting when combined with the optional Pole Mount Adapter. This combination allows for a greater down angle than is otherwise possible using the pole cup on the speaker.
