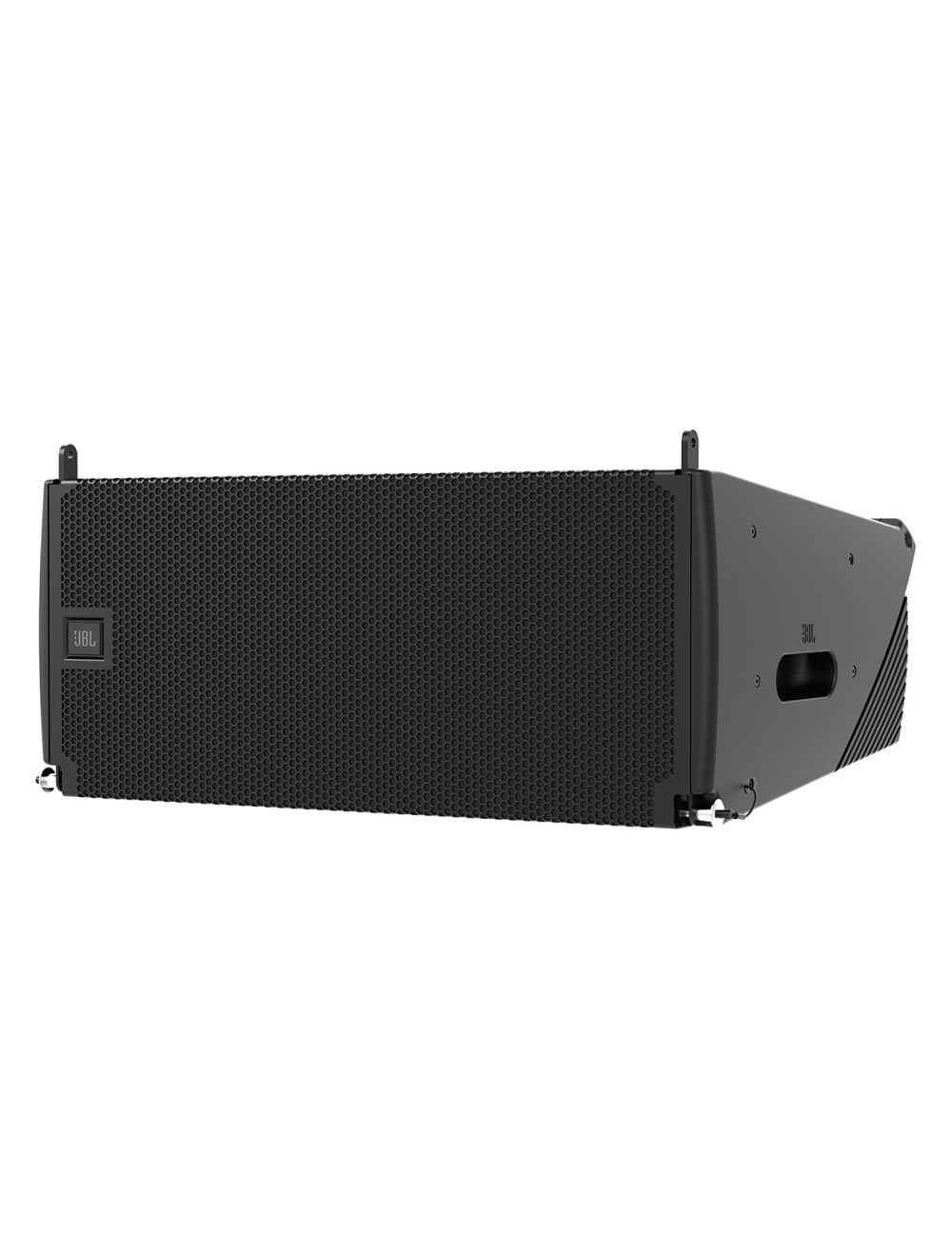

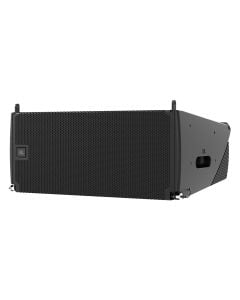

JBL SRX910LA Powered Array Module (Open Box)

The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world. JBL transducers and a new acoustic design provide excellent sound fidelity and best-in- class maximum SPL. The product features dual 10-inch neodymium Differential Drive  woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight. An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

Powered Solution

Onboard Class-D amplification and DSP provide optimum performance and consistency anywhere in the world.

Best-In-Class Performance

JBL transducer technology delivers class-leading sonic performance and superior dynamic range.

Innovative Acoustic Design

Innovative two-way design integrates LF and HF components onto a single unified horn for seamless horizontal coverage.

Complete System

The SRX900 Series is a complete solution featuring full-range products, subwoofers, accessories, and software.

Acoustic Design

At the heart of the SRX900 Series acoustic design is JBL’s proprietary Radiation Boundary Integrator, adapted from the groundbreaking VTX Series of line array loudspeakers. The RBI device mounts both the high and low frequency transducers on a single horn, improving horizontal directivity while reducing cabinet size. Precisely placed low frequency projection apertures work in tandem with the high frequency horn to seamlessly integrate the three symmetrically mounted drivers. The unusually large horn extends low frequency control and reduces unwanted energy behind the array.

Powered Solution

The fully integrated built-in amplifier and DSP are based on proven JBL technologies and explicitly packaged to fit the needs of the SRX900 Series. The DSP includes everything needed to optimize system, including 24 user-adjustable filters, 2,000 ms of delay, and advanced features like Array Size Compensation and FIR-based Throw Distance Correction filters.

Versatile And Scalable

The SRX900 Series offers a complete system solution, including speakers, subwoofers, accessories, and software that support a variety of configurations and simplify storage, transport, and rigging. Because systems are scalable, it’s easy to start with a small system and add components over time. All SRX900 products have been designed to work seamlessly with other JBL tour sound products, with common voicing targets and phase characteristics that ensure systems combine coherently.

Pro Build Quality, Inside And Out

SRX900 Series line array loudspeakers are housed in FEA-optimized composite enclosures that offer excellent size-to-weight ratio and increased internal volume. CAD-optimized structure stiffeners control flexing, resulting in a rigid, lightweight enclosure. The SRX910LA features an aluminum front baffle and plywood internal bracing. Speakers are designed for a clean, modern look, with enclosed side panels and integrated handles. SRX910LA

**PLEASE NOTE**
SRX900 Series products include two powerCON TRUE1 TOP connectors, one for AC input and one for AC output/loop through. The loop through connector allows multiple speakers to be powered from a single power source. These are connectors only, no power cabling is supplied with the speaker.
