IK Multimedia AXE I/O & Amplitube 5 MAX Bundle + IK iLoud Micro Monitors

Product Description for IK Multimedia AXE I/O & Amplitube 5 MAX Bundle and IK Multimedia iLoud MTM

Package Includes :

1 X IK Multimedia AXE I/O & Amplitube 5 MAX Bundle

1 X IK Multimedia iLoud MTM

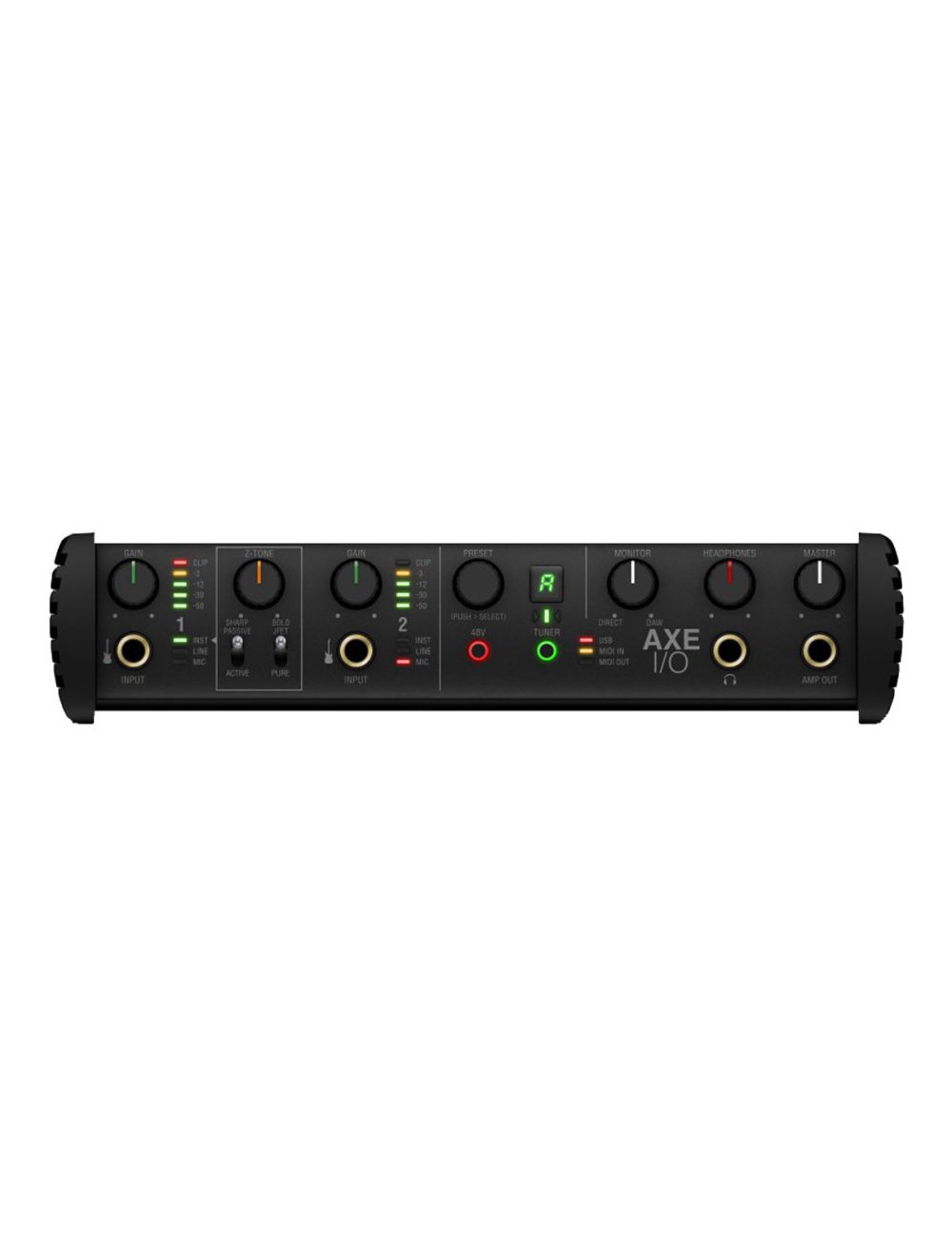

IK Multimedia AXE I/O & Amplitube 5 MAX Bundle

Premium audio interface with advanced guitar tone shaping

The audio interface guitar players were waiting for

Since we pioneered guitar amp & effects modeling in 2002, IK Multimedia has spent more time studying guitar and amp recording than possibly anyone else on the planet. Modeling over 400 pieces of gear has required tens of thousands of hours painstakingly measuring the interactions between instruments, pickups and amplifier circuits, not to mention the cooperation of the world’s most iconic guitar players, amplifier manufacturers, and engineers to learn how to create and capture great guitar tones.

AXE I/O brings all that experience to you.

AXE I/O is a professional 2 in/5 out audio interface – and controller - designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever.

AXE I/O offers an exclusive triple-topology, fully discrete input circuit, with both PURE and JFET input stages, to go from transparent to tube-like with just a single switch.

Its patent-pending Z-Tone impedance-adapting circuit interacts with your guitar's pick-ups to give you a massive range of tonal flexibility, you’ve never heard before.

Plus AXE I/O includes a dedicated Amp Out, so you can process your recording with real guitar amps and stomps without the need for external accessories (and without having to unplug your existing connections!). This low-noise out also eliminates ground loops, to keep even the highest-gain re-amplification as quiet as possible.

And AXE I/O seamlessly integrates with the included AmpliTube 4 Deluxe to select presets and control values via the front input knob, and lets you connect pedals and switches to get the most from your virtual rig without ever taking your hands off your axe.

We even included an onboard tuner so you can be ready to record in an instant whenever inspiration strikes.

Every element of AXE I/O has been created with no-compromise quality and real-world usefulness.

It’s the interface we wish we’d had all along.

A truly high-end audio interface for everybody

117 dB dynamic range, 3 Hz – 32 kHz frequency response – these aren’t the specs you typically find on instrument inputs. But they’re essential to capturing the most accurate details of your performance, for coaxing the best performance from your instrument, and for keeping your sound pure and transparent.

AXE I/O provides 2 Hi-Z front ¼" inputs for guitars and basses, 2 rear combo inputs with phantom power to connect mics and line instruments, and clear precision front peak meters to conveniently monitor the signal level at the channels input. Two floating balanced outputs, two unbalanced and one floating unbalanced Amp out plus a high-current headphone out let you connect monitors, mains and headphones, with independent volume for both. A Monitor knob makes it easy to blend direct monitoring and the audio from your computer for zero latency monitoring.

24-bit, 192 kHz conversion and an ultra-stable, low jitter internal clock ensures the highest fidelity, whether you’re capturing vocals, acoustic instruments, amplified guitar or just direct signal for use with AmpliTube. But that’s just scratching the surface.

Your guitar’s golden channel

AXE I/O’s main channel offers 3 different circuit topologies – that means you have 3 different options to adapt to any type of guitar, pick-up and style so you can always dial in the perfect tone from any instrument.

• Pure : a completely transparent and ultra-accurate instrument preamp that won’t color
• your sound in any way.
• JFET : a Class A JFET input buffer to add subtle harmonic enhancement. A slight midrange focus adds warmth, giving you more tonal options from the same instrument.
• Active : bypasses unnecessary gain stages when using active pick-ups, to keep your signal path as direct, transparent and clean as possible.

All three stages offer 117 dB dynamic range to ensure the cleanest signal. And the 3 Hz – 32 kHz frequency response preserves the full sonic impact of your instrument. Unlike the 20 Hz bass response in budget interfaces, AXE I/O captures the full impact of even the deepest bass and won’t artificially cut off sounds above 20 kHz.

Tone and feel like you’ve never heard

Guitar pickups can dramatically change their character depending on the impedance of your preamp. Many guitar amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change so much when plugging into different gear.

AXE I/O’s patent pending Z-TONE circuit lets you dial in impedance from 1 MOhm (“sharp”) down to 2.2 kOhms (“bold”) that interacts with your pick-ups.

At the maximum impedance, you’ll find your sound tighter, sharper and more precise. Increase the load and the sound becomes more thick and bold.

You’ll quickly find yourself using this to give your guitars even more sonic character – with just a few minutes’ experimentation you can dial in a sound that fits the mix beautifully, as if it's been EQ’d.

PURE mic preamps for transparent recording

When it comes to recording with microphones, AXE I/O offers two PURE mic preamps designed for transparent and clean recording.

These mic pres offer a wide, flat frequency response: 5 Hz to 32 kHz, ± 0.5 dB (at 96 kHz) to avoid unwanted coloration and perfectly preserve the sonic character of your acoustic guitar, piano or other instrument, and maintain the signature of whichever mics you connect.

They offer 116 dB of dynamic range, for ultra-quiet sound perfect for recording even the most delicate instruments, but make it easy to also pull back and record the loudest amp stack.

Re-amplification made easier than ever

Many guitarists have tried to integrate their amps and stomps with recording setups only to discover it’s not an easy task! You used to need a DI box, a ground loop interrupter to prevent buzz and hum, and still have to constantly dis-connect and re-connect every time you switch between recording direct and recording your amp.

AXE I/O makes this all easier than ever with its Amp Out. It features a dedicated ground-isolated low noise ¼” output right on the front panel for easy access.

Just record a track with a clean copy of your guitar’s signal. Now you can use the Amp out to experiment with different amp, stompbox and microphone settings, or swap out a whole new rig!

AXE I/O offers a simple, streamlined re-amplification setup in a single box, to save you time, money and energy and open up unlimited sonic flexibility for all your guitar recordings.

Seamless AmpliTube integration - and more

For those who prefer in-the-box modeling, AXE I/O also offers a range of useful features.

First, a Preset knob lets you quickly and easily scroll through AmpliTube presets. Just push the knob to select and load one. You can find the perfect preset without ever having to grab a mouse. And if you use any other software, the Preset knob can be freely assigned to any CC so you can have direct control of your preferred virtual rig.

Second, two dedicated controller inputs let you connect up to two expression pedals or two single/double switches to control AmpliTube, or any other software, in real-time while playing. With AmpliTube’s MIDI Learn function, just right-click on any parameter you want to control, move the pedal, and it’s assigned. You can do up to 6 different controller configurations with AXE I/O, mixing pedals and switches, to suit your needs.

You can also use AXE I/O’s MIDI input and output to connect floor controllers or iRig Stomp I/O to add even more real-time controls - or use it with regular keyboards and other standard MIDI gear. There’s also a dedicated tuner on the front panel, making it easier to tune in between takes.And we’ve worked hard to ensure AXE I/O offers minimal latency, giving you the tightest response and feel while tracking.

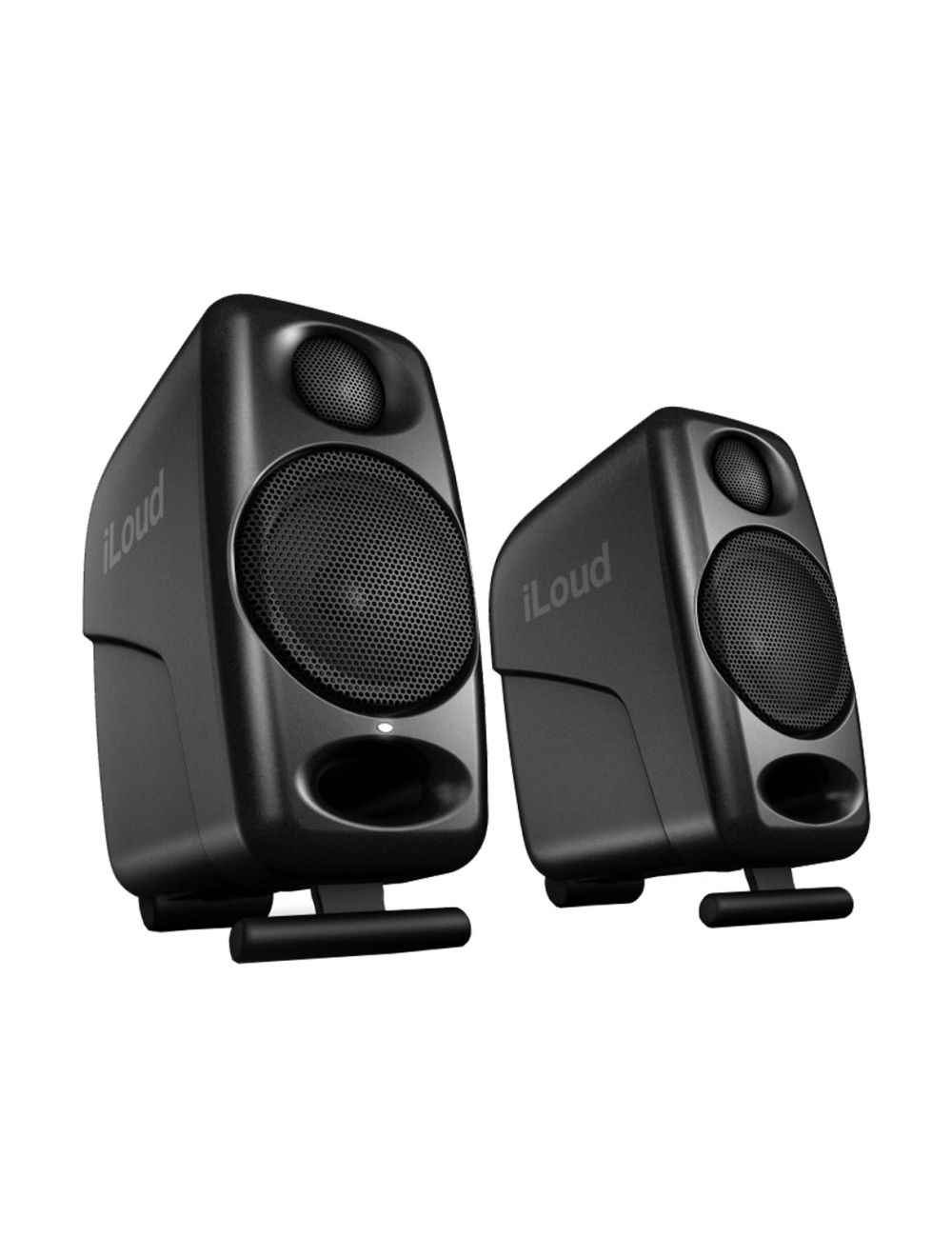

IK Multimedia iLoud MTM

High-Resolution Compact Studio Monitor

Your Music As You’ve Never Heard Before

IK’s iLoud Micro Monitors stunned an industry. Producers and engineers at every level marveled at the performance coming from such a small setup, so IK challenged our team to push its concept even further - to design a new compact speaker to rival 5”, 6” and even 8” monitors. The result is iLoud MTM, and it changes everything about the sound, accuracy and convenience of reference monitors in today’s modern studio. Once you hear iLoud MTM, you’ll find it hard to ever go back to traditional big-box speakers.

iLoud MTM offers

• Ultra-flat frequency response
• Phase-coherent sound
• Extended, controlled low end
• Superior sound at short distances
• Perfect for desks and small spaces
• ARC self-calibration adjusts to any room
• DSP-controlled for superior performance
• 100W RMS total power per speaker
• 40 Hz to 24 kHz frequency response
• 0° - 20° tilting stand for ideal positioning

Reference-Class, Ultra-Linear Response

The first job of any studio monitor is to deliver accurate, uncolored sound so you can trust your mixing decisions will translate across multiple playback systems. iLoud MTM uses the most advanced DSP techniques to provide total control over the speakers’ performance, delivering results simply not obtainable with traditional analog designs. Highs are neutral and defined, mids are clear and balanced, and lows are as balanced as ever. You can mix for hours with no ear fatigue, and the work you create will translate better than ever. And of course it’s loud, with 100W RMS total power per speaker and 103dB SPL maximum sound pressure, delivering the proven volume the iLoud brand is known for.

Extended low-end to rival larger systems

iLoud Micro Monitor wowed the world with the bass performance it delivered from a 3” speaker that “defied physics”. But iLoud MTM offers even more, with even bass response down to an astonishing 40Hz ideal for modern music styles. iLoud MTM debuts IK’s new patent-pending Physical Response Linearization (PRL) system, that uses a precise model of the enclosure’s design, construction and materials, combined with electro-mechanical measurements of the real units, to correct the system’s performance in real time. The result is a stunningly “firm,” balanced and defined low end, to surpass the sound of speakers even twice iLoud MTM’s size. Deep bass is solid and firm - you won’t believe sound like this comes from a monitor so small.

A New Phase in Accurate Sound Reproduction

Most conventional studio monitors, even high-end designs, suffer from skewed phase response caused by traditional, phase-shifting crossovers and driver/enclosure phase alterations. The end result is an unfocused stereo image, blurry transients, and overall lack of detail. iLoud MTM leverages IK’s two decades of DSP experience to offer a true phase-coherent response across the useful frequency spectrum, for unbelievably realistic, natural sound like you’ve never heard. You’ll hear instruments and dialogue as if it’s happening live, discover more detail in your tracks than ever before, and stop wasting hours trying to EQ away issues with your mixes that were never really there. This linear-phase response is rarely found in speakers even several times iLoud MTM’s price, and has to be heard to be appreciated.

Symmetrical Mtm Design for Superior Imaging and Precision

iLoud MTM uses a midrange-tweeter-midrange symmetrical design, with a pair of 3.5” high performance woofers and one 1” high definition, back-chamber loaded tweeter, which provides ultra precise, defined, point source sound that can’t be achieved by traditional 2-way systems at close distances. This means an even more natural, life-like sound, where the speakers “disappear” and you can focus on the music. It also minimizes the ear fatigue caused by traditional 2- or 3-way designs, where different frequencies arrive at your ear at different times. So you can mix longer, with less effort. iLoud MTM’s design also offers exceptional sound dispersion, enhancing the transparency and neutrality of what you hear. The controlled dispersion minimizes the impact of room acoustics, for even truer monitoring.

Instantly Adjust To Any Room Environment

Today’s studios can be anywhere, from acoustician-designed spaces to a spare bedroom. Too many speaker manufacturers keep designing for ideal acoustic environments, ideal positioning and large listening distances. But many musicians simply don’t have that luxury. iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, to automatically adjust the frequency response to its placement. Just set up the monitors, put the microphone in your preferred listening position, press a button and you’ll instantly have a custom calibration for the sweet spot of your listening environment. Plus of course you can adjust low-frequency extension and trim the LF and HF response to your taste. With iLoud MTM, you can be confident your monitoring is optimized for your room’s acoustics, so your mixes will translate better.

Adjust Your Angle in Any Situation

It’s often overlooked – your studio monitors’ tweeters need to point at your ears. This is even more critical in modern studios where more and more musicians are using them at very close distances, like on a desktop beside their laptop or computer screen. iLoud MTM includes a tilting mount that not only helps isolate it, but also angles from 0° to 20° for correct positioning in a wide range of setups. That’s higher than most other “tilting” monitors, that too often can’t actually reach the needed angle for a desktop or other close-listening setup. iLoud MTM also includes a rubber base for horizontal placement, and a bottom thread to mount conveniently on mic stands, for more installation options. Combined with their symmetrical design and phase-coherent response, iLoud MTM allows for ultra-focused and accurate monitoring anywhere.

Superior Monitoring, Superior Metering

iLoud MTM also gives you the T-RackS 5 Metering Suite for free upon registration. This broadcast-ready suite provides you with precision Peak, RMS and Dynamic Range meters, spectogram, real-time analyzer, phase and correlation meters and more. It’s a couple set of tools to manage all the aspects of your audio material with reference-class accurary. This convenient plug-in can be inserted on your master bus or any single track so your metering is as professional as your monitoring.

Digitally-Controlled For Precision Audio

iLoud MTM uses audiophile-grade high resolution algorithms and the top-of-the line A/D converters to carefully manage cross-overs, filtering, time alignment, equalization, dynamics control and auto-calibration. Totally DSP-controlled and precision time-aligned, iLoud MTM also manages the off-axis response to manage the effects of room reverberations. The product of IK’s 20+ years’ experience in digital signal processing, the advanced processing onboard helps iLoud MTM deliver sound far beyond anything in its size or class.
