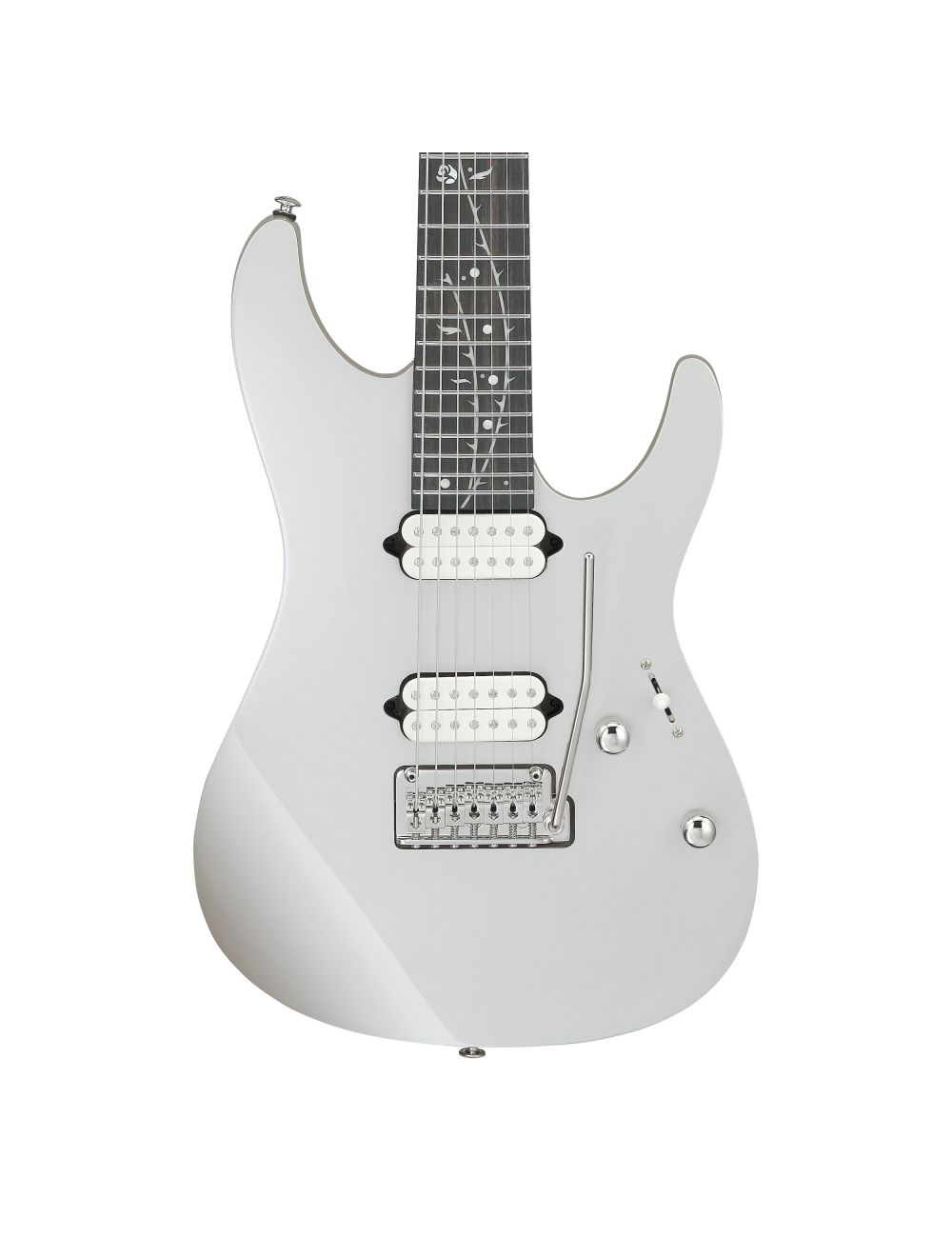

Open Box Ibanez TOD70 Tim Henson Signature 7-String Electric Guitar

Oval C Roasted Maple Neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Ebony Fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo Stainless Steel Frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

American Basswood Body

The American Basswood body delivers a natural and flat tone.

Fishman Fluence Tim Henson Signature Series 7 Humbacker Pickups

Tim's signature Fishman Fluence pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars. Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate/ Voice 3: Tim's fluid neck single coil Bridge Pickup Voice 1: Based on Fishman's hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil

Gotoh MG-T locking Machine Heads

The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Gotoh T1572S Tremolo

The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Fishman Fluence Voicing Switch on Tone Control (Push/Pull) for Tim Henson Signature Series Pickups

The Voicing switch allows the pickups to switch between three musically complementary voices.

Luminescent Side Dot Inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

When the pickup selector is in the neck position and the tone knob is pushed in, the full neck humbucker is activated and in Voice 1. When the pickup selector is between the neck and middle position, only the outer coil of the neck pickup is activated and is in Voice 3. When the pickup selector is in the middle position, both humbuckers are fully activated and in Voice 1. When the pickup selector is between the middle and bridge position, the outer coil of the front pickup and the inner coil of the bridge pickup are activated and in Voice 3. When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 1. When the pickup selector is in the neck position with the tone knob pulled up, the neck humbucker is fully activated and in Voice 2. When the pickup selector is between the neck and middle positions, only the outer coil of the neck pickup is activated and in Voice 3. When the pickup selector is in the middle position, the outer coil of the front pickup and the inner coil of the bridge pickup are each activated and in Voice 3. When the pickup selector is between the middle and bridge position, the outer coil of the front pickup and the inner coil of the bridge pickup are activated and in Voice 3, (same setting as when middle is selected). When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 2.

With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout on the lower part of the body. The knob in front of it, towards the neck, is the volume knob, and the knob closer to the end of the body is the tone knob, which also serves as the Fishman Fluence Voicing switch. The Fishman Fluence Voicing switch changes the tone of the pickups via an electronic circuit. When the tone knob is pushed in, Voice 1 and Voice 3 are active, and when the tone knob is pulled out, Voice 2 and Voice 3 are active. The mix of voicings in use is based on the pickup combination selected via the 5-way switch.
