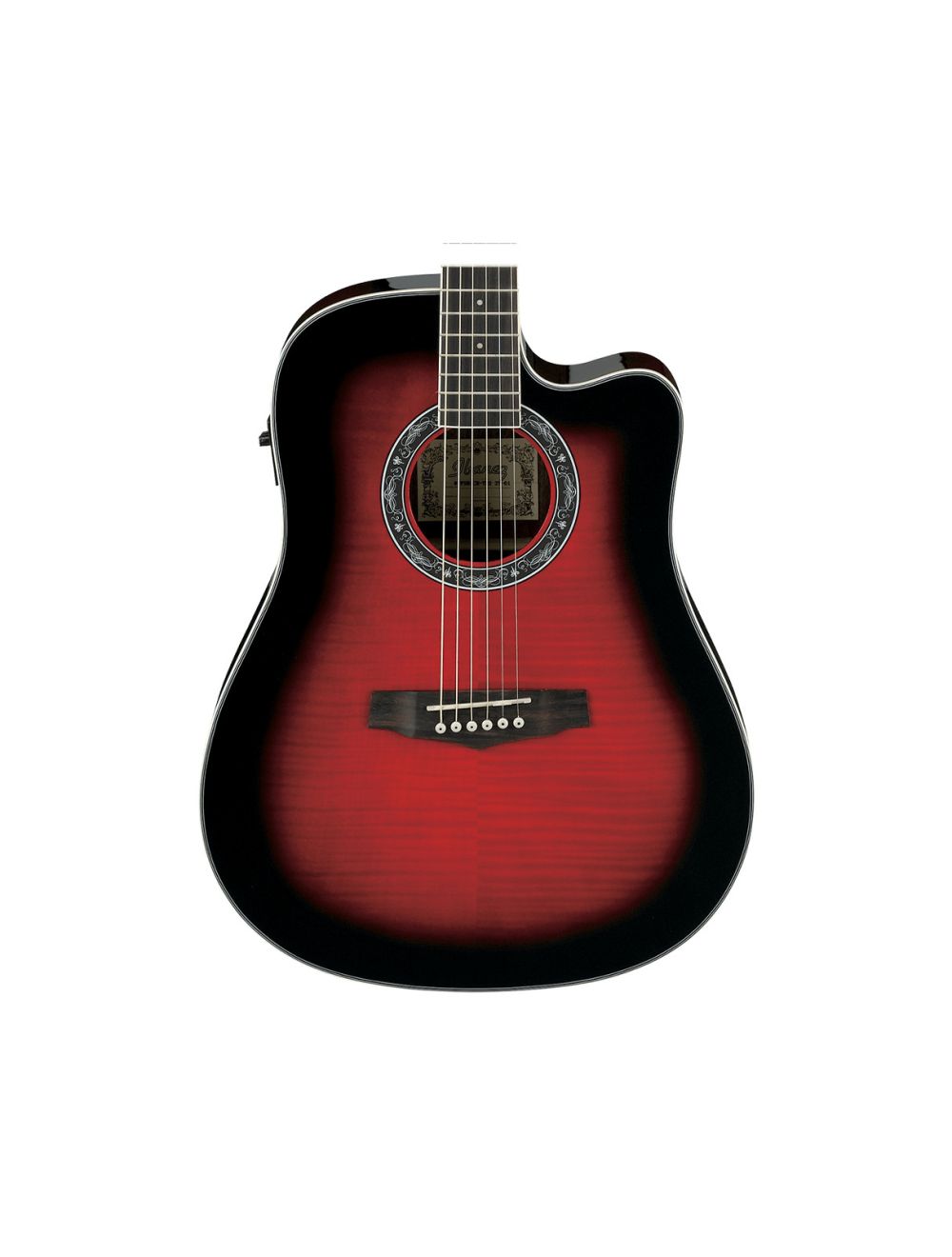

Ibanez PF28ECE PF Series Dreadnought A/E Guitar - Transparent Red Sunburst

General

• Body shape : Cutaway Dreadnought body (Shallower dept
• Bracing : X Bracing
• Top : Flamed Maple top
• Back & sides : Mahogany back & sides
• Neck : Mahogany neck
• Fretboard : Rosewood
• Bridge : Rosewood
• Body binding : Ivory
• Soundhole rosette : Water decal rosette
• Tuning machine : Chrome Die-cast Tuner
• Number of frets : 20
• Bridge pins : Ibanez Advantage Bridge pin
• Strings : D'Addario EXP11 Coated 80/20 Bronze, Light (.012-.053 Gauge)
• Pickup : Fishman Sonicore pickup
• Preamp : Ibanez SST Shape Shifter preamp w/Onboard tuner
• Output jack : Balanced XLR & 1/4" outputs
• Battery : AA Battery *2
• Finish top : Gloss
• Finish back and sides : Gloss
• Finish neck back : Gloss

Neck Dimensions

• Scale : 650mm
• a : Width at Nut : 42mm
• b : Width at 14th Fret : 54mm
• c : Thickness at 1st : 20mm
• d : Thickness at 7th : 21mm
• Radius : 250mmR

Body Dimensions

• a : Length : 20"
• b : Width : 15 3/4"
• c : Max Depth : 4 1/4"
