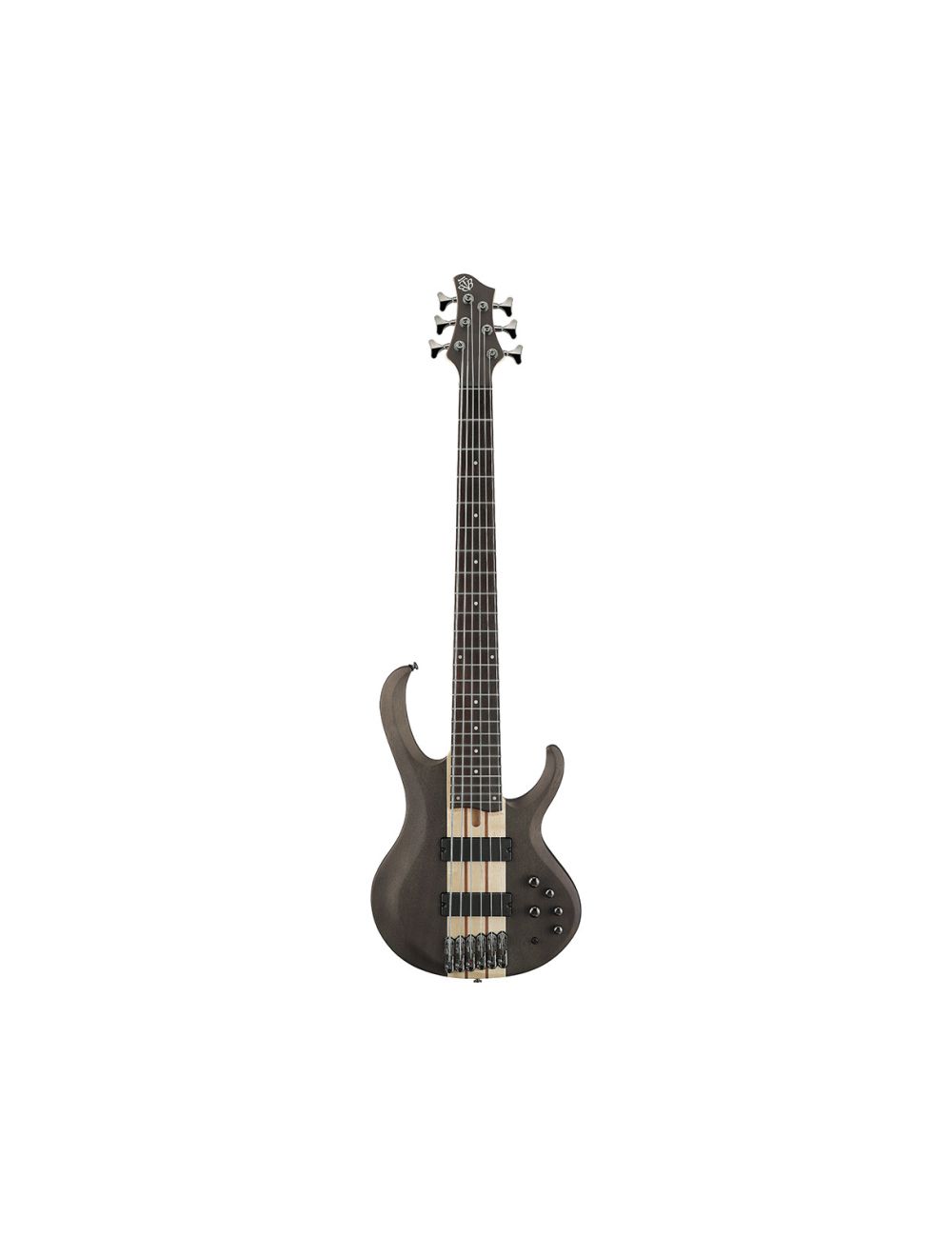

Ibanez BTB606TGF BTB Standard 6-String Bass Guitar - Transparent Gray Flat

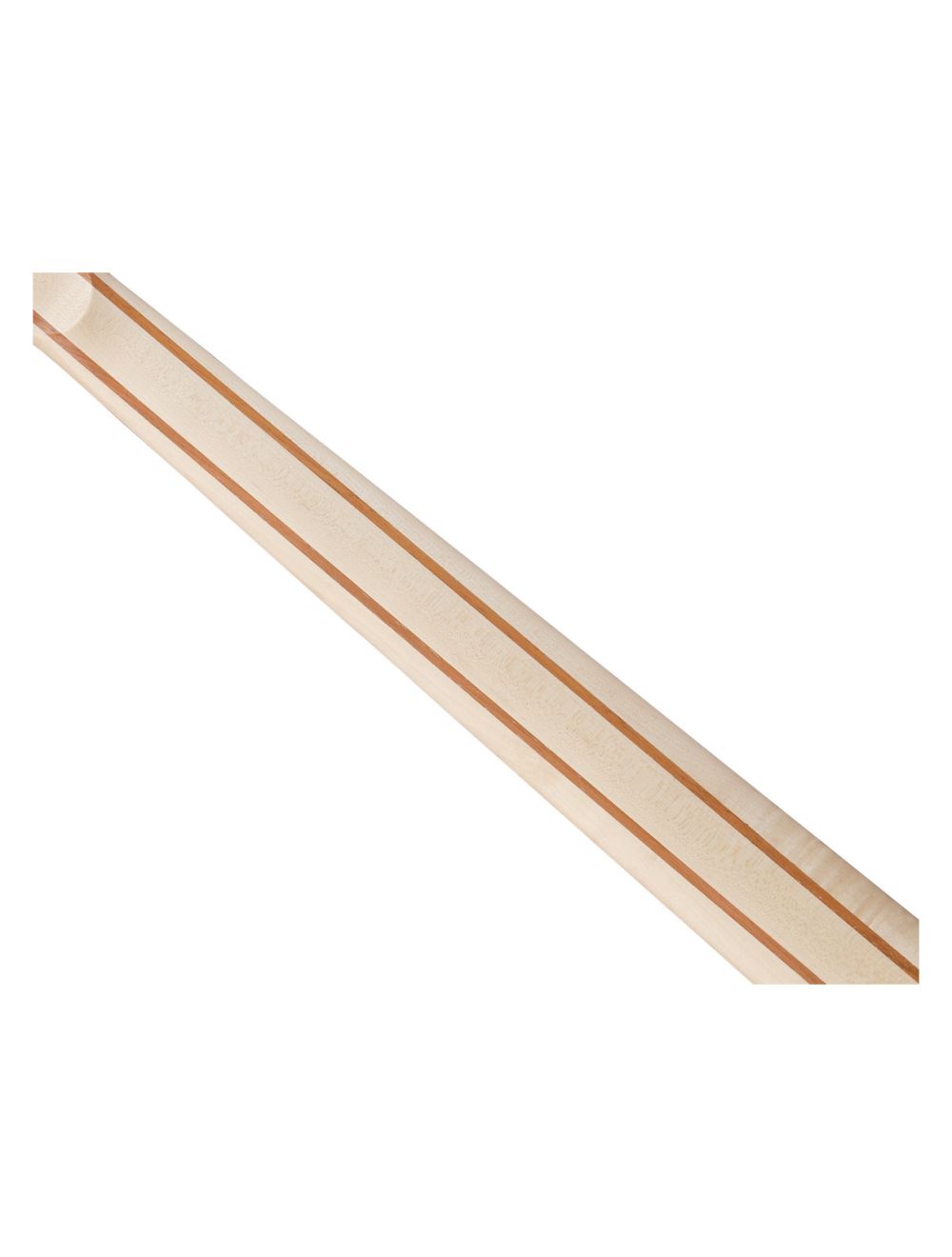

5pc Maple/Jatoba neck

The 5pc Maple/Jatoba Neck with excellent strength provides an enriched resonance.

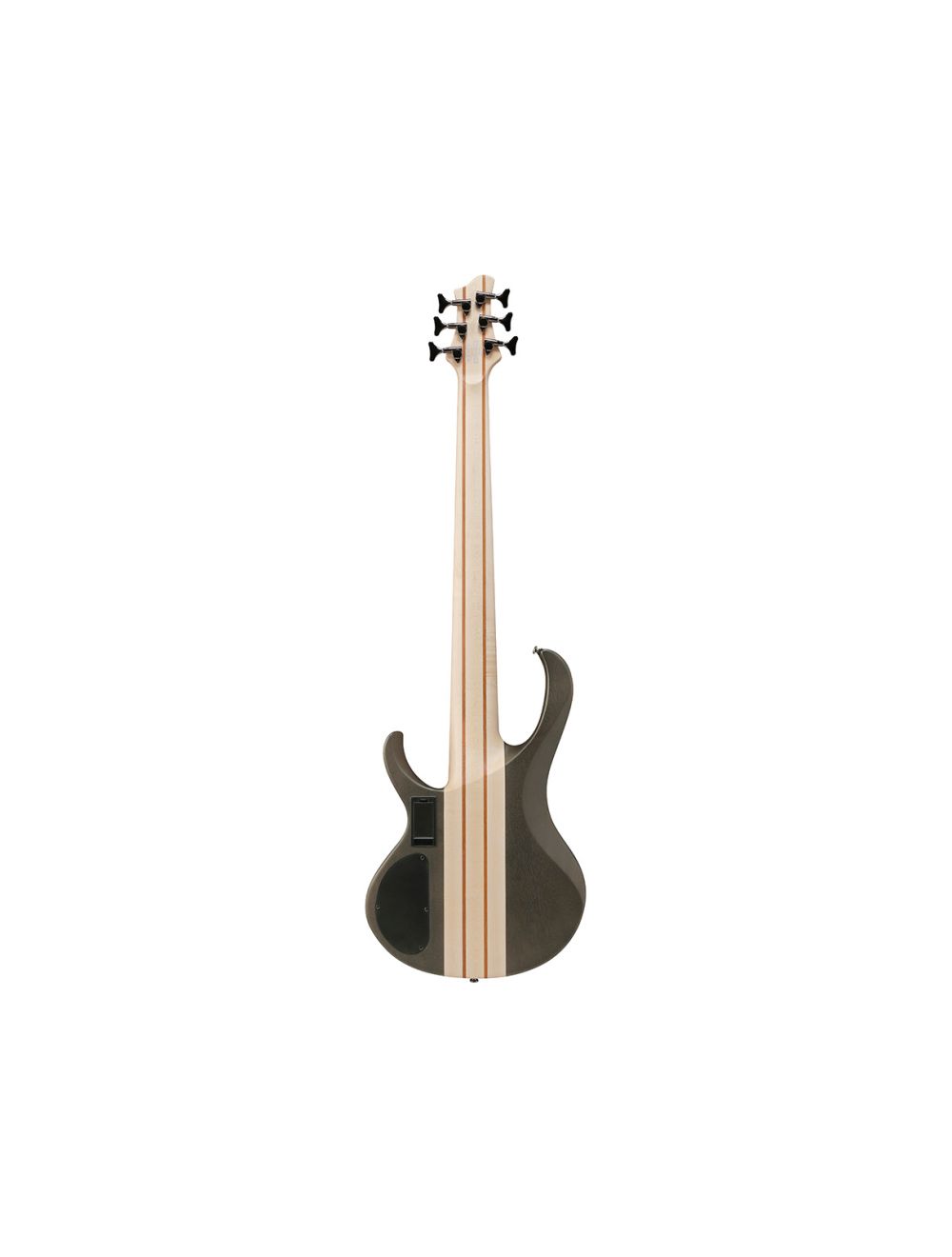

Neck-through construction

The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Medium Stainless Steel frets

The Stainless Steel frets are durable and long-lasting.

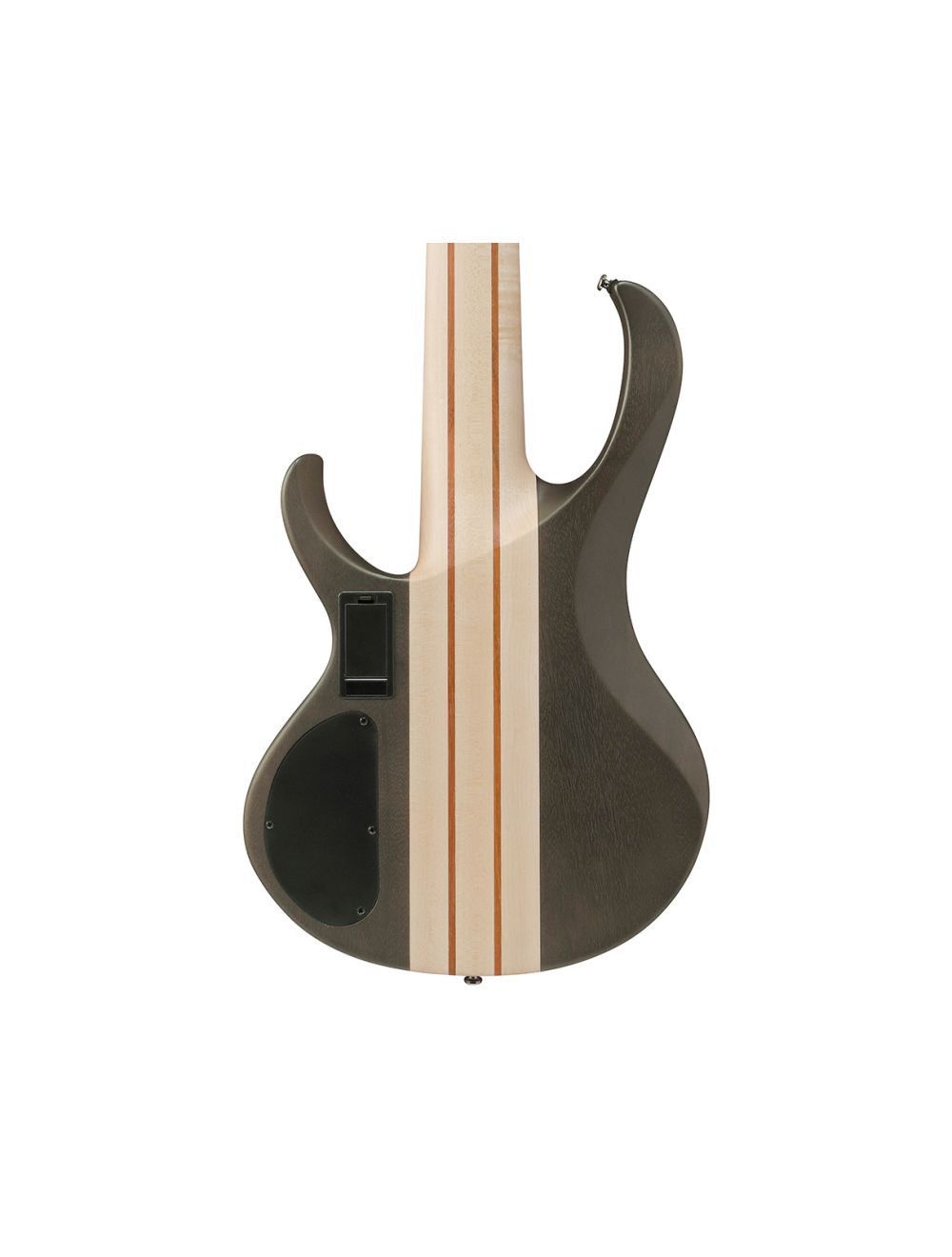

Okoume wing body

The Okoume wing body provides a bright and solid sound.

α1 pickups

α1 pickups deliver ultimate tonal clarity and openness with abundant mids and lows, popular characteristics among modern bass tones.

Ibanez Custom Electronics 3-band EQ w/Mid frequency switch

Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

MR5 bridge

The Mono-Rail V is the ultimate bridge for bass string isolation. Each bridge is independently and securely locked down to the body for maximum vibration transfer without interference.

Controls

With the bass held in the playing position, there are three small knobs closest to the lower edge of the body. Directionally, from the lower bout towards the neck knobs are treble boost/cut, mid boost/cut, and bass boost/cut. There are two larger knobs above these, closer to the bridge. The knob closest to the neck controls volume, and the knob next to it is the pickup balancer control. There is a 3 way mid frequency switch next to the balancer knob. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the swtitch is in bridge position, the mid boost peak is at 700Hz.

Frequency Response

The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.
