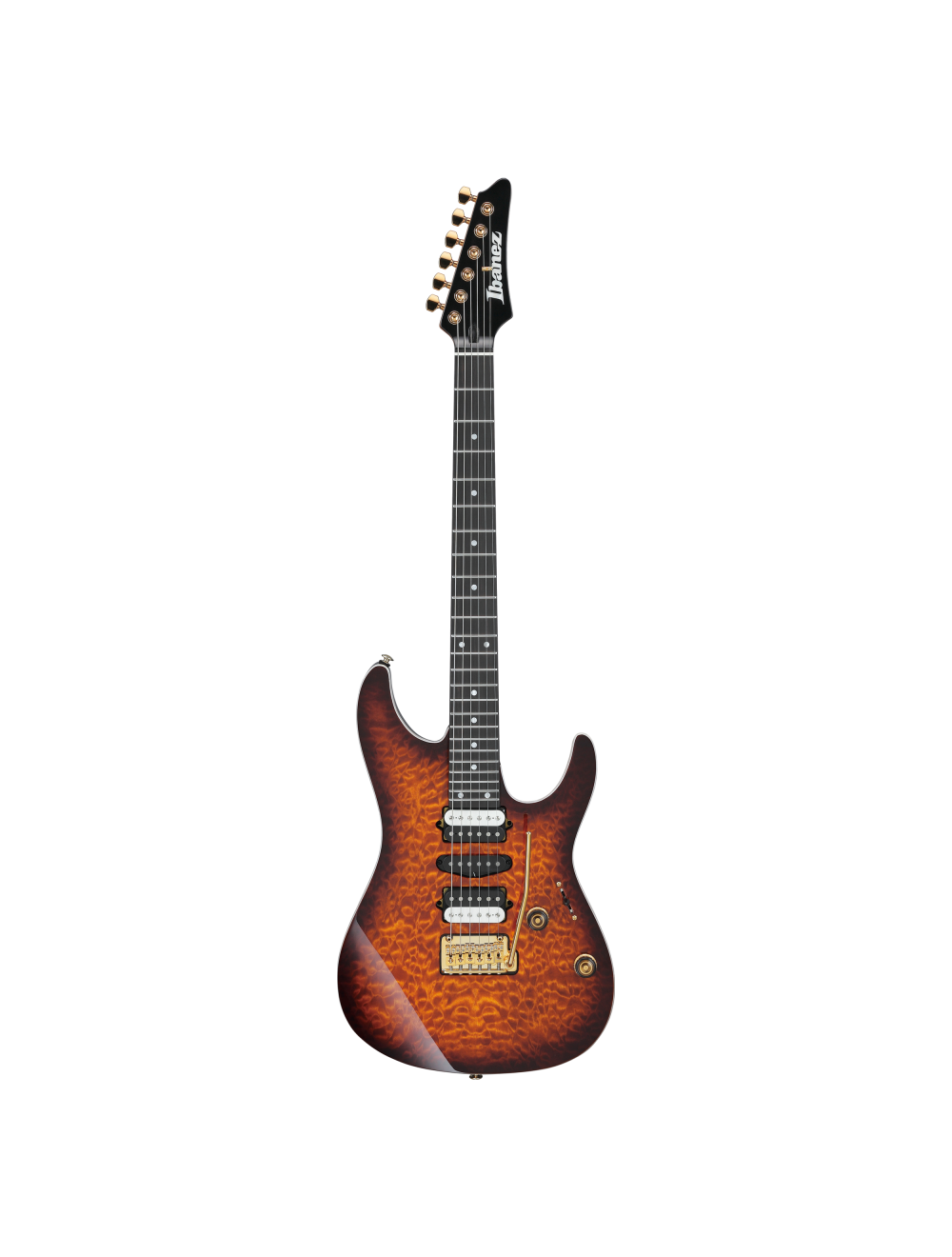

Ibanez AZ47P1QMDEB AZ Premium Electric Guitar - Dragon Eye Burst

When the pickup selector switch is in the neck position, the neck humbucker is selected. When the switch is between the neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in the center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in the bridge position, the bridge humbucker is selected.

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

DiMarzio Air Norton / True Velvet / The Tone Zone Pickups

The DiMarzio Air Norton, True Velvet, and Tone Zone pickups offer depth, warmth, and rich dynamics when combined with the 5-way pickup switch.

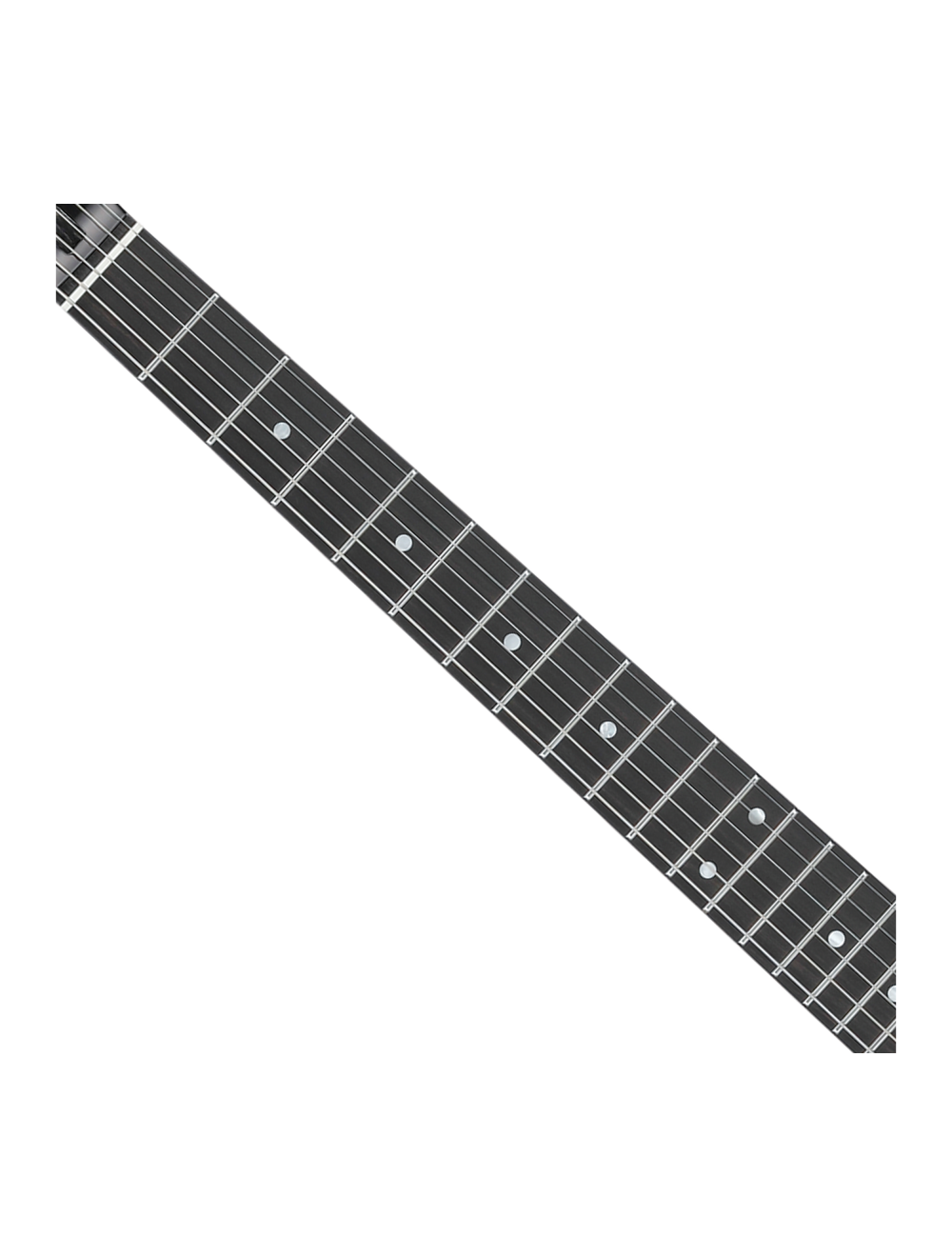

Ebony Fretboard

Ebony produces tight lows and mid-range with a strong attack in the high end and features a quick response and rich sustain.

Luminescent Side Dot Inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh MG-T locking Machine Heads

The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple Neck

Heat treatment increases the wood's stability, durability, water resistance, and tolerance to temperature changes.

Gotoh T1502 Tremolo Bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

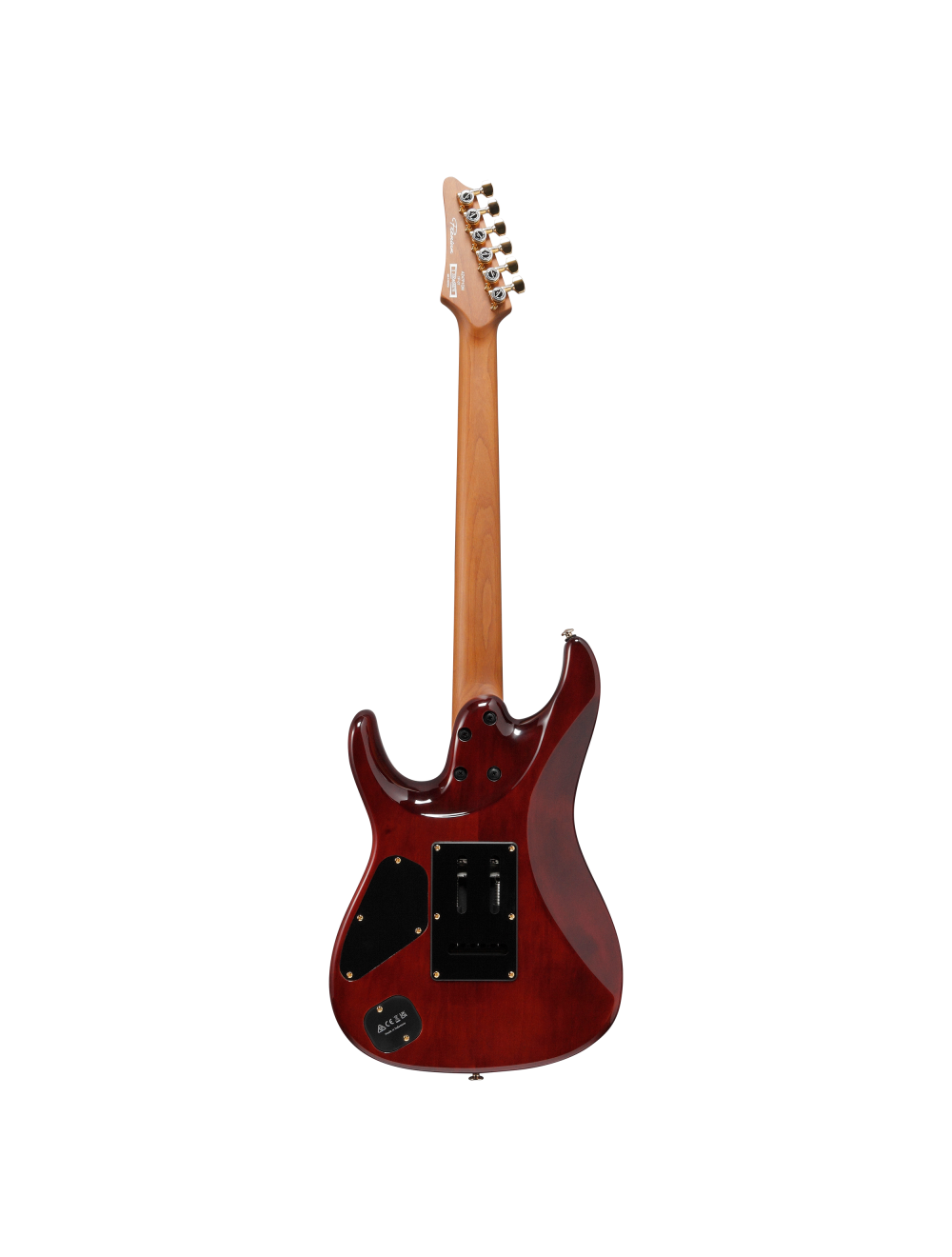

Ergonomic Rear Body Contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
