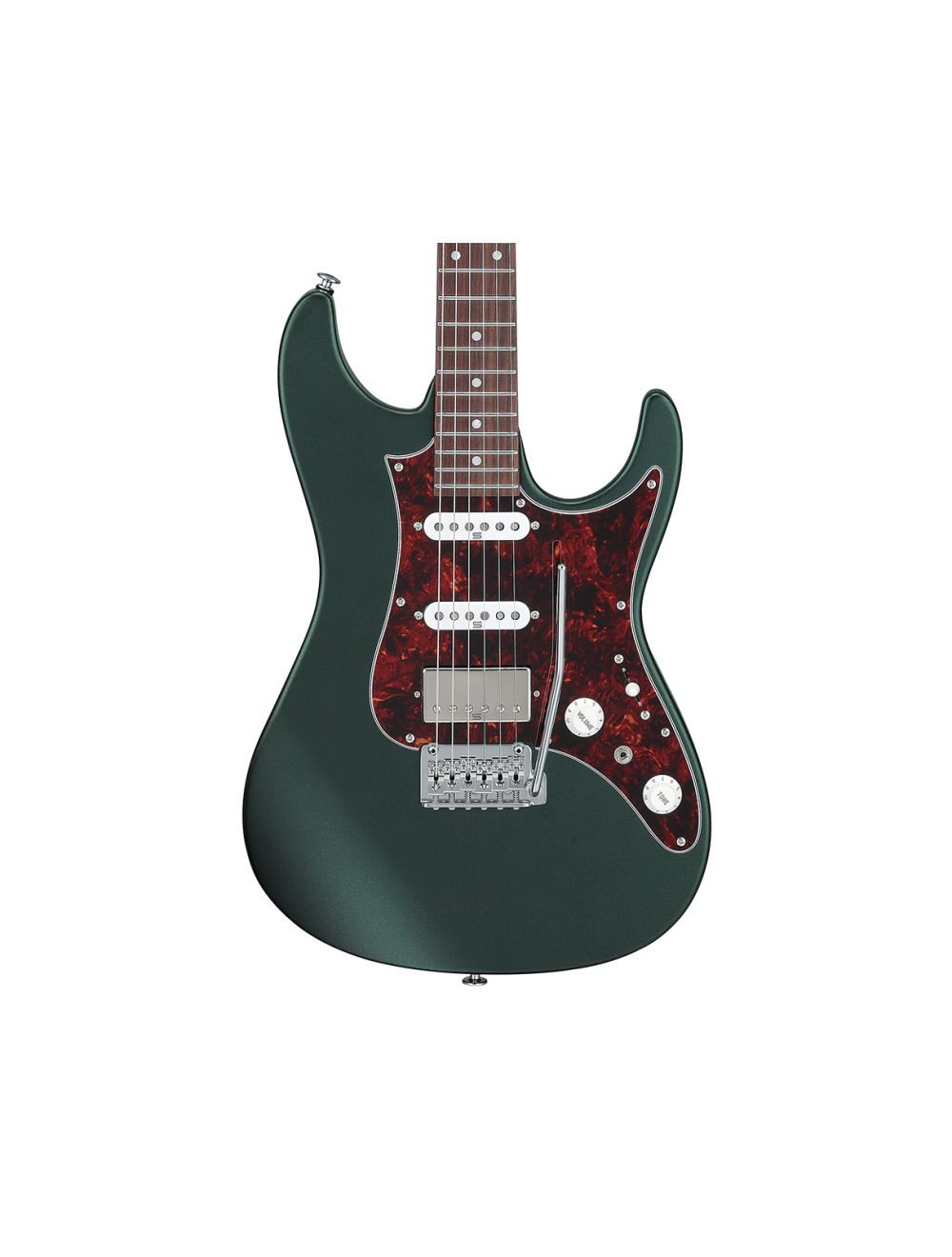

Ibanez AZ2204NVGF AZ Prestige Electric Guitar w/Case - Ivy Green Metallic Flat

Rosewood Fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Compound Radius Fretboard (228mm to 305mm)

Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 Tremolo Springs

Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

Non-Recessed Bridge Cavity

While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has a non-recessed bridge cavity. The direct contact between the bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

Dyna-MIX9 Switching System With Alter Switch

The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.

Seymour Duncan Fortuna S-S-H Pickups

Seymour Duncan Fortuna Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Gotoh T1702B Tremolo Bridge

The T1702B tremolo bridge provides quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm. The tremolo block and saddles are made of brass, facilitating better overall resonance.

Oval C S-Tech Wood Roasted Maple neck

The S-TECH special roasted treatment increases the wood's stability, durability, water resistance, and tolerance to temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Ergonomic Rear Body Contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Gotoh Magnum Lock Machine Heads w/H.A.P.(Height Adjustable Post)

Gotoh Magnum Lock machine heads have an established reputation for tuning stability. It is H. A. P (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay Side Dot Inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.

Switching System

When the alter switch is in the neck position, two hum tap mode is on. When the alter switch is in the bridge position, two hum tap mode is off. Two hum tap mode means the neck and middle pickups are wired in series and functioning as a humbucker. When two hum tap modes is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in between the neck and center position, neck and center pickups are selected. When the switch is in the center position, the center position is selected. When the switch is in between the center and bridge position, the center pickup and neck side of the bridge pickup are selected. When the switch is in the bridge position, the bridge pickup is selected. When two hum tap modes is on and the pickup selector switch is in the neck position, the neck and center pickups are selected and they are in series. When the switch is in between the neck and center position the neck pickup and bridge side of the bridge pickup are selected. When the switch is in the center position, neck, center, and bridge pickups are selected; the neck and center pickups are in series mode. When the switch is in between the center and bridge position, the neck side of the bridge pickup is selected. When the switch is in the bridge position, the bridge pickup is selected.

Controls

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. The closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
