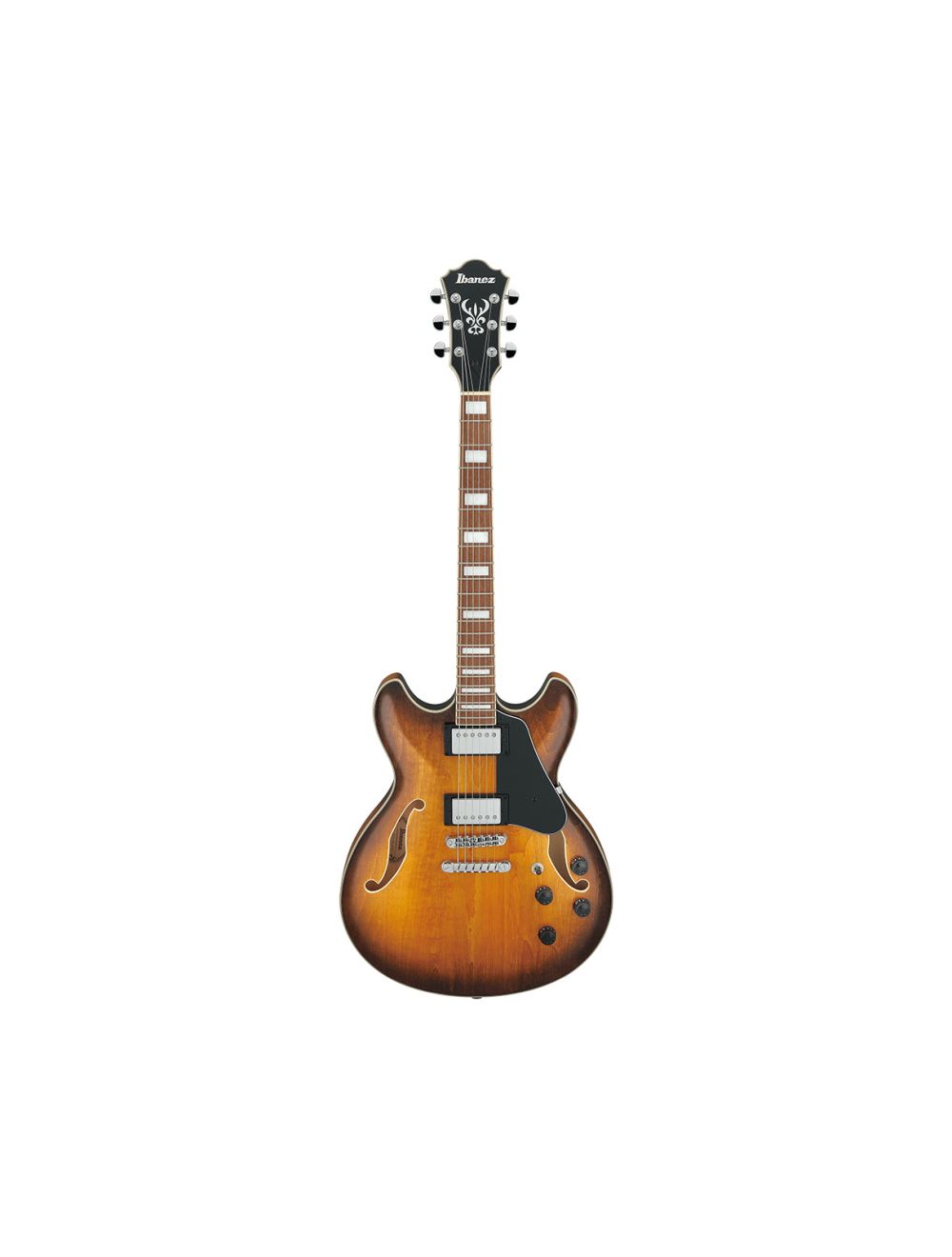

Ibanez AS73-TBC Artcore Semi-Hollow Electric Guitar - Tobacco Brown

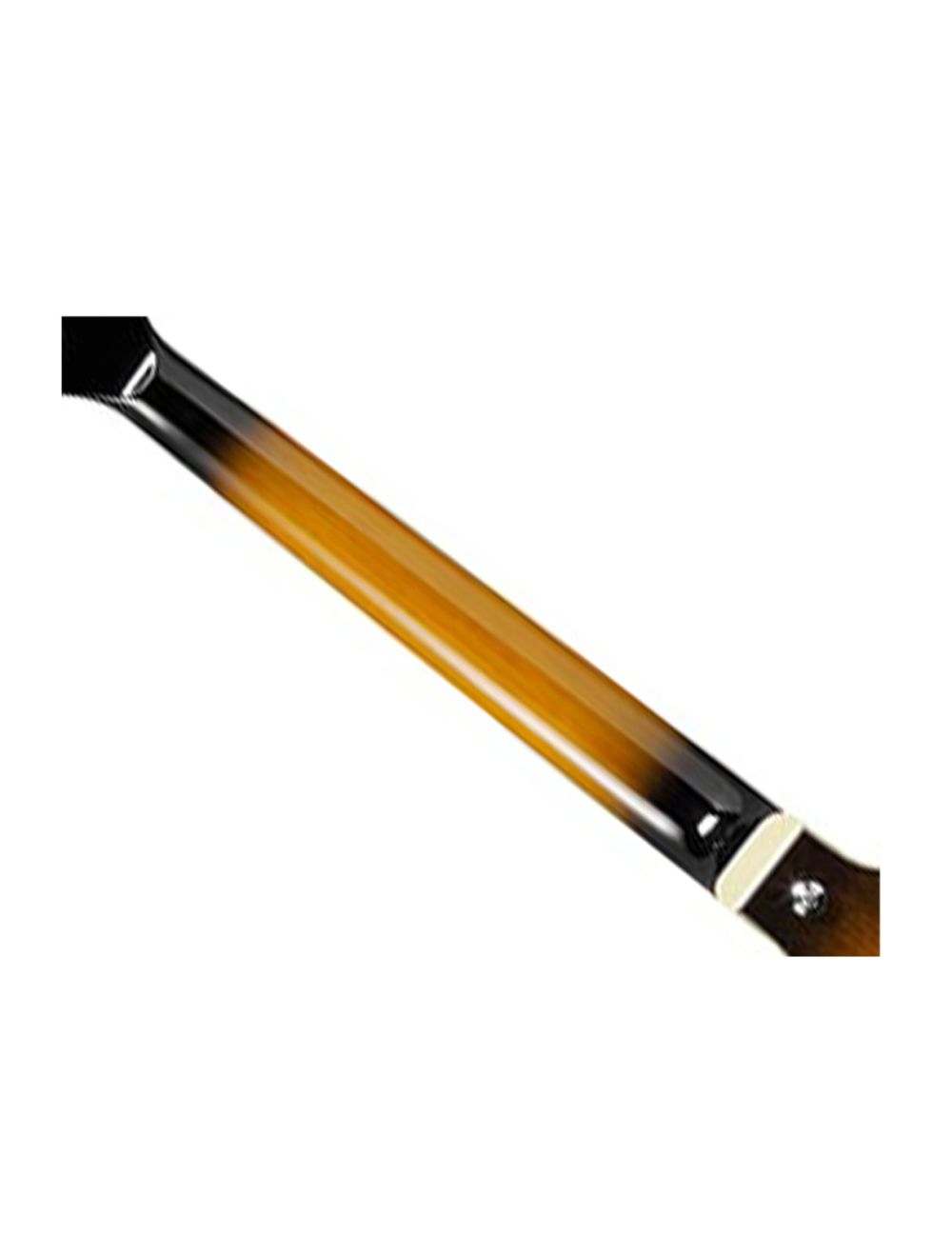

• Neck type : AS ArtcoreNyatohset-in neck

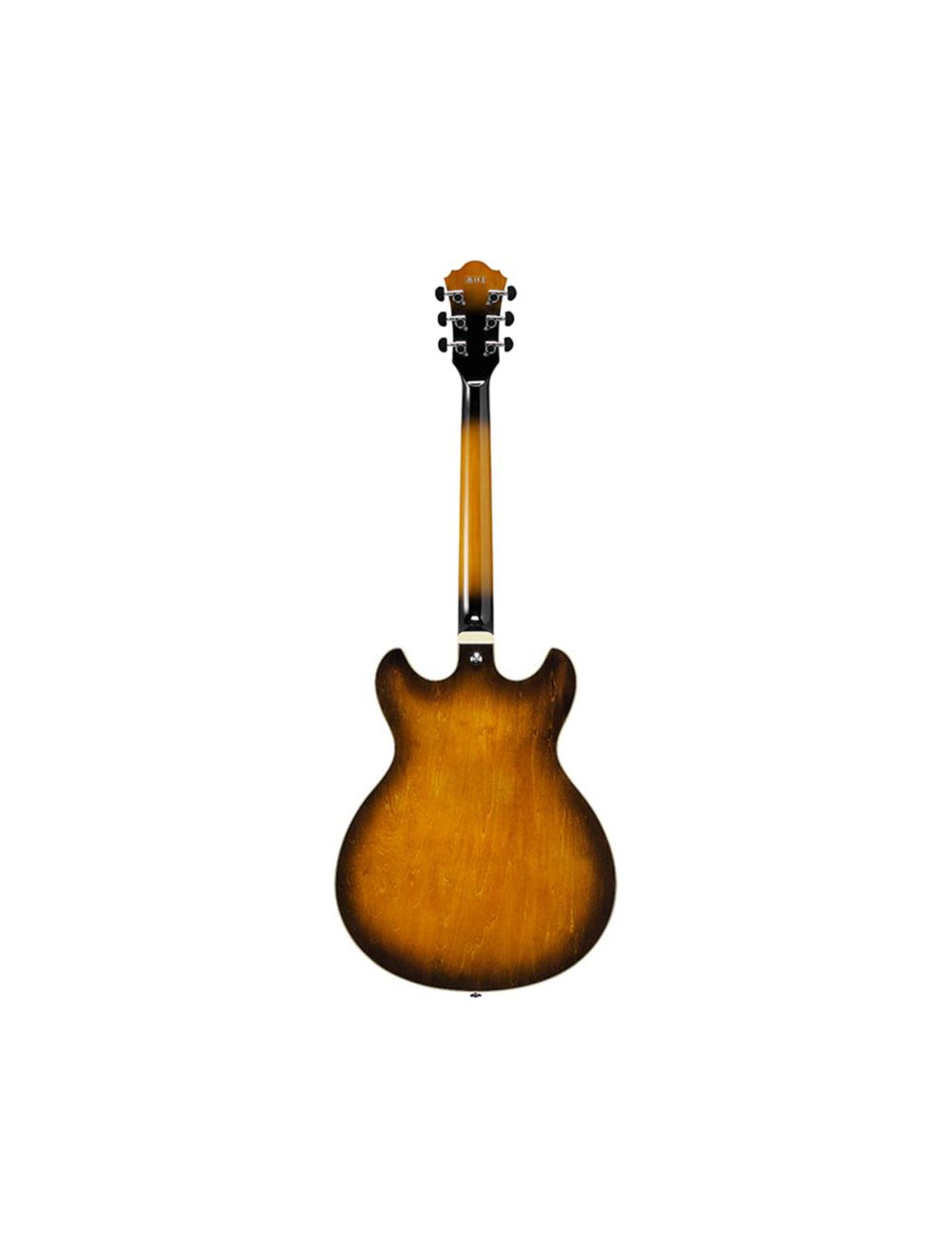

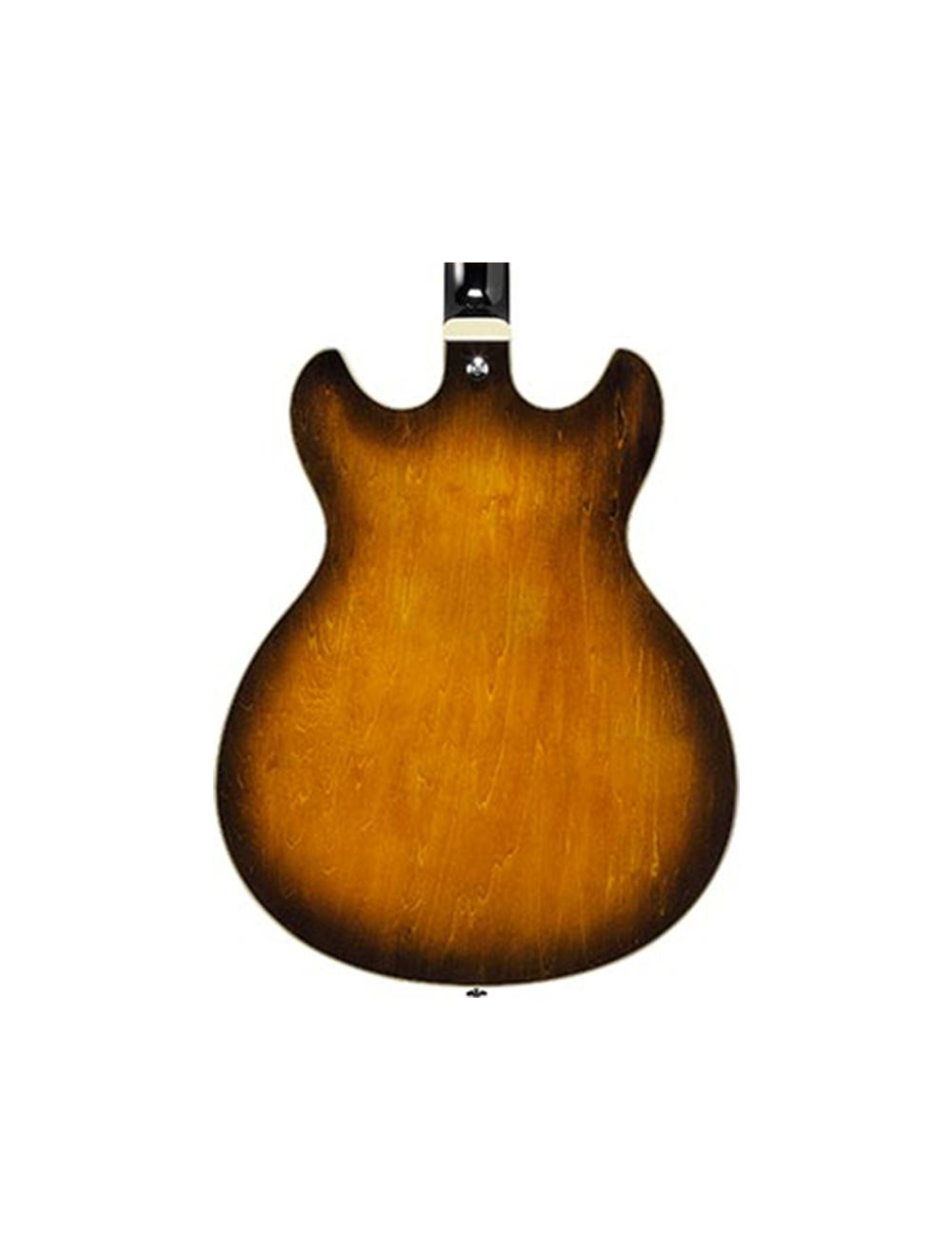

• Top/back/side : Linden top Linden backLinden sides

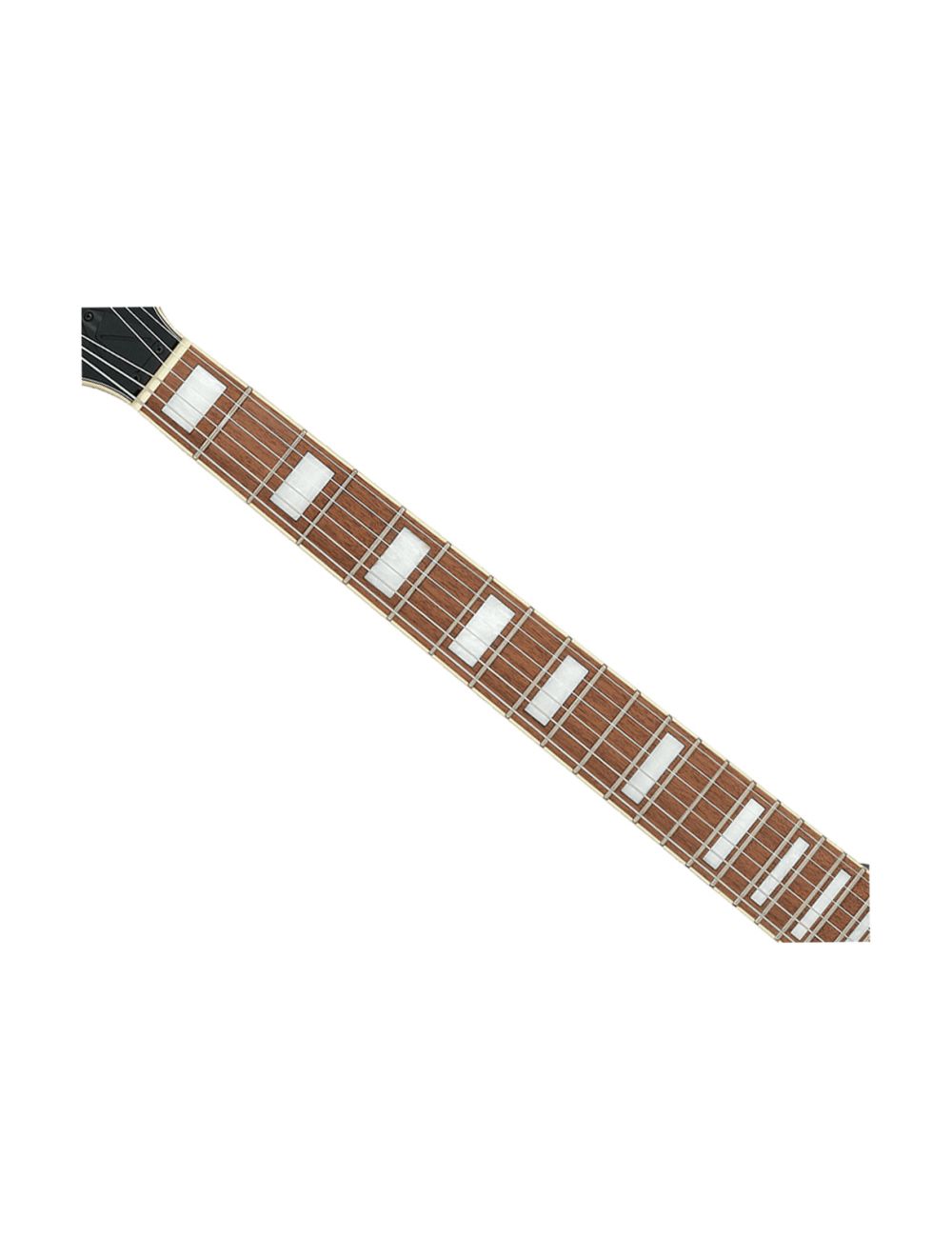

• Fretboard : Bound Walnut fretboardAcrylic block inlay
• Fret : Medium frets
• Number of frets : 22
• Bridge : Gibraltar Performer bridge
• String space : 10.5mm
• Tailpiece : Quik Change III tailpiece
• Neck pickup : Classic Elite (H) neck pickupPassive/Ceramic
• Bridge pickup : Classic Elite (H) bridge pickupPassive/Ceramic
• Factory tuning : 1E,2B,3G,4D,5A,6E
• String gauge : .010/.013/.017/.030/.042/.052
• Hardware color : Chrome

Neck Dimensions

• Scale : 628mm/24.7"
• A : Width 43mm at NUT
• B : Width 57mm at 22F
• C : Thickness 21mm at 1F
• D : Thickness 24mm at 9F
• Radius : 305mmR

Guitar Neck

• A : Width of the neck at the nut
• B : Width of the neck at the first fret
• C : Thickness of the neck at the first fret
• D : Thickness of the neck at the twelfth fret
• Radius : Radius of the fingerboard

Body Dimensions

• A : Length 19 1/4"
• B : Width 15 3/4"
• C : Max Depth 2 5/8"

Switching System

Guitar Body

• A : Length of the body
• B : Maximum width of the body
• C : Maximum depth of the body

When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

Controls

With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
