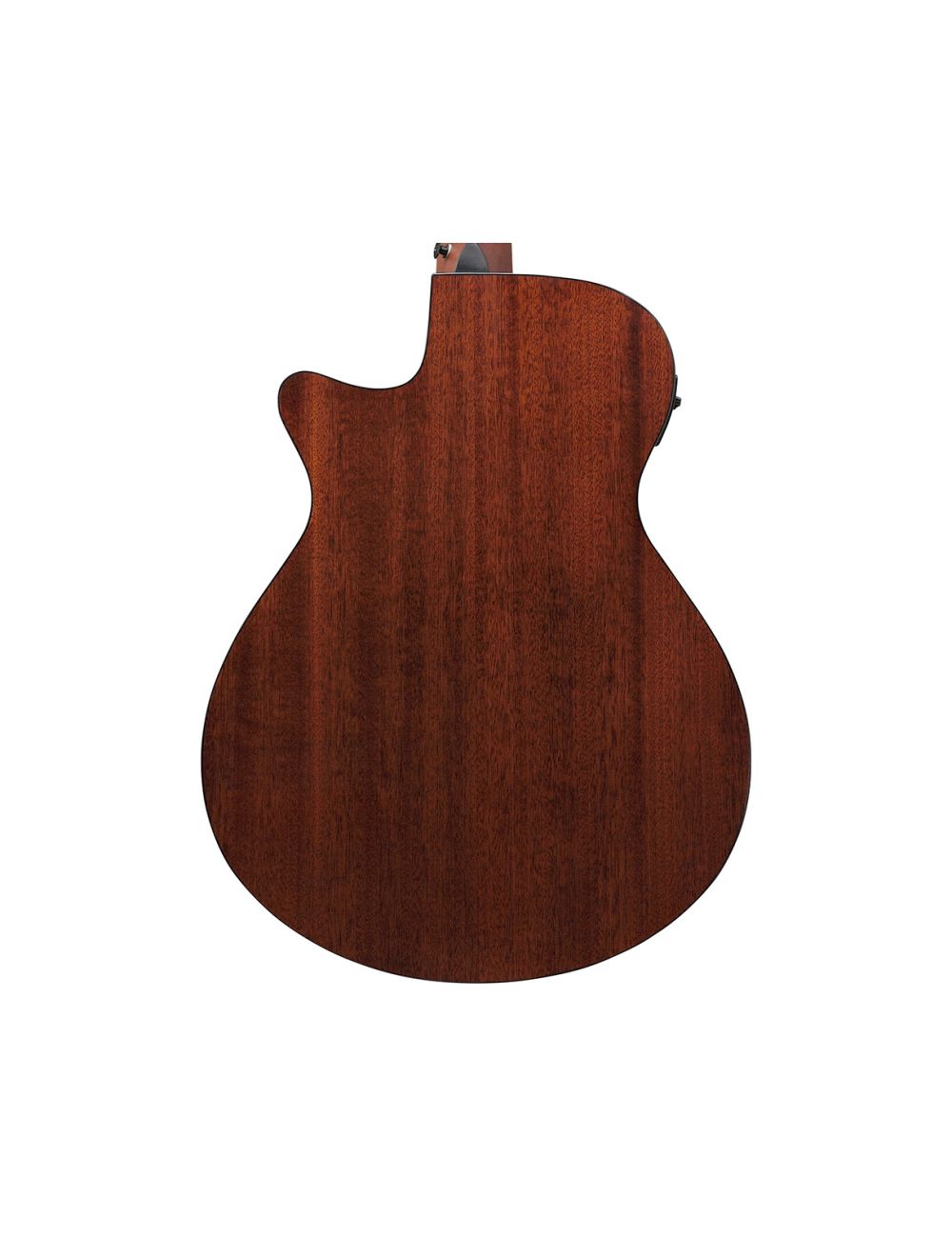

Ibanez AEGB24EMHS A/E Bass Guitar - Mahogany Sunburst

• Body Shape : AEG body
• Top : Sapele top
• Back & Sides : Sapele back & Sapele sides
• Neck : AEGB3pc Nyatoh/Maple neck
• Fretboard : Walnut fretboard
• Bridge : Walnut bridge
• Inlay : White dot inlay
• Soundhole Rosette : Acrylic rosette
• Tuning Machine : Black Die-cast tuners
• Number Of Frets : 21
• Bridge Pins : Black with white dot
• Strings : Ibanez IABS4XC32 Carbon coated
• String Gauge : .040/.060/.075/.095
• String Space : 19mm
• Factory Tuning : 1G,2D,3A,4E
• Pickup : Ibanez Undersaddle
• Preamp : Ibanez AEQ-2T preamp w/Onboard tuner
• Output jack : 1/4" output

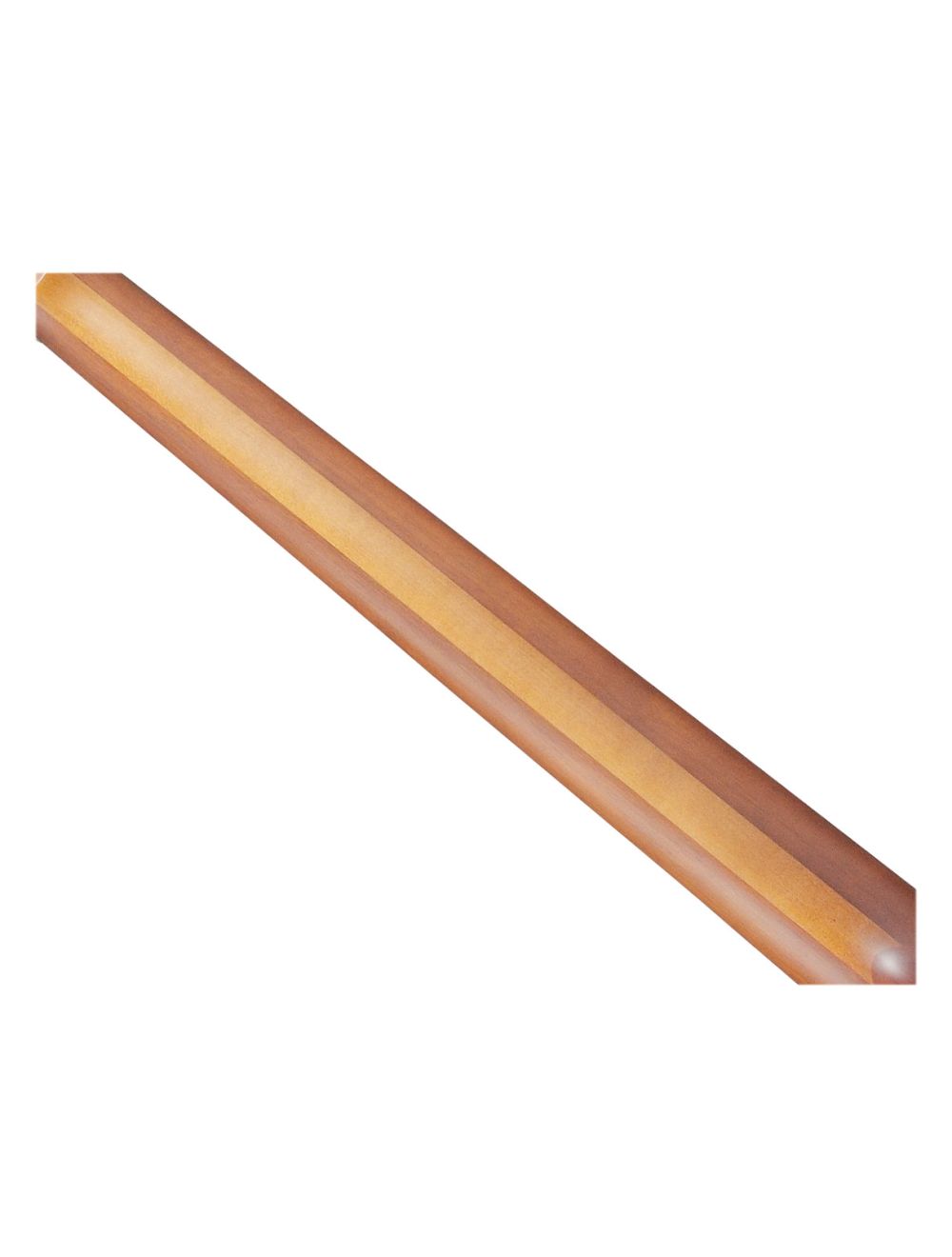

Neck Dimensions

• Scale : : 815mm
• Width : 43mm at NUT
• Width : 58mm at 14F
• Thickness : 21mm at 1F
• Thickness : 22.5mm at 7F
• Radius : : 400mmR

Body Dimensions

• Length : 19 3/8"
• Width : 15 "
• Max Depth : 3 3/4"

Preamp

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
