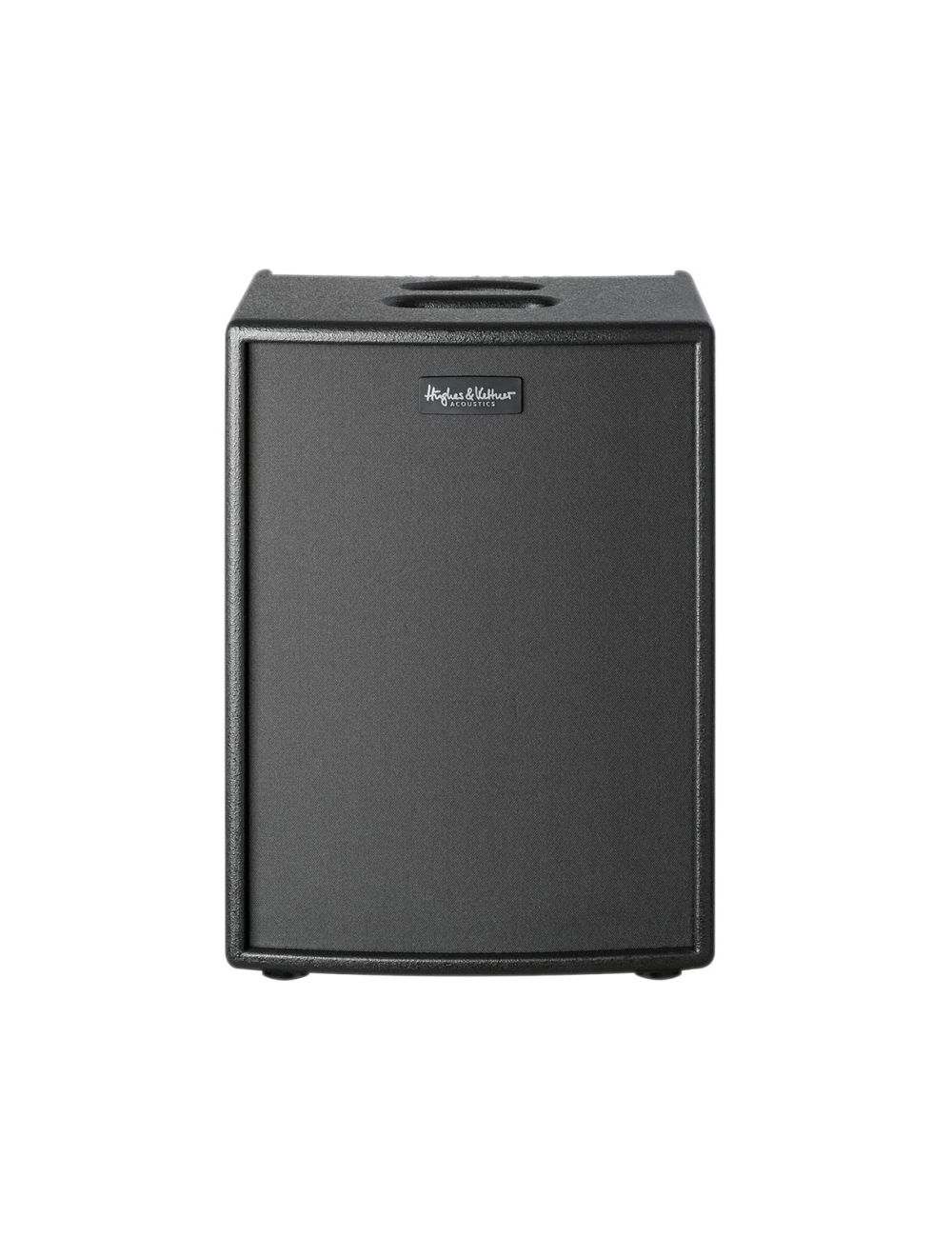

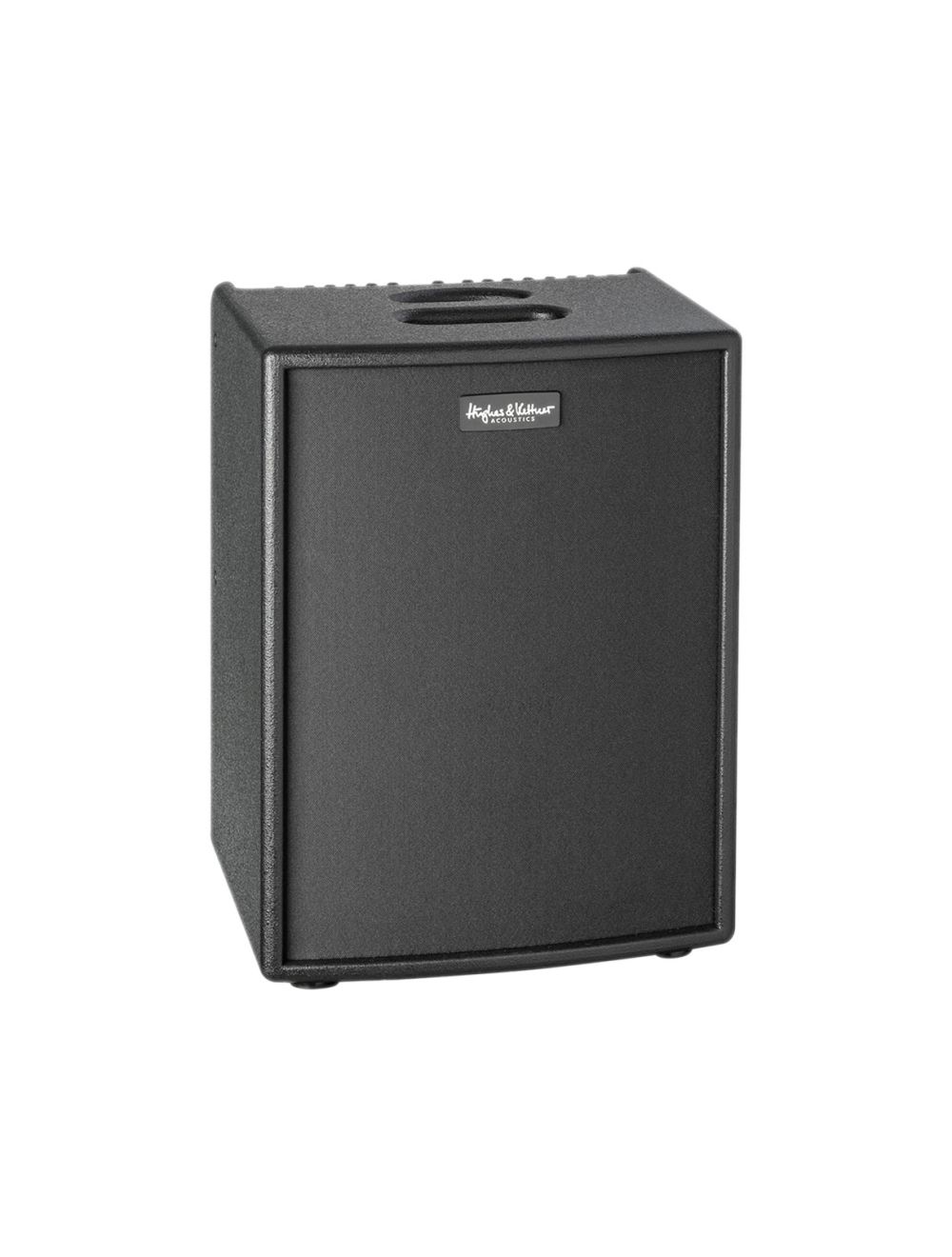

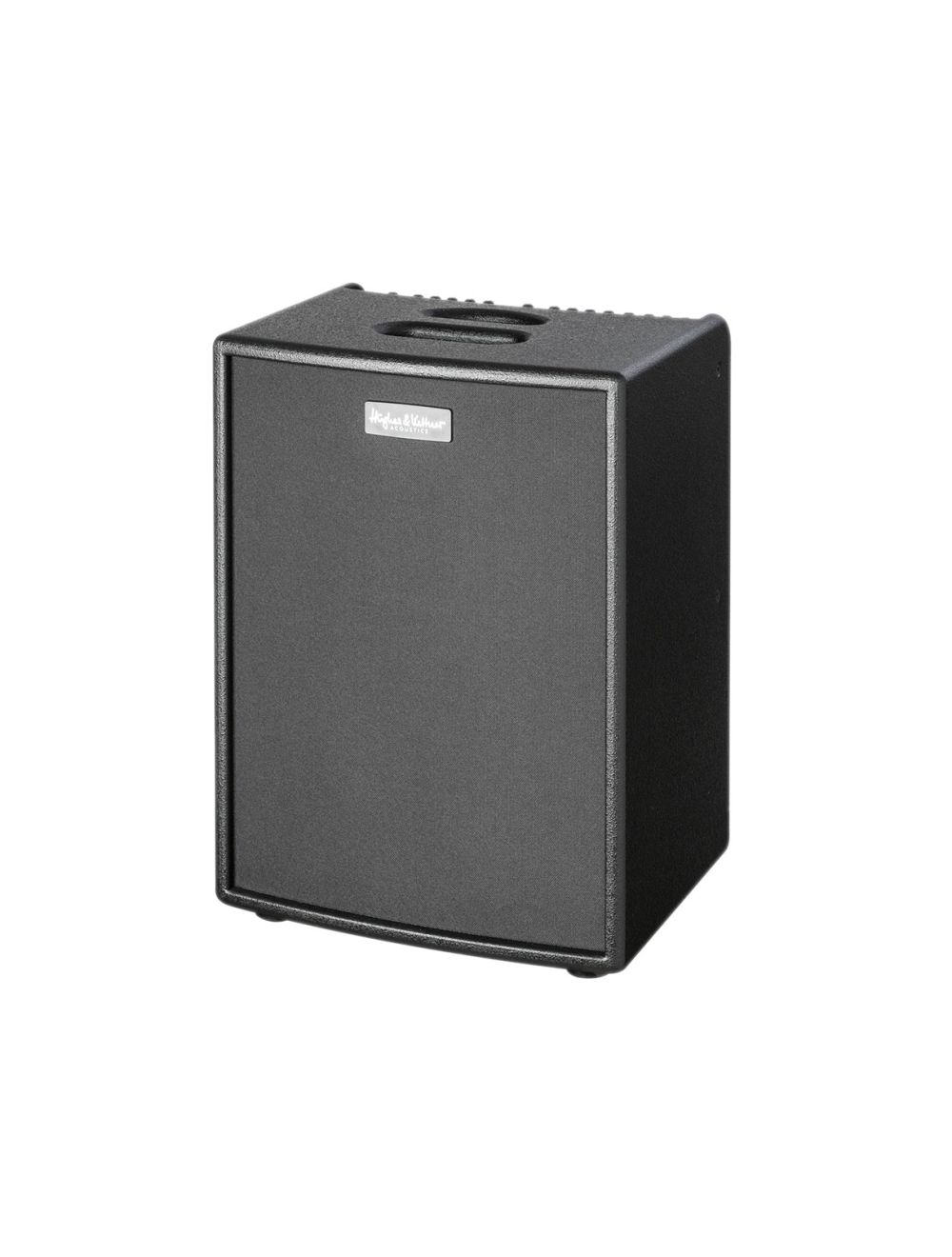

Hughes and Kettner ERA2/BK 400 watts - 2 x 8" custom woofer - black finish

Intuitive Handling With Zero Compromises

• Two fully featured, identical channels
• Independent FX engine for each channel with 16 programs
• Very effective Preshape and Mode buttons to voice channels to suit different instruments and vocal registers
• Only slightly larger than conventional 60-watt acoustic combos

Superior Quality

• Developed by renowned acoustic amp designer Michael Eisenmann in a joint effort with the Hughes & Kettner team
• Choice materials, handpicked for durability and ruggedness
• Made in Germany to the most discriminating standards for quality

GENERAL

• POWER AMP : 400 watts
• DIMENSIONS (W X H X D) : 350 x 475 x 290 mm
• TILT STAND (INCLUDED) : 25° / 35°

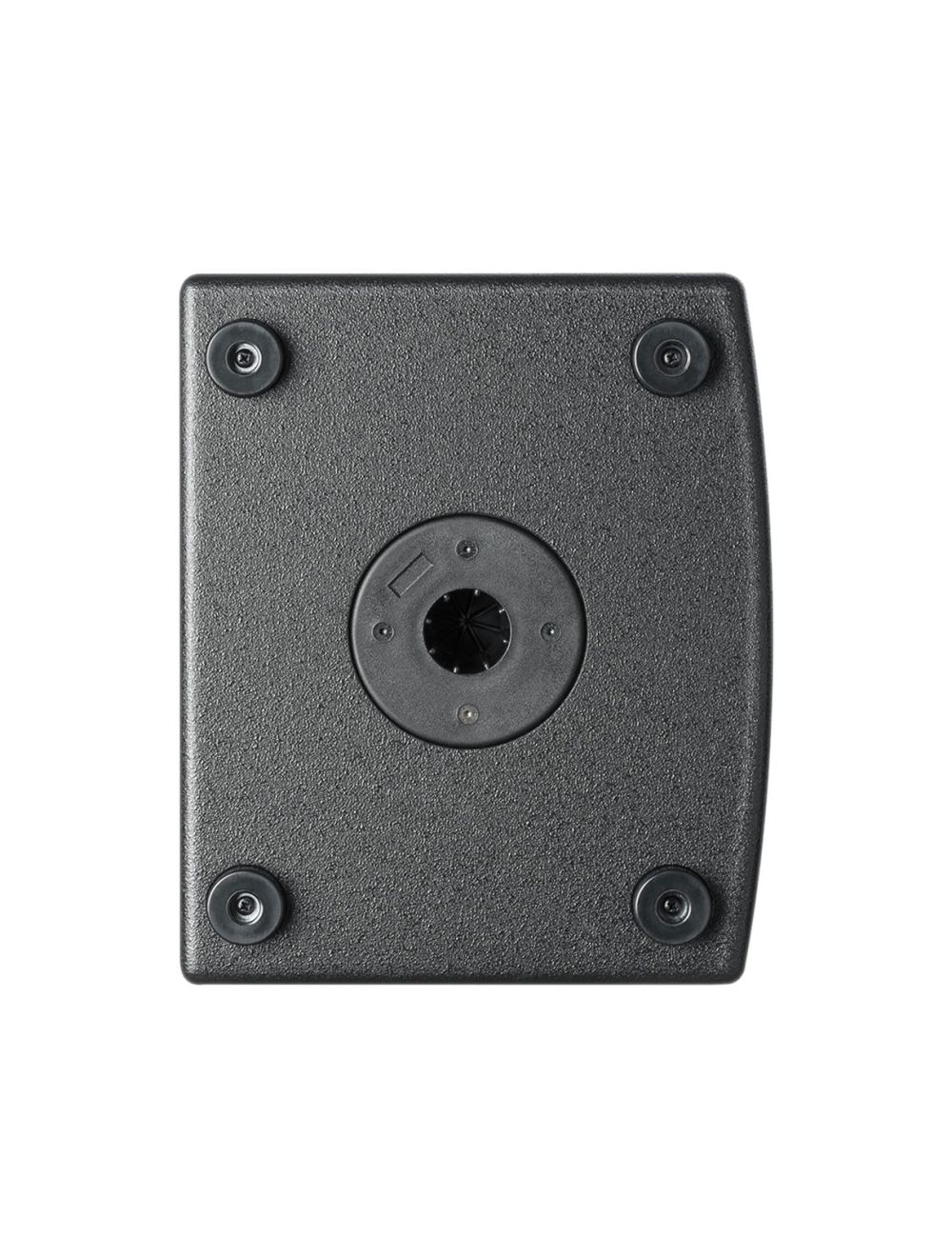

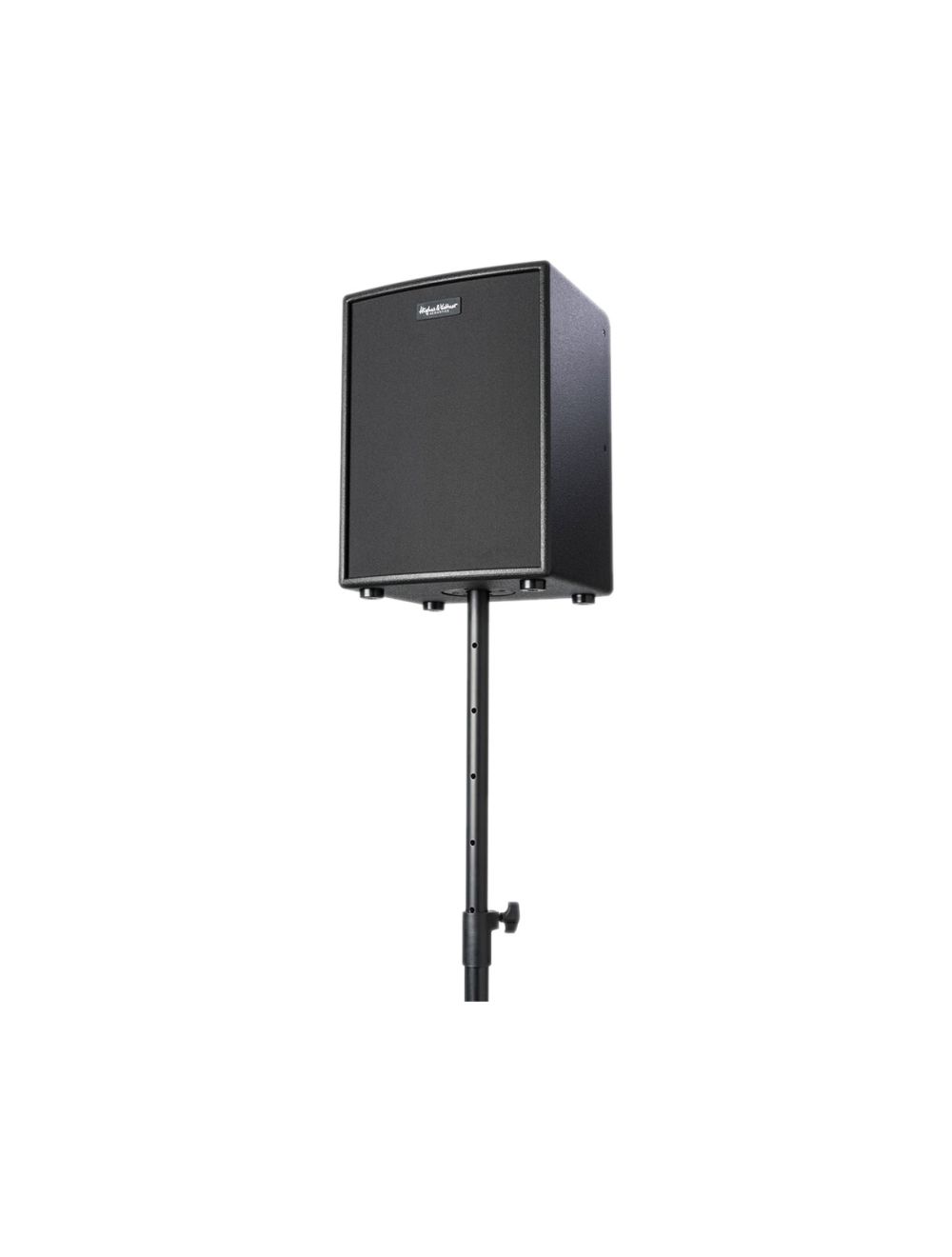

• POLE MOUNT : 35 mm
• PROTECTIVE COVER (INCLUDED) : Padded

Channels (Inputs)

• CHANNEL 1 AND 2 : High Resolution Mic and Instrument Input (XLR/6,3mm (1/4″) Klinke Combobuchse – Phantom Power switchable))
• CHANNEL 3 : Aux In : 3,5 mm (Mini Jack Stereo-Input; adjustable
• CHANNEL 4 / FX RETURN : 6,3 mm (1/4″) Stereo-Input; adjustable

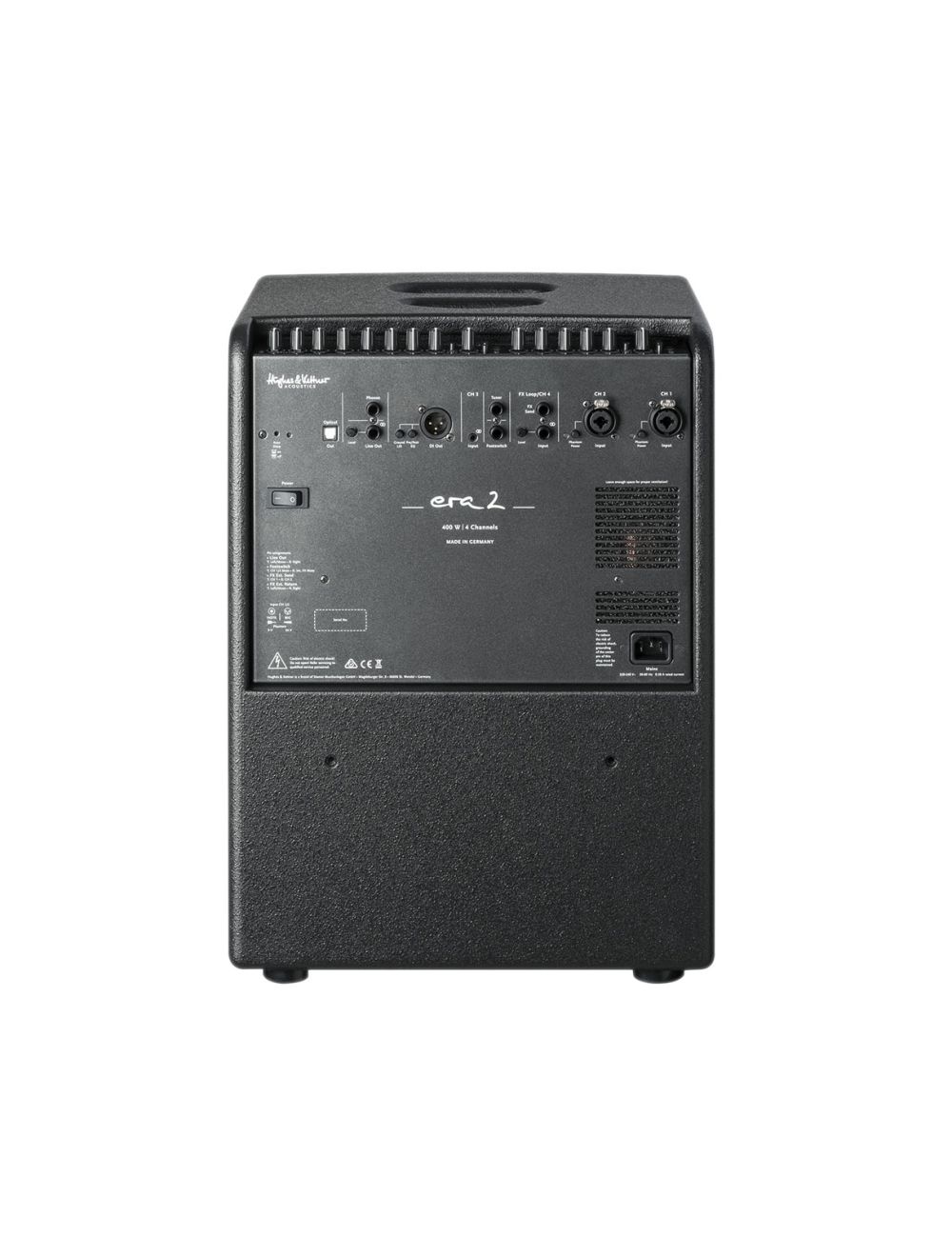

Outputs

• DI-OUT : XLR; Pre/Post EQ switchable; Ground Lift switchable
• LINE OUT : 6,3 mm Stereo Output; adjustable
• CHANNEL OUT : FX Send; 6,3 mm Stereo Output
• OPTICAL RECORDING OUT : S/PDIF TOSLINK, optical
• PHONES OUT : 6,3 mm Stereo Headphones Out
• TUNER : 6,3 mm Mono Tuner Out

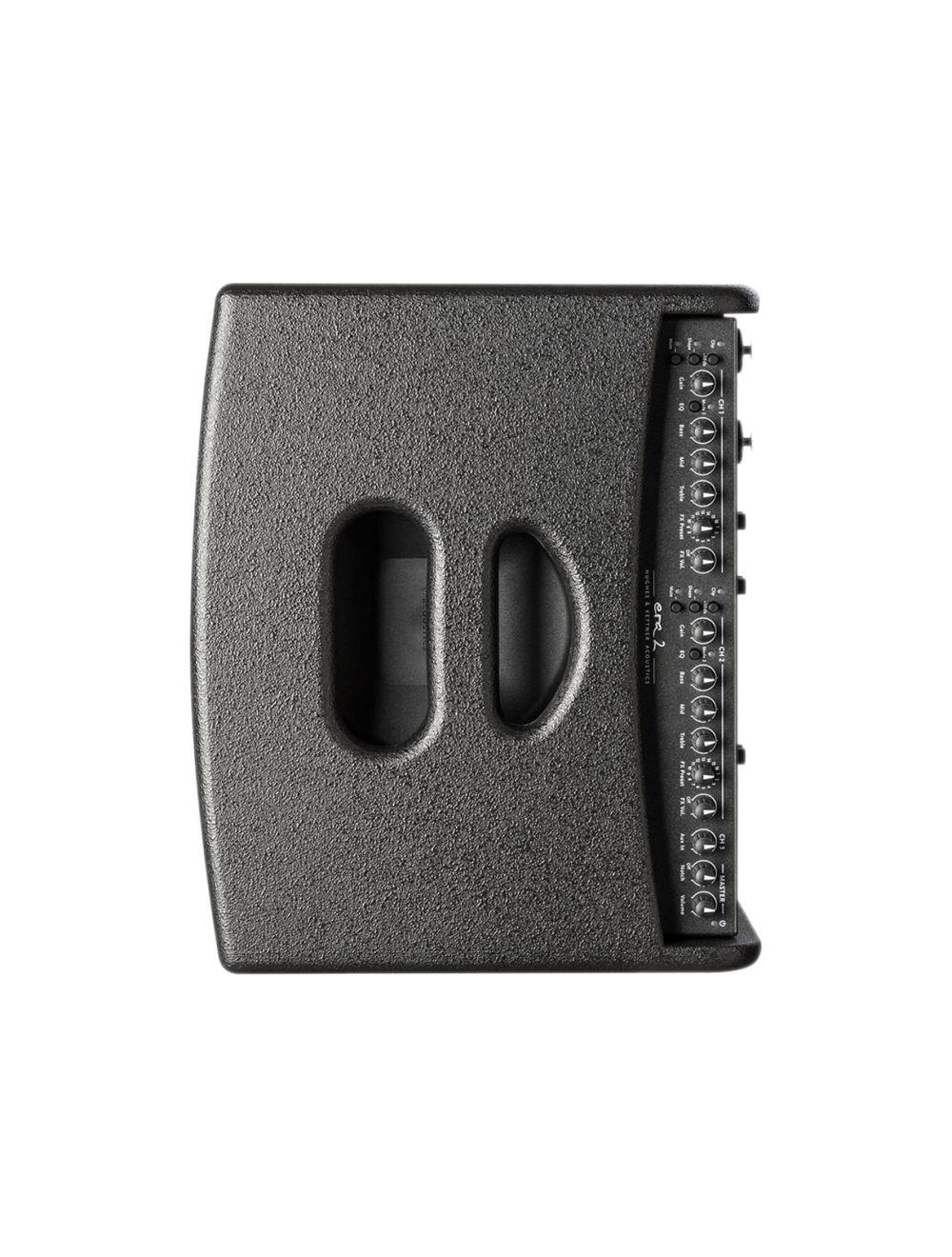

Channel 1 And 2

• SWITCHES : : -10 db; Shape; Mute
• GAIN : : Input sensivity
• EQ : 3-Band-EQ, 2 Modes switchable
• INTERNAL FX : 16 FX-Programms (Reverb, Chorus, Flanger, Delay, Combinations), FX parameters adjustable

Master

• VOLUME : Master Volume
• NOTCH FILTER : 40 – 180 Hz

FX Loop

• FX SEND : 6,3 mm Stereo Output
• FX RETURN : Input : 6,3 mm Stereo Input; adjustable

Speaker

• MID/LOW : 2X8″ Custom made
• HIGH : 1×1″ Dome Tweeter

Footswitch

• HUGHES & KETTNER FS-2 (OPTIONALLY AVAILABLE) : Switching functions : Amp mute, internal FX mute

Internal Fx

• Reverb Room Dark : Short reverb, heavy HF damping shorter or longer
• Reverb Room Bright : Short reverb, light HF damping shorter or longer
• Reverb Hall Warm : Medium reverb, warm HF damping shorter or longer
• Reverb Hall Bright : Medium reverb, slight HF damping shorter or longer
• Reverb Church : Long reverb, slight HF damping shorter or longer
• Delay Short : Single echo, slapback at 80 ms DT : 20 – 170 ms
• Delay Mid : Multiple repeats, 170 ms DT : 20 – 170 ms
• Delay Long : Multiple repeats, 800 ms DT : 170 – 800 ms
• Delay Pan Delay : DT : 140 ms + 660 ms DT : 140 ms + (140-660) ms
• Delay + Reverb : DT : 170 ms, medium reverb DT : 20 – 170 ms
• Chorus : Rate: 0,3 Hz         Rate: 0,1 – 10 Hz
• Chorus + Reverb  : Chorus no. 11, medium reverb, reverb-Level : 80 % Reverb level
• Chorus + Delay : Chorus no. 11, DT : 170 ms DT: 20 – 170 ms
• Flanger  : Rate : 0,4 Hz      Rate : 0,1 – 10 Hz
• Flanger + Reverb : Flanger no. 14; medium reverb, reverb Level : 80 % Reverb level
• Flanger + Delay : Flanger no. 14; 170 ms DT : 20 – 170 ms
