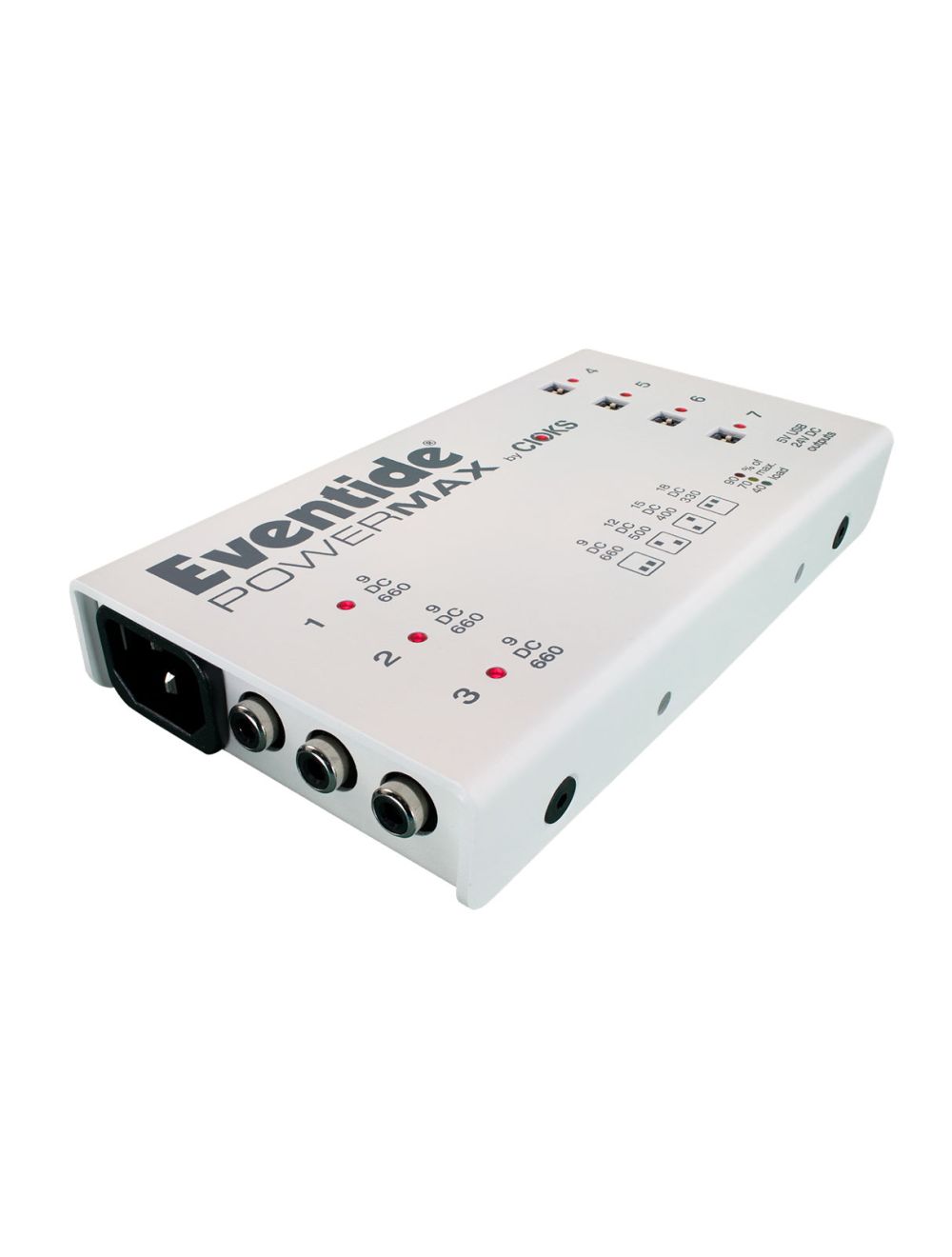

Eventide PowerMax Rev2 Isolated Power Supply - Open Box

• New: 24v dc 2a dc aux isolated outlet for powermini expander (adding 4 additional outputs) or other high-power pedals
• New: 7 isolated dc outlets at 6w each: 3 outlets with 9v dc 660ma; 4 outlets each selectable with either 9v, 12v, 15v, or 18v up to 660ma
• Powers multiple eventide, strymon and other high current pedals
• Smallest and lightest in its class - only 1" thick and 1.1lb
• Usb outlet for charging a smartphone or tablet (max. 1a)
• Use anywhere in the world, mains input voltage 90-265v ac
• Ultra-low noise achieved by multi-stage filtering
• Individual status led on each outlet and global status led
• State-of-the-art 2-stage switch-mode power supply topology
• Mounting hardware for pedaltrain and temple boards included
• Optional grip bracket provides drill-free mounting on pedaltrain.
• Built-in true power meter showing the total load
• Designed in denmark, assembled in poland

Powermax includes 13 flex cables:

• 1 x 4030-l 5.5/2.5mm centre positive angled dc plug, 30cm / 12”, green, type 4 (for h9s, timefactor, pitchfactor, modfactor or space)
• 2 x 4050-l 5.5/2.5mm centre positive angled dc plug, 50cm / 20”, green, type 4 (for h9s, timefactor, pitchfactor, modfactor or space)
• 2 x 4080-l 5.5/2.5mm centre positive angled dc plug, 80cm / 31”, green, type 4 (for h9s, timefactor, pitchfactor, modfactor or space)
• 3 x 1030-l 5.5/2.1mm centre negative angled dc plug, 30cm / 12”, black, type 1 (boss standard for rose, mixinglink)
• 2 x 1050-l 5.5/2.1mm centre negative angled dc plug, 50cm / 20”, black, type 1 (boss standard for rose, mixinglink)
• 1 x 2050-l 5.5/2.1mm centre positive angled dc plug, 50cm / 20”, red, type 2
• 1 x 5050-l 3.5mm tip positive angled jack plug, 50cm / 20”, black, type 5
• 1 x 1035 split flex (y-cable) with two 5.5/2.1mm centre negative angled dc plugs, 30+50cm / 12+20”, black, type 1 (boss standard
• Mains input : 90-265v ac universal iec type (iec cable included)
• Total output power : max 48w
• Size : 6.3" x 3.46 x 1" (without rubber feet)
