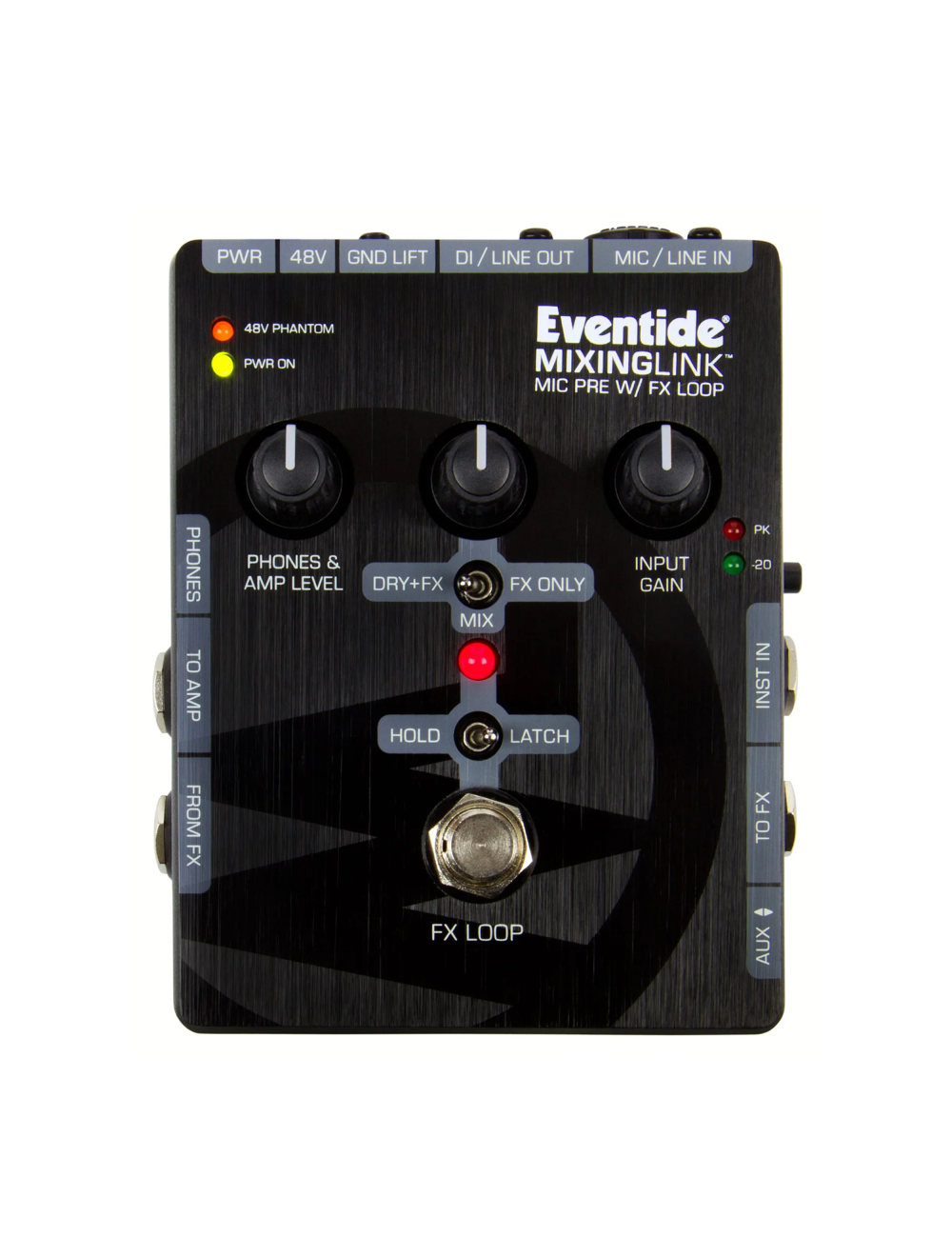

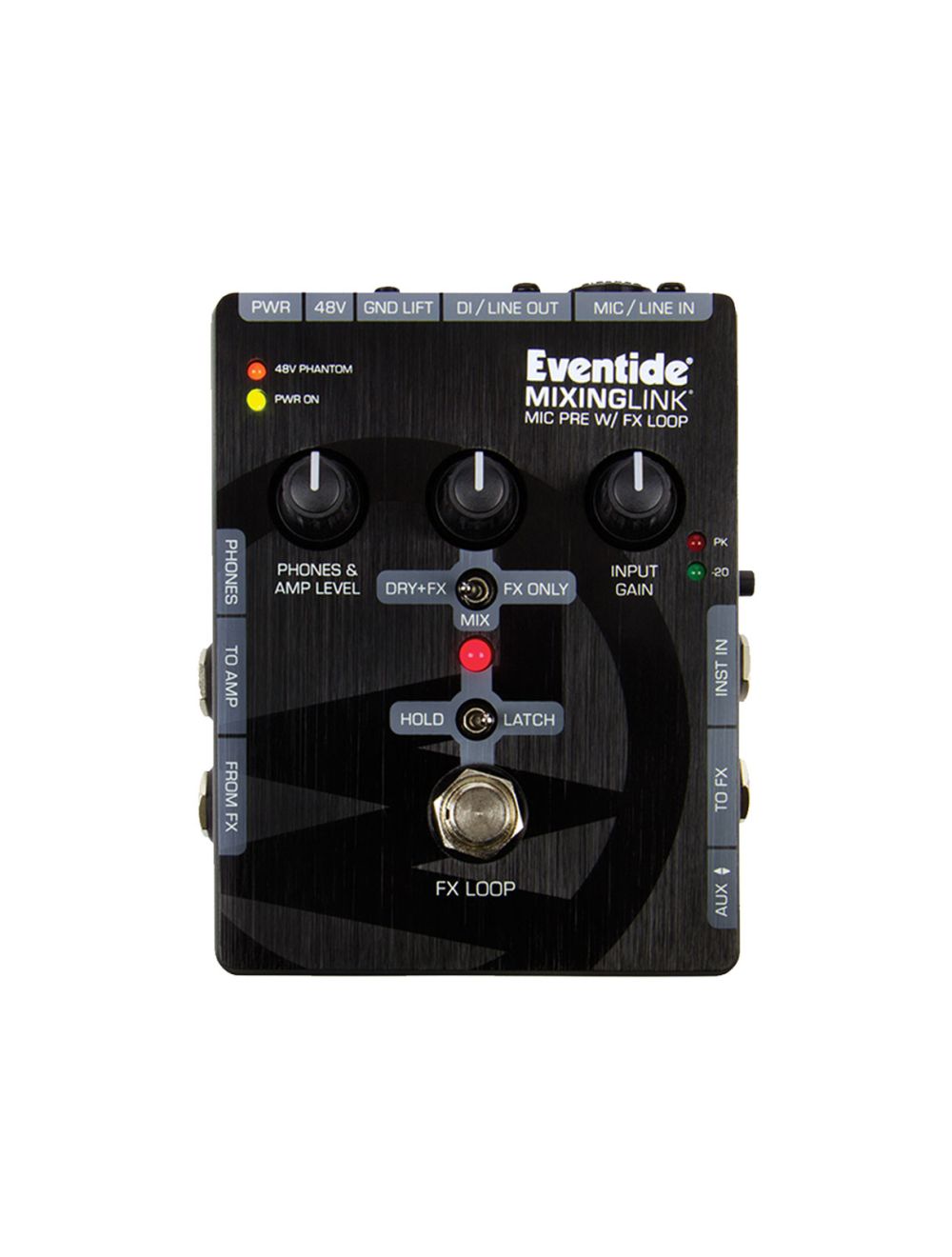

High Quality Mic Pre with FX Loop A stompbox size audio toolkit that includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing, hotel practice amp, a/b switch and more.
Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals easily
Latching or momentary footswitch control of effects loop for performance effects
Works with a wide range of microphones including condenser and ribbon microphones with up to 65dB of clean gain
Aux I/O connection supporting stereo input and mobile device send level
Guitar amp output and headphone monitor output with separate master volume control
International universal 9VDC power supply included, or 9V battery, or can be powered by the PowerMax
48V phantom power for condenser microphones
Balanced XLR output which supports DI and Line levels (-10dB to +18dBu)
Instrument and balanced line level inputs (-10dB to +18dBu)
Versatile mix control supports 3 modes of operation - 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)
