EFNOTE PRO System Sound Module and Stagebox

12-ch Buses to the Console

• 12-ch buses separate from main bus for flexible routing
• Balanced XLR outputs
• Dedicated Bus Com-pression for Bus 1 to 6
• Bus HPF/2-Band-EQ for Bus 1 to 12
• Stereo-Link for stereo channelization of two adjacent buses
• Ground lift switch

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TRS unbalanced) for an extra sampling/percussion pad
• Adjustable volume
• Ground lift switch for XLR jacks

USB Multi-Track Recording

• Simultaneous record-ing of 12-ch multi-track Audio and 16-ch MIDI is available
• Supports macOS Big Sur or later and Windows 10/11
• Confirmed with major DAWs
• 5-pin legacy MIDI Out is also available

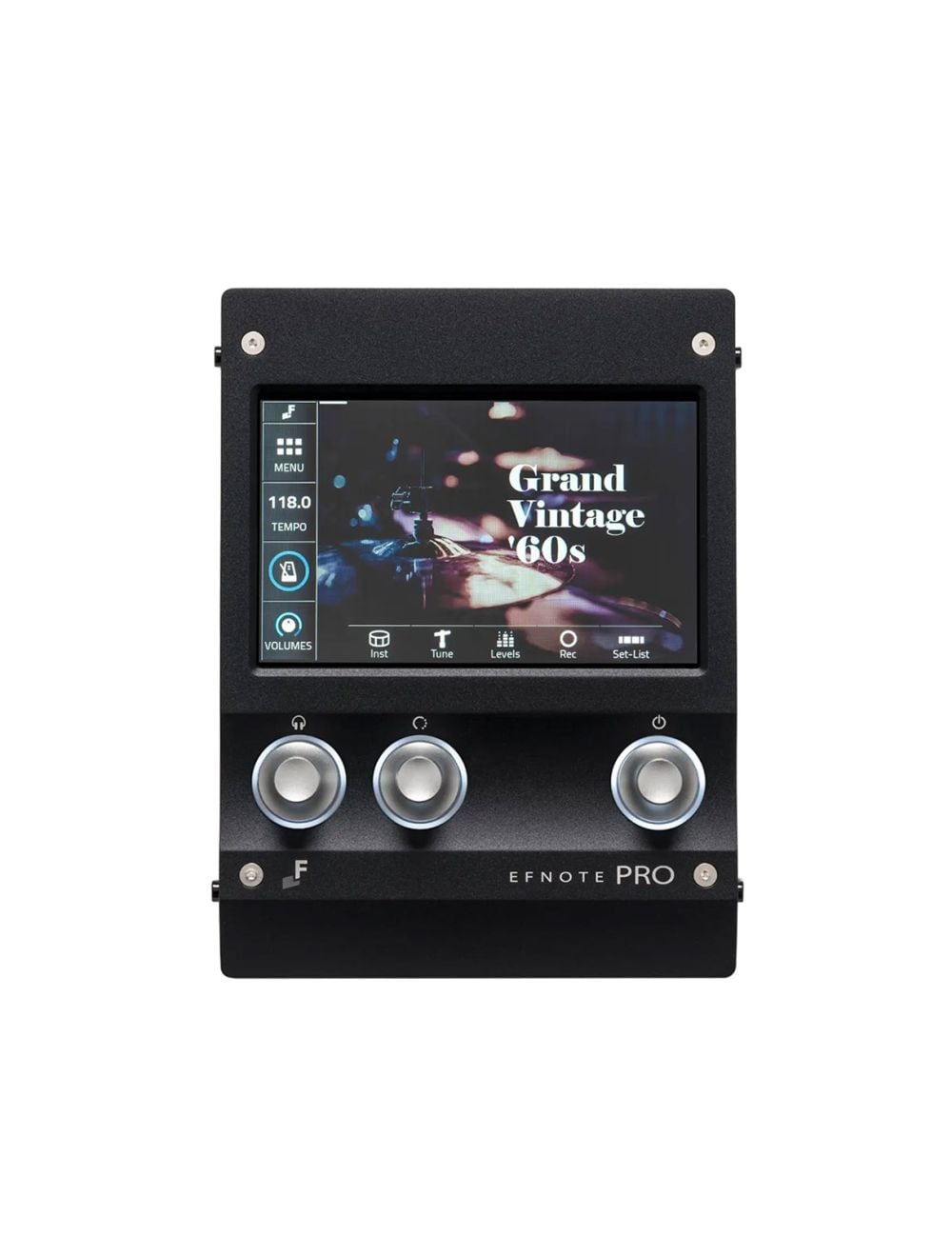

User Interface

• Full Color, Capacitive Touchscreen Display
• 2x Multi-Function Knob (with Ring LED)
• 1x Value Knob (with Ring LED)

Trigger Interface

• 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat
• 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China)
• 1-Zone (1x): Kick
• ELISE 2.0 Trigger Sensing Chip

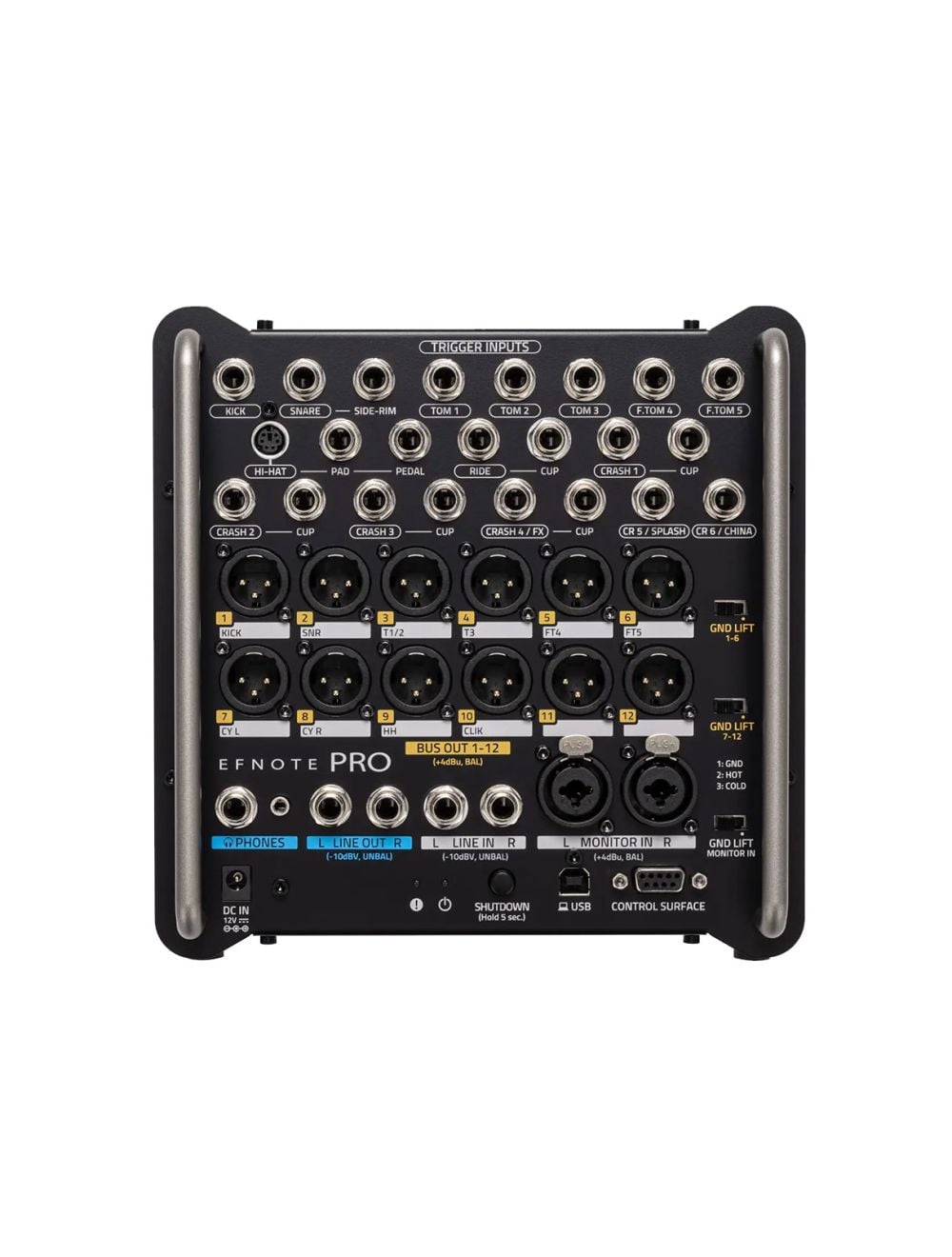

Audio / MIDI Interface

• Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)
• Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max)
• Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω)
• Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw
• Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max)
• 0dBu = 0.775Vrms, 0dBV = 1.0Vrms
• USB: USB (B type) Port (USB 2.0 Hi-Speed), Audio 12ch Out / 2ch In, MIDI In/Out
• Bluetooth: Audio Input (A2DP)
• Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)
• Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP
• MIDI Out: 5-pin DIN

Other Interfaces

• Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)
• USB (Flash Drive): USB (A type) Port (USB 2.0) (supports flash drive only)
• USB (For Service): USB (B type) Port (for service purpose only)

Drum Kits / Instruments

• Preset Drum Kits: 23 (editable)
• User Drum Kits: 100
• Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements
• Tru-Aco Sound Technology

Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Overlay Tone (for each zone)
• Global Pan (for all drum kits in common)
• Changable Kit Name Color and Background Kit Image (for each user drum kit)

Click

• 4x Click Setup Memory
• Tempo (BPM): 40.0-240.0 (0.1 Step)
• Beat (Time Signature): 1/4-13/4, 2/8-13/8

Set-List

• 15x Set-List (20 slots for each list)
• Array-style 20 slot buttons
• Slot Tag Color and Slot Notes feature
• Tempo and Beat Settings for each slot
• Each set-list can be saved to a USB flash drive

Recorder

• Tracks: 15
• Resolution: 480 TPQN

Buses

• 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)
• Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6)
• 12x Bus Outputs (12x XLR Analog and 12ch USB Audio)
• Bus Mixer
• Main HPF and EQ (Main L/R)

Other Features

• Inst Expansion
• Foot Light
• Ground Lift Switches (for Bus Out and Monitor In)
• Full Metal Cabinet
• Guard Handles
• Dimensions / Weight
• Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g
• Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g

Power Supply / Current Draw

• AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A
• 1x Link Cable 2.0m (EFD-DSUB9-2)
• 1x AC Adapter (FJ-SW1202000N-EFNOTE)
• 10x Trigger Cable 3.0m (EFD-TRS-LL3)
• 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)

Accessories

• Module Mount Set
• Smartphone Tray Set
• Tuning Key
• Cable Ties
• Cable Labels
• Quickstart Guide
