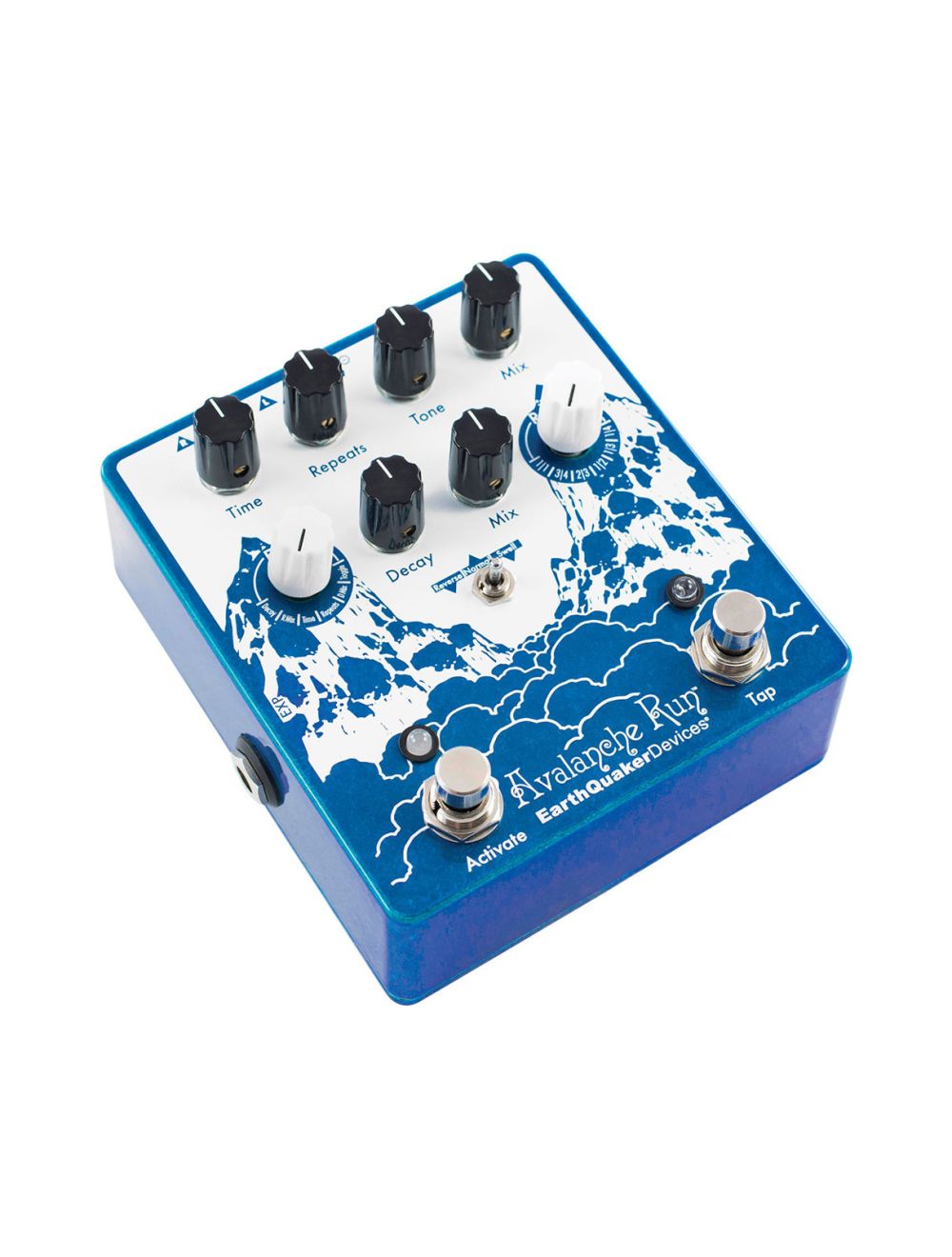

Earthquaker Devices Avalance Run V2 Stereo Delay/Reverb Pedal

The Avalanche Run is a dreamy stereo sonic exploratory multi-tool that includes up to 2 seconds of delay time, reverse delay, tap tempo with subdivision control, switchable true bypass or buffered bypass with 5 different tail lengths (including a sound-on-sound style lo-fi looping mode) and an assignable expression control that maps the expression jack to a control of your choice, including the toggle! The delay section allows tweaking from tape emulation to bucket brigade styles with a twist of the wide-range Tone control. The cavernous, plate-style reverb has just a touch of modulation similar to the one found in our precious Dispatch Master only more lush with an adjustable Decay. Otherworldly reverse delay and dynamic swelling reverb settings are accessible through a 3-way toggle switch. And that’s just the beginning...

Controls

1. Time: This controls the delay time and goes from 0 ms to just under 2000ms.
2. Repeats: Controls the regeneration of the delay, from zero repeats to near infinite.
3. Tone: Controls the tone for the delay line only. Roll off highs to the left, roll off lows to the right, and get a flat response in the middle.
4. Mix: This is the volume control for the delay line. This blends in the wet with dry until 1 o’clock, 1 o’clock to 3 o’clock boosts the wet signal over the dry and 3 o’clock up brings down dry until it is fully wet when all the way up.
5. Expression Jack Assign Switch: Use this switch to map the expression jack to one of the assigned controls.

Decay: Controls the reverb decay length

R Mix: Controls the reverb mix

Time: This takes over for the delay time control and is DRASTICALLY different than the interface control. Using the expression pedal to control the time will give you all kinds of wild effects that can not be achieved by turning the knob.

Repeats: Controls the delay repeats

D Mix: Controls the delay mix

Toggle: This takes over for the toggle switch and will cross fade from forward delay in the heel down position to reverse delay in the toe down position.

6. Ratio Selector Switch: Selects delay subdivisions when time is set by the “Tap” switch.

• 1/1: Quarter Note
• 3/4: Dotted 8th
• 2/3: Quarter Note Triplet
• 1/2: 8th Note
• 1/3: 8th Note Triplet
• 1/4: 16th Note

7. Decay: Controls the decay length of the reverb, short decay counterclockwise, long cavernous decay clockwise.
8. Toggle Switch (Mode Selector)

Normal: This is the “standard” delay and reverb mode

Reverse: This is reverse delay mode with “standard” reverb

Swell: This is the volume swell mode

9. Mix: This is the volume control for the reverb. Blends in the wet with dry until 1 o’clock, 1 o’clock to 3 o’clock boosts the wet signal over the dry and 3 o’clock up brings down dry until it is fully wet when all the way up.

To Run Mono

Use the left input and output only.

To Run Stereo

Use both left and right inputs and outputs

To Run Mono In and Stereo Out

Use the left input and both left and right outputs

Cool Trick

Plugging into the right input and using the left and right outputs will give you an all-wet left channel and a standard mixed right channel while the effect is engaged. You can create dramatic stereo effects by keeping the Mix set low and turning up the amplifier source connected to the left output. The left output will not pass a dry signal when the effect is turned off in true bypass mode but in trail mode, it will still produce the affected signal as long as it is set to decay.
