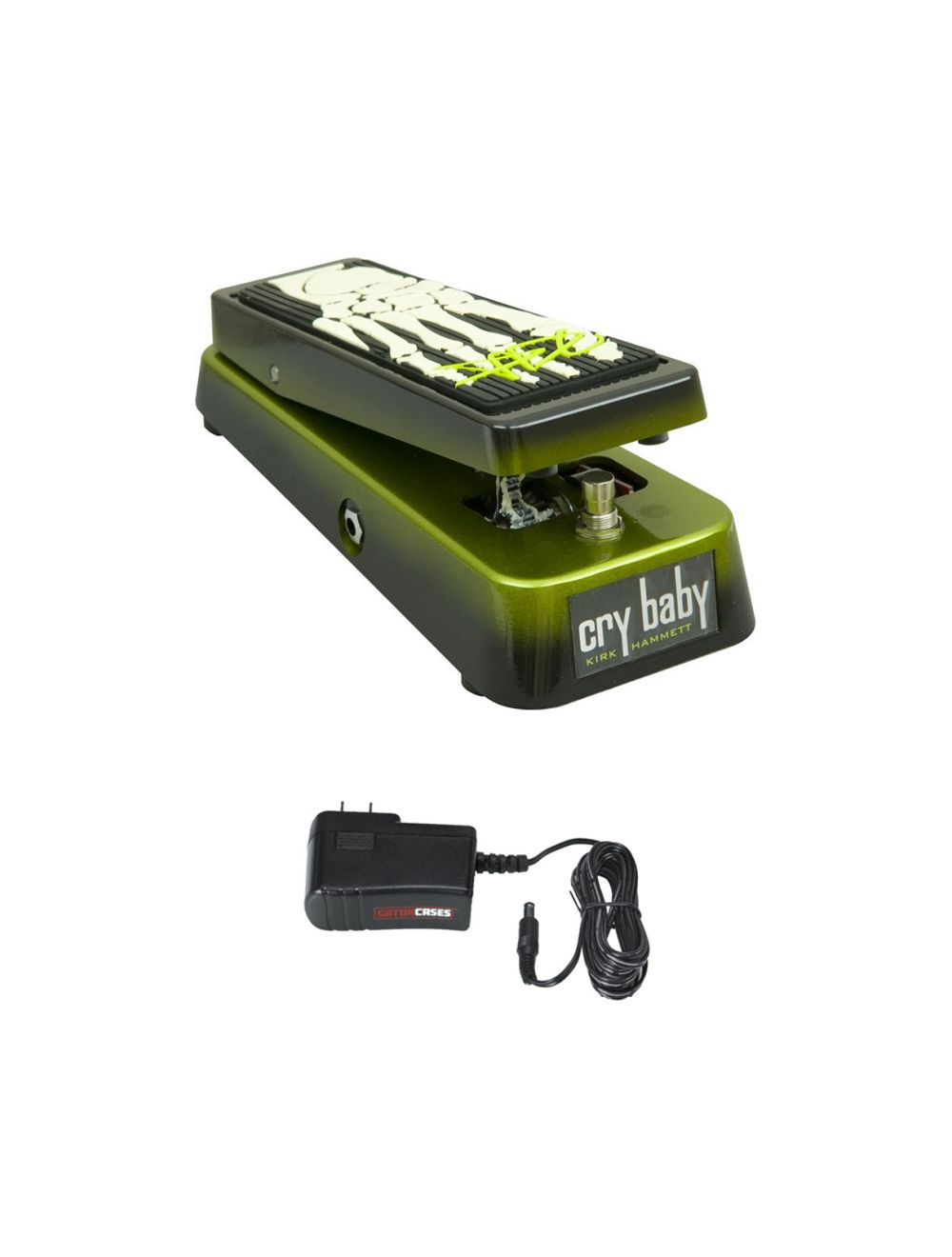

Dunlop KH95 Kirk Hammett Crybaby Wah Pedal + Gator 9V Power Supply Combo

Product Description for Dunlop KH95 Kirk Hammett Crybaby Wah Pedal and Gator Cases GTR-PWR-1MAX 9V Power Supply Combo Pack

Package Includes :

1 x Dunlop KH95 Kirk Hammett Crybaby Wah Pedal

1 x Gator Cases GTR-PWR-1MAX 9V Power Supply Combo Pack

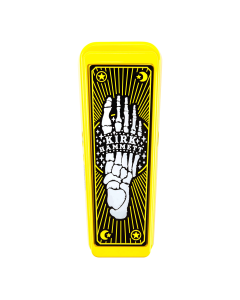

Dunlop KH95 Kirk Hammett Crybaby Wah Pedal

Now you can command the same killer wah tone as Kirk with the new Kirk Hammett Cry Baby Wah. Developed in close collaboration with the metal guitar icon himself, it has been meticulously tuned and tweaked to deliver the wah sound that revolutionized metal solos. This is the legendary tone that Kirk dials in on tour using his Cry Baby Rack Wah. Dunlop's engineers took Kirk's EQ, volume and tone settings-reflecting decades of blazing Cry Baby riffology-and reproduced them with exacting precision. This pedal is exceptionally even in response as you move from heel to toe, with a thick top end and full dynamic range. Dare to step into the footprint of a giant. Own a piece of the legend: the Kirk Hammett Signature Wah from Dunlop.

Gator Cases GTR-PWR-1MAX 9V Power Supply Combo Pack

9V DC Power Adapter and 8-Output Daisy Chain Cable Combo pack

Dunlop KH95 Kirk Hammett Crybaby Wah Pedal

Power

The Kirk Hammett Signature Cry Baby Wah Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ ECB003E, or a DC Brick power supply.

Setup Instructions

Run a shielded instrument cable from your guitar to the KH95’s INSTRUMENT jack.
Run another shielded instrument cable from the KH95’s AMPLIFIER jack into your amplifier input.
Turn on the amplifier and begin playing.
To turn the pedal on/off, push the toe of the pedal down until you feel a “click”.
By rocking your foot back and forth on the pedal, you can change the effect that the Cry Baby has on the tone of your instrument instantaneously.
Run a shielded instrument cable from your guitar to the KH95’s INSTRUMENT jack.
Run another shielded instrument cable from the KH95’s AMPLIFIER jack into your amplifier input.
Turn on the amplifier and begin playing.
To turn the pedal on/off, push the toe of the pedal down until you feel a “click”.
By rocking your foot back and forth on the pedal, you can change the effect that the Cry Baby has on the tone ofyour instrument instantaneously.

Impedance

Input : 680 kΩ
Output : 4.7 kΩ

Filter Parameter

Low Pass : 300 Hz to 380 Hz
High Pass : 1.4 kHz to 1.8 kHz

Maximum Level

Input : -13.5 dBV
Output : +6.5 dBV

Maximum Gain

Heel Down : +17 dB at 300 Hz to 380 Hz
Toe Down : +21 dB at 1.4 kHz to 1.8 kHz

Noise Floor*

Heel Down : >95 dBV
Toe Down : >89 dBV

Bypass Hardwire

Current Draw : 4 mA
Power Suppy : 9 volts DC

Gator Cases GTR-PWR-1MAX 9V Power Supply Combo Pack

9V DC Power Adapter and 8-Output Daisy Chain Cable Combo Pack
Slim Design Frees up Space on Power Strip by Occupying One Outlet
Works with Optional Female-to-Male Daisy Chain Adapter Cable for Connecting Multiple Pedals
Single Output Supplies Maximum of 1700mA to Power Fully Loaded Pedalboard
AC Power Input with Variable Voltage Between 115V/230V (50-60Hz) for International Use
8-Foot Cable to Reach Far Away Outlets
