This Cry Baby Wah features a Q control to vary the intensity of the effect, a Volume Boost control for up to +15dB added gain, and convenient auto-return switching.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

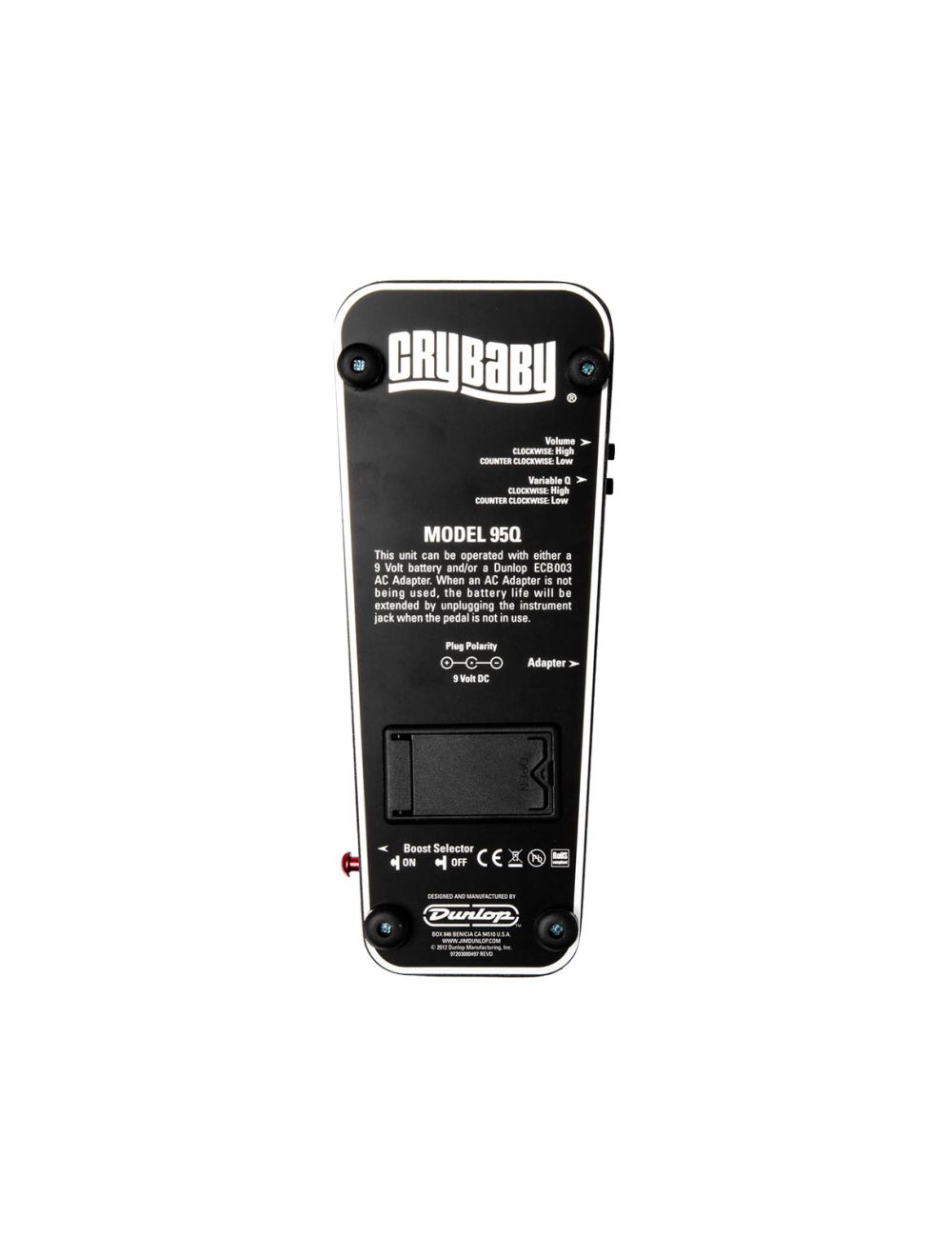

The 95Q Cry Baby Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), an AC adapter such as the Dunlop ECB003/ ECB003E, or a DC Brick power supply.
Controls
VOLUME knob controls amount of gain added by BOOST switch, up to 15dB
VARIABLE Q knob adjusts frequency range of wah wah effect
BOOST switch increases output as set by the VOLUME knob
Silent “auto-off” switching puts pedal into bypass mode when you take your foot off
Setup Instructions

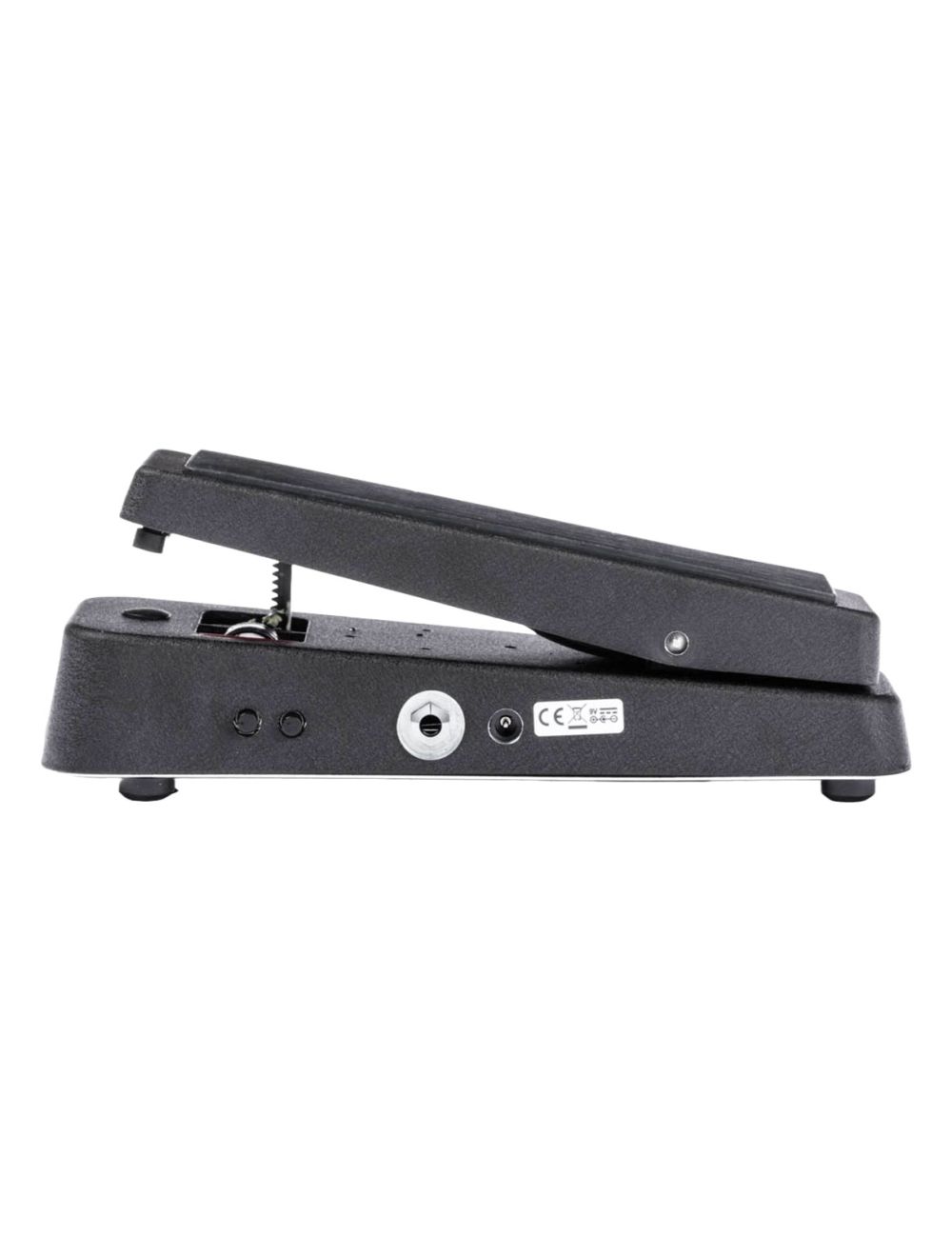

Run an instrument cable from your guitar to the 95Q’s Instrument jack and another instrument cable from the 95Q’s Amplifier jack into your amplifier’s input.
The 95Q is bypassed (turned off whenever your foot is off the pedal. To turn it on, simply press the toe of the pedal down with your foot.
Set both the VOLUME control and the VARIABLE Q control fully counterclockwise.
Rotate the VARIABLE Q knob clockwise for a narrower frequency range to emphasize higher end harmonics or counterclockwise for a wider frequency range that emphasizes lower end harmonics.
To increase the 95Q’s output, engage the BOOST switch and rotate the VOLUME control clockwise to increase the amount of gain, up to 15dB, or counterclockwise to decrease it.
Rock your foot back and forth on the pedal to hear the vocal, expressive tones that the Cry Baby is famous for.
