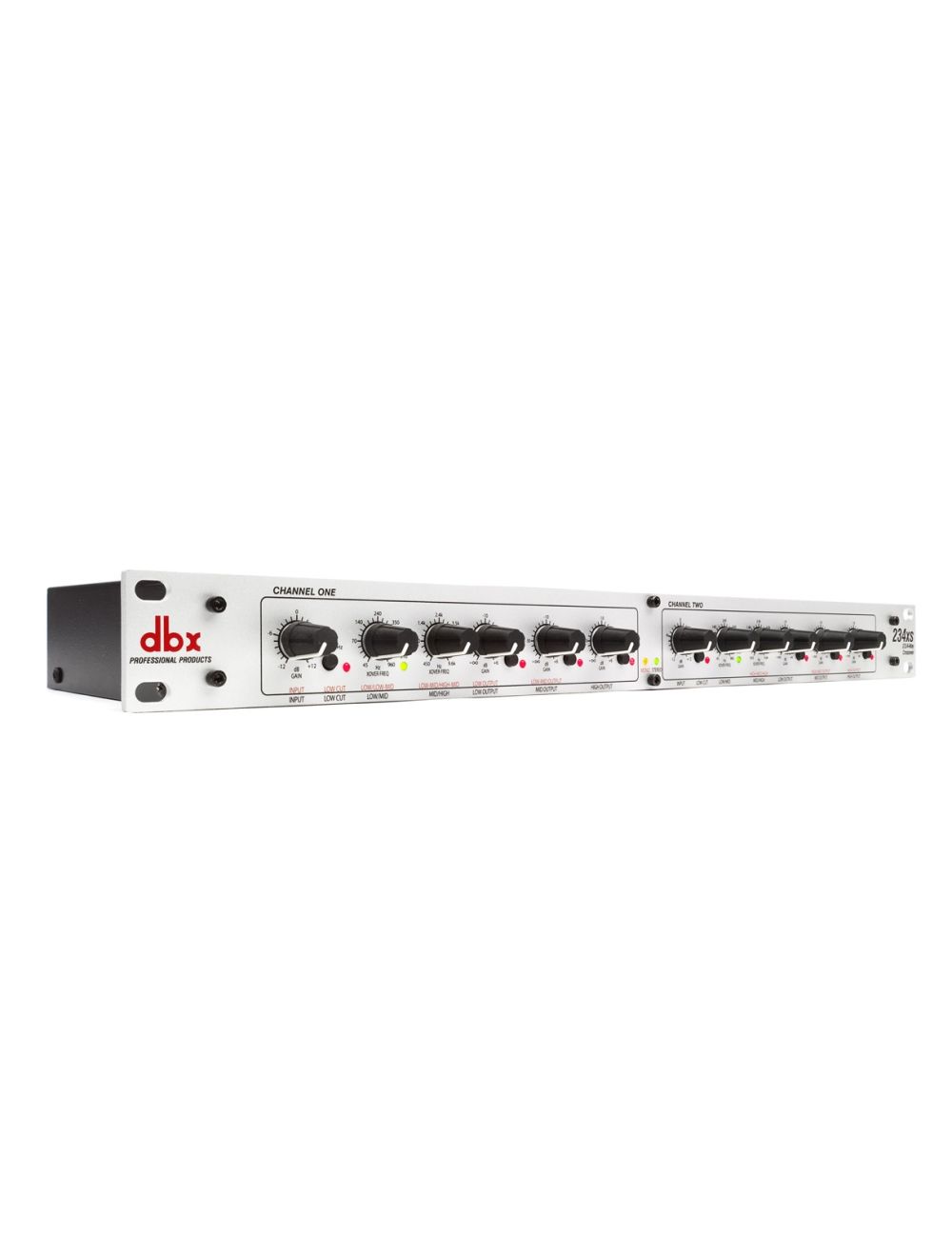

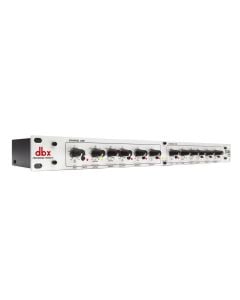

DBX 234xs Crossover (Open Box)
dual channel, stereo 2/3-way or mono 4-way crossover
was
$380.00
Special Price
$209.99
The 234xs from dbx is a dual channel, stereo 2/3-way or mono 4-way crossover. A crossover is essential for efficient PA operation because it filters the full band input signal into specific frequencies that match a speaker's optimum frequency-reproduction range. This leaves the amplifier free to use its full power on the usable signal, eliminating distortion and delivering clear sound.
The unit features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Quality components and meticulous attention to detail offers exceptional sound and rugged reliability, while exuding great precision from the solid ""click"" controls to the high quality 1/4"" TRS inputs and outputs.
Stereo 2/3-way, mono 4-way crossover Mode switch for stereo 2/3-way or mono 4-way operation 24dB per octave Linkwitz-Riley filters Low frequency summed (subwoofer) output Range switch on both channels (x10) 40Hz high-pass (low-cut) filter on both channels Phase reverse switch on all outputs Individual level controls on all outputs Stereo/Mono status LEDs indicate the selected mode 1/4" TRS differentially balanced ins and outs CSA NRTL/C approved and CE compliant Filter Type
Linkwitz-Riley, 24 dB/octave, state-variable Operating Modes
Stereo 2/3-way, switchable to mono 4-way Crossover Frequencies
Stereo Mode - Low/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting) Stereo Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting) Stereo Mode - Mid/High: 450Hz to 9.6kHz Mono Mode - Low/Mid: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting) Mono Mode - Mid/High: 45 to 960Hz or 450Hz to 9.6kHz (x10 setting) Mono Mode - High-Mid/High: 450Hz to 9.6kHz Inputs 1
Electronically balanced/unbalanced, RF filtered close
Input Impedance
50kΩ balanced, 25kΩ unbalanced Maximum Input Level
>+22dBu balanced or unbalanced Outputs 2
Electronically balanced/unbalanced, RF filtered close
Output Impedance
200Ω balanced, 100Ω unbalanced Maximum Output Level
>+21dBu balanced/unbalanced into 2kΩ or greater Frequency Response
FR: <3Hz to >90kHz, +0/-3.0dB Bandwidth: 20Hz to 20kHz, +0/-0.5dB Dynamic Range
>106dB unweighted, any output Noise
SNR ref: +4dBu, 22kHz measurement bandwidth Stereo Mode:
>94dB (low output) >93dB (mid output) >90dB (high output) Mono Mode:
>94dB (low output) >94dB (low/mid output) >92dB (high/mid output) >88dB (high output) THD + N
<0.004% @ +4dBu, 1kHz <0.04% @ +20dBu, 1kHz Crosstalk
CMRR
>40dB, typically >55dB @ 1kHz Switches
Low Cut (front panel) Phase Invert (front panel) x10 (rear panel) Mode (rear panel) LF sum (rear panel) Indicators
Stereo Operation Mono Operation Low Cut x10 Phase Invert Operating Temperature
32°F to 113°F (0°C to 45°C) Power Requirements
100VAC~50/60Hz, 120VAC~60Hz 15W power consumption Dimensions (WxHxD)
19 x 6.9 x 1.75" (483 x 175 x 45mm)
SKU
DBX-234XS-B
Brand
DBX
Weight
7.000000
Dimensions (WxHxD)
19 x 6.9 x 1.75" (483 x 175 x 45mm)
