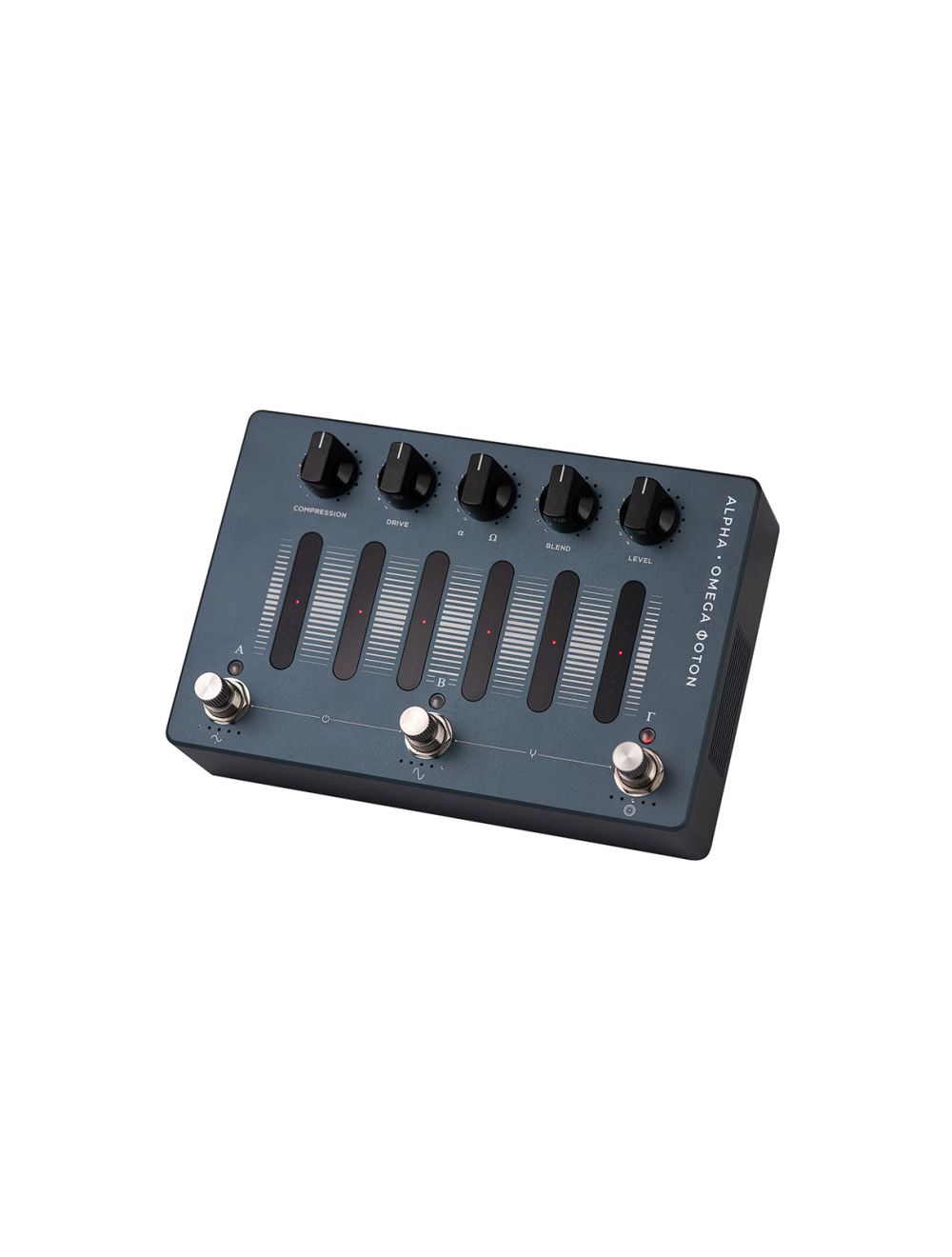

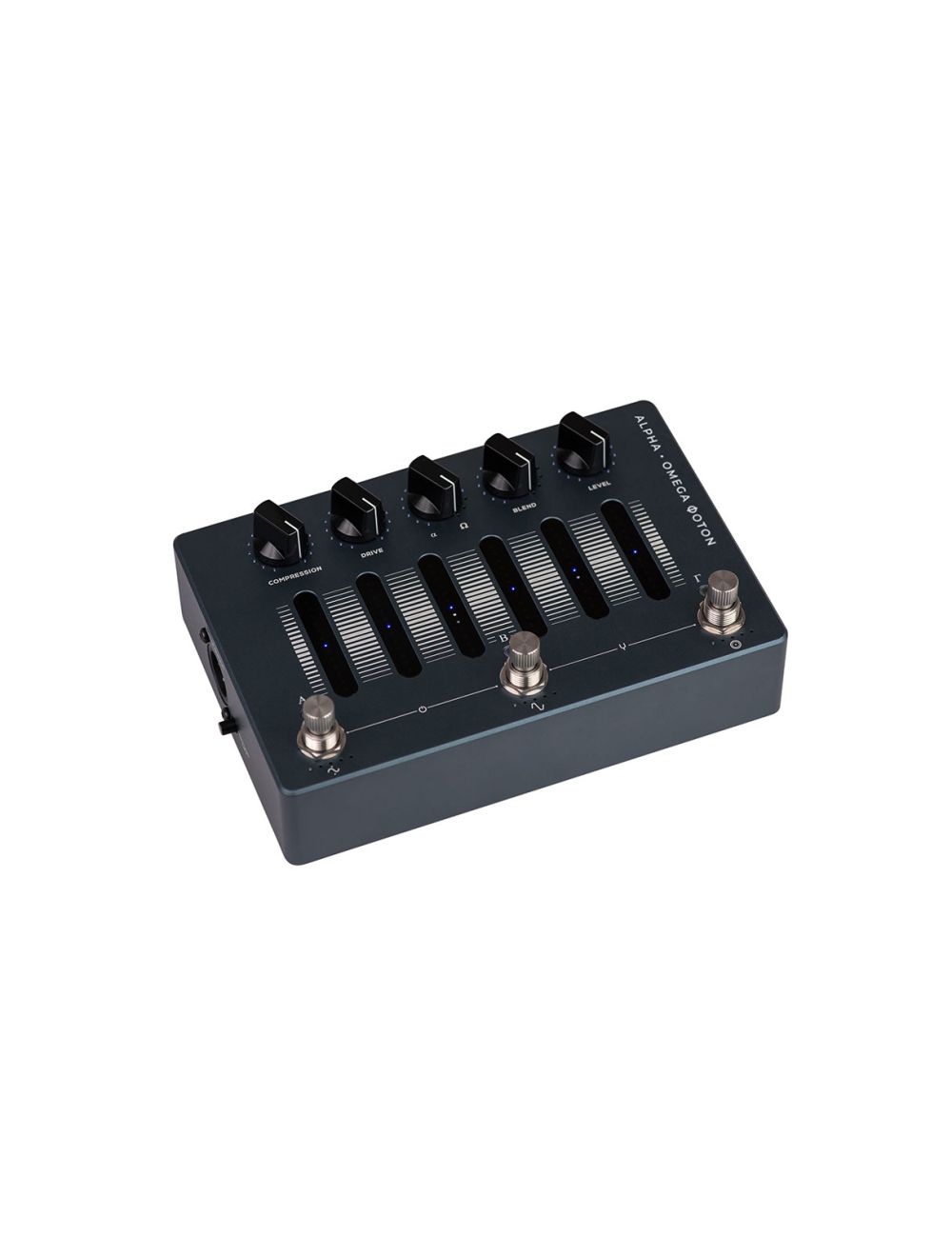

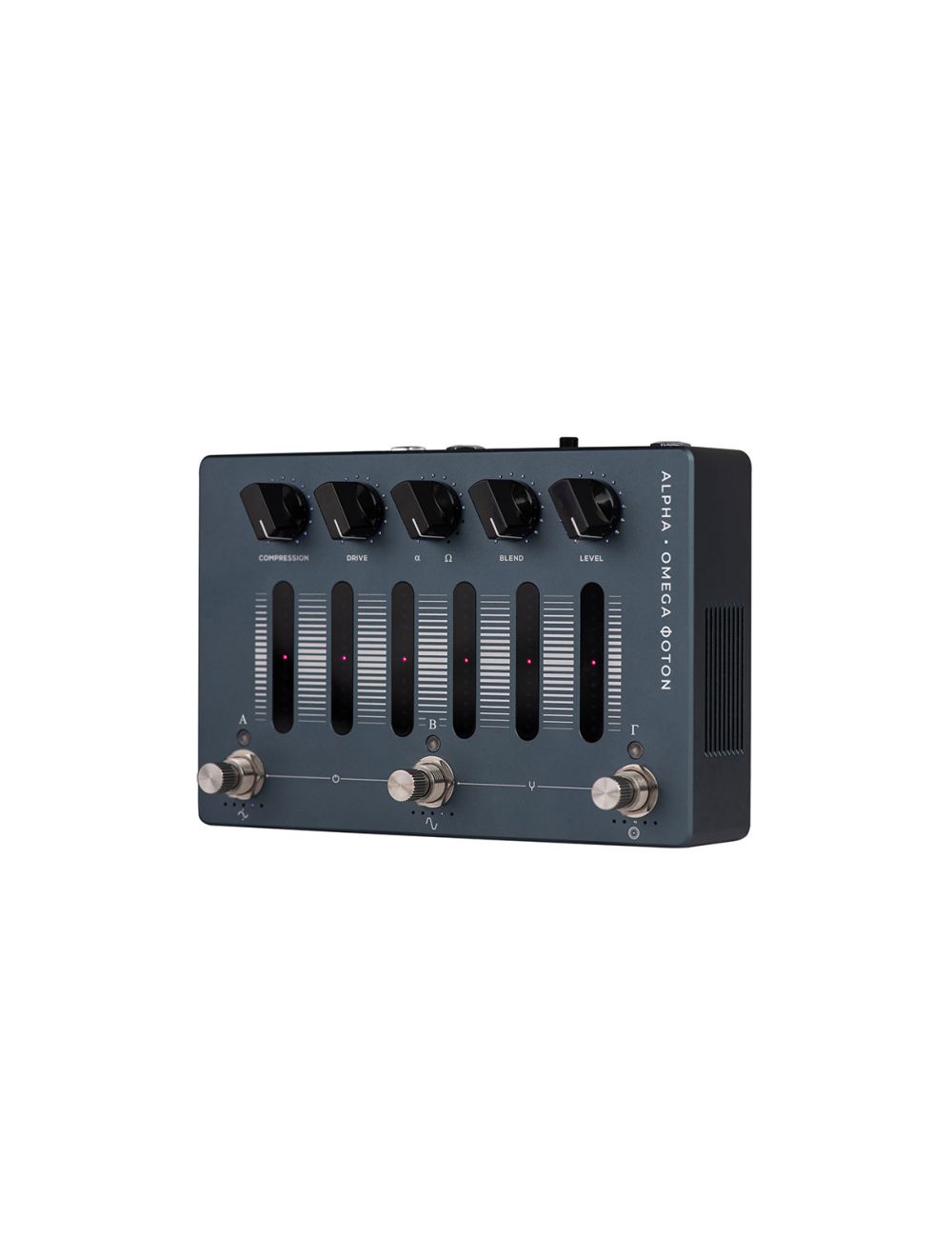

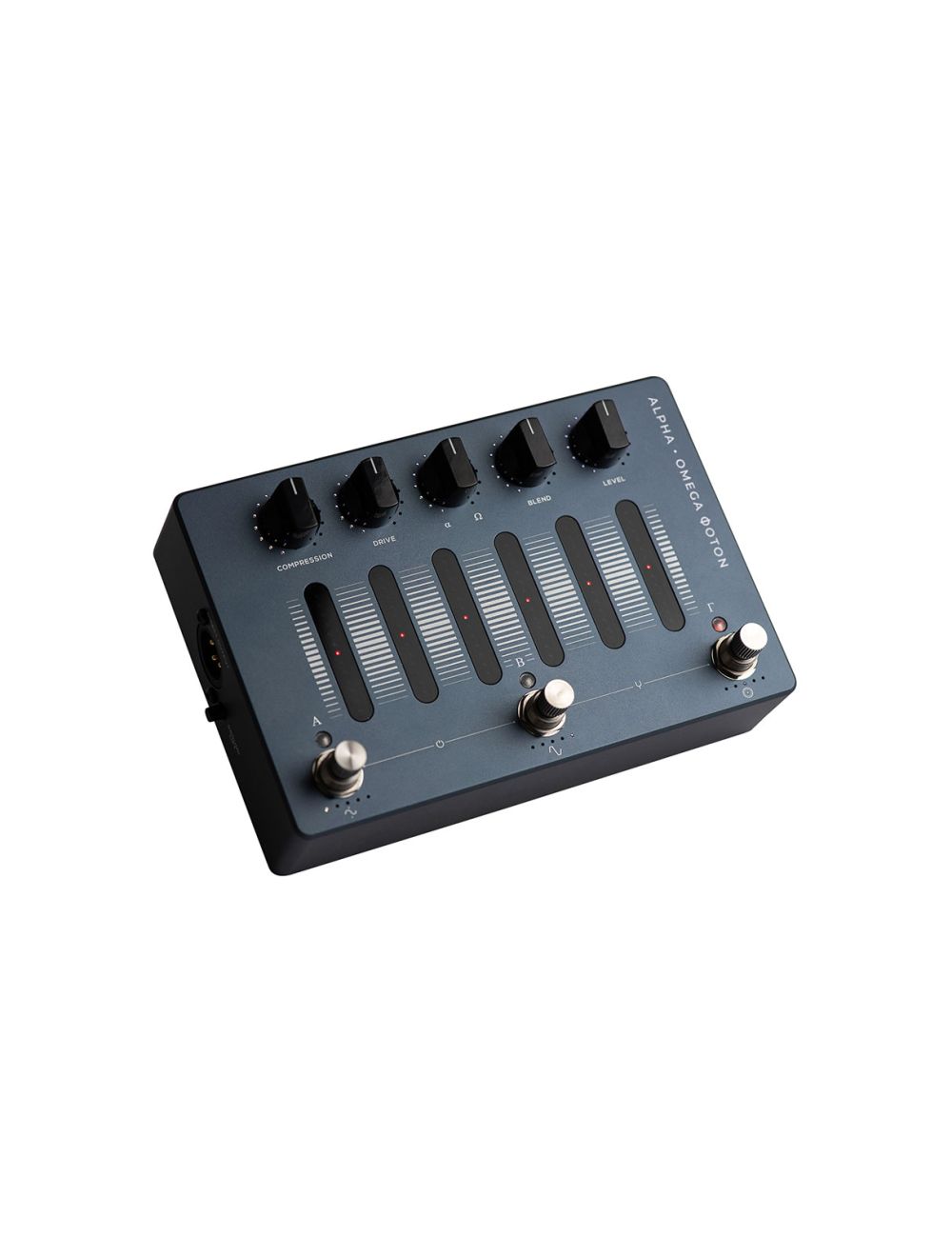

Darkglass AOPH Alpha Omega Photon Bass Distortion/Compressor Pedal

Darkglass AOPH Alpha Omega Photon Bass Distortion/Compressor Pedal

Darkglass AOPH Alpha Omega Photon Bass Distortion/Compressor Pedal

Multi Alpha-Omega Distortion
$649.99
In stock
SKU
DGL-AOPH

Alpha-Omega Photon

Elevator pitch : The Alpha-Omega Photon combines Darkglass' signature Alpha-Omega parallel distortion with the versatile format of the Aggressively Distorting Advanced Machine. In addition to powerful distortion and studio-quality compression, the Alpha-Omega Photon is capable as an audio interface via USB-C or an amp replacement using cab sim IRs and XLR DI output.

Target customer :

  • Bassists who want an aggressive distortion, compression, and cab sim pedal
  • Recording studios who need a versatile bass tone shaping pedal
  • Darkglass fans looking for the most premium version of the Alpha-Omega distortion
  • Bassists who need a simple home recording solution

Top Selling Features :

  • Unique distortion engine which blends aggressive distortion with multi-band compression for a thick and powerful bass tone
  • Compression and distortion can be bypassed independently, and both have 5 selectable modes
  • Selectable cabinet simulation with 5 on- board Can be used with the headphone output, XLR DI output, or stereo line outputs
  • 6-band graphic EQ with the same touch
  • sensitive sliders found on the Element

Top Specs

  • Advanced Alpha-Omega distortion and
  • compression pedal
  • MIDI input to externally control parameters
  • 6-band graphic EQ
  • 5 compressor modes
  • 5 distortion modes
  • 5 cab sim IRs
  • Aux input and headphone output
  • Audio interface capability over USB-C

Connectivity :

  • Mono instrument input (1/4")
  • Aux input (1/8" stereo)
  • L and R audio outputs (2 x 1/4")
  • XLR DI output
  • Headphone output (1/8" stereo)
  • USB-C (Audio interface and Darkglass Suite)
  • MIDI input (1/8" TRS)
  • Bluetooth (audio in and Darkglass Suite)

Did You Know?

  • The signature Alpha-Omega sound uses two distinct distortion circuits (Alpha and Omega) which can be blended or used independantly
  • MIDI over 1/8" jack has become common with guitar pedals, and allows players to have complete control over all parameters a pedal offers
  • The footswitches double as rotary potentiometers, allowing you to select between the distortion modes, compression modes, and cab sim IRs

Alpha·Omega Φoton / Alpha·Omega Photon

Connectivity

  • Audio inputs
  • Instrument (1/4” mono)
  • Aux in (1/8” stereo)
  • Audio outputs
  • Two Balanced 1/4” (Left & Right)
  • XLR
  • Headphone out (1/8“ stereo)
  • Other I/O
  • USB-C (Audio interface and added control via Darkglass Suite)
  • MIDI IN (1/8”)
  • 9VDC input (center negative 2.1/5.5 mm)
  • Bluetooth (Bluetooth audio in and added control via Darkglass Suite mobile app)

Controls

  • 5 potentiometers
  • Compression
  • Drive
  • Alpha·Omega Distortion
  • Blend
  • Level
  • 6-band graphic equalizer (touch sensitive sliders)
  • 3 multi-function switches (push/rotate)

Α (Alpha) / Compressor mode (5 modes + bypass)

Β (Beta) / Distortion mode (5 modes + bypass)

Γ (Gamma) / Cabinet simulation (5 Impulse Responses + bypass))

  • Headphone volume (mini potentiometer)

Internal signal chain

  • Minimum Current Consumption: 400mA Recommended Current consumption: 500mA
SKU DGL-AOPH
Brand Darkglass Electronics
Weight 2.200000
More Information
Refund period 35 days
