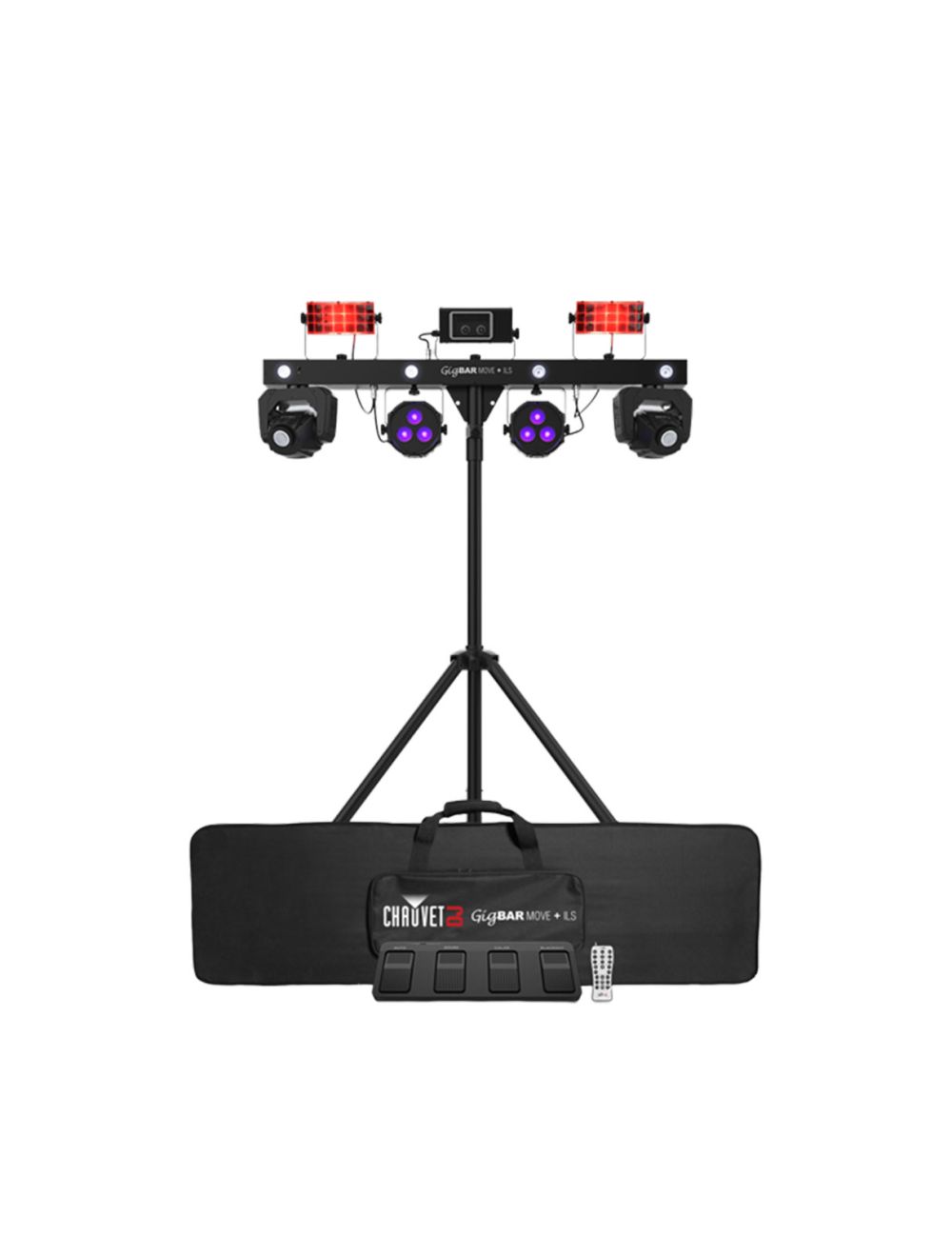

CHAUVET DJ GigBAR Move Plus ILS Lighting System (Open Box)

5-in-1 Lighting System with Moving Heads, a Laser, Strobe, Wash and Derby Lights Mounted on a Lighting Tree. RF Remote, Footswitch and Gig Bag Included!

was $1,559.99 Special Price $1,109.99

In stock

SKU

CHA-GIGBARMOVEPLUSILS-B

Details

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Features

DMX Channels : 3, 28, or 50
DMX Connectors : 3-pin XLR
Pan and Tilt : 540°/180°

Colors :

moving head : 9 + open, split colors, continuous scroll at variable speeds

Gobos :

moving head : 9 + open, continuous scroll at variable speeds

Light Source :

pars : 3 LEDs hex color RGBAW+UV 6 W 2 A , 50,000 hours life expectancy
strobe : 4 LEDs cool white 5 W 1.2 A , 50,000 hours life expectancy
derby : 8 LEDs 2 red, 2 green, 2 blue, 2 white 5 W 2 A , 50,000 hours life expectancy
Moving head 1 LED cool white 32 W, 3 A , 50,000 hours life expectancy
Laser 638 nm/30mW red laser diode, 520 nm/20 mW green laser diode, 450 nm/ 50 mW blue laser diode
Strobe Rate : 0 to 30 Hz

Beam Angle :

Moving head : 17°
Pars : 22°
Strobe : 30°

Field Angle :

Pars : 33°
Strobe : 62°

Coverage Angle :

Derby : 131°
Laser : 93°
Fits Tripod Size : 5 in 37.4 mm

Illuminance :

Pars : 1,205 lux 2 m per par
Moving head : 5,140 lux 2 m per head
Strobe : 130 lux 2 m
Power Linking : 7 units 120 V; 12 units 230 V
Input Voltage : 100 to 240 VAC, 50/60 Hz auto-ranging

Power and Current :

81 W, 1.1 A 120 V, 60 Hz
79 W, 0.6 A 230 V, 50 Hz
248 W, 1.8 A 230 V, 50 Hz
Approvals : CE, UKCA, RoHS, FCC, FDA
Stand Height : 8 ft to 8.3 ft 1.5 to 2.5 m
Footswitch Operating Frequency : 433 MHz
Footswitch Max Unobstructed Distance : 100 ft 30.5 m
Footswitch Battery : 9 V alkaline

SKU	CHA-GIGBARMOVEPLUSILS-B
Brand	Chauvet DJ
Weight	51.800000
