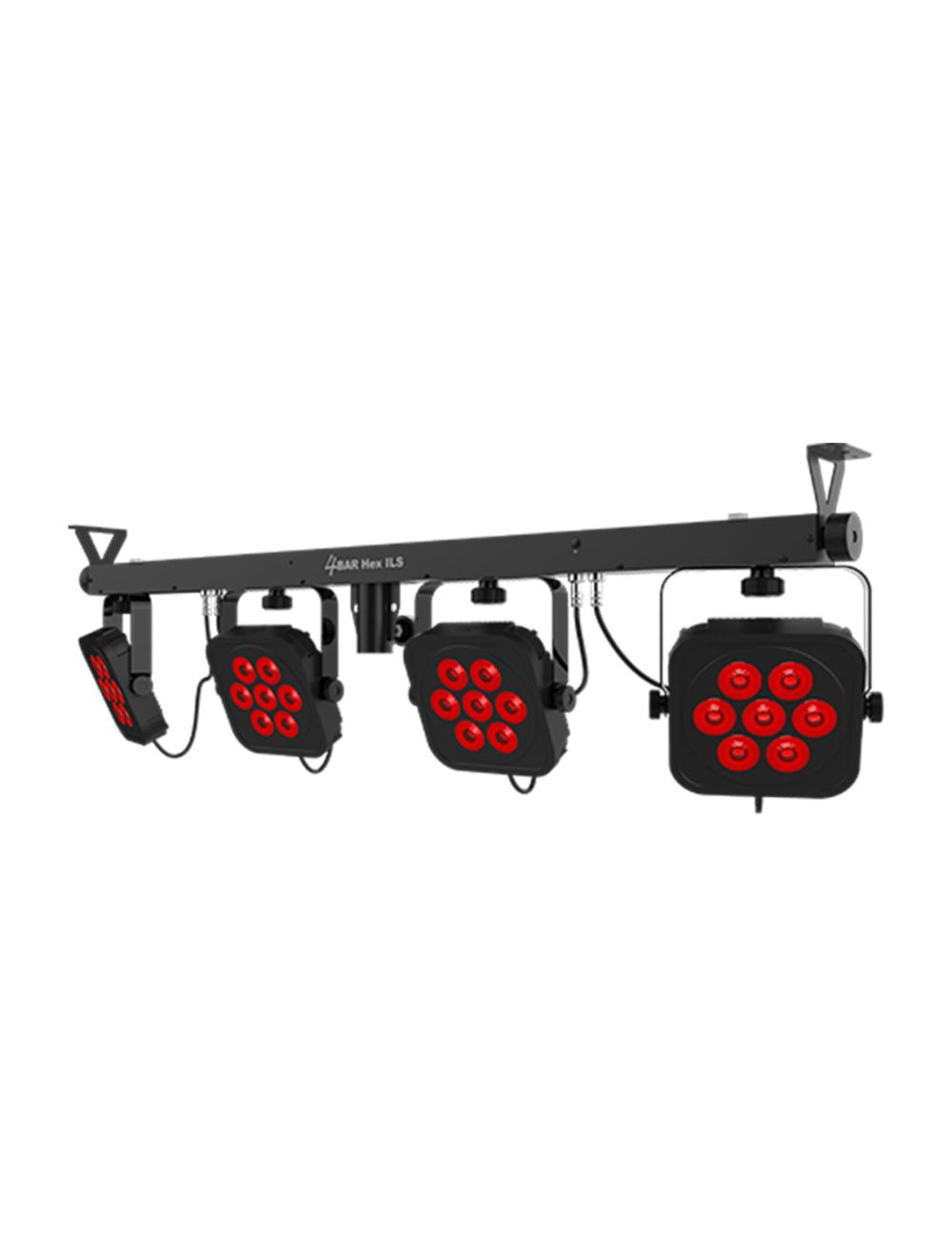

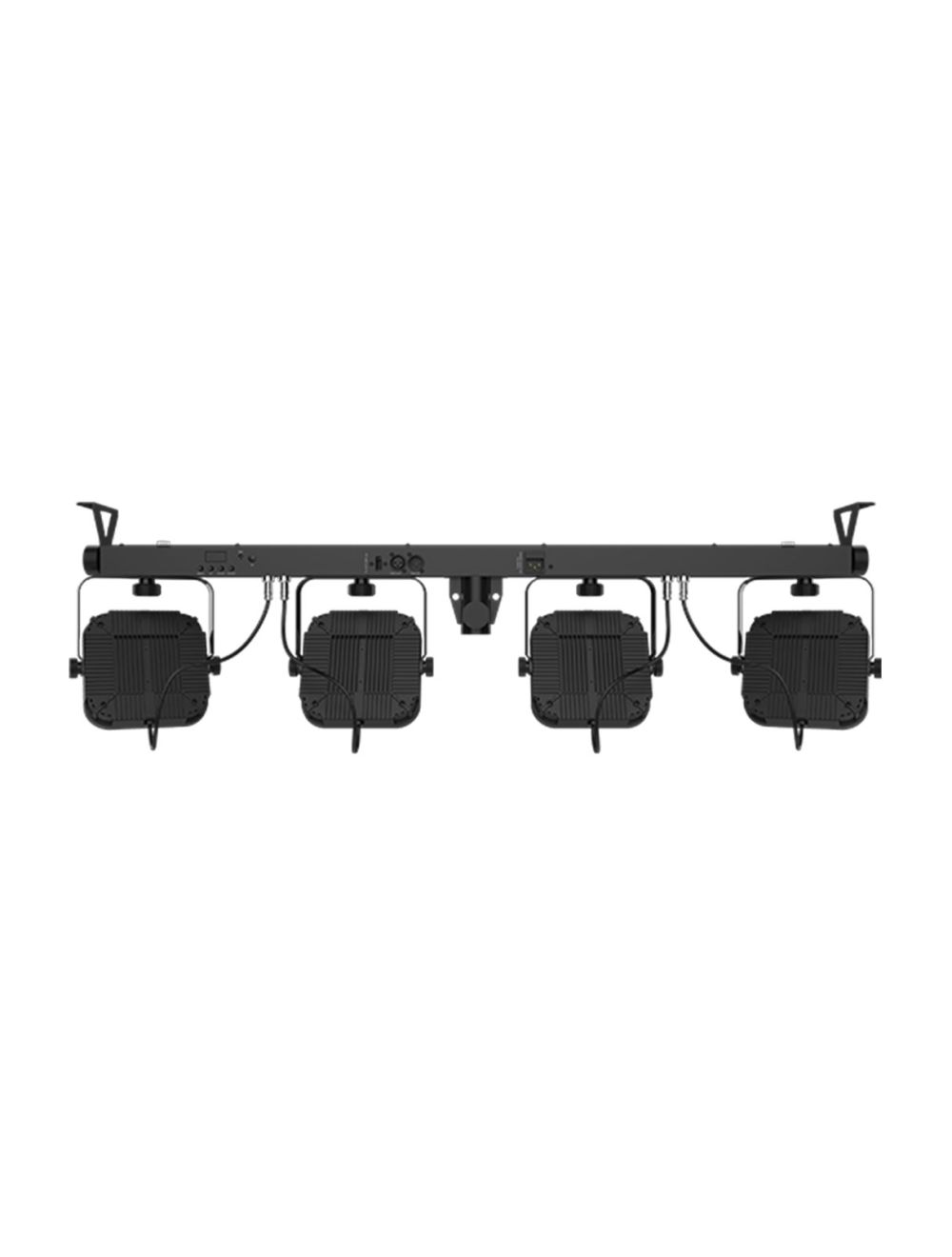

CHAUVET DJ 4BAR Hex ILS 4x RGBAW+UV LED Wash Light Stand

• Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
• Update the unit’s software from the built-in USB port
• Out-of-the-box wireless control with included footswitch or optional IRC-6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to the truss using built-in bolts

DMX Channels

• 6, 8, or 27

DMX Connectors

• 3-pin XL

RMax Unobstructed Distance (foot switch)

• 100 ft (30.5 m)

Light Source

• 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy

Strobe Rate

• 0 to 20 Hz

Beam Angle

• 16°

Field Angle

• 25°

Illuminance

• 1570 lux @ 2 m (per pod)

Input Voltage

• 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current

• 97 W, 1.3 A @ 120 V, 60 Hz
• '94 W, 0.7 A @ 230 V, 50 Hz

Size

• 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)

Approvals

• CE, RoHS, UKCA

Footswitch battery

• 9 V

Operating Frequency (D-Fi)

• 2.412 to 2.484 GHz

Operating Frequency (foot switch)

• 433 MHz

Stand Height

• 7 ft 4 in (2.2 m)

Fits Tripod Sizes

• 1.5 in (36.80 mm)

Bracket Mounting Hole

• M10 (1.5 mm pitch)

Size (Controller)

• 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)

Optional Controllers

• IRC-6, ILS Command

What's Included

• 4Bar Hex ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
