Celestion PULSEXL12.20 12

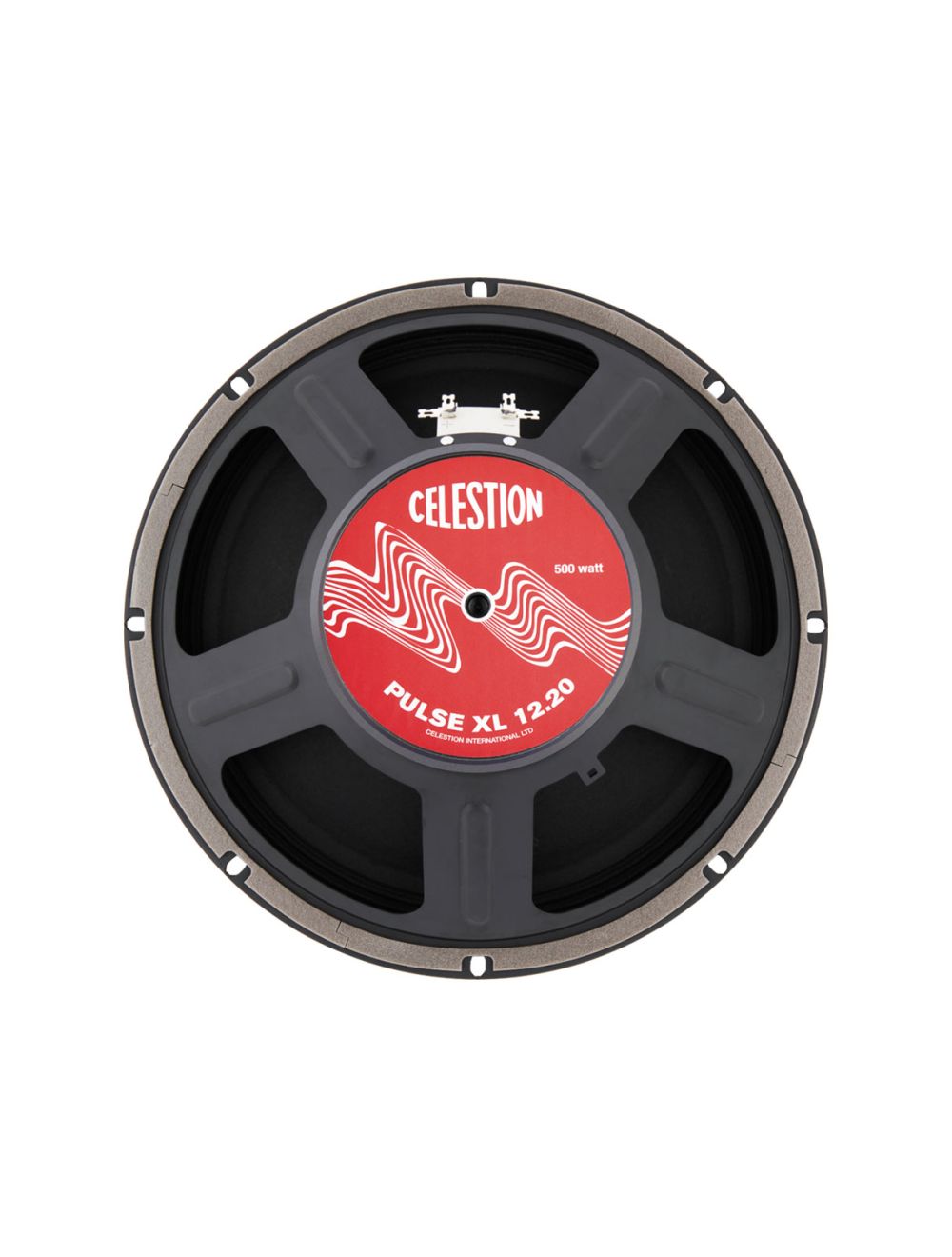

Celestion PULSEXL12.20 12" Bass Guitar Speaker - 8 ohm

Celestion PULSEXL12.20 12" Bass Guitar Speaker - 8 ohm

12" Replacement Bass Amp Speaker (8-ohm)
$124.99
Out of stock
SKU
CLS-T6655

An increasingly popular choice of speaker format for bass players, this 12-inch driver delivers a rock-solid performance with plenty of warmth and richness in the low end, a detailed and expressive mid-band, and a super-smooth treble, courtesy of a felt dust dome. Expect plenty of punch from singles or pairs, or a wall of classic bass tone in 4×12 configurations.

  • Nominal diameter : 305mm / 12in
  • Power rating : 500W
  • Rated impedance : 8Ω
  • Sensitivity : 94dB
  • Magnet type : Ferrite
  • Voice coil diameter : 2in / 50mm
  • Voice coil material : Copper
  • Former material : Polyimide
  • Cone material : Cellulose
  • Surround material : Triple roll, cloth sealed
  • Frequency range : 35-2200Hz
  • Gap height (Hg) : 8mm / 0.31in
  • VC winding height (Hvc) : 20.5mm / 0.8in

Parameters

  • Sd : 530.9cm2 / 82.29in2
  • Fs : 35.1Hz
  • Mms : 53.55g / 1.88oz
  • Qms : 6.087
  • Qes : 0.548
  • Qts : 0.503
  • Re : 5.8Ω
  • Vas : 153.3l / 5.4ft3
  • BI : 11.21Tm
  • Cms : 0.384mm/N
  • Le (at 1kHz) : 0.31mH
  • Xmax : 8.25mm / 0.32"

Mounting Information

  • Cut-out diameter : 281.4mm / 11.08in
  • Diameter : 311.4mm / 12.26in
  • Mounting hole dimensions : 6.4mm / 0.25in Ø
  • Mounting hole PCD : 297.5mm / 11.7in
  • Number of mounting holes : 8
  • Chassis depth (inc gasket) : 91mm / 10.74in
  • Magnet depth : 36mm / 1.42in
  • Overall depth : 135mm / 5.3in
SKU CLS-T6655
Brand Celestion
Weight 10.000000
