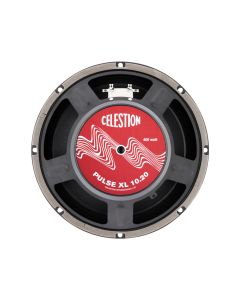

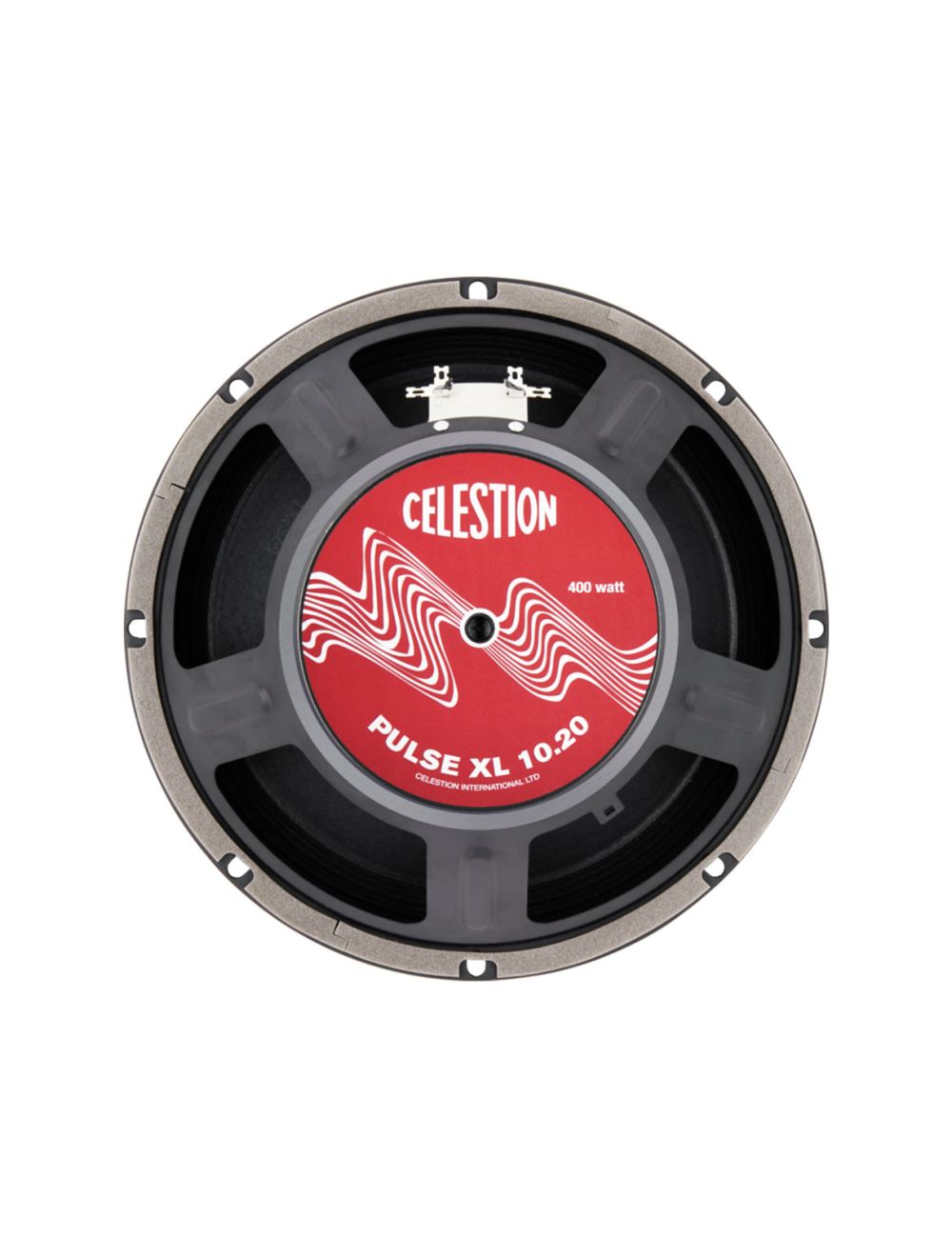

Celestion PULSEXL10.20 10" Bass Guitar Speaker - 8 ohm - Open Box

Celestion PULSEXL10.20 10" Bass Guitar Speaker - 8 ohm - Open Box

10" Replacement Bass Amp Speaker (8-ohm)
was $99.99 Special Price $94.99
In stock
SKU
CLS-T6654-B

Great by itself and even better in a 4×10, the PULSE XL 10.20 provides more bass than you’d ever imagine from a 10-inch speaker, along with the speed of response that makes small diameter drivers so popular with bass players that want to cut through the mix. A fabric dust dome contributes to a particularly articulate treble response.

  • Nominal diameter : 254mm / 10in
  • Power rating : 400W
  • Rated impedance : 8O
  • Sensitivity : 92dB
  • Magnet type : Ferrite
  • Voice coil diameter : 2in / 50mm
  • Voice coil material : Copper
  • Former material : Polyimide
  • Cone material : Cellulose
  • Surround material : Triple roll, cloth sealed
  • Frequency range : 40-2200Hz
  • Gap height (Hg) : 8mm / 0.3in
  • VC winding height (Hvc) : 20.5mm / 0.8in

Parameters

  • Sd : 346.4cm2 / 53.69in2
  • Fs : 37.5Hz
  • Mms : 39.8g / 1.4oz
  • Qms : 6.678
  • Qes : 0.493
  • Qts : 0.459
  • Re : 5.8O
  • Vas : 76.92l / 2.7ft3
  • BI : 10.51Tm
  • Cms : 0.453mm/N
  • Le (at 1kHz) : 1.2mH
  • Xmax : 8.25mm / 0.32in

Mounting Information

  • Cut-out diameter : 233.2mm / 9.18in
  • Diameter : 256mm / 10.1in
  • Mounting hole dimensions : 6.4mm / 0.25in Ø
  • Mounting hole PCD : 245.4mm / 9.66in
  • Number of mounting holes : 8
  • Chassis depth (inc gasket) : 79mm / 9.33in
  • Magnet depth : 36mm / 1.42in
  • Overall depth : 108mm / 4.25in
SKU CLS-T6654-B
Brand Celestion
Weight 7.800000
