Celestion G12H-75 Creamback 12

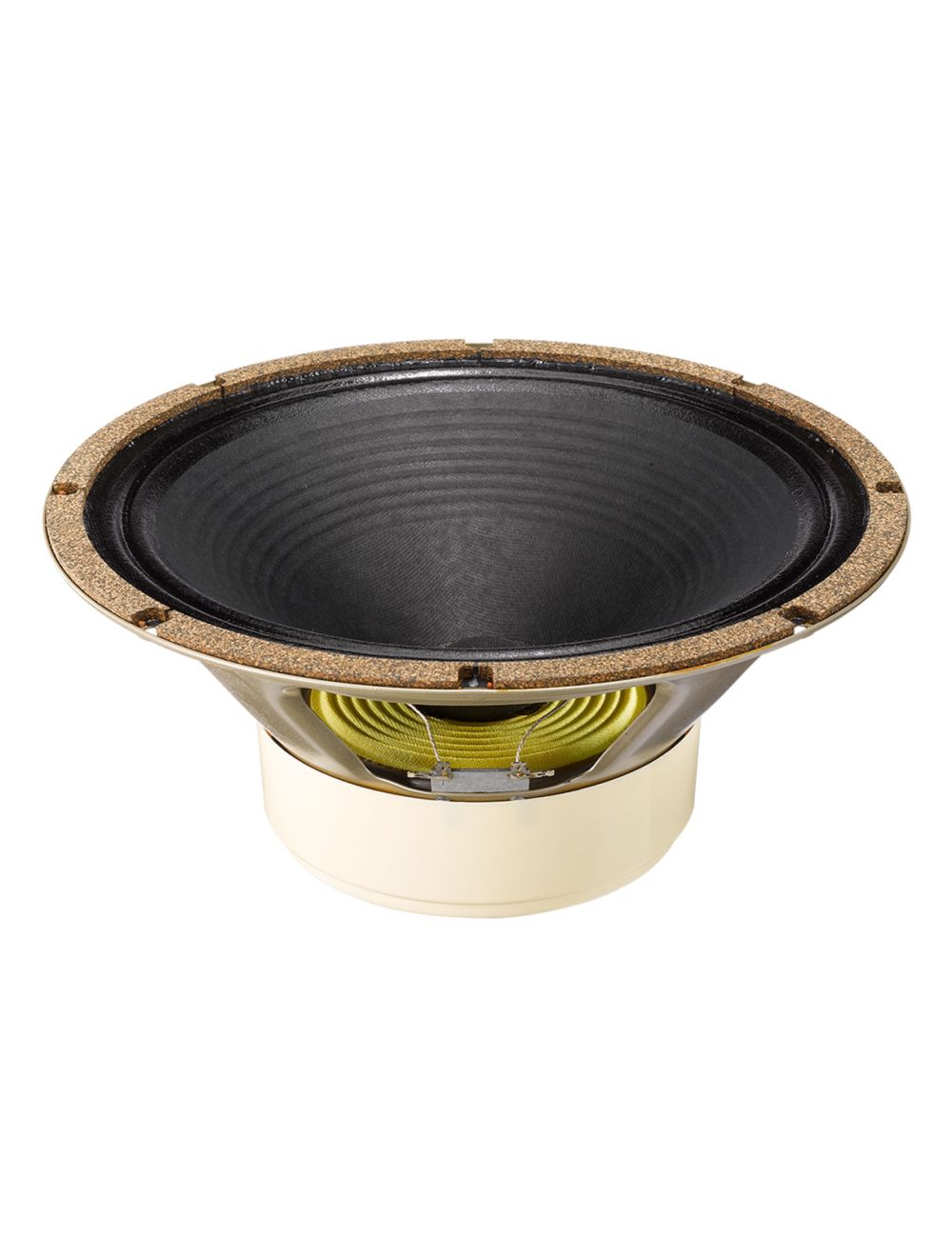

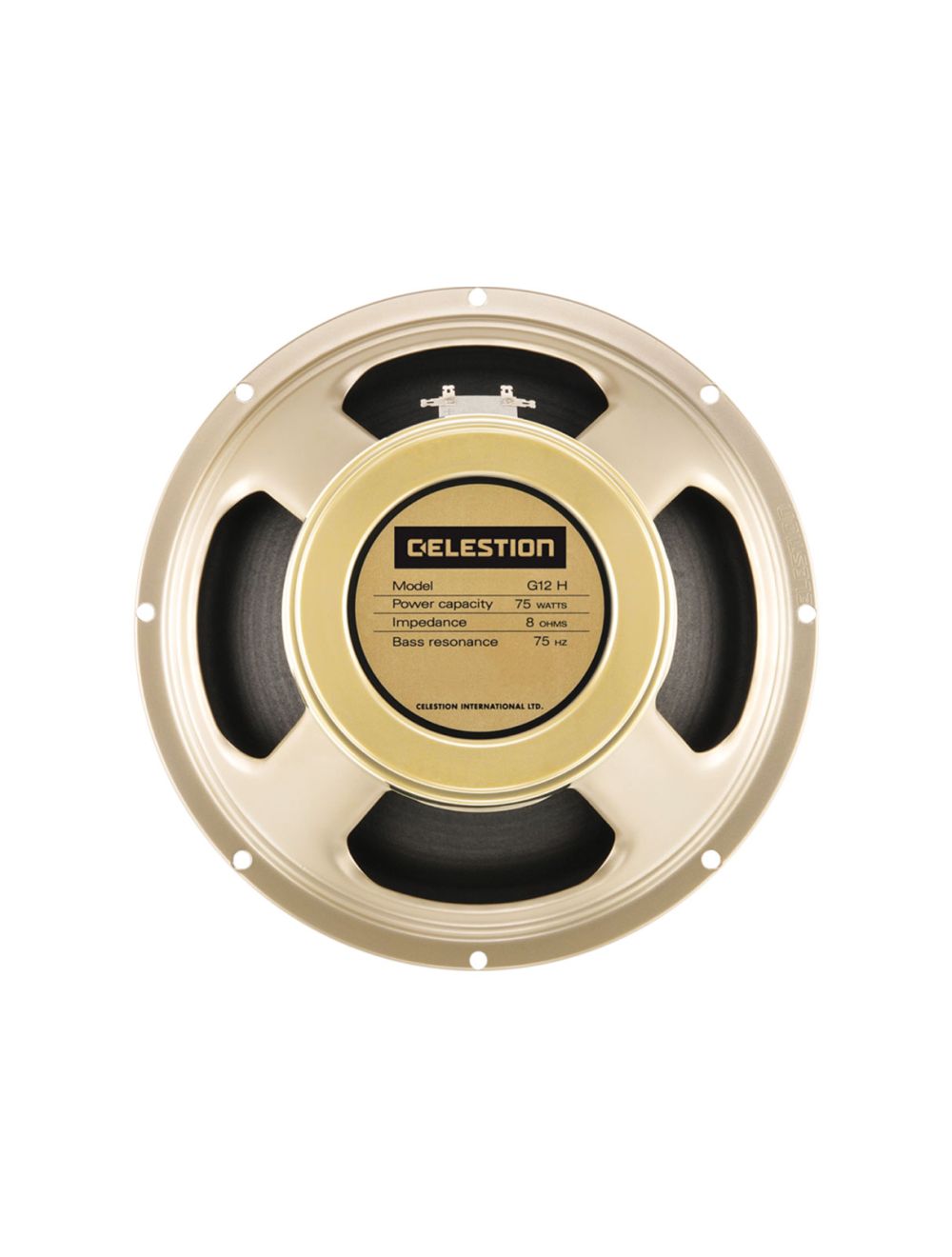

Celestion G12H-75 Creamback 12" Guitar Speaker (Ceramic) - 8 ohm - Open Box

Celestion G12H-75 Creamback 12" Guitar Speaker (Ceramic) - 8 ohm - Open Box

12" Replacement Guitar Amp Speaker (8-ohm)
was $189.00 Special Price $159.99
In stock
SKU
CLS-T5890-B

Back in the late 60s the G12H was created by fixing an ‘H’ type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an ‘H’ magnet to the G12M-65 Creamback to create a guitar speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has an unmistakable G12H tone with a tighter low end than the G12M-65 Creamback and a punchier more dynamic high end. The H magnet brings additional focus body and girth to the Creamback tone. It thickens single notes resulting in a highly articulate vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4×12 cab!

  • Nominal diameter : 305mm / 12in
  • Power rating : 75W
  • Rated impedance : 8O or 16O
  • Sensitivity : 100dB
  • Chassis type : Pressed steel
  • Magnet type : Ceramic
  • Voice coil diameter : 1.75in / 44mm
  • Voice coil material : Round copper
  • Frequency range : 70-5000Hz
  • Resonance frequency, Fs : 75Hz
  • DC resistance, Re : 6.37? and 12.5?

Mounting Information

  • Cut-out diameter : 283mm / 11.1in
  • Diameter : 309mm / 12.2in
  • Magnet structure diameter : 168mm / 6.6in
  • Mounting hole dimensions : 7.9mm / 0.31in Ø
  • Mounting hole PCD : 297mm / 11.7in
  • Number of mounting holes : 8
  • Chassis depth (inc gasket) : 94mm / 3.67in
  • Magnet depth : 44mm / 1.73in
  • Overall depth : 138mm / 5.4in
SKU CLS-T5890-B
Brand Celestion
Weight 12.500000
