Celestion G10 Creamback 10

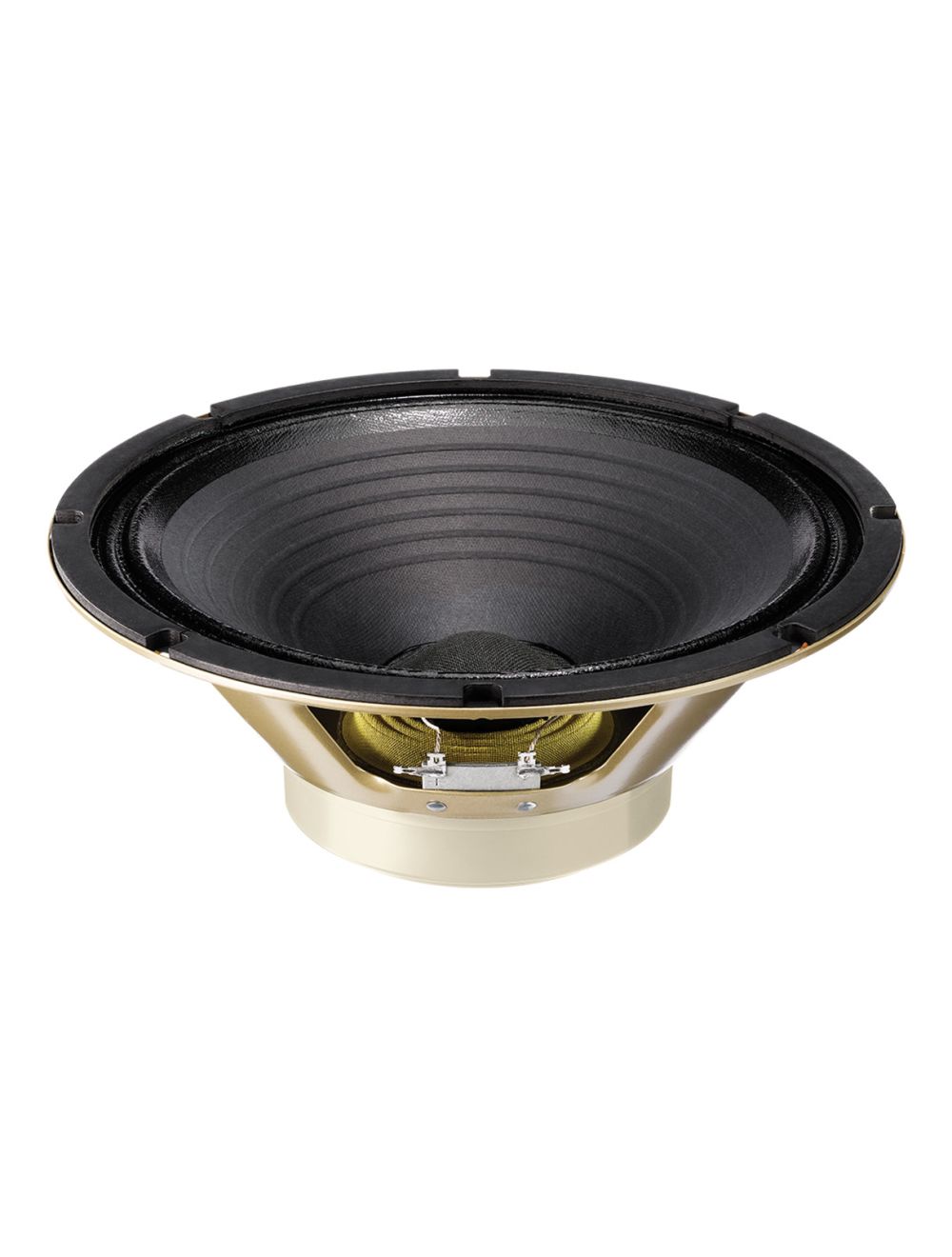

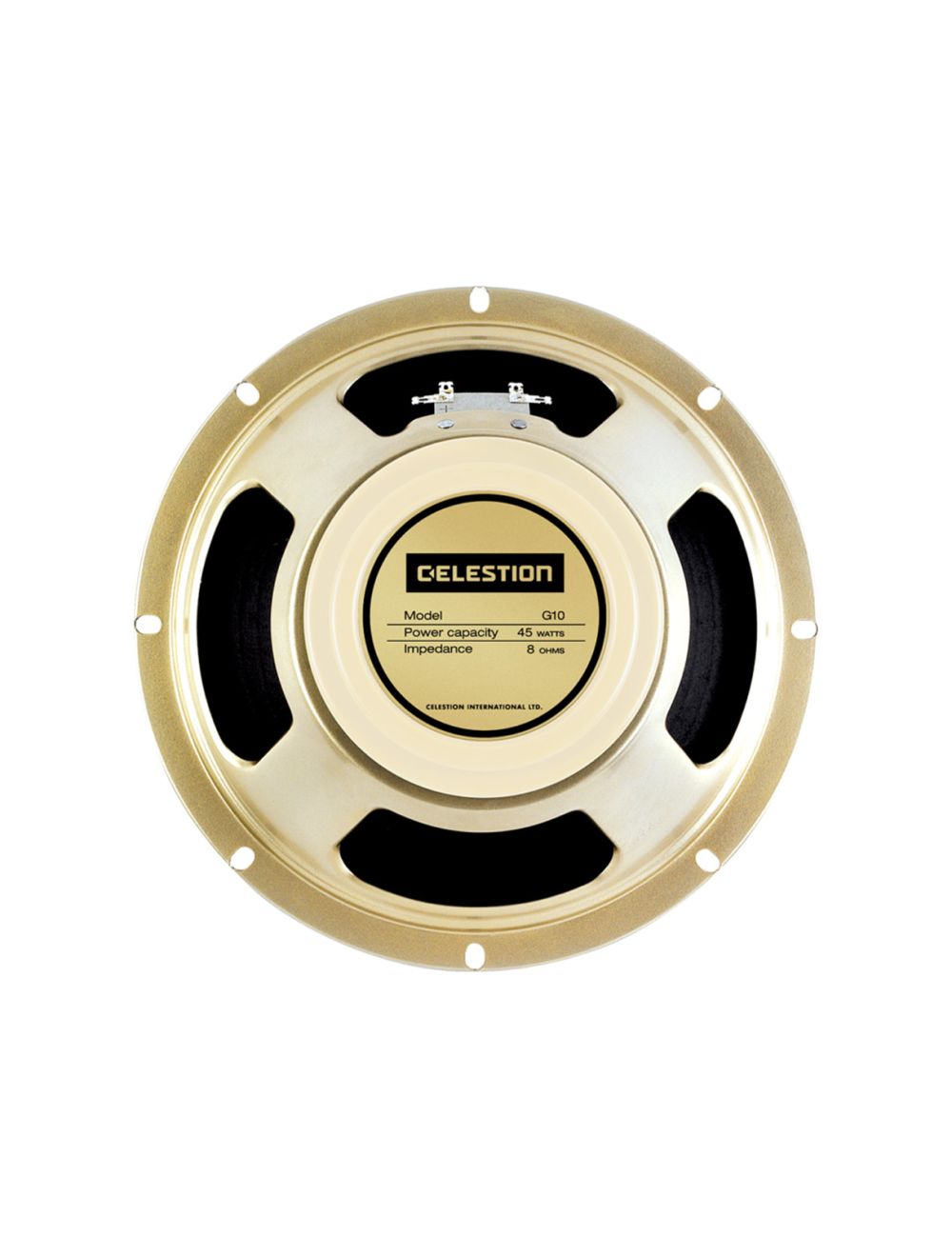

Celestion G10 Creamback 10" Guitar Speaker w/Ferrite Magnet - 8 ohm

Celestion G10 Creamback 10" Guitar Speaker w/Ferrite Magnet - 8 ohm

10" Replacement Guitar Speaker w/Ferrite Magnet - 8 ohm
$125.00
Out of stock
SKU
CLS-T6380

10-inch guitar speaker with ceramic magnet and 1.75-inch voice coil

The new G10 Creamback packs everything guitar players love about Creamback speakers into a 10-inch format. Hand-built in the UK using the same production methods and materials developed for the 12-inch models, the G10 Creamback uses a ceramic magnet and a 1.75-inch voice coil to deliver 45-watt power handling. With all the punch and dynamics typical of a 10 its overall tone is warm expressive detailed and well-balanced.

  • Nominal diameter : 254mm / 10in
  • Power rating : 45W
  • Rated impedance : 8Ω
  • Sensitivity : 96dB
  • Chassis type : Pressed steel
  • Magnet type : Ceramic
  • Voice coil diameter : 1.75in / 44mm
  • Voice coil material : Round copper
  • Frequency range : 95-5500Hz
  • Resonance frequency, Fs : 98Hz
  • DC resistance, Re : 6.4Ω or 12.05Ω

Mounting Information

  • Cut-out diameter : 229mm / 9.0in
  • Diameter : 254mm / 10.0in
  • Magnet structure diameter : 124mm / 4.9in
  • Mounting hole dimensions : 6.5x11mm / 0.25x0.43in
  • Mounting hole PCD : 245mm / 9.6in
  • Number of mounting holes : 8
  • Chassis depth (inc gasket) : 73mm / 2.86in
  • Magnet depth : 29mm / 1.14in
  • Overall depth : 102mm / 4.0in
SKU CLS-T6380
Brand Celestion
Weight 5.500000
