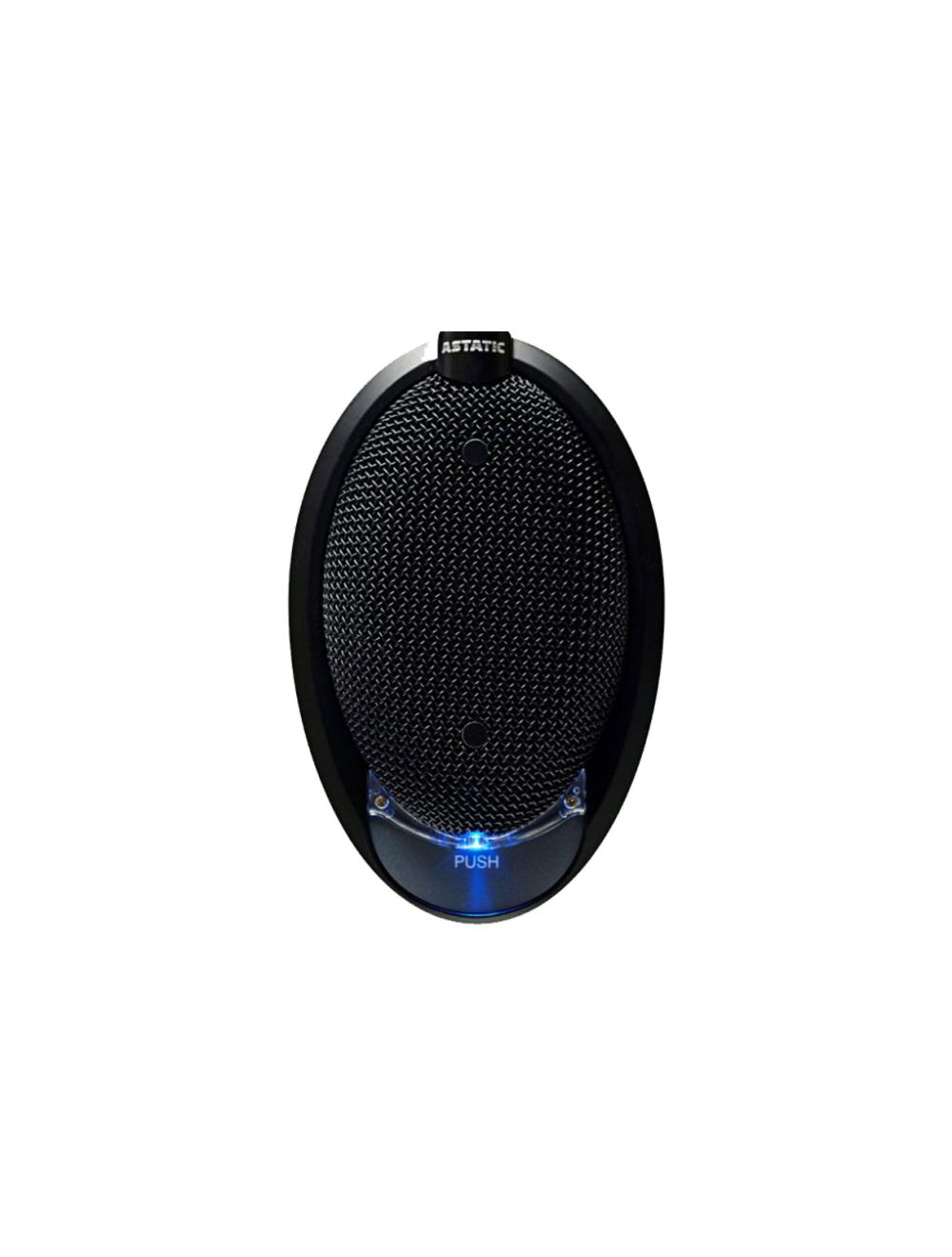

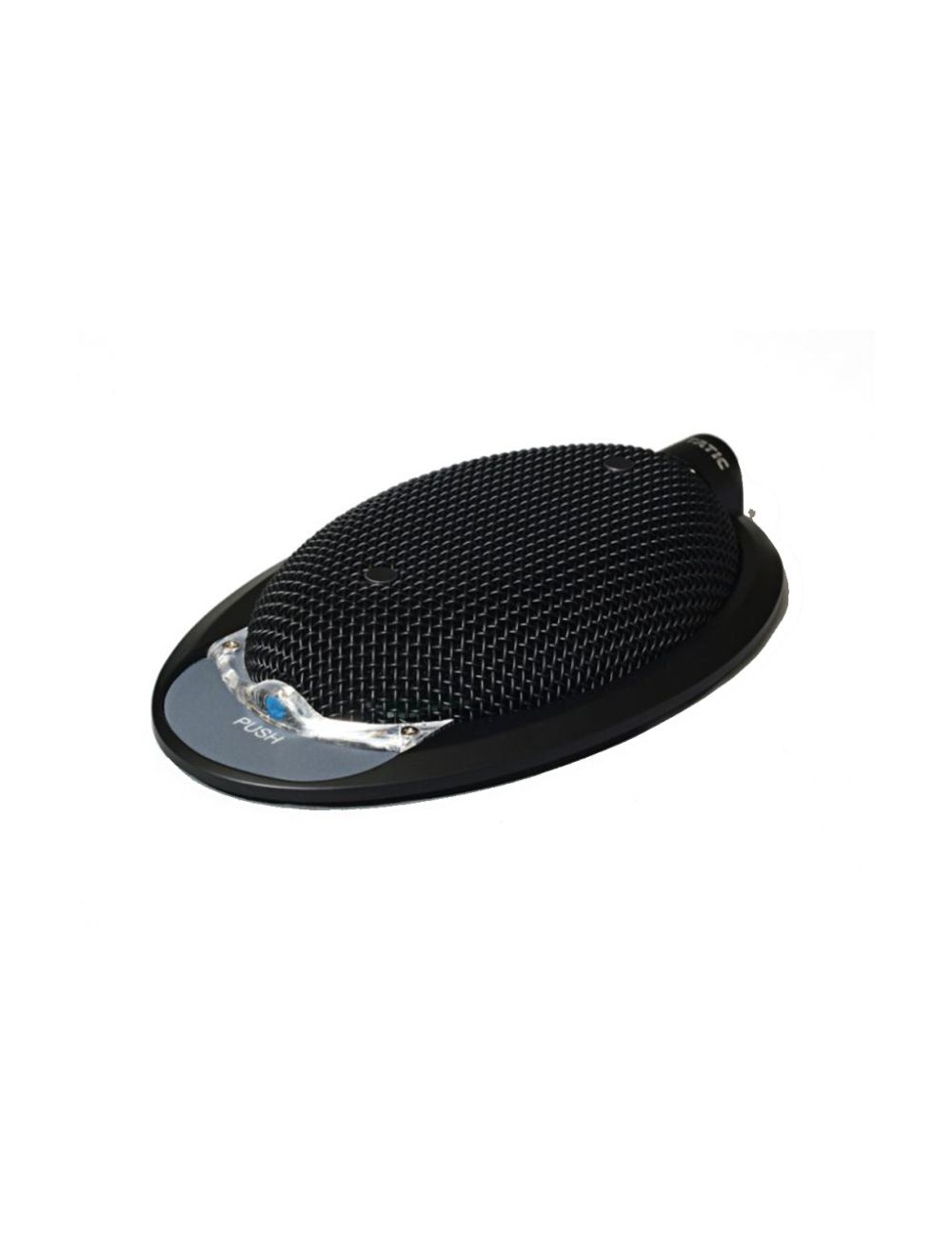

CAD 930VPL Variable Polar Pattern - Boundary Mic

CAD 930VPL Variable Polar Pattern - Boundary Mic

CAD 930VPL Variable Polar Pattern - Boundary Mic

Assignable soft touch switch and LED light - 5 Pin
$239.00
Out of stock
SKU
CAD-930VPL

Now one boundary mic can suit almost any challenge when tasked to perform on altars, conference tables and stage floors or in media production. Because the Astatic 930VPL has variable pick-up pattern selection it can shorten the list of products an audio system designer requires when boundary mics are specified. From omni-directional to cardioid, hypercardioid, figure-of-eight and all tight or wide directional pick-up patterns in between, an installer or designer can precisely tailor the mic’s pick-up pattern for the best performance depending on the application or environment. Selectable power-up on or power-up muted modes using dip switches. Features the RF Resistant Architecture, programmable feather touch membrane with LED, contact closure in and out interface, and a bottom exit cable option.

  • Operating Principal : Permanently-Biased Condenser
  • Polar Pattern : Continuously Variable
  • Frequency Response : 90Hz – 17KHz
  • Sensitivity : -32dBV (25 mV) @ 1 Pa
  • Impedance : 120 ohms
  • Max SPL : 120dB
  • Self Noise : 29dBA
  • Power Requirements : P12, P24, P48, 4mA
SKU CAD-930VPL
Brand CAD
Weight 1.000000
