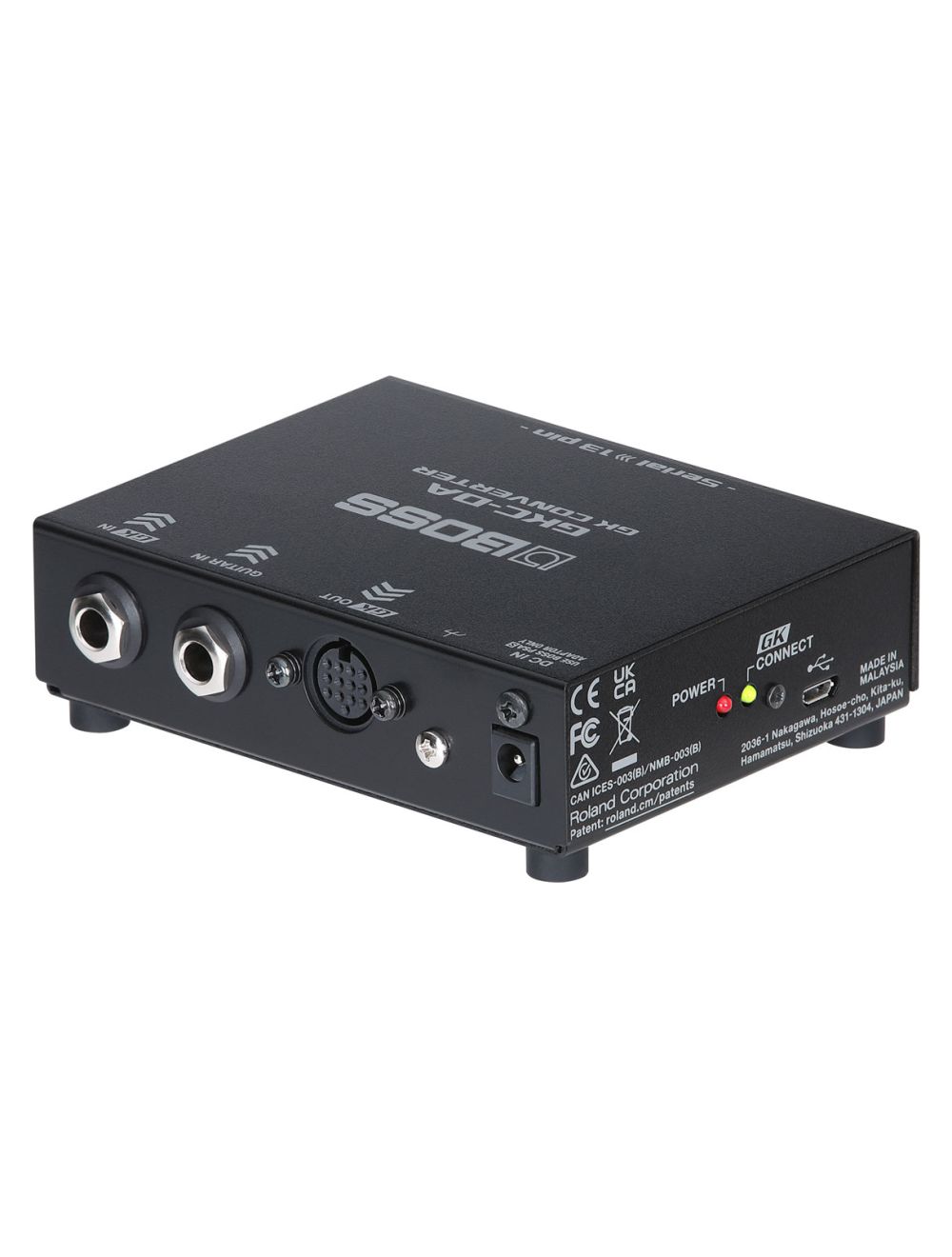

Boss GKC-DA GK Digital to Analog Converter

Drive BOSS and Roland 13-Pin GK Devices from the Next-Generation Serial GK Interface

The latest BOSS guitar synthesizer products feature the Serial GK digital interface, a newly developed connection method that delivers evolved performance over the analog 13-pin GK interface used in earlier BOSS and Roland guitar synth and modeling products. The GKC-DA GK Converter allows you to drive a 13-pin GK device such as the BOSS SY-1000 or GP-10 using the Serial GK output on a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer.

Converts the Serial GK digital interface to the classic 13-pin analog GK interface
Serial GK input and 13-pin GK output
Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output
Compact and rugged metal design

Connector

GK IN jack : 1/4-inch TRS phone type (for BGK cable only)
GK Out connector : 13 pins DIN type
Guitar IN jack : 1/4-inch phone type
DC IN jack
USB port : USB Micro-B (program update only)
Nominal Input Level : Guitar IN: -10 dBu
Maximum Input Level : Guitar IN: +16 dBu
Input Impedance : Guitar IN: 1 M ohm

Indicators

Power indicator
Gk Connect indicator
Current Draw : 390 mA
Power Supply : AC adaptor

Accessories

AC adaptor
Owner’s Manual
Leaflet “USING THE UNIT SAFELY“
Options (sold separately) : Serial GK cable : BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)
Width : 115mm 4-17/32 inches
Depth : 92mm 3-5/8 inches
Height : 36mm 1-7/16 inches

SKU	BOS-GKCDA
Brand	Boss
Weight	1.500000
